LONGWELL 200mm AC Forward Curved Centrifugal Blower, Forward Curved Blower Fan, 110V – LWFA-200

Voltage 110v /220v
ISO / CE / UL / ETL Factory & Test Lab OEM / ODM ebm-papst alternative

$ 10

Specifications
Motor
AC Capacitor motor
Speed
4000rpm, 500RPM, 800RPM, 1500RPM, 600RPM, 900rpm, 2000RPM
Impeller
Galvanized Metal Sheet
Category: Tags: , ,
CategoryAC Forward Fans
TagsAC FanCentrifugal FanDuct Ventilation
Get a Fast Quote from an Engineer Send your airflow, static pressure & voltage — we reply within one working day with a matching model.
✓ 1-day reply ✓ STEP / CAD on request ✓ Factory-direct

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

Your specifications go straight to a sales engineer — no spam, never shared.

Prefer a datasheet?
Download Product Catalog (PDF)
Need the exact model with a measured or digitised curve? This page describes the AC Forward Fans range. The Fan Selector lists every LONGWELL AC forward-curved fan model with airflow, static pressure, power, noise, drawing and datasheet.
Search AC forward-curved fan models →
Have your duty point?

See every LONGWELL model whose P-Q curve covers it — margins, noise and power included. No login.

Library: Ø25–1,000 mm, single units up to about 52,000 m³/h — larger duties go straight to an engineer. Prefer to talk it through? Send your specs to an engineer

Description

Product descriptions from the supplier

Warning/Disclaimer

This product has acquired the relevant product qualification(s)/license(s) of certain applicable country/countries.

200mm AC 115V 230V single inlet ac forward centrifugal blower 3 Phase forward centrifugal fan

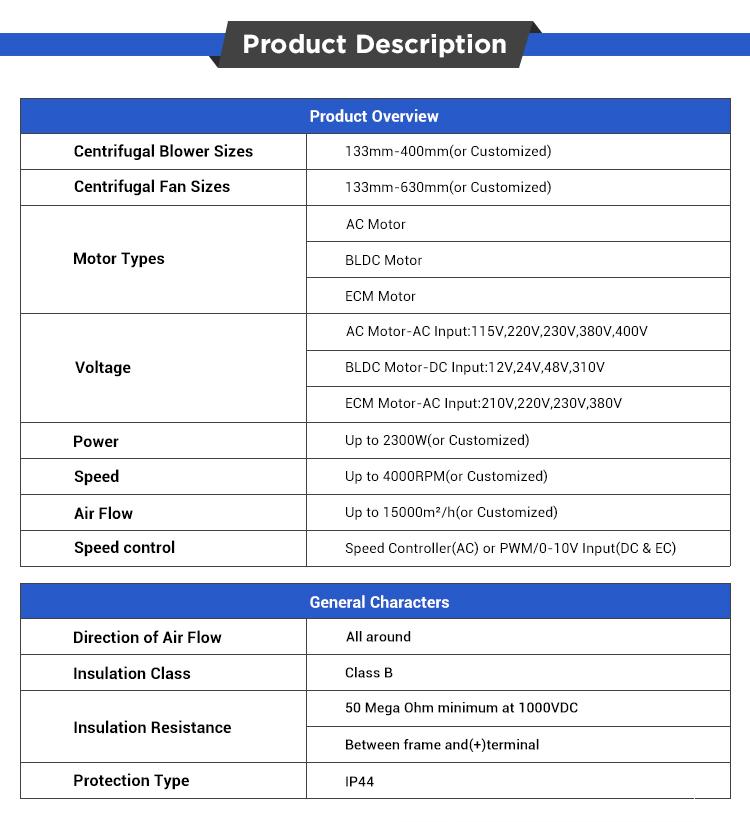

Product Description

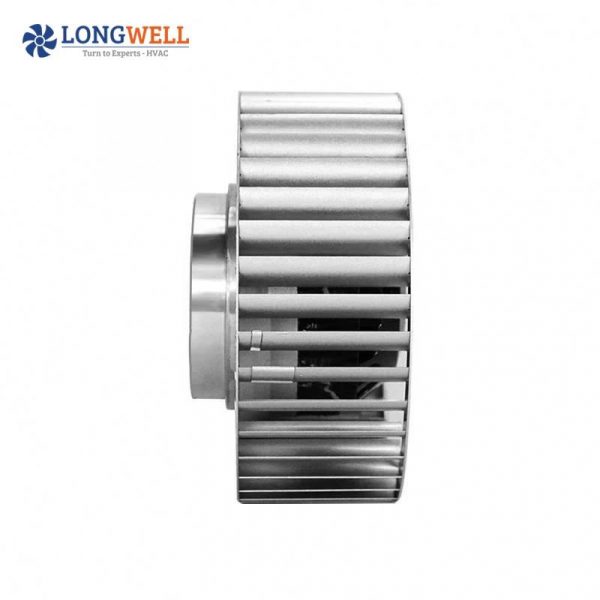

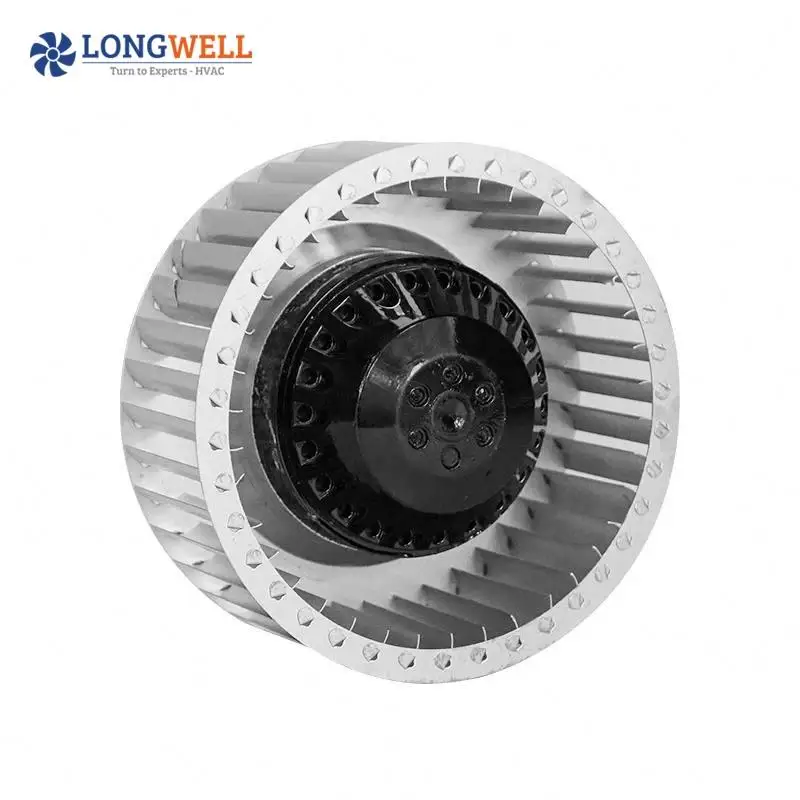

Model Number :   LWFA -200mm Forward curved centrifugal fan without housing
Motor Type :  AC Capacitor External rotor motor Blade Material :  Galvanized Metal
Operation Model :  S1 Insulation Class :  IP 44
Speed control:  1/2/3 speeds available Insulation Class:  F
Operation Temperature :  -25 ℃ ~ +60 ℃

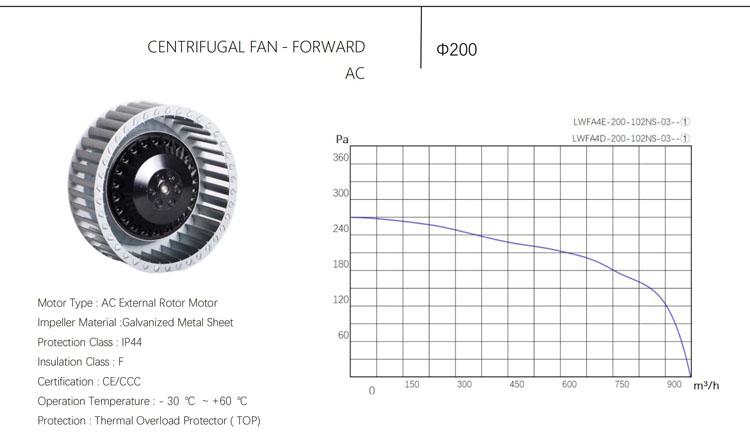

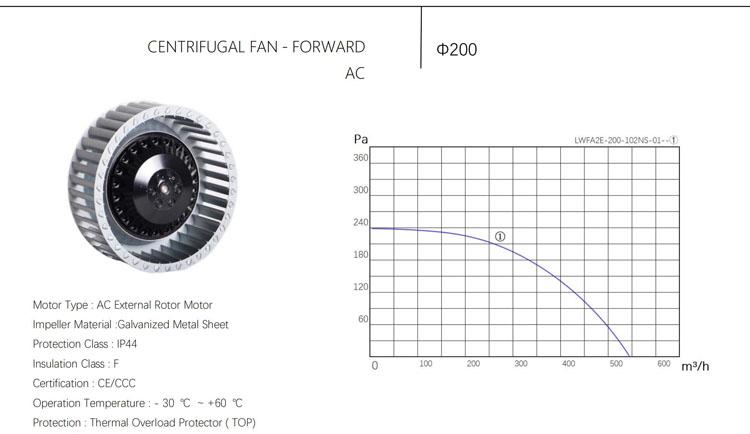

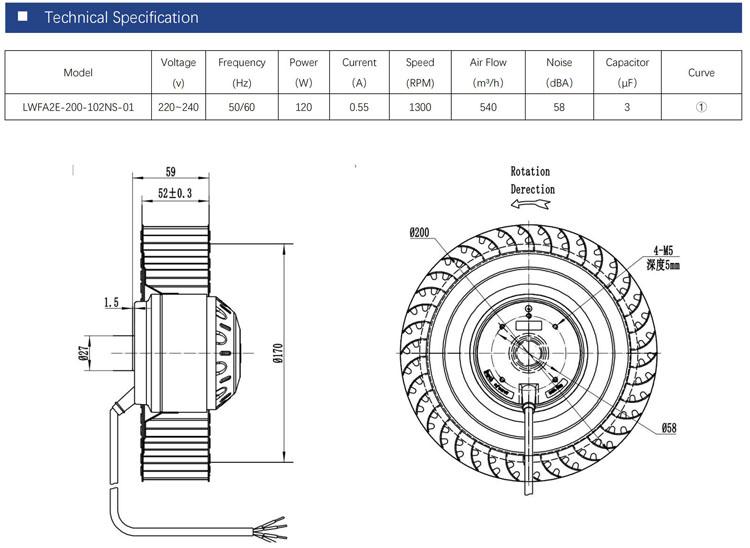

LWFA-200

LWFA-200(2)

LWFA-200(3)

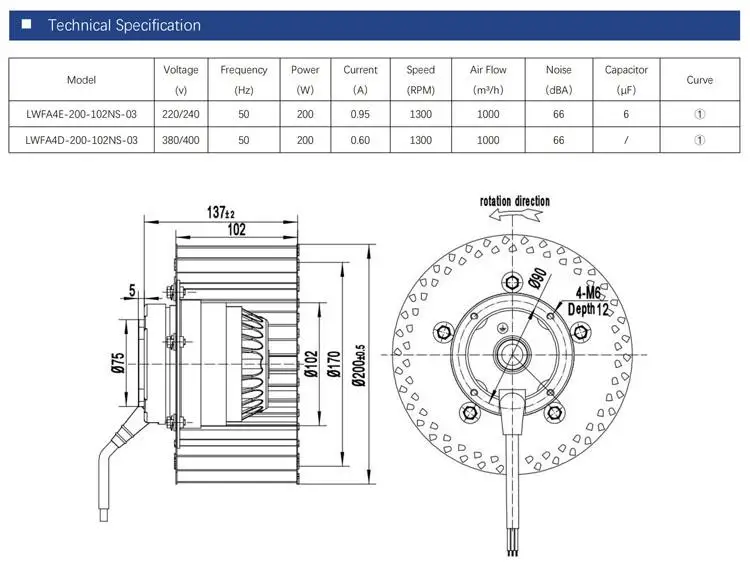

LWFA-200(4)

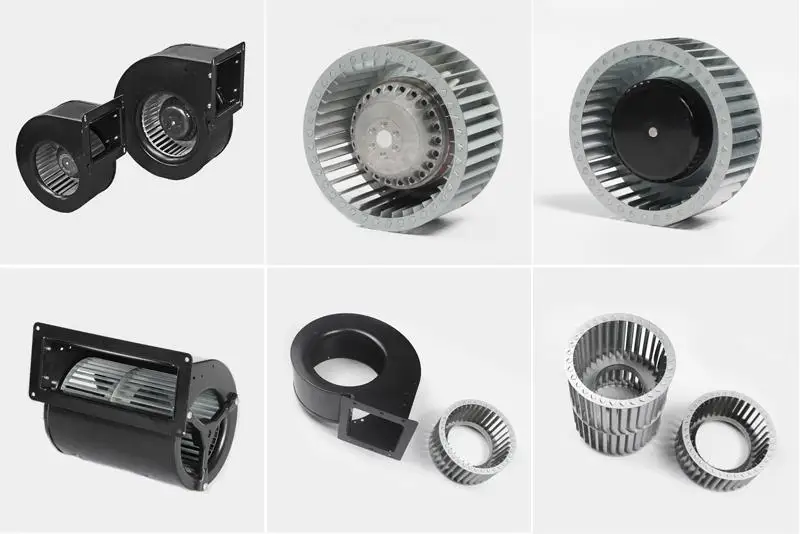

ac 230v centrifugal blower fan

backward (5)

backward (6)

Custom Service

 backward (8)

Product Application

 backward (9)

Certifications

backward (14)

Company Information

backward (17)

backward (18)

backward (15)

backward (16)

Contact information

backward (20)

Buying Guides

backward (19)

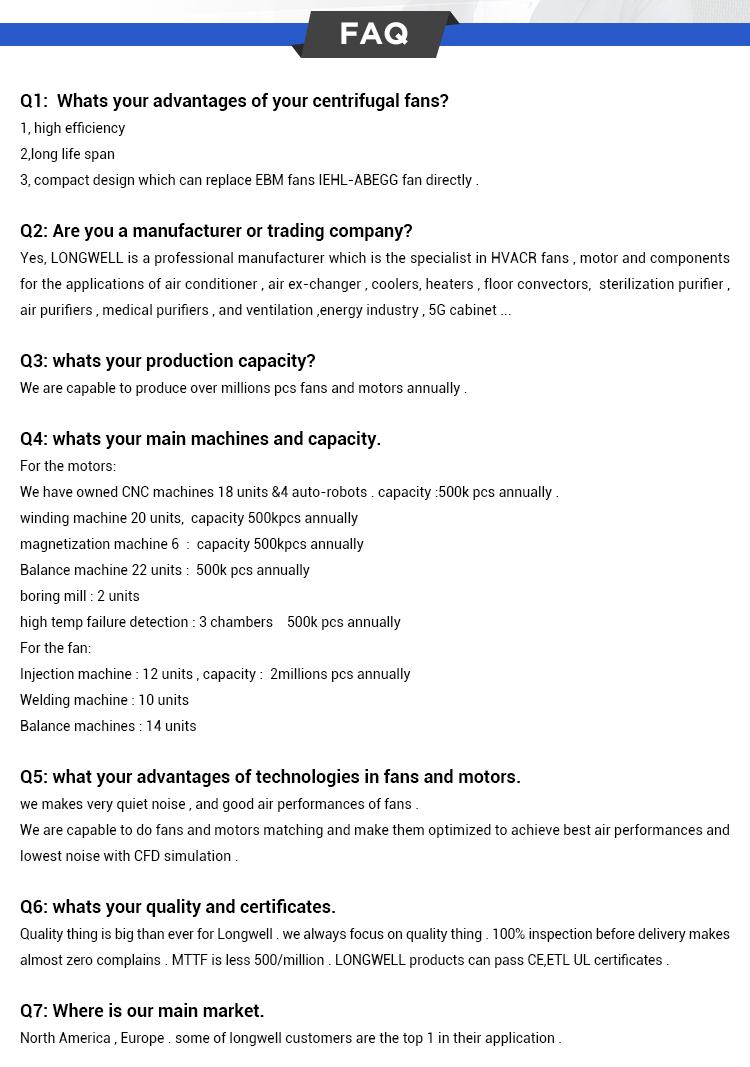

FAQ

backward (21)

backward (1)



Additional information

Voltage

110v /220v
speed

4000rpm, 500RPM, 800RPM, 1500RPM, 600RPM, 900rpm, 2000RPM
Blade Material

Galvanized Metal
customized support

OEM, ODM, OBM
mounting

Duct Fan
place of origin

Zhejiang, China
brand name

LONGWELL
model number

LWFA-200
warranty

1 Year
After-sales Service Provided

Video technical support
Material

STAINLESS STEEL, Plastic, aluminum alloy, Steel
Motor Type

AC Capacitor motor
Power input

115/230V
Impeller material

Galvanized Metal Sheet
Direction

Clockwise
Bearing

Ball Bearing
Amb,Temp

-25 to +60℃
Insulation

F
Protection Classs

IP44
Speed control

1 / 2 /3 Speed available
Protection

Thermal Overload Protector ( TOP)
Selling units

Single item
Single package size

30X30X20 cm
Single gross weight

5.000 kg
