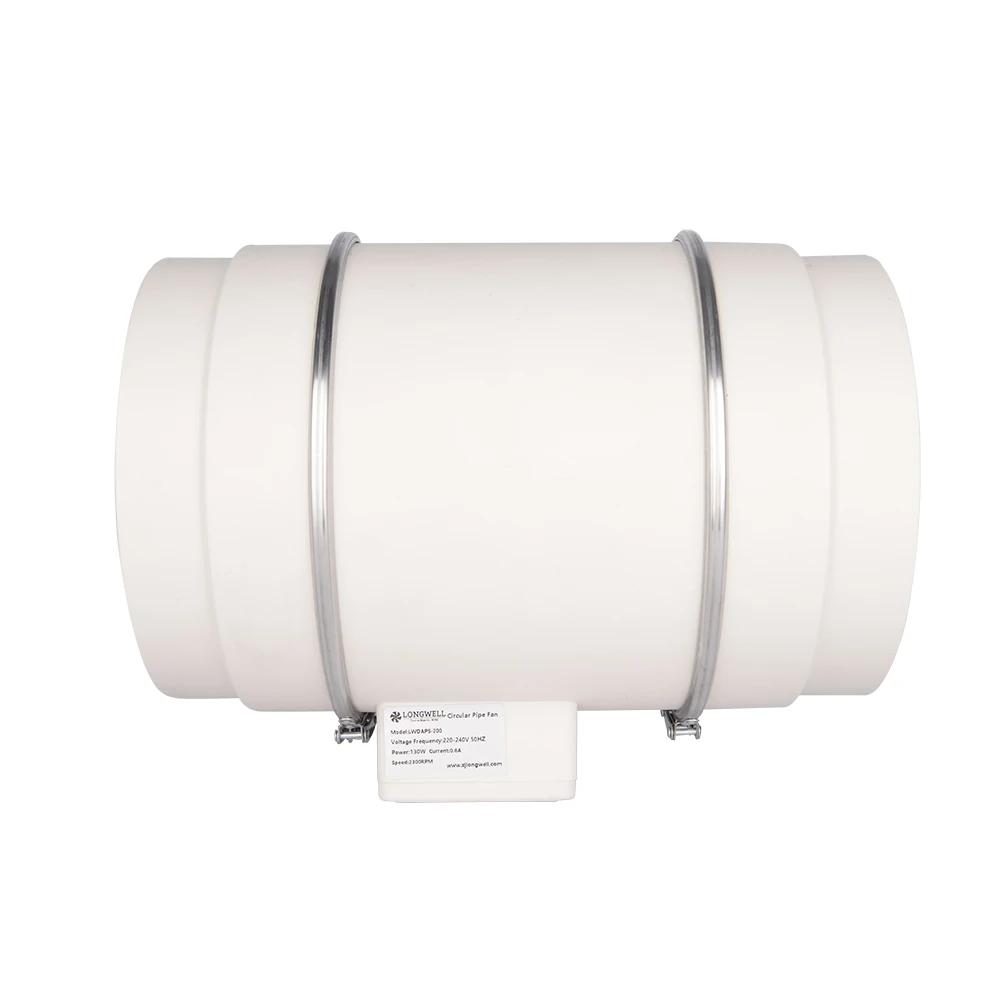

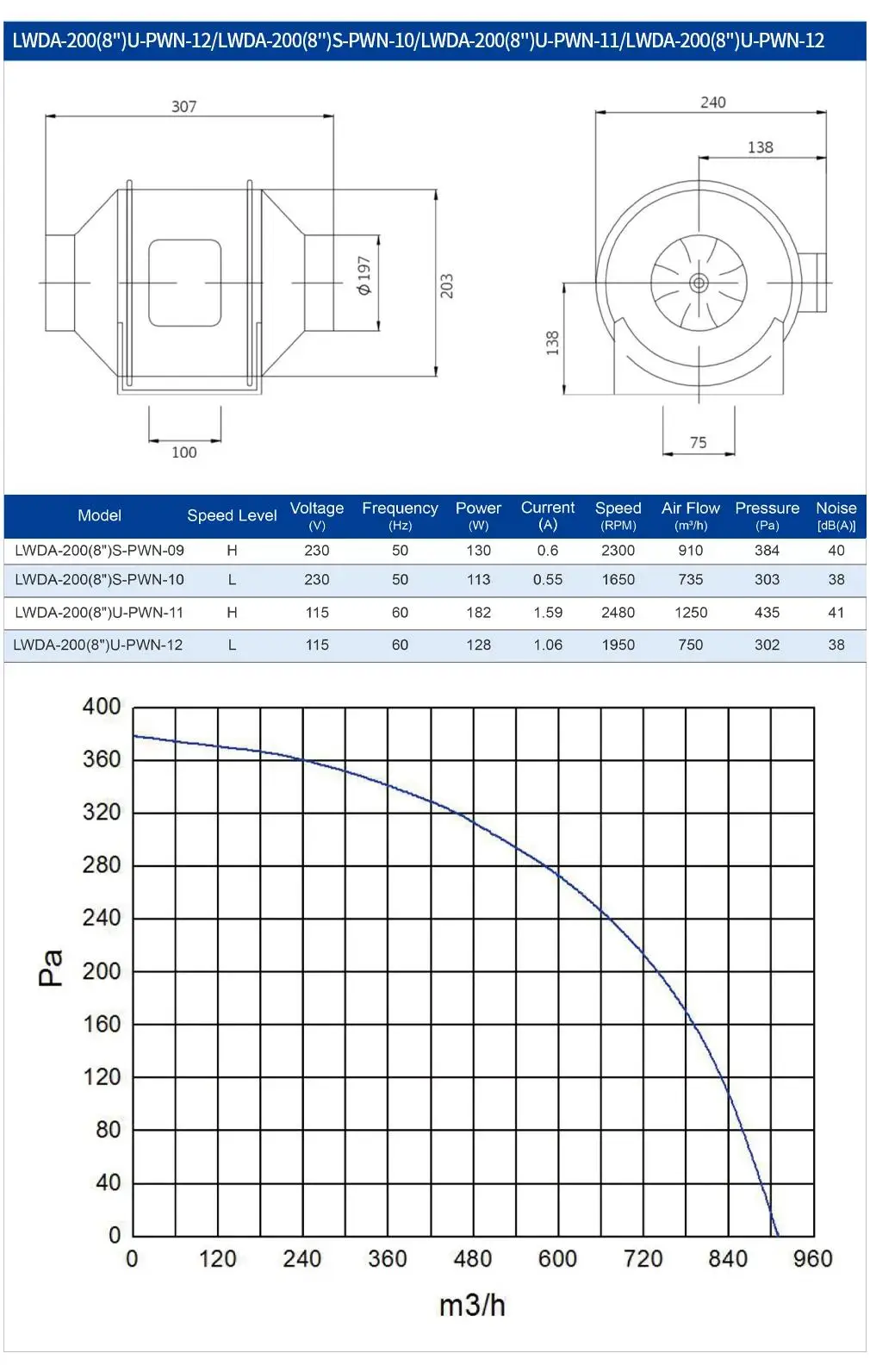

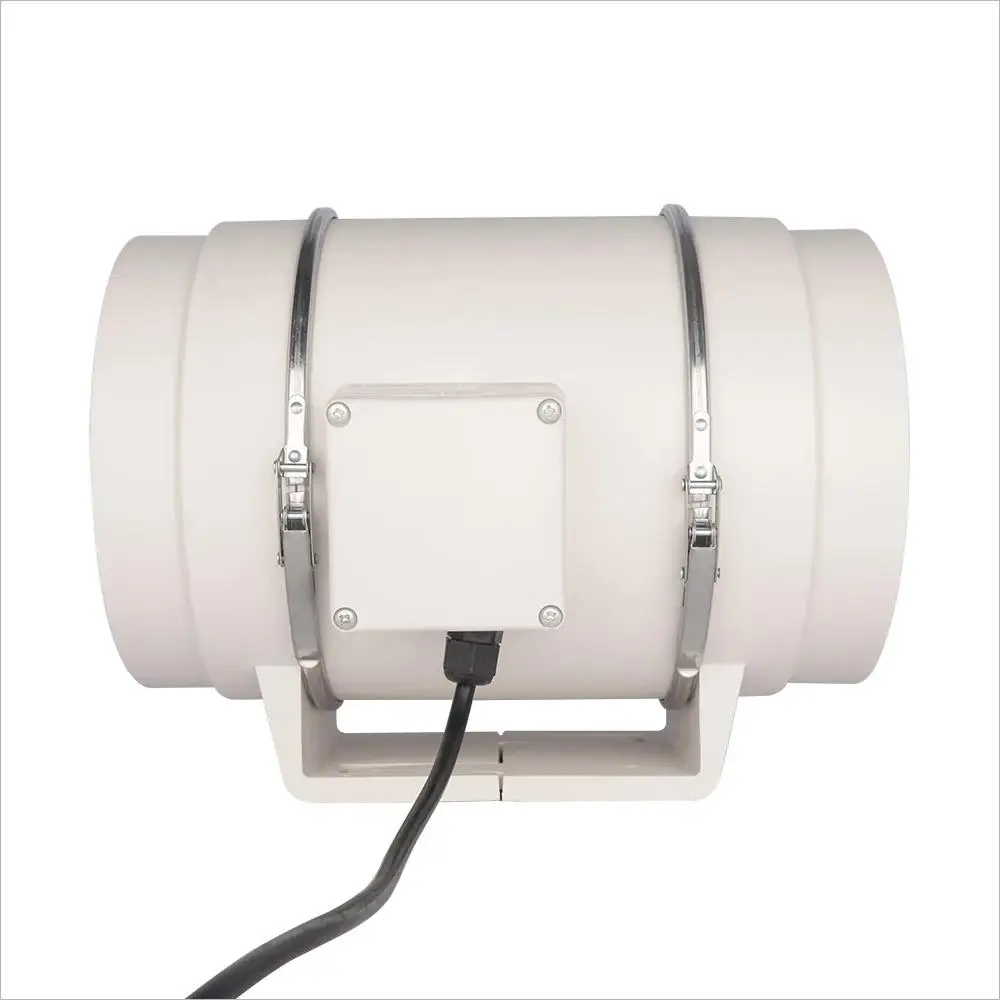

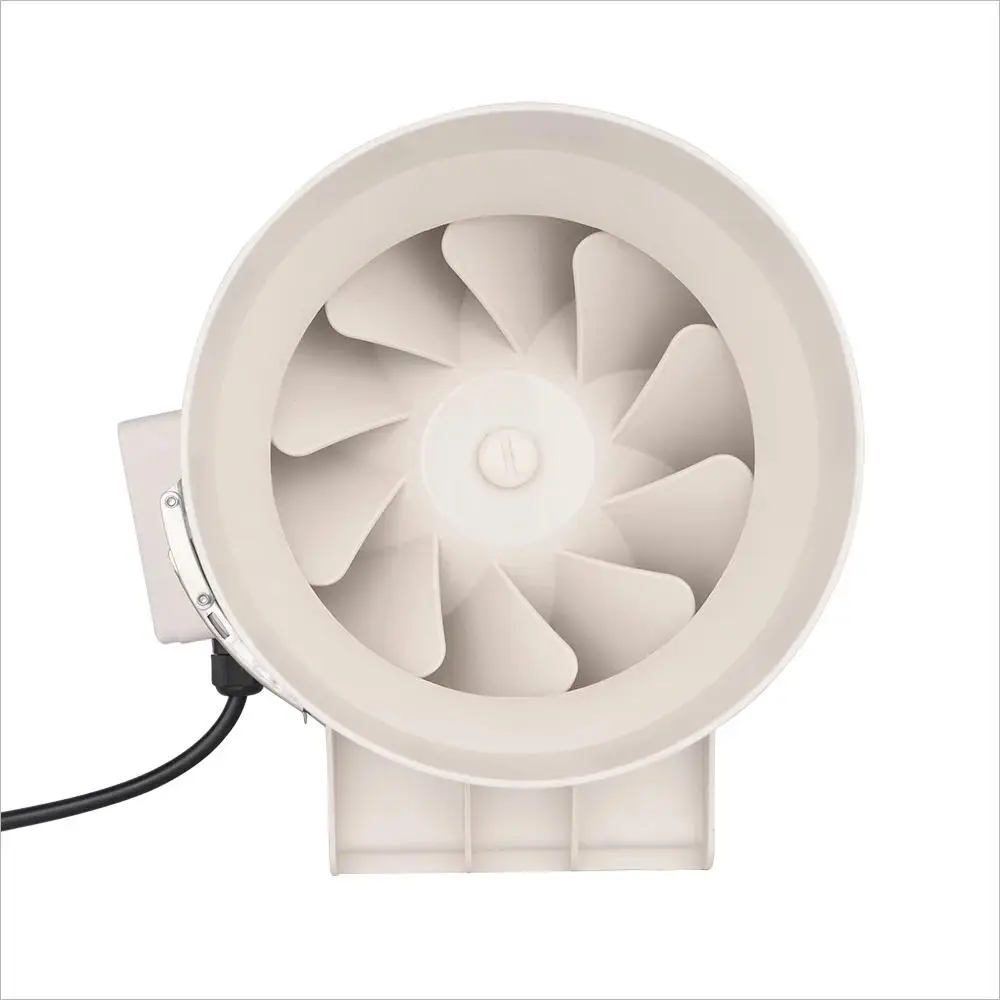

LONGWELL 200mm AC Industrial Fan, Industrial Ventilation Fan, 115V, for Control Cabinet Cooling, Cold Storage, Air Purifiers

Voltage 115v /230v
ISO / CE / UL / ETL Factory & Test Lab OEM / ODM ebm-papst alternative

$ 10

Specifications
Motor
EC/AC external rotor motor
Impeller
Propylene with glass fiber reinforced
Category: Tags: , ,
CategoryAC Duct Fan
TagsDuct VentilationExternal Rotor MotorInline Duct Fan
Get a Fast Quote from an Engineer Send your airflow, static pressure & voltage — we reply within one working day with a matching model.
✓ 1-day reply ✓ STEP / CAD on request ✓ Factory-direct

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

Your specifications go straight to a sales engineer — no spam, never shared.

Prefer a datasheet?
Download Product Catalog (PDF)
Need the exact model with a measured or digitised curve? This page describes the AC Duct Fan range. The Fan Selector lists every LONGWELL plastic inline duct fan model with airflow, static pressure, power, noise, drawing and datasheet.
Search plastic inline duct fan models →
Have your duty point?

See every LONGWELL model whose P-Q curve covers it — margins, noise and power included. No login.

Library: Ø25–1,000 mm, single units up to about 52,000 m³/h — larger duties go straight to an engineer. Prefer to talk it through? Send your specs to an engineer

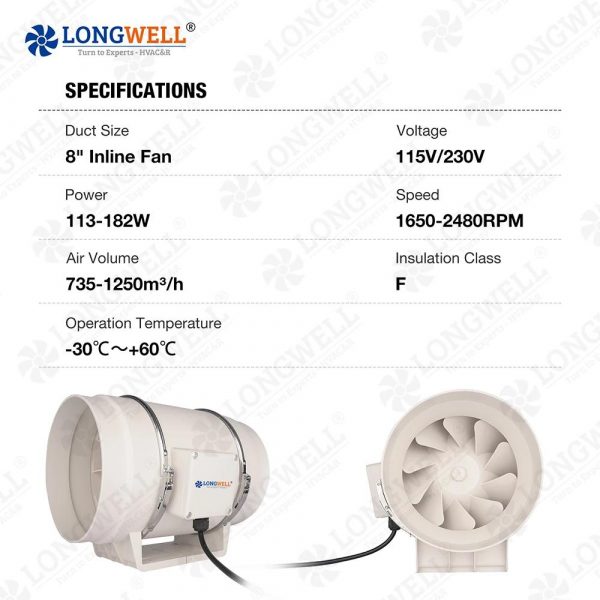

Description

Types :

Quiet and Powerful 200mm AC Plastic Duct Fans Ideal for Noise-Sensitive Environments
Voltage Ranges :

115V,230V
Frequency :

50/60 Hz
Diamter :

200mm ( impeller diameters )
Motor Types :

BLEC External Rotor Motor
Speed Control :

0-10V Signal / PWM / RS485(Optional)
Max.ambient Temp:

-25℃～ +60℃
Certificating :

All necessary certifications suitable for USA & Europe , ETL,UL ,CE ,RoHS, ISO19001,ISO 14001,BSCI
Protection Level:

IP44 ,IP54,IP55
Electronic Protection:

Current limiting protection ,Over-temperature protection,Over-current protection,Locked-rotor protection,Soft start
Working & Storage

Operating temperature：-25~60℃；Operating humidity：0 ~ 85 % RH
Storing temperature：-25 ~ 70℃；Storing humidity：0 ~ 95 % RH
Applicable altitude range：＜1000m
Balancing

According to JB/T 9101-1999 requirements G6.3
Product Standards :

LVD EN60950-1 EMC EN61000-6-3,EN61000-4-2, EN61000-4-3
Mainly Applications

AUH/ AIR PURIFIER / Server Cooling & Ventilation / Grow Tent /Ventilation SYSTEM/ Equipments Cooling /Refrigerator ,etc;ventilation fan cooling;ventilation exhaust fans

Additional information

Voltage

115v /230v
Blade Material

Plastic
customized support

OEM, ODM, OBM
mounting

Duct Fan
place of origin

Zhejiang, China
brand name

LONGWELL
model number

LWID 8''
warranty

1 Year
After-sales Service Provided

Field maintenance and repair service
Material

Stainless Steel, Plastic, aluminum alloy, Steel
Type

Inline Duct Fan
power input

EC-AC 110/230,DC12/24/48V
casing material

Plastic or Galvanized Metal
Impeller material

Propylene with glass fiber reinforced
Bearing

Ball Bearing
Approvals

UL / CE / BSCI / ISO
Motor type

EC/AC external rotor motor
Amb,Temp

-25 to +60℃
Insulation

B/F
Application

Vertical Farming / Cabinet / Home Ventilation
Selling units

Single item
Single package size

20X18X30 cm
Single gross weight

5.000 kg
