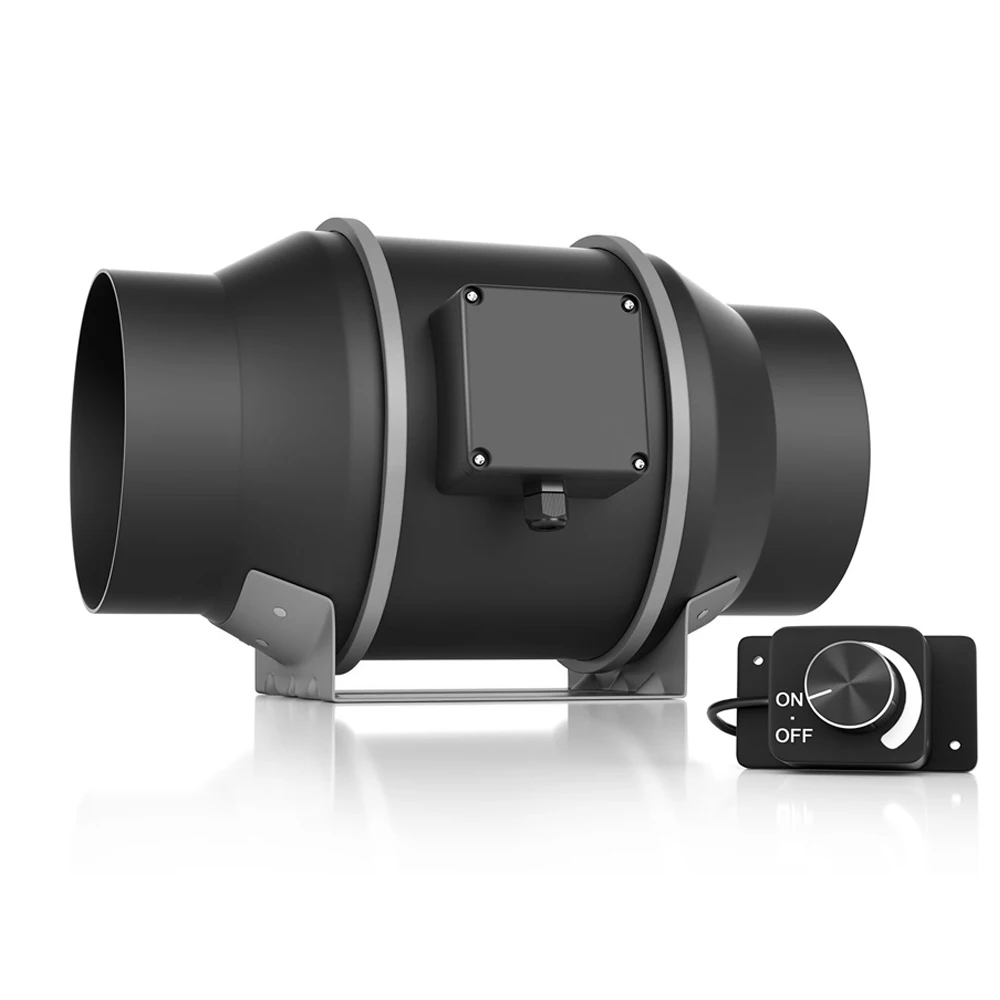

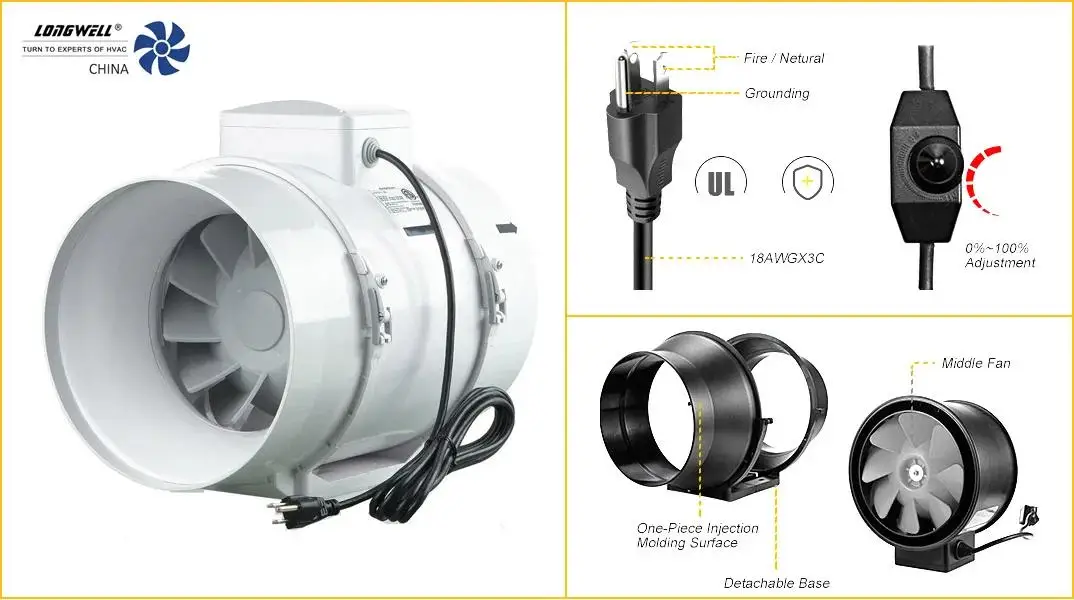

LONGWELL AC Inline Duct Fan, Exhaust Ventilation Fan, 120V, for HVAC Systems

Voltage 120V/60HZ
ISO / CE / UL / ETL Factory & Test Lab OEM / ODM ebm-papst alternative

$ 33

Specifications
Motor
AC external rotor motor
Impeller
Propylene with glass fiber reinforced
Category: Tags: , ,
CategoryAC Duct Fan
TagsAC FanHydroponic Grow TentsInline Duct Fan
Get a Fast Quote from an Engineer Send your airflow, static pressure & voltage — we reply within one working day with a matching model.
✓ 1-day reply ✓ STEP / CAD on request ✓ Factory-direct

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

Your specifications go straight to a sales engineer — no spam, never shared.

Prefer a datasheet?
Download Product Catalog (PDF)
Need the exact model with a measured or digitised curve? This page describes the AC Duct Fan range. The Fan Selector lists every LONGWELL plastic inline duct fan model with airflow, static pressure, power, noise, drawing and datasheet.
Search plastic inline duct fan models →
Have your duty point?

See every LONGWELL model whose P-Q curve covers it — margins, noise and power included. No login.

Library: Ø25–1,000 mm, single units up to about 52,000 m³/h — larger duties go straight to an engineer. Prefer to talk it through? Send your specs to an engineer

Description

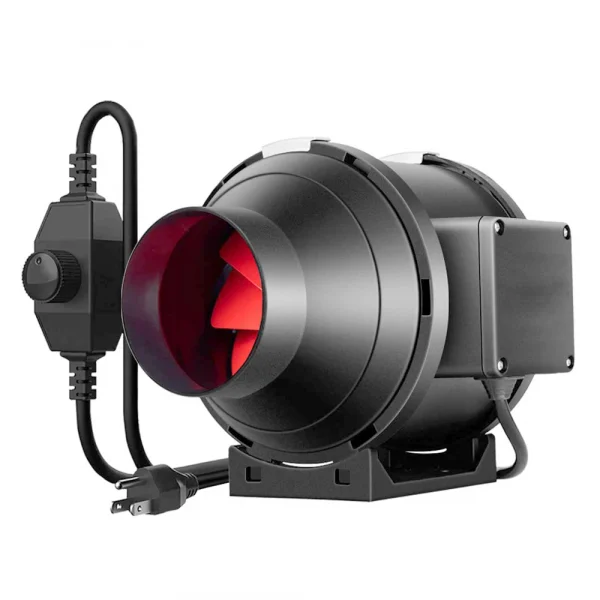

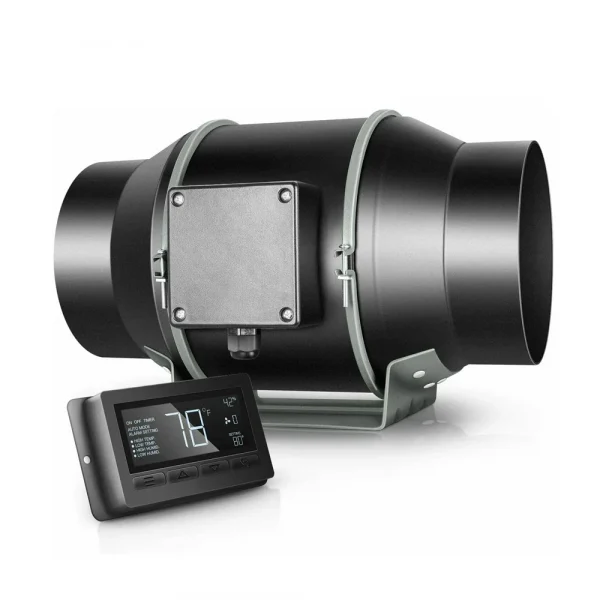

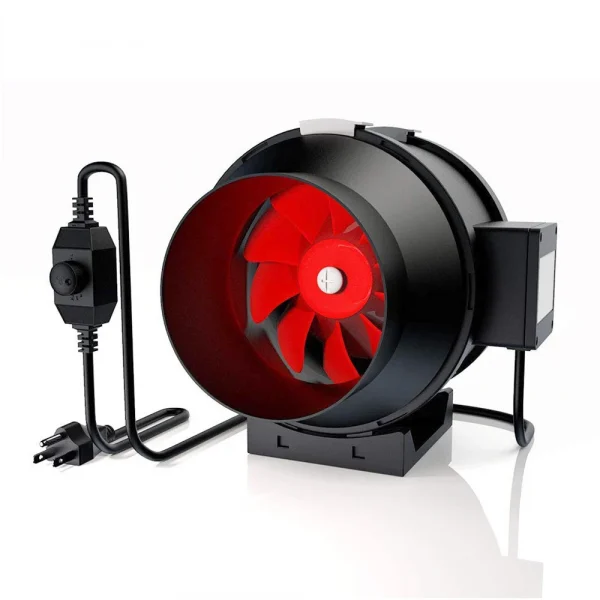

Longwell 4” 6″ 8″ 220V 115v Inline Grow Tent Fan Ventilation Exhaust Air Blower with Speed Controller HVAC Blower

Model

Voltage

Frequency

Power

Current

Speed

Air Flow

Pressure

V

Hz

W

A

RPM

m³/h

Pa

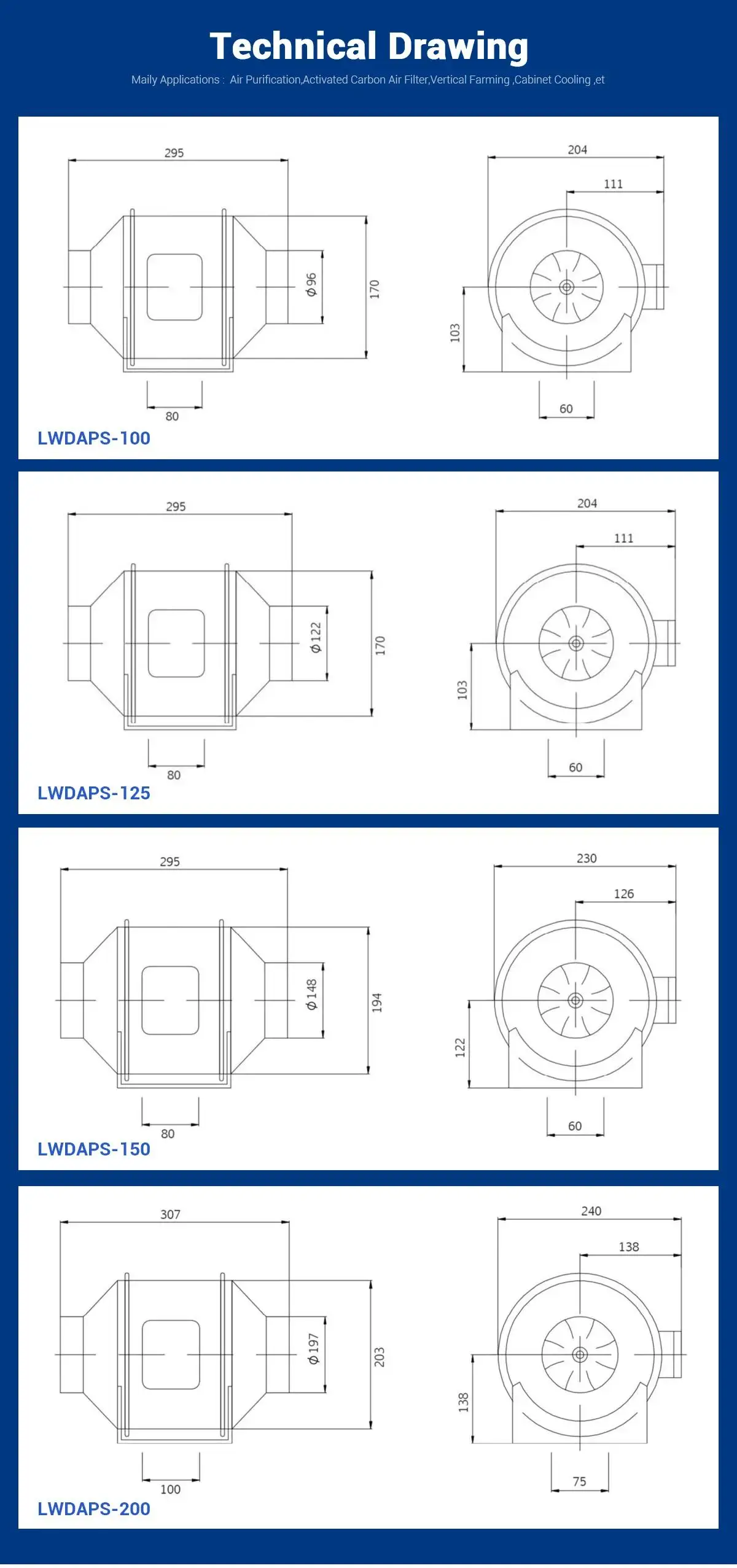

LWDAPS-100

220-240
50
36
0.16
2360
325
163

110-120
60
34
0.29
2360
325
163
LWDAPS-125

220-240
50
39
0.18
2360
330
168
110-120
60
37
0.31
2360
330
168
LWDAPS-150

220-240
50
59
0.22
2400
660
355
110-120
60
59
0.49
2480
674
355
LWDAPS-200

220-240
50
130
0.6
2300
910
384
110-120
60
182
1.59
2480
1250
435

Additional information

Electric Current Type

AC
Voltage

120V/60HZ
Blade Material

Plastic
customized support

OEM, ODM, OBM
mounting

Duct Fan
place of origin

Zhejiang, China
brand name

longwell
model number

LWID 4'' ~ 12''
warranty

1 Year
After-sales Service Provided

Free spare parts
Type

Plastic Centrifugal Inline Duct Fan
power input

AC 110/230V
Casing material

plastic
Impeller material

Propylene with glass fiber reinforced
Direction

Clockwise
Bearing

Ball Bearing
Approvals

CE,CCC
Motor type

AC external rotor motor
Amb,Temp

-30 to +60℃
Insulation

B/F
Packaging Details

STANDARD EXPORTING PACKAGE WITH PALLET
Port

NINGBO / SHANGHAI
Selling units

Single item
Single package size

30X30X40 cm
Single gross weight

5.000 kg
Supply Ability

10000 Piece/Pieces per Month
