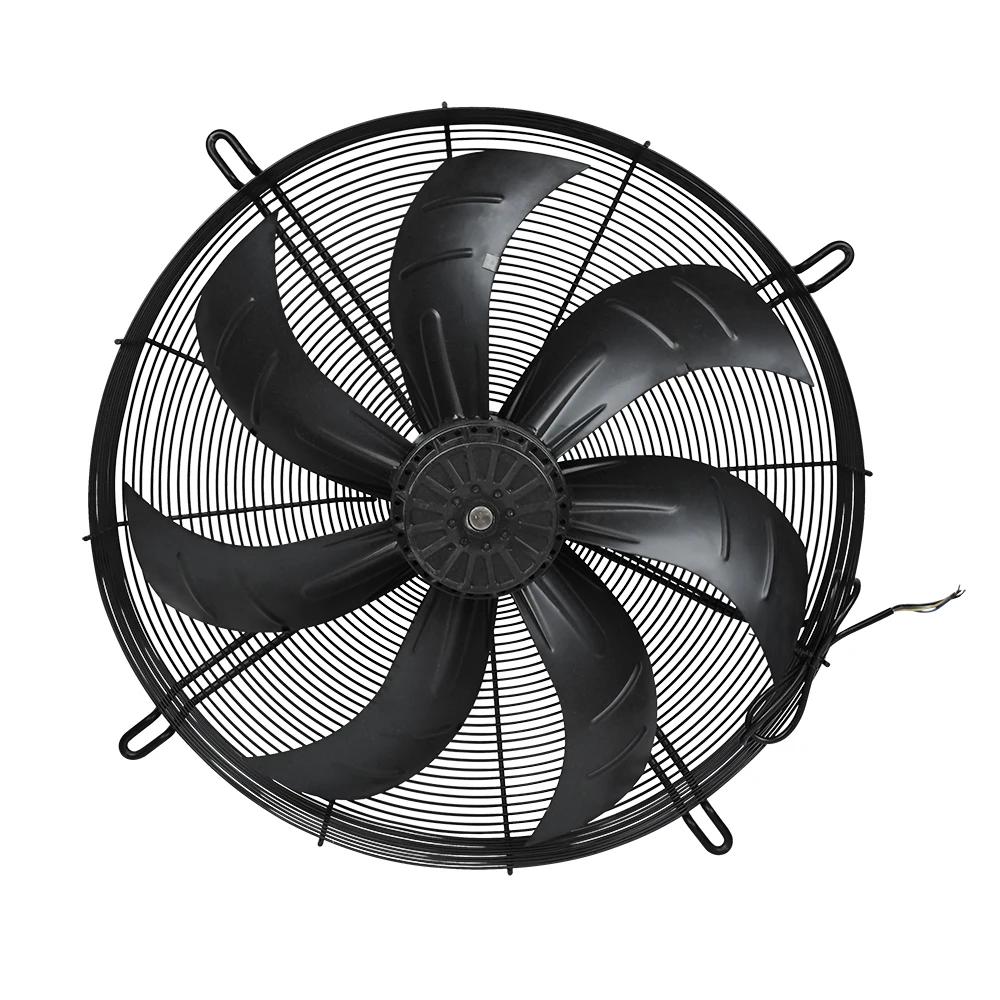

LONGWELL 710mm AC Axial Fan, Industrial Axial Ventilation Fan, 380V, Stainless Steel, for Cold Storage, Air Purifiers, HVAC Systems

Name: LONGWELL 710mm AC Axial Fan, Industrial Axial Ventilation Fan, 380V, Stainless Steel, for Cold Storage, Air Purifiers, HVAC Systems
Brand: Ningbo Longwell Electric Technology Co., Ltd.

Voltage 380V

ISO / CE / UL / ETL Factory & Test Lab OEM / ODM ebm-papst alternative

$ 30

Specifications

Motor: AC Induction Capacitor Motor
Speed: 2500rpm, 3000RPM, 4500rpm, 2700RPM, 2100rpm, 1350RPM, 14000Rpm
Frequency: 50/60 Hz

Category: AC Axial Fan Tags: AC Fan, Axial Fan, Cooling

CategoryAC Axial Fan

TagsAC Fan Axial Fan Cooling

Get a Fast Quote from an Engineer Send your airflow, static pressure & voltage — we reply within one working day with a matching model.

✓ 1-day reply ✓ STEP / CAD on request ✓ Factory-direct

Name

Work Email

Phone / WhatsApp

Estimated order quantity

Message

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

Your specifications go straight to a sales engineer — no spam, never shared.

Prefer a datasheet?

Download Product Catalog (PDF)

Need the exact model with a measured or digitised curve? This page describes the AC Axial Fan range. The Fan Selector lists every LONGWELL AC axial fan model with airflow, static pressure, power, noise, drawing and datasheet.

Search AC axial fan models →

Description

Types :	710mm AC Axial flow fan Delivering Optimum Ventilation in Various Environments
Voltage Ranges :	380V;
Frequency :	50/60 Hz
Diamter :	710mm ( impeller diameters )
Motor Types :	BLEC External Rotor Motor
Speed Control :	0-10V Signal / PWM / RS485(Optional)
Max.ambient Temp:	-25℃～ +60℃
Certificating :	All necessary certifications suitable for USA & Europe , ETL,UL ,CE ,RoHS, ISO19001,ISO 14001,BSCI
Protection Level:	IP44 ,IP54,IP55
Electronic Protection:	Current limiting protection ,Over-temperature protection,Over-current protection,Locked-rotor protection,Soft start
Working & Storage	Operating temperature：-25~60℃；Operating humidity：0 ~ 85 % RH Storing temperature：-25 ~ 70℃；Storing humidity：0 ~ 95 % RH Applicable altitude range：＜1000m
Balancing	According to JB/T 9101-1999 requirements G6.3
Product Standards :	LVD EN60950-1 EMC EN61000-6-3,EN61000-4-2, EN61000-4-3

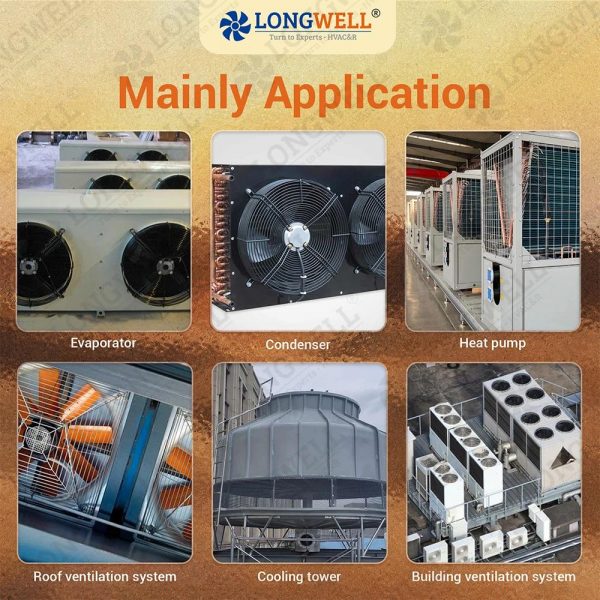

Mainly Applications	AUH/ AIR PURIFIER / Server Cooling & Ventilation / Grow Tent /Ventilation SYSTEM/ Equipments Cooling /Refrigerator ,etc;ventilation fan cooling;ventilation exhaust fans

Additional information

mounting type	FREE STANDING
Voltage	380V
speed	2500rpm, 3000RPM, 4500rpm, 2700RPM, 2100rpm, 1350RPM, 14000Rpm
Power Source	Electric
blade material	Stainless Steel
customized support	OEM, ODM, OBM
place of origin	Zhejiang, China
brand name	LONGWELL
warranty	1 Year
after-sales service provided	Field maintenance and repair service
Material	Stainless Steel
Product name	AC Axial Fans
Usage	air cooling system
Bearing Type	NSK ball bearing
Color	Black or as require
Frequency	50/60 Hz
Product type	Axial flow type
Motor Type	AC Induction Capacitor Motor
Type	Axial Flow Fan
Application	Exhaust Ventilation
Keyword	Exhaust Cooling Fan
Selling units	Single item
Single package size	10X10X10 cm
Single gross weight	25.000 kg
