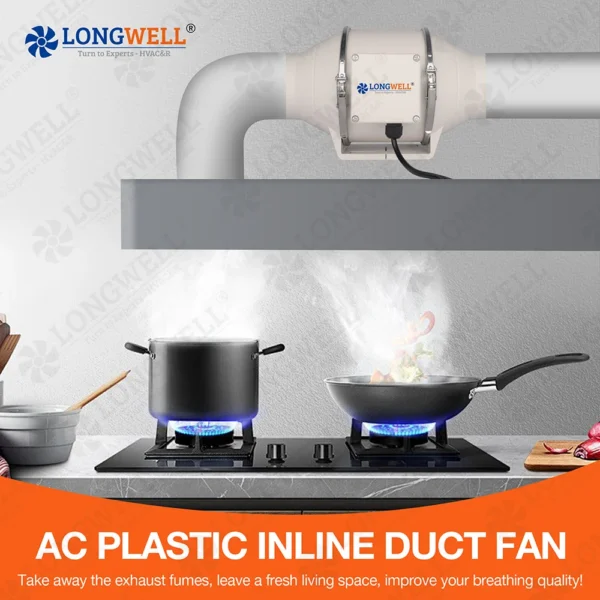

LONGWELL 100mm AC Inline Duct Fan, Exhaust Ventilation Fan, 220V, for Cold Storage, Air Purifiers, HVAC Systems

Voltage 220 V, 115v /230v
ISO / CE / UL / ETL Factory & Test Lab OEM / ODM ebm-papst alternative

$ 10

Category: Tags: , ,
CategoryAC Plastic Duct Fan
TagsAC FanHome Kitchen Bathroom VentilationInline Duct Fan
Get a Fast Quote from an Engineer Send your airflow, static pressure & voltage — we reply within one working day with a matching model.
✓ 1-day reply ✓ STEP / CAD on request ✓ Factory-direct

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

Your specifications go straight to a sales engineer — no spam, never shared.

Prefer a datasheet?
Download Product Catalog (PDF)
Need the exact model with a measured or digitised curve? This page describes the AC Plastic Duct Fan range. The Fan Selector lists every LONGWELL plastic inline duct fan model with airflow, static pressure, power, noise, drawing and datasheet.
Search plastic inline duct fan models →
Have your duty point?

See every LONGWELL model whose P-Q curve covers it — margins, noise and power included. No login.

Library: Ø25–1,000 mm, single units up to about 52,000 m³/h — larger duties go straight to an engineer. Prefer to talk it through? Send your specs to an engineer

Description



COUPON
View all the coupons

Recommended by seller

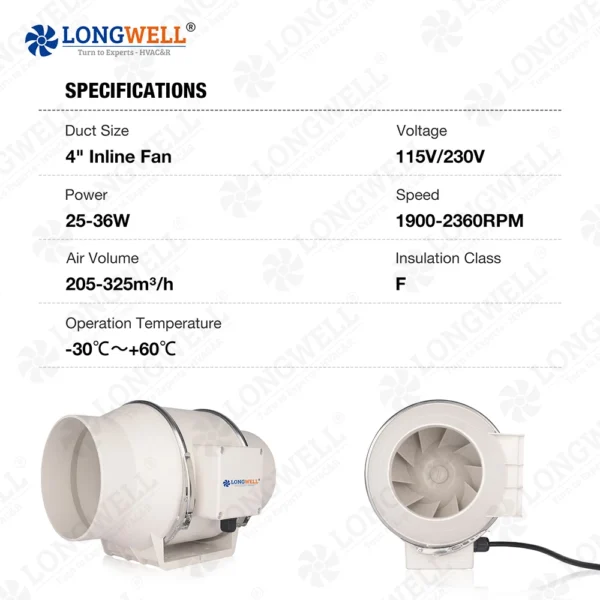

Product Name:
LONGWELL High-Efficiency 4” 100mm AC Plastic Duct Fans Kitchen Exhaust Small Inline Duct Fan 4 Inch
Voltage Ranges :
115V,230V
Frequency :
50/60 Hz
Diamter :
100mm ( impeller diameters )

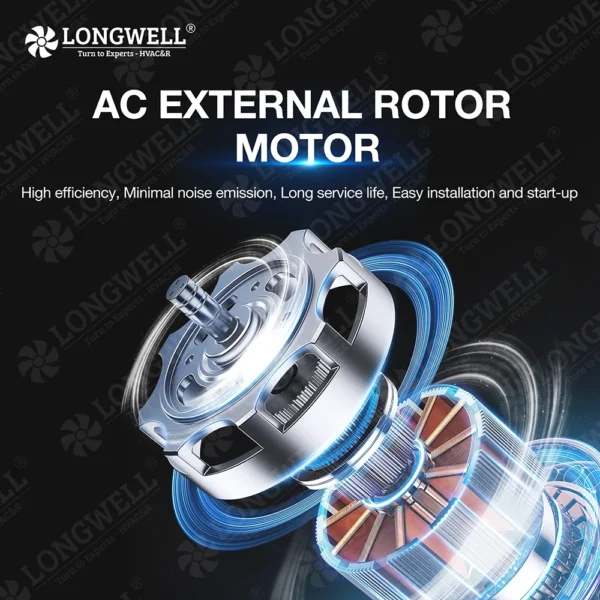

Motor Types :
BLEC External Rotor Motor
Speed Control :
0-10V Signal / PWM / RS485(Optional)
Max.ambient Temp:
-25℃～ +60℃
Certificating :
All necessary certifications suitable for USA & Europe , ETL,UL ,CE ,RoHS, ISO19001,ISO 14001,BSCI
Protection Level:
IP44 ,IP54,IP55
Electronic Protection:
Current limiting protection ,Over-temperature protection,Over-current protection,Locked-rotor protection,Soft start
Working & Storage
Operating temperature：-25~60℃；Operating humidity：0 ~ 85 % RH

Storing temperature：-25 ~ 70℃；Storing humidity：0 ~ 95 % RH

Applicable altitude range：＜1000m

Balancing
According to JB/T 9101-1999 requirements G6.3
Product Standards :
LVD EN60950-1 EMC EN61000-6-3,EN61000-4-2, EN61000-4-3

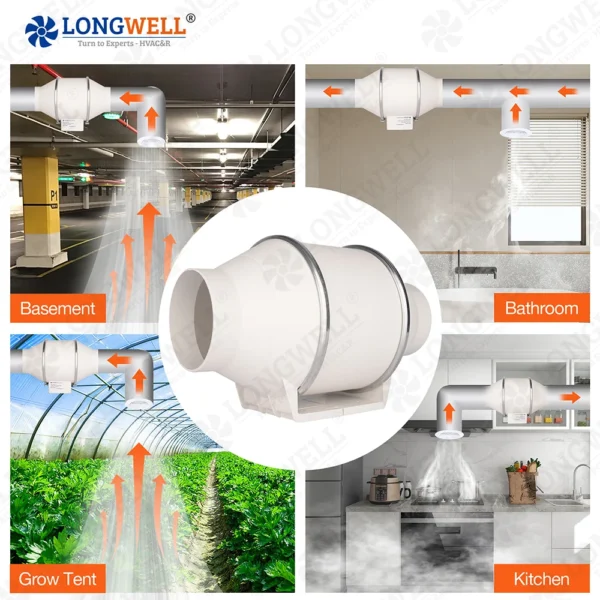

Mainly Applications
AUH/ AIR PURIFIER / Server Cooling & Ventilation / Grow Tent /Ventilation SYSTEM/ Equipments Cooling /Refrigerator ,etc;ventilation fan cooling;ventilation exhaust fans

Additional information

Duct Diameter

4 in, 6in, 8 in, 12 in, 10 in, 5 in, 14 in, 100mm
mounting

Duct Fan
Voltage

220 V, 115v /230v
speed

4000 RPM, 500 RPM, 800 RPM, 1500 RPM, 600 RPM, 900rpm, 2000 RPM
Material

Stainless Steel, Plastic, Aluminum Alloy, Steel
Blade Material

Plastic

Reviews

There are no reviews yet.

Be the first to review “LONGWELL 100mm AC Inline Duct Fan, Exhaust Ventilation Fan, 220V, for Cold Storage, Air Purifiers, HVAC Systems”

Your email address will not be published. Required fields are marked *

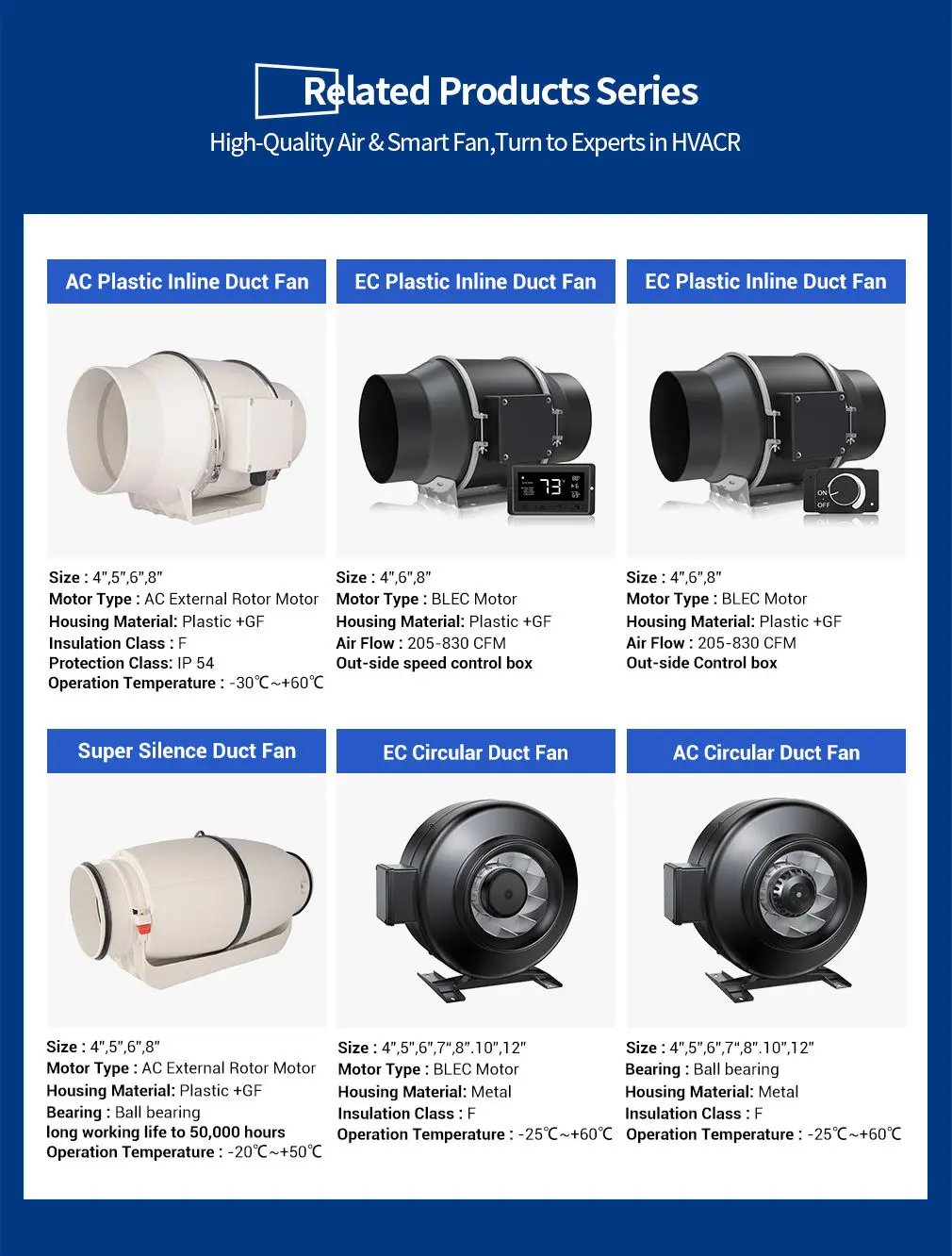

More in this series
