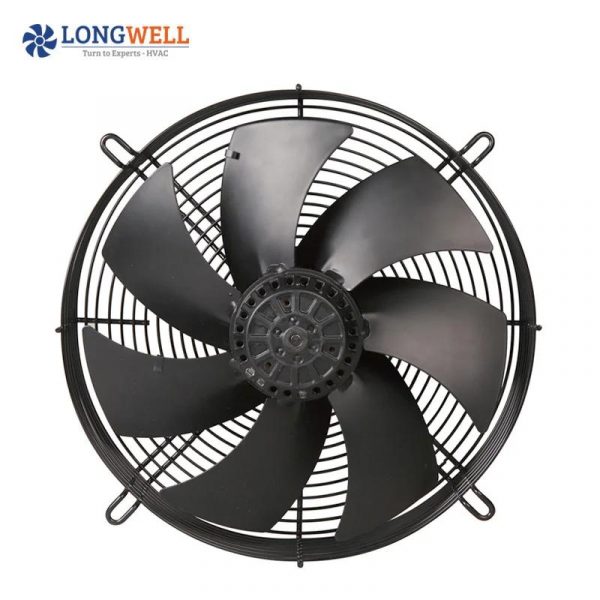

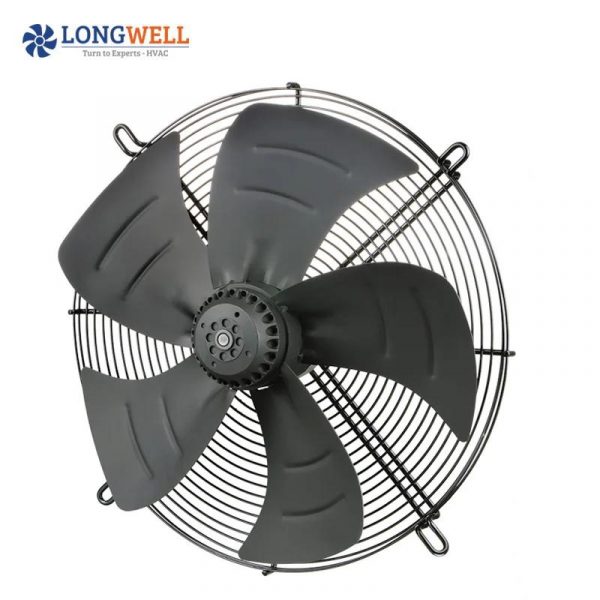

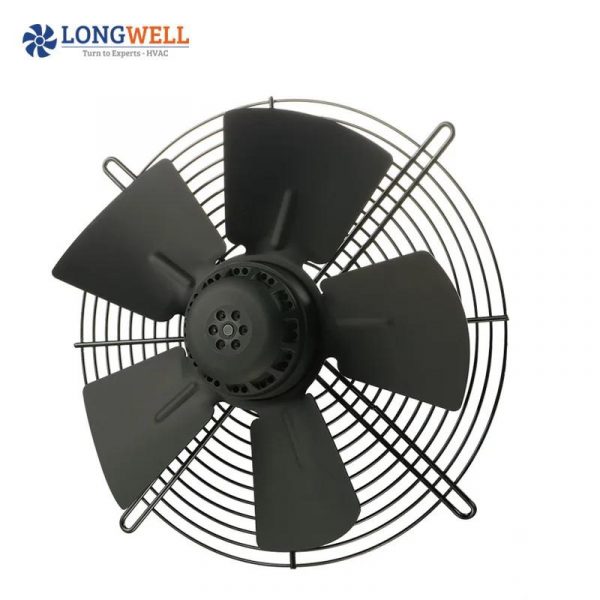

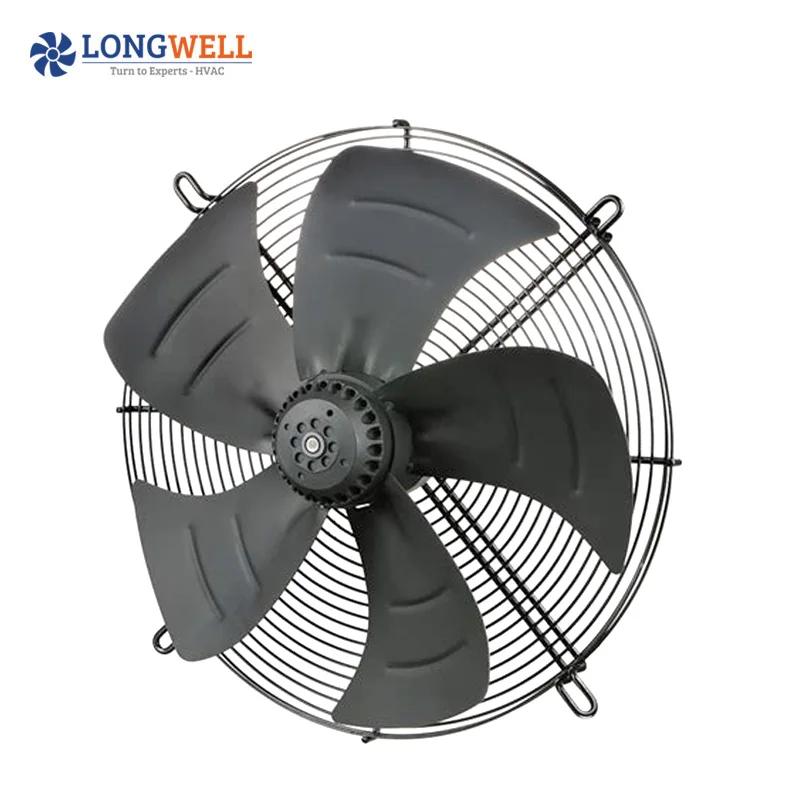

AC 110 / 220 / 380V high power wall mounted exhaust fan with square plate industrial axial flow fan
Product Description

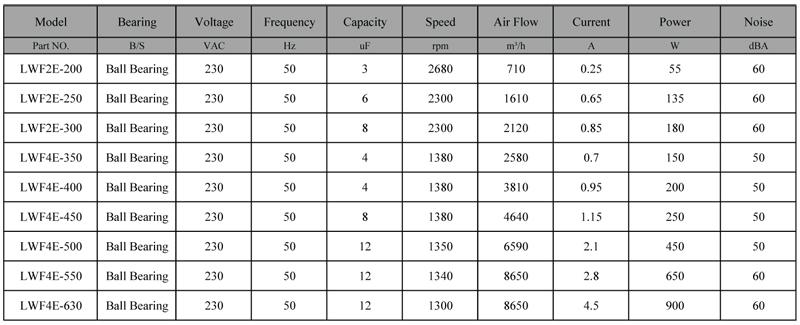

| Model Number : | AC/DC/EC Axial Flow Fan series | ||
| Motor Type : | AC External Rotor Motor | Blade Material : | Stainless Steel |
| Voltage Range: | 110V / 120V / 230V / 380V /400V | Diameter Range : | 200~800 mm |
| Input Power: | 55~1500 W | Air Flow: | 15000 m³/h Max |
| Operation Temperature : | -25 ℃ ~ +60 ℃ | ||
Terminal Box : Single phrase with ternimal box ,three phrase can be chosed with or without terminal box ;
Plug : As below picture shows :
- Casings :
Casing are made of high quality steel plate or galvanized steel sheet with high strength and good regidity ; the surface is treated by plastic spraying process
- Screening :
The safety screenings are made of steel wire ,the welding is firm ,the surface is treated by plastic spraying process .
there are different types of screenings ,or can be customized .
- Operating Environment :
Temperature : -20 ℃ ~ +55 ℃
Humidity : ≤ 96%
Evevation : ≤1000m

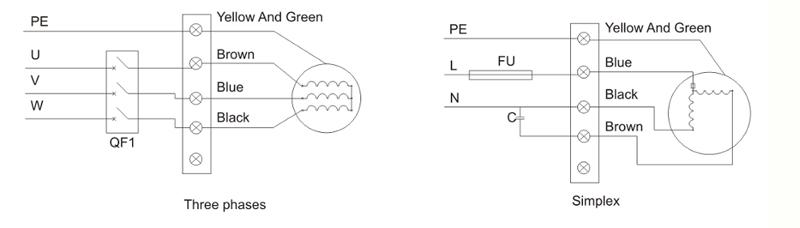

- Wiring Diagram
