LONGWELL AC Axial Fan, Industrial Axial Ventilation Fan, for Cold Storage, Air Purifiers, HVAC Systems

Voltage 220V/380V
ISO / CE / UL / ETL Factory & Test Lab OEM / ODM ebm-papst alternative

$ 54

Category: Tags: , ,
CategoryWall Mounted Exhaust Fan
TagsAxial FanExplosion Proof FanIndustrial Ventilation
Get a Fast Quote from an Engineer Send your airflow, static pressure & voltage — we reply within one working day with a matching model.
✓ 1-day reply ✓ STEP / CAD on request ✓ Factory-direct

Your specifications go straight to a sales engineer — no spam, never shared.

Prefer a datasheet?
Download Product Catalog (PDF)
Need the exact model with a measured or digitised curve? This page describes the Wall Mounted Exhaust Fan range. The Fan Selector lists every LONGWELL exhaust fan model with airflow, static pressure, power, noise, drawing and datasheet.
Search exhaust fan models →
Have your duty point?

See every LONGWELL model whose P-Q curve covers it — margins, noise and power included. No login.

Library: Ø24–1,000 mm, single units up to about 61,000 m³/h — larger duties go straight to an engineer. Prefer to talk it through? Send your specs to an engineer

Description

Types :

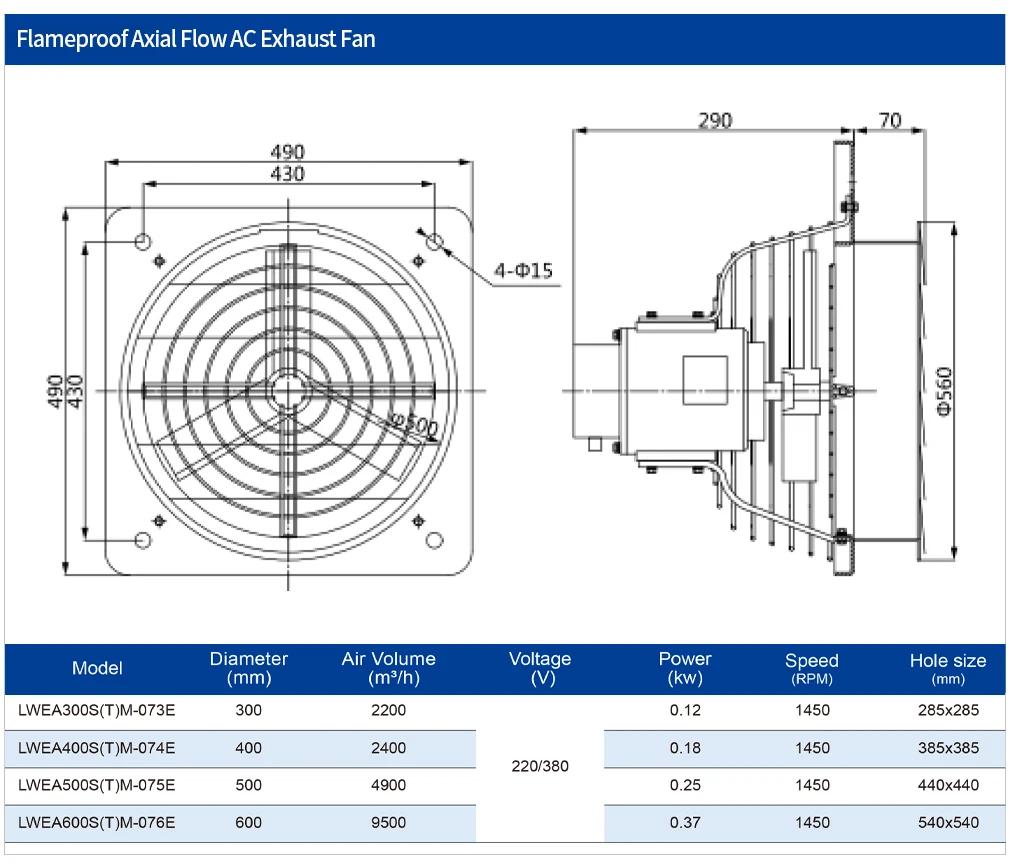

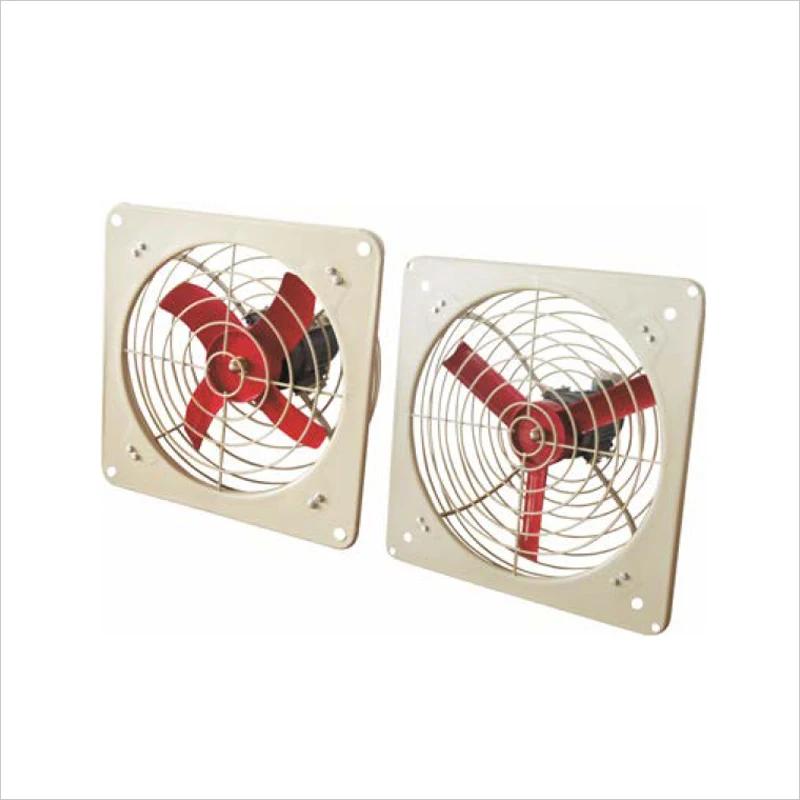

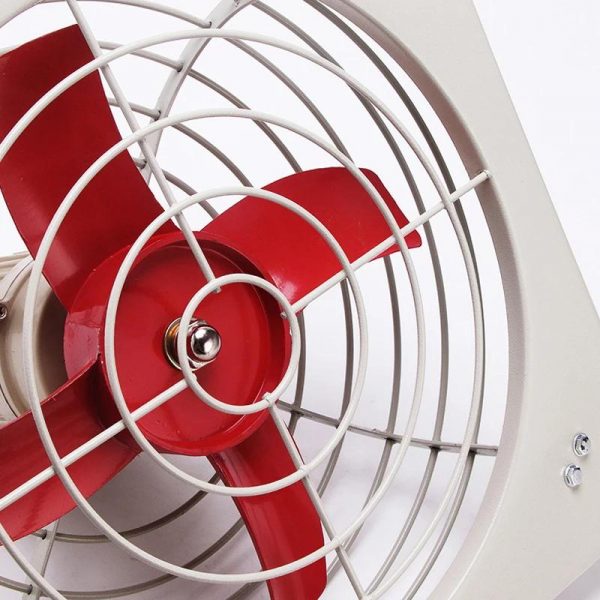

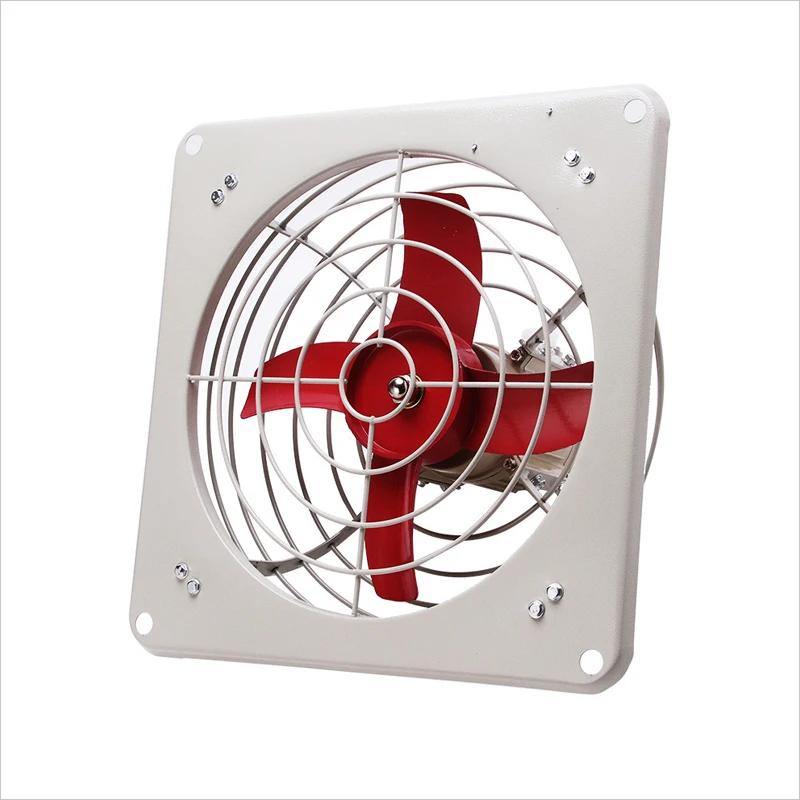

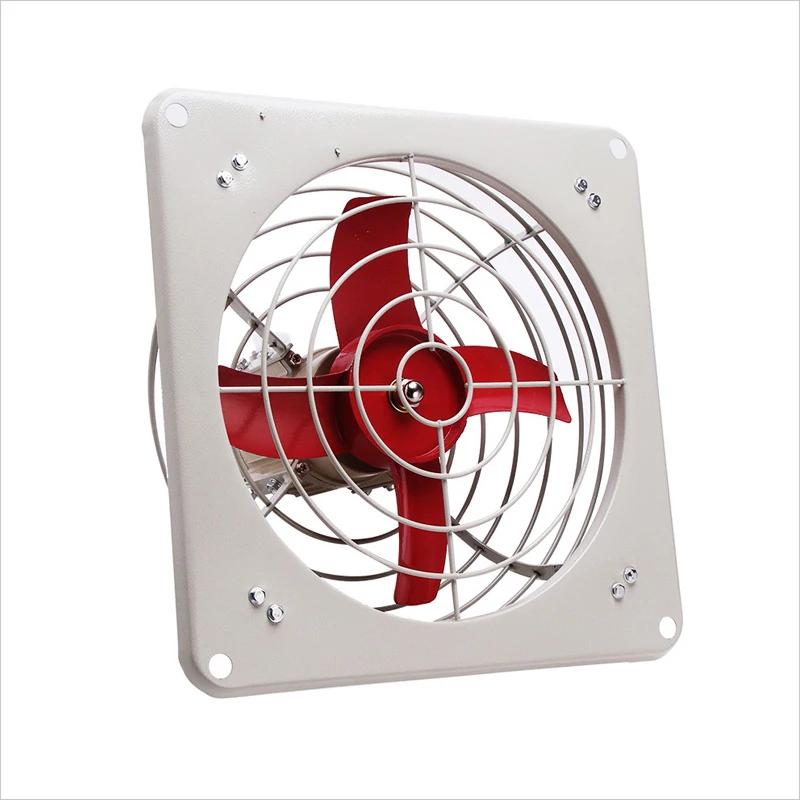

LONGWELL Flameproof Axial Flow AC Exhaust Fan – High Airflow, Low Noise, Safe for Hazardous Environments
Voltage Ranges :
220V,380V
Frequency :
50/60 Hz
Diamter :
300-600mm ( impeller diameters )
Motor Types :
BLEC External Rotor Motor
Speed Control :
0-10V Signal / PWM / RS485(Optional)
Max.ambient Temp:
-25℃～ +60℃
Certificating :
All necessary certifications suitable for USA & Europe , ETL,UL ,CE ,RoHS, ISO19001,ISO 14001,BSCI
Protection Level:
IP44 ,IP54,IP55
Electronic Protection:
Current limiting protection ,Over-temperature protection,Over-current protection,Locked-rotor protection,Soft start
Working & Storage
Operating temperature：-25~60℃；Operating humidity：0 ~ 85 % RH
Storing temperature：-25 ~ 70℃；Storing humidity：0 ~ 95 % RH
Applicable altitude range：＜1000m
Balancing
According to JB/T 9101-1999 requirements G6.3
Product Standards :
LVD EN60950-1 EMC EN61000-6-3,EN61000-4-2, EN61000-4-3
Mainly Applications
AUH/ AIR PURIFIER / Server Cooling & Ventilation / Grow Tent /Ventilation SYSTEM/ Equipments Cooling /Refrigerator ,etc;ventilation fan cooling;ventilation exhaust fans

Additional information

mounting type

Wall Fan
electric current type

AC
place of origin

ZHE
brand name

Longwell
warranty

1 Year
after-sales service provided

Video technical support
Brand

Longwell
Type:

Exhaust Axial fan
Customized support:

OEM, ODM, OBM
Voltage:

220V/380V
Air Volume:

2200~9500m³/h
Power

0.12~0.37 kW
Motor Type:

AC
Blade:

3 or 4 pcs
Blade Material:

Aluminium alloy vane
Application:

Hotels, Garment Shops, Building Material Shops,
Selling units

Single item
Single package size

40X40X30 cm
Single gross weight

5.000 kg

Reviews

There are no reviews yet.

Be the first to review “LONGWELL AC Axial Fan, Industrial Axial Ventilation Fan, for Cold Storage, Air Purifiers, HVAC Systems”

Your email address will not be published. Required fields are marked *

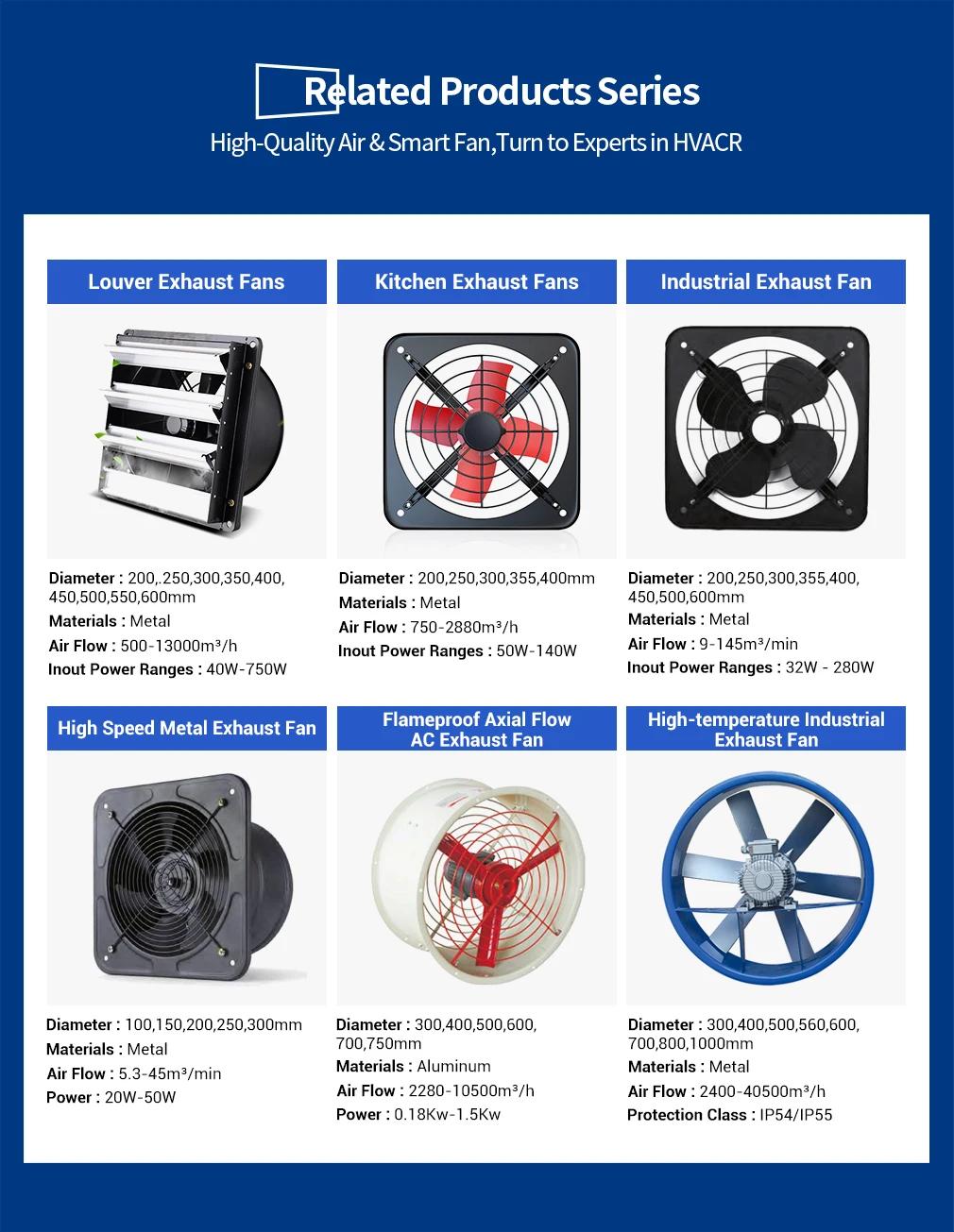

More in this series
