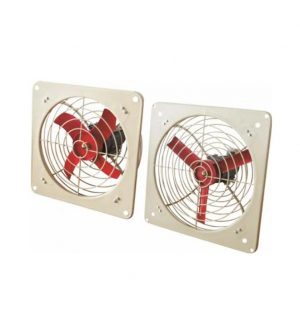

LONGWELL AC Axial Fan, Industrial Axial Ventilation Fan, 110V, Stainless Steel, Low Noise, for Cold Storage, Air Purifiers, HVAC Systems

Name: LONGWELL AC Axial Fan, Industrial Axial Ventilation Fan, 110V, Stainless Steel, Low Noise, for Cold Storage, Air Purifiers, HVAC Systems
Brand: Ningbo Longwell Electric Technology Co., Ltd.

Voltage 220V/380V

ISO / CE / UL / ETL Factory & Test Lab OEM / ODM ebm-papst alternative

$ 54

Specifications

Motor: AC
Speed: 2500rpm, 3000RPM, 4500rpm, 2700RPM, 2100rpm, 1350RPM, 14000Rpm

Category: Wall Mounted Exhaust Fan Tags: Axial Fan, Duct Ventilation, Explosion Proof Fan

CategoryWall Mounted Exhaust Fan

TagsAxial Fan Duct Ventilation Explosion Proof Fan

Get a Fast Quote from an Engineer Send your airflow, static pressure & voltage — we reply within one working day with a matching model.

✓ 1-day reply ✓ STEP / CAD on request ✓ Factory-direct

Name

Work Email

Phone / WhatsApp

Estimated order quantity

Message

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

Your specifications go straight to a sales engineer — no spam, never shared.

Prefer a datasheet?

Download Product Catalog (PDF)

Need the exact model with a measured or digitised curve? This page describes the Wall Mounted Exhaust Fan range. The Fan Selector lists every LONGWELL exhaust fan model with airflow, static pressure, power, noise, drawing and datasheet.

Search exhaust fan models →

Description

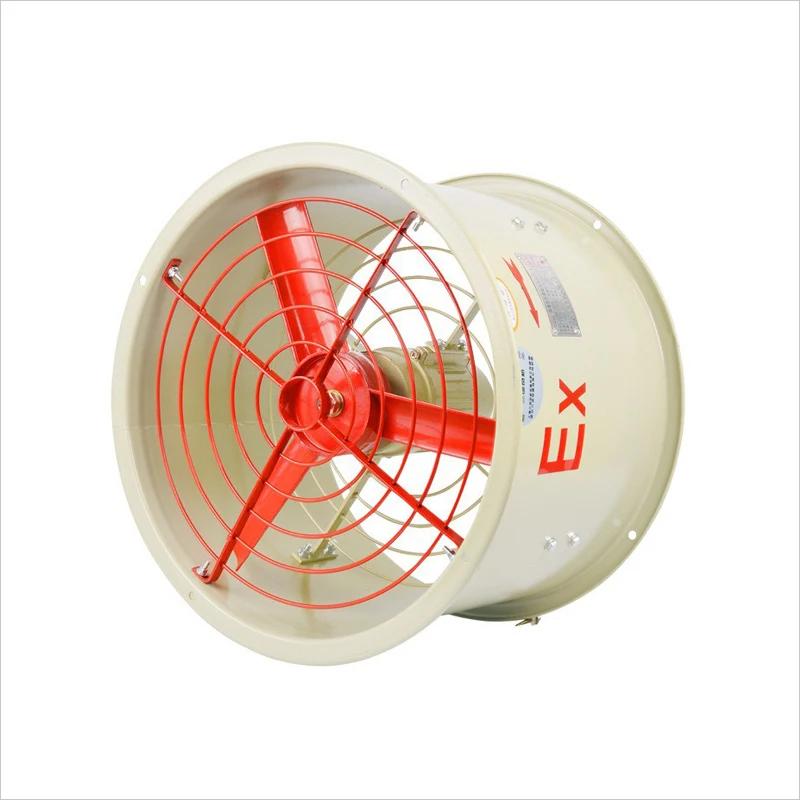

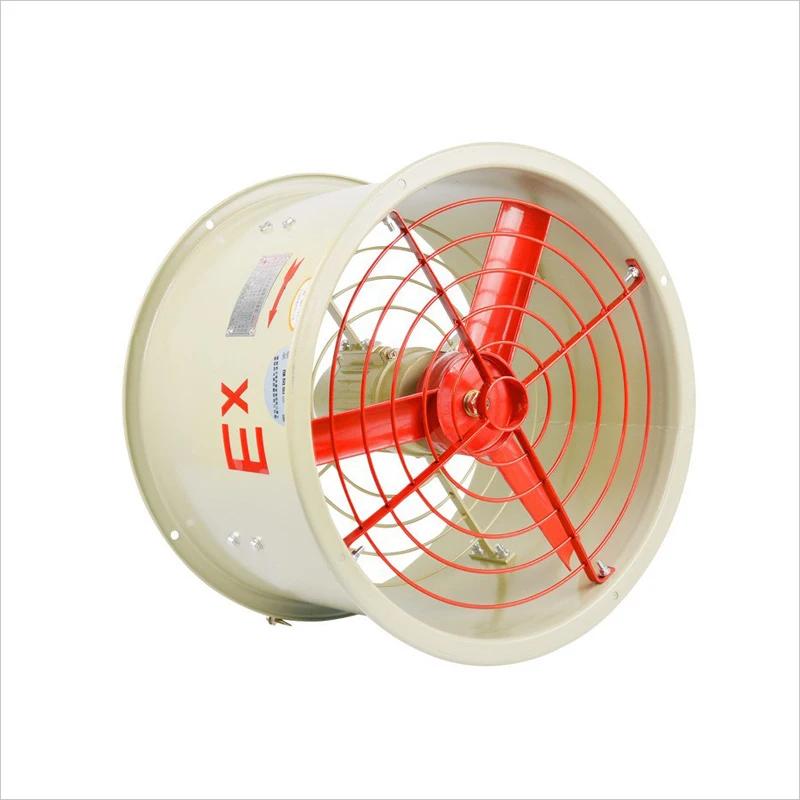

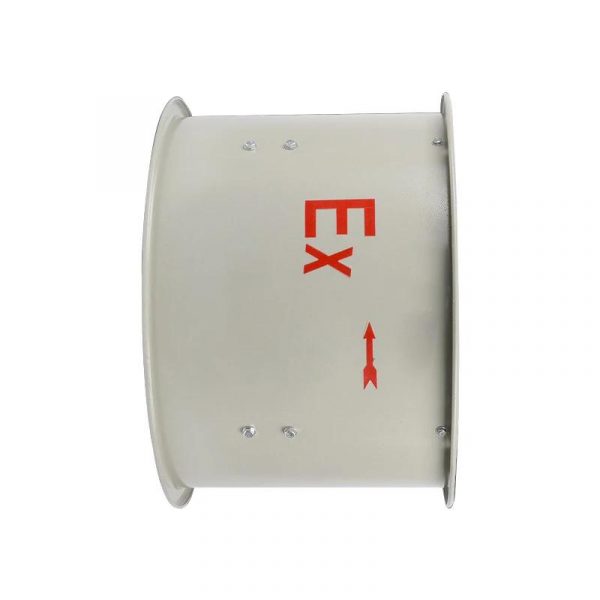

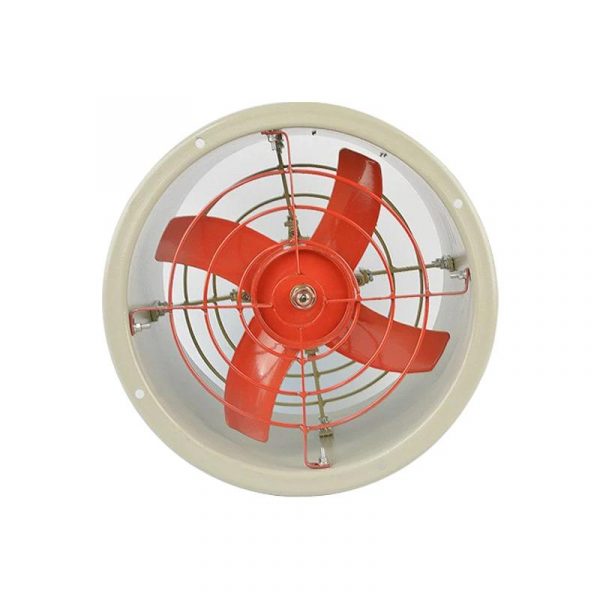

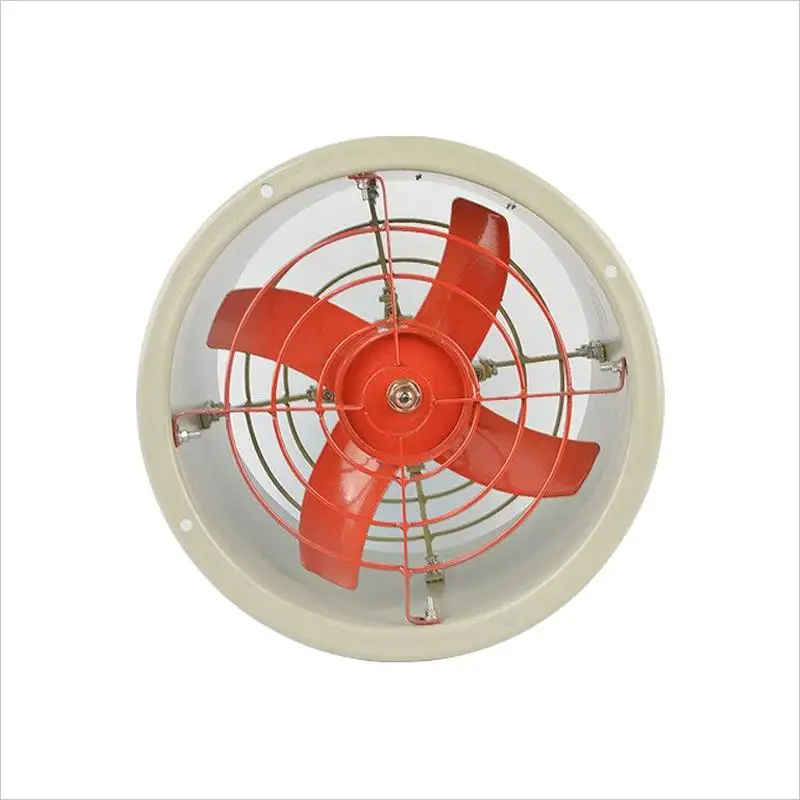

Types :	Explosion-proof Axial Flow AC Exhaust Fan for Pipeline Installation, 110V Voltage 1450RPM Speed, High Airflow Low Noise
Voltage Ranges :	220V,380V
Frequency :	50/60 Hz
Diamter :	300-750mm ( impeller diameters )
Motor Types :	BLEC External Rotor Motor
Speed Control :	0-10V Signal / PWM / RS485(Optional)
Max.ambient Temp:	-25℃～ +60℃
Certificating :	All necessary certifications suitable for USA & Europe , ETL,UL ,CE ,RoHS, ISO19001,ISO 14001,BSCI
Protection Level:	IP44 ,IP54,IP55
Electronic Protection:	Current limiting protection ,Over-temperature protection,Over-current protection,Locked-rotor protection,Soft start
Working & Storage	Operating temperature：-25~60℃；Operating humidity：0 ~ 85 % RH Storing temperature：-25 ~ 70℃；Storing humidity：0 ~ 95 % RH Applicable altitude range：＜1000m
Balancing	According to JB/T 9101-1999 requirements G6.3
Product Standards :	LVD EN60950-1 EMC EN61000-6-3,EN61000-4-2, EN61000-4-3

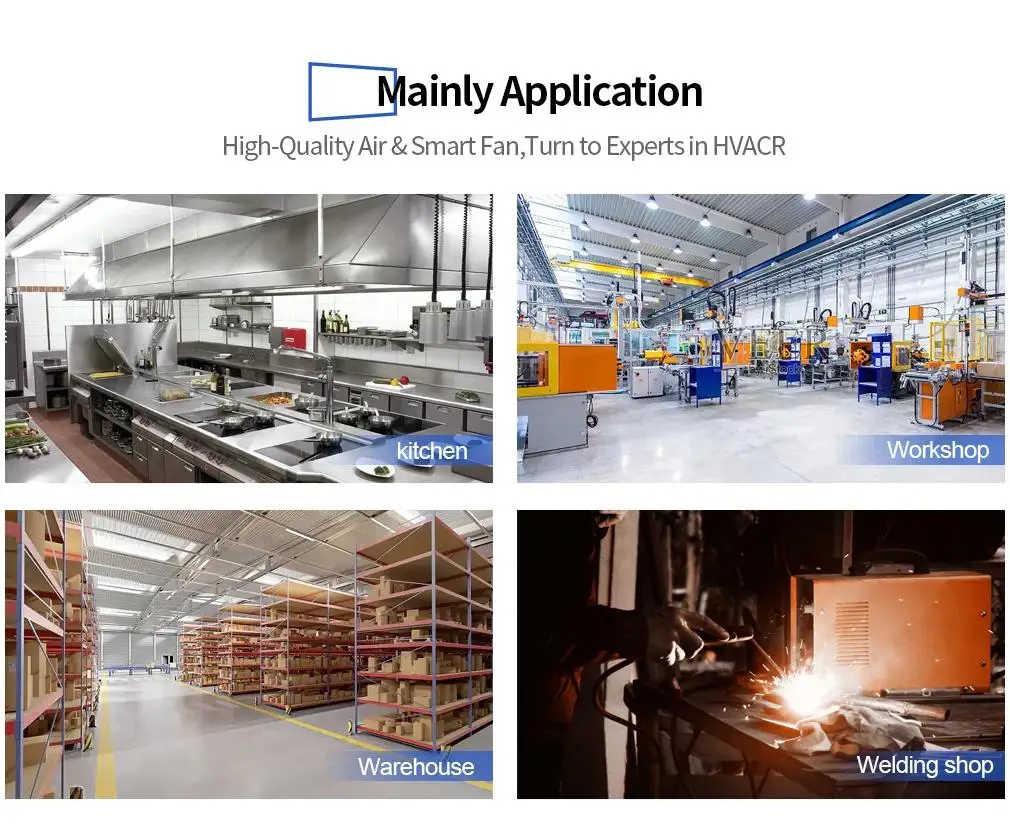

Mainly Applications	AUH/ AIR PURIFIER / Server Cooling & Ventilation / Grow Tent /Ventilation SYSTEM/ Equipments Cooling /Refrigerator ,etc;ventilation fan cooling;ventilation exhaust fans

Additional information

mounting type	Wall Fan
speed	2500rpm, 3000RPM, 4500rpm, 2700RPM, 2100rpm, 1350RPM, 14000Rpm
Power Source	Electric
bearing type	Ball Bearing
place of origin	ZHE
brand name	Longwell

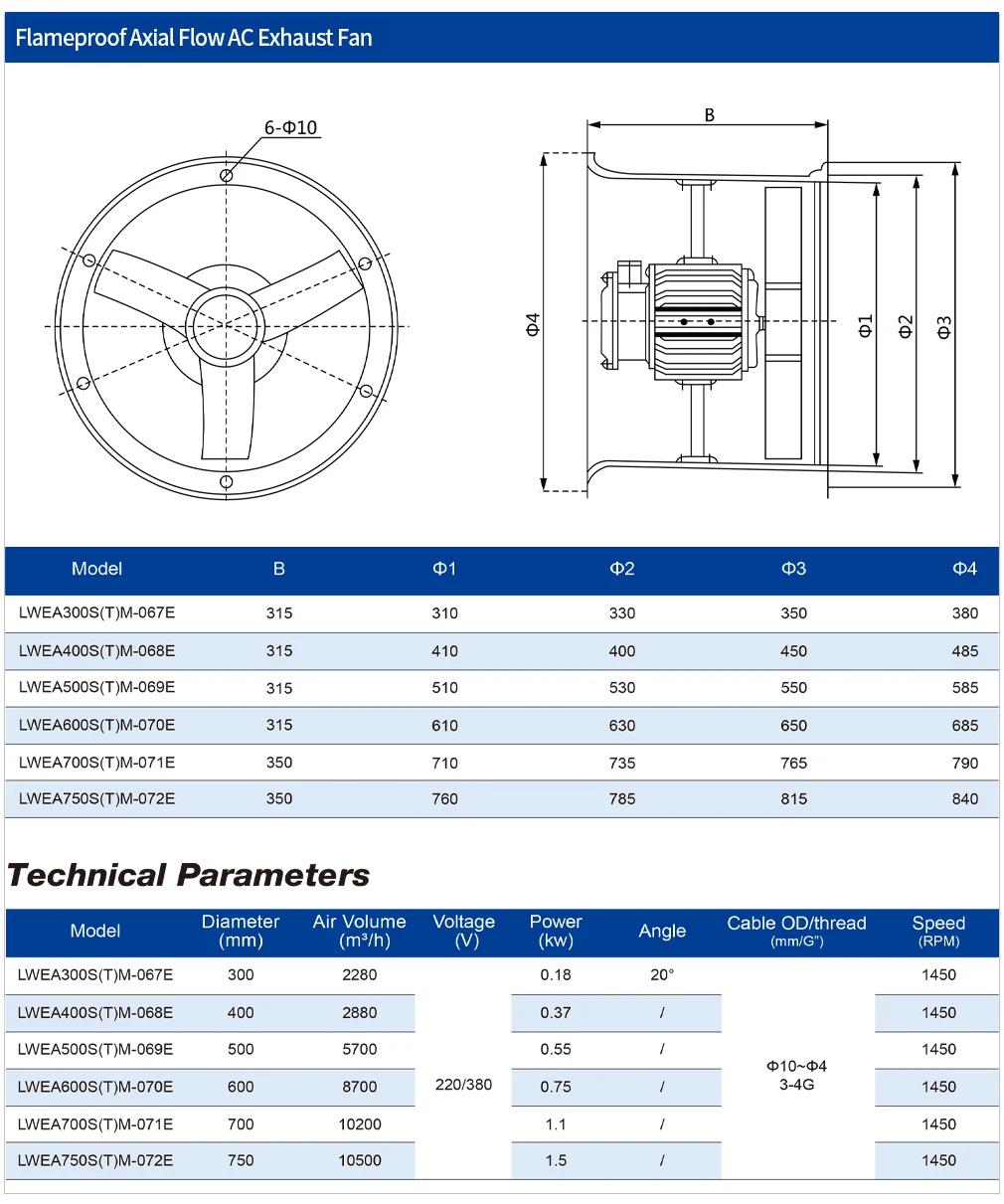

model number	LWEA300S(T)M-067, LWEA400S(T)M-068, LWEA500S(T)M-069, LWEA600S(T)M-070, LWEA700S(T)M-071, LWEA750S(T)M-072
warranty	1 Year
after-sales service provided	Video technical support
Material	STAINLESS STEEL
Brand	Longwell
Type:	Exhaust Axial fan
Customized support:	OEM, ODM, OBM
Voltage:	220V/380V
Air Volume:	2280~10500m³/h
Power	0.18~1.5 kW
Motor Type:	AC
Blade:	3 or 4 pcs
Blade Material:	Aluminium alloy vane
Application:	Hotels, Garment Shops, Building Material Shops,
Selling units	Single item
Single package size	40X40X30 cm
Single gross weight	5.000 kg
