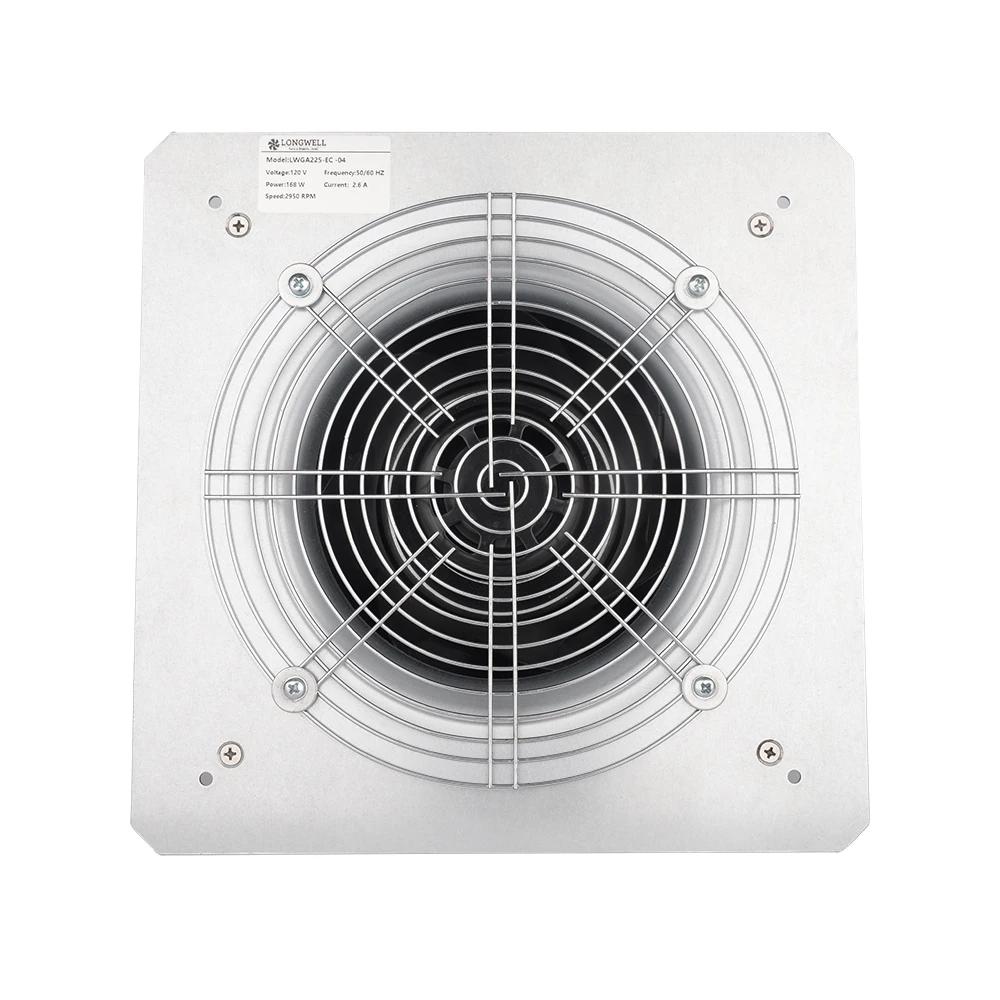

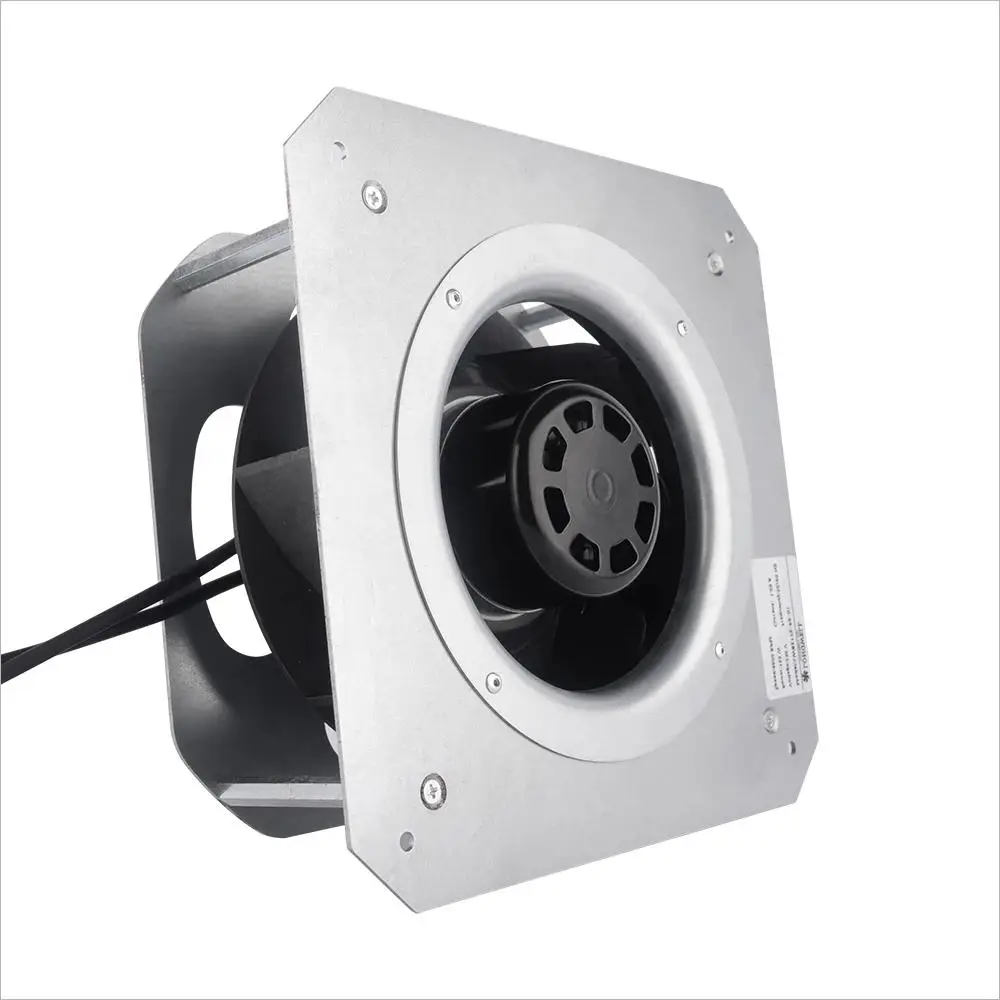

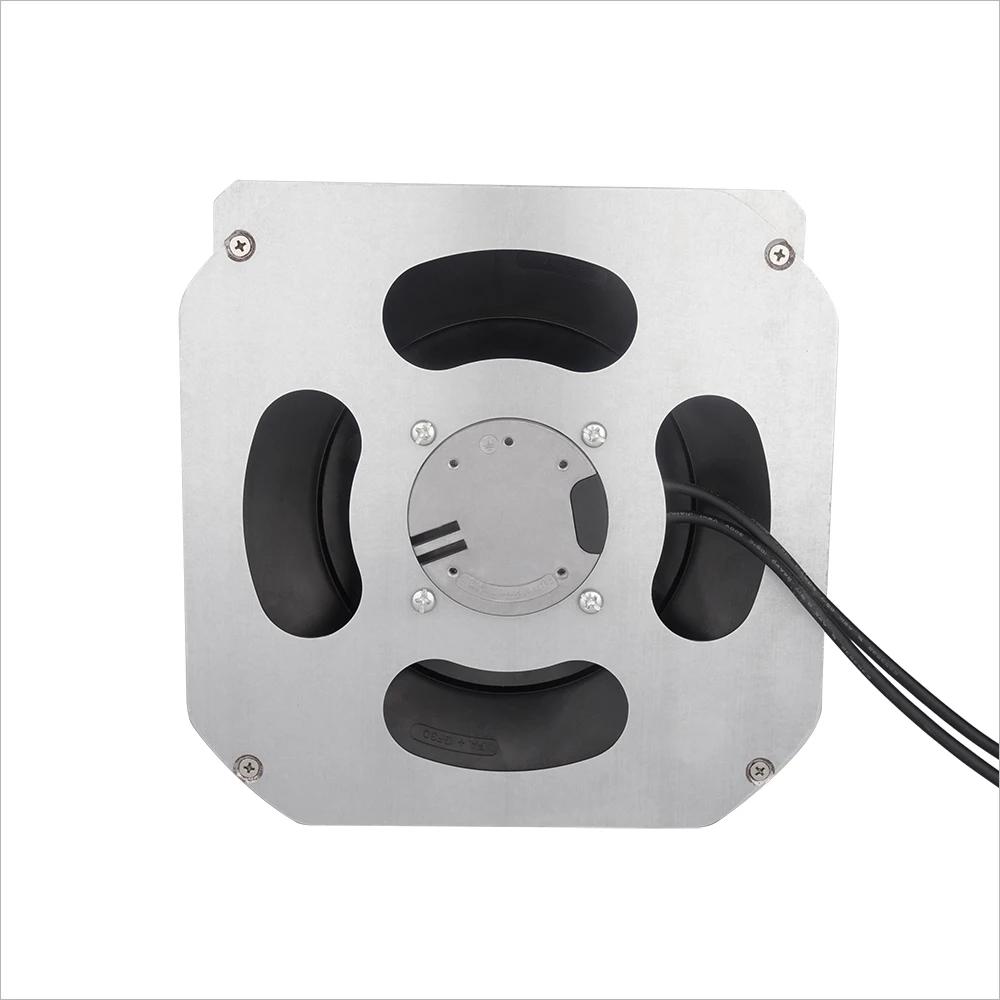

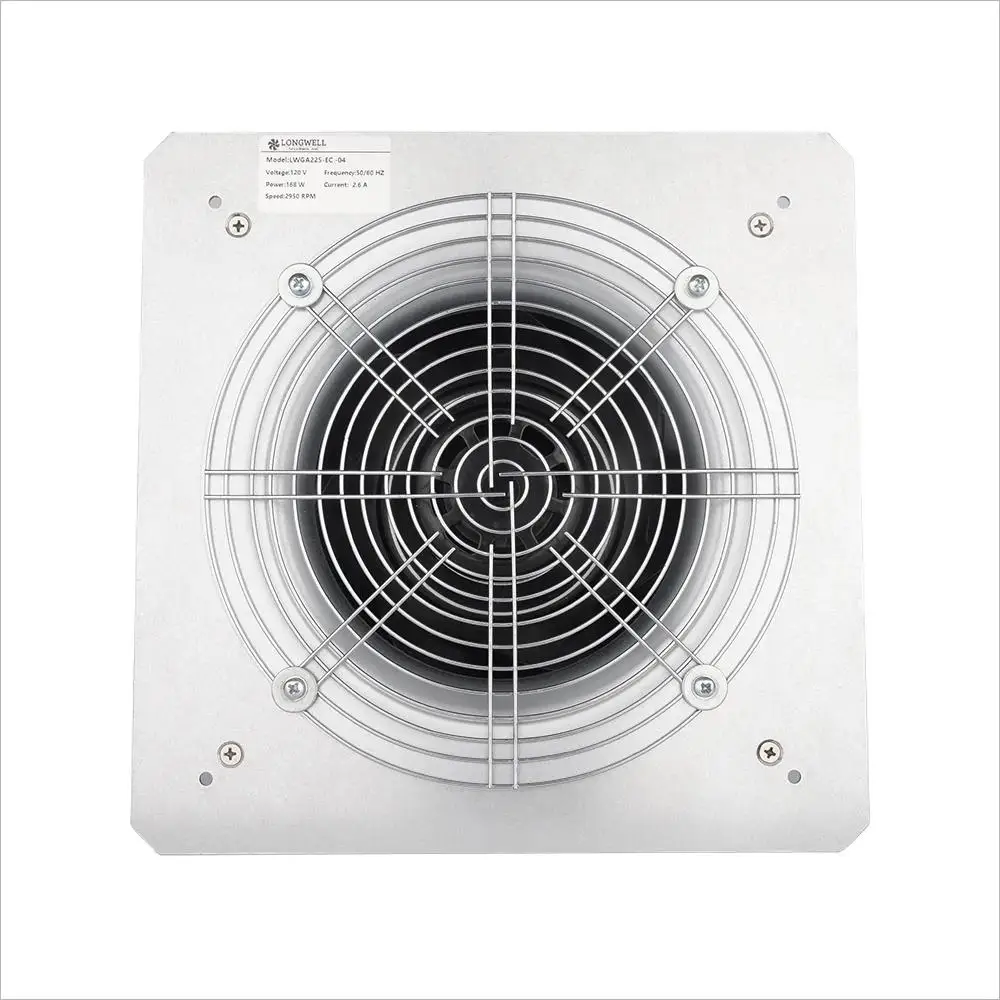

LONGWELL 225mm EC Backward Curved Centrifugal Fan, Industrial Centrifugal Blower, 120V 0–10V/PWM Control, PA66, for AHU, Air Purifiers, Railway Ventilation

Voltage 120V/220V
ISO / CE / UL / ETL Factory & Test Lab OEM / ODM ebm-papst alternative

$ 96

Specifications
Motor
BLEC external rotor motor
Impeller
Plastic PA66 +gGF
Frequency
50/60Hz
Category: Tags: , ,
CategoryEC Fans
TagsAir Purifier EquipmentCentrifugal FanEC Motor
Get a Fast Quote from an Engineer Send your airflow, static pressure & voltage — we reply within one working day with a matching model.
✓ 1-day reply ✓ STEP / CAD on request ✓ Factory-direct

Your specifications go straight to a sales engineer — no spam, never shared.

Prefer a datasheet?
Download Product Catalog (PDF)
Need the exact model with a measured or digitised curve? This page describes the EC Fans range. The Fan Selector lists every LONGWELL EC backward-curved centrifugal fan model with airflow, static pressure, power, noise, drawing and datasheet.
Search EC backward-curved centrifugal fan models →
Have your duty point?

See every LONGWELL model whose P-Q curve covers it — margins, noise and power included. No login.

Library: Ø25–1,000 mm, single units up to about 52,000 m³/h — larger duties go straight to an engineer. Prefer to talk it through? Send your specs to an engineer

Description

Types :

LWBE3G 225mm 115V 220V high cfm Air purifier backward EC centrifugal fan with BLEC Motor for AHU ,Industrial ventilation
Voltage Ranges :

230V
Frequency :

50/60 Hz
Diamter :

225mm ( impeller diameters )
Motor Types :

BLEC External Rotor Motor ( EC )

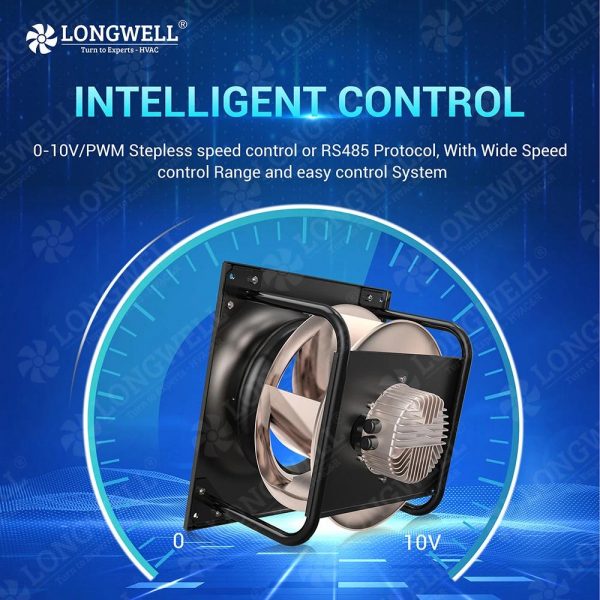

Speed Control :

0-10V Signal / PWM / RS485(Optional)
Max.ambient Temp:

-25℃～ +60℃
Certificating :

All necessary certifications suitable for USA & Europe , ETL,UL ,CE ,RoHS, ISO19001,ISO 14001,BSCI
Protection Level:

IP44 ,IP54,IP55
Electronic Protection:

Current limiting protection ,Over-temperature protection,Over-current protection,Locked-rotor protection,Soft start
Working & Storage

Operating temperature：-25~60℃；Operating humidity：0 ~ 85 % RH
Storing temperature：-25 ~ 70℃；Storing humidity：0 ~ 95 % RH
Applicable altitude range：＜1000m
Balancing

According to JB/T 9101-1999 requirements G6.3
Product Standards :

LVD EN60950-1 EMC EN61000-6-3,EN61000-4-2, EN61000-4-3

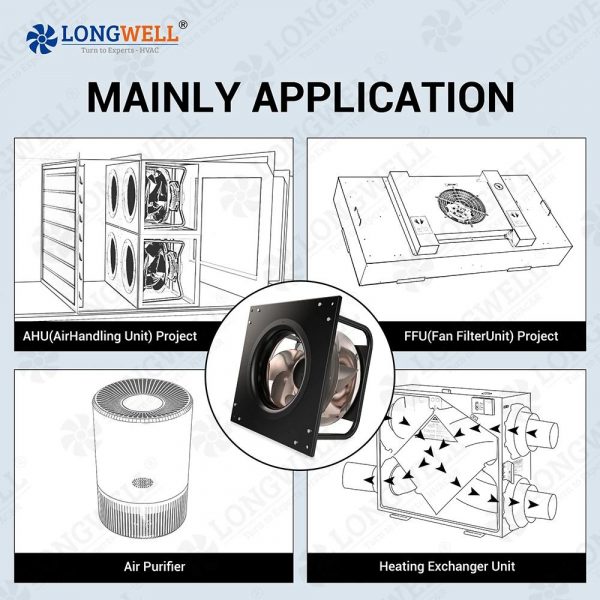

Mainly Applications

AUH/ AIR PURIFIER / Server Cooling & Ventilation / Grow Tent / Ventilation SYSTEM/ Equipments Cooling /Refrigerator ,etc;ventilation fan cooling;ventilation exhaust fans

Additional information

Voltage

120V/220V
Blade Material

aluminum alloy
customized support

OEM, ODM, OBM
mounting

Other
place of origin

Zhejiang, China
brand name

LONGWELL
model number

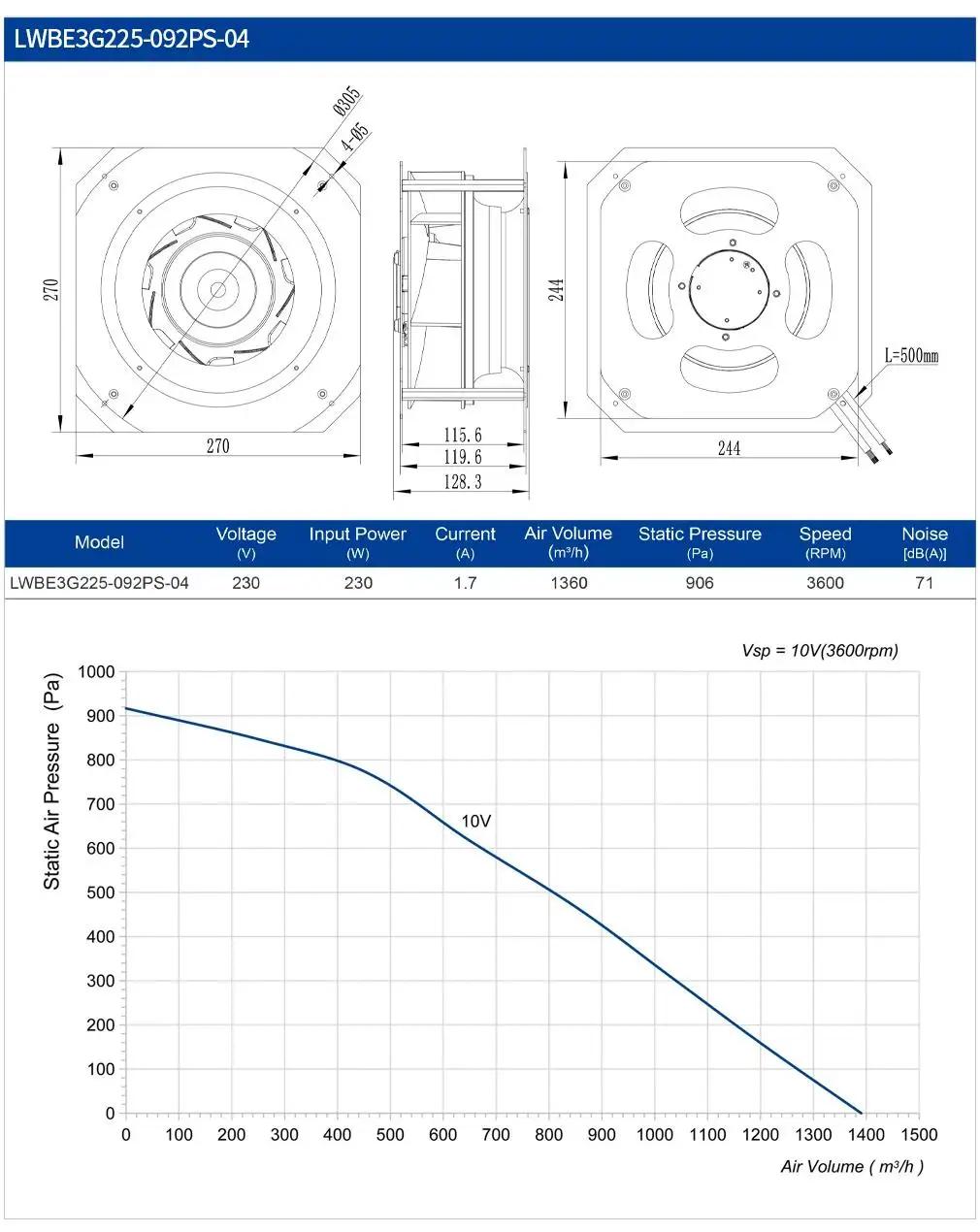

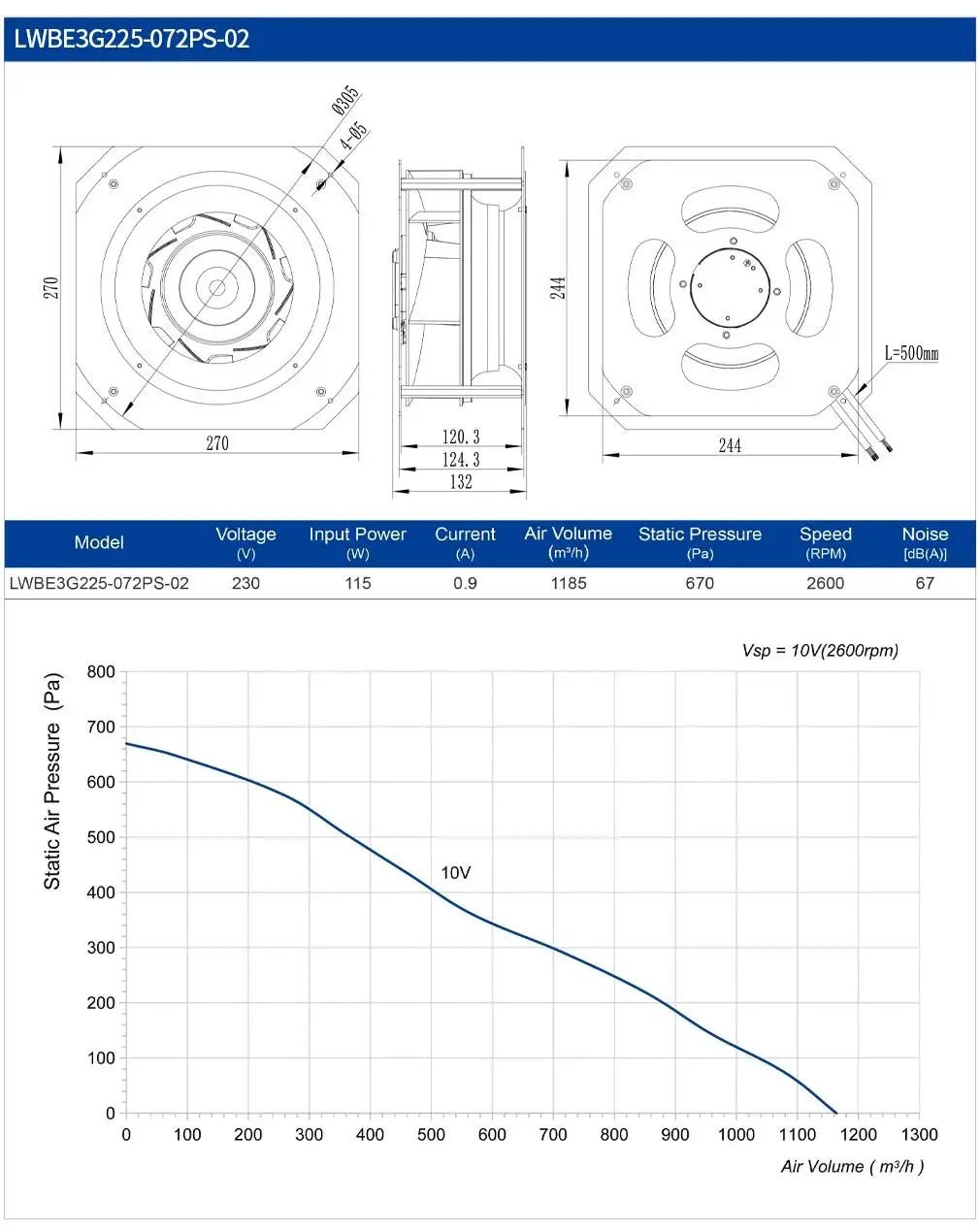

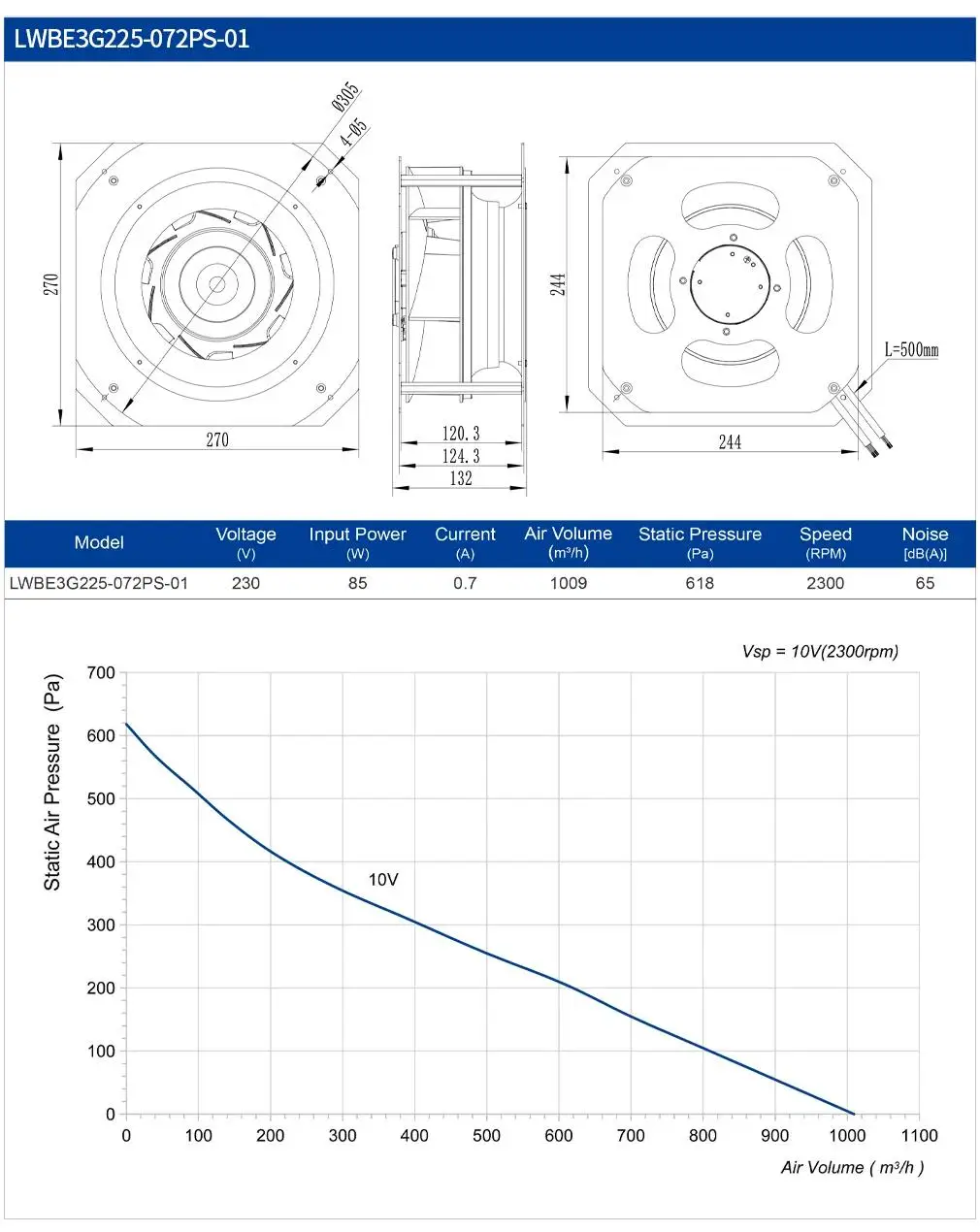

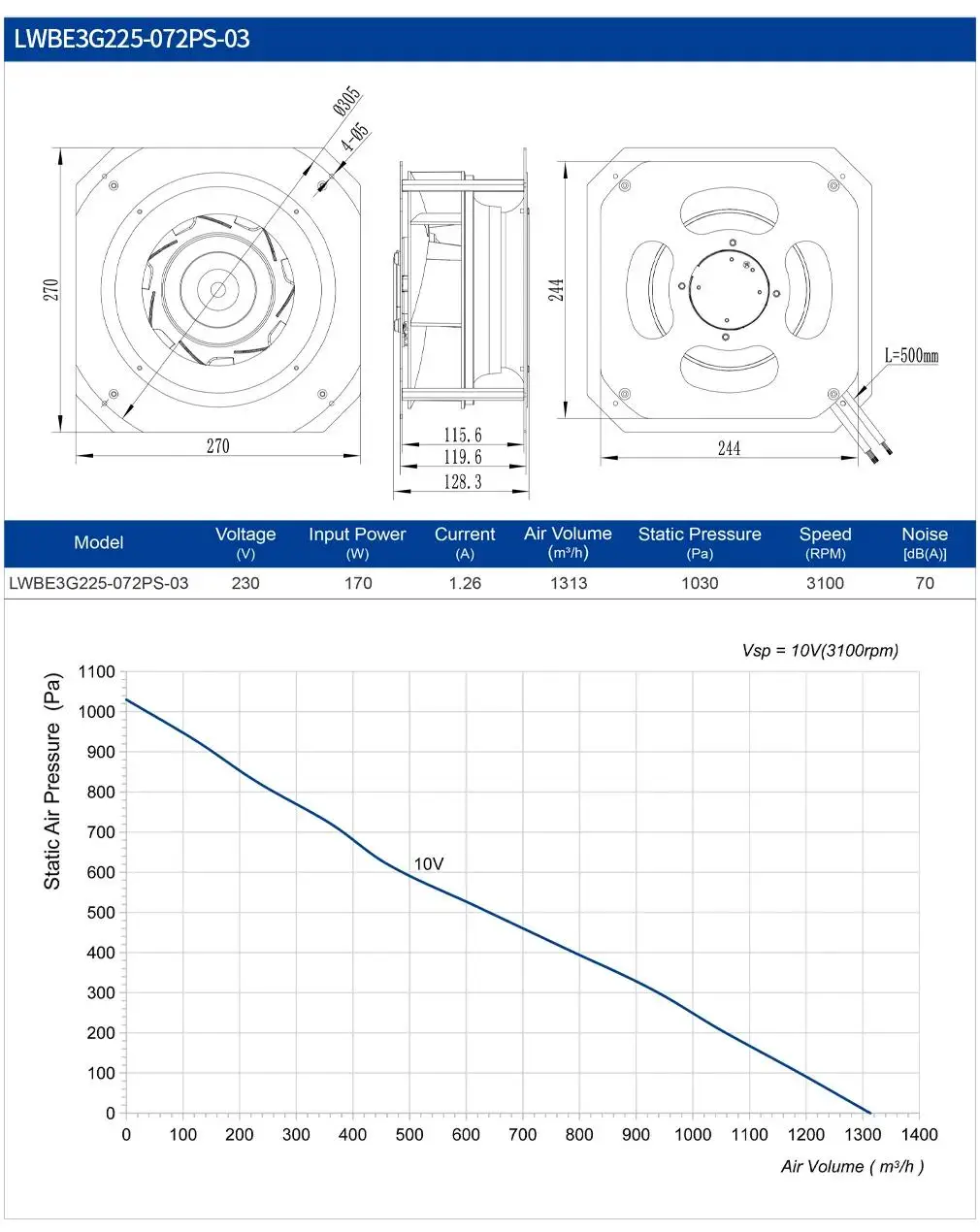

LWBE3G225-72PS-01, LWBE3G225-72PS-02, LWBE3G225-72PS-03, LWBE3G225-92PS-04
warranty

1 Year
After-sales Service Provided

Field installation, commissioning and training
Material

Stainless Steel, Plastic, aluminum alloy, Steel
Type

AHU centrifugal fan
Frequency

50/60Hz
Impeller material

Plastic PA66 +gGF
Bearing

Ball Bearing
Motor type

BLEC external rotor motor
Amb,Temp

-25 to +60℃
Insulation

B
IP LEVEL

IP 55 / IP54
Leading time short to 19 days

0-10V/PWM
Product name

Industrial Centrifugal Fans
Selling units

Single item
Single package size

40X40X20 cm
Single gross weight

6.000 kg
