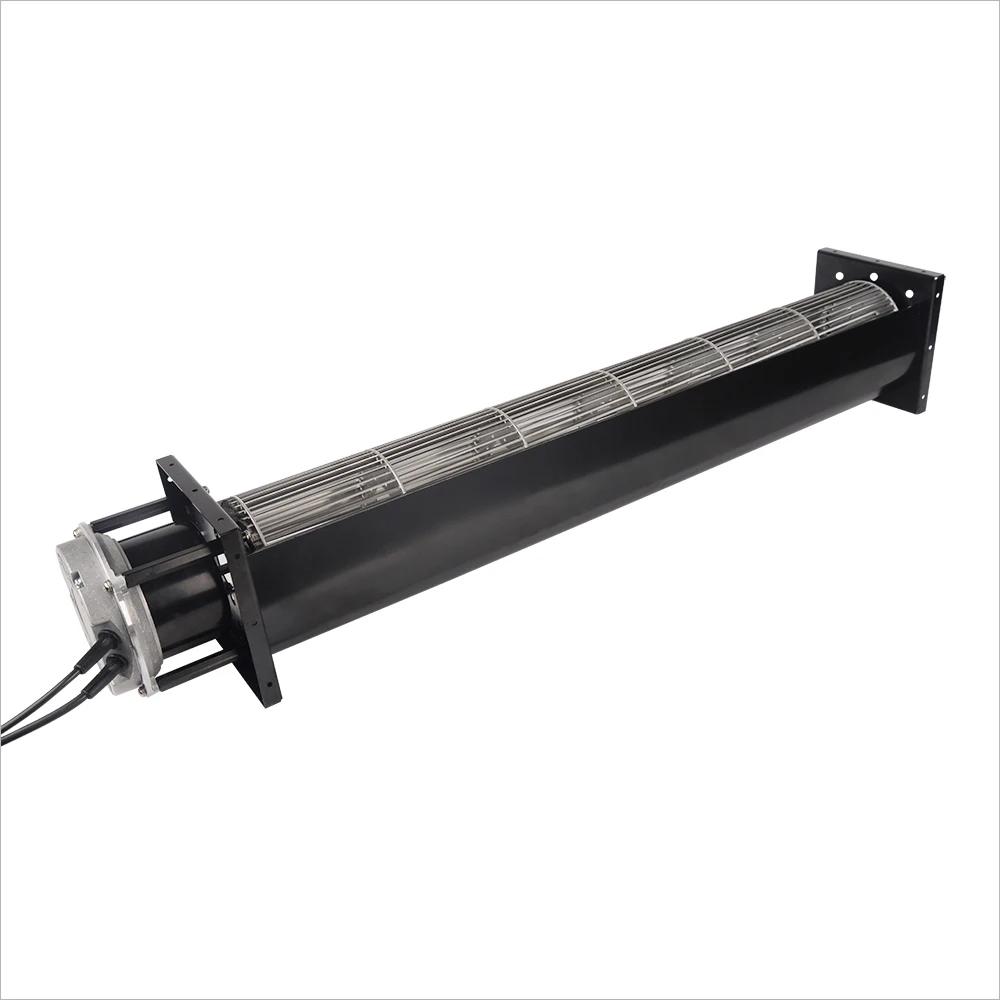

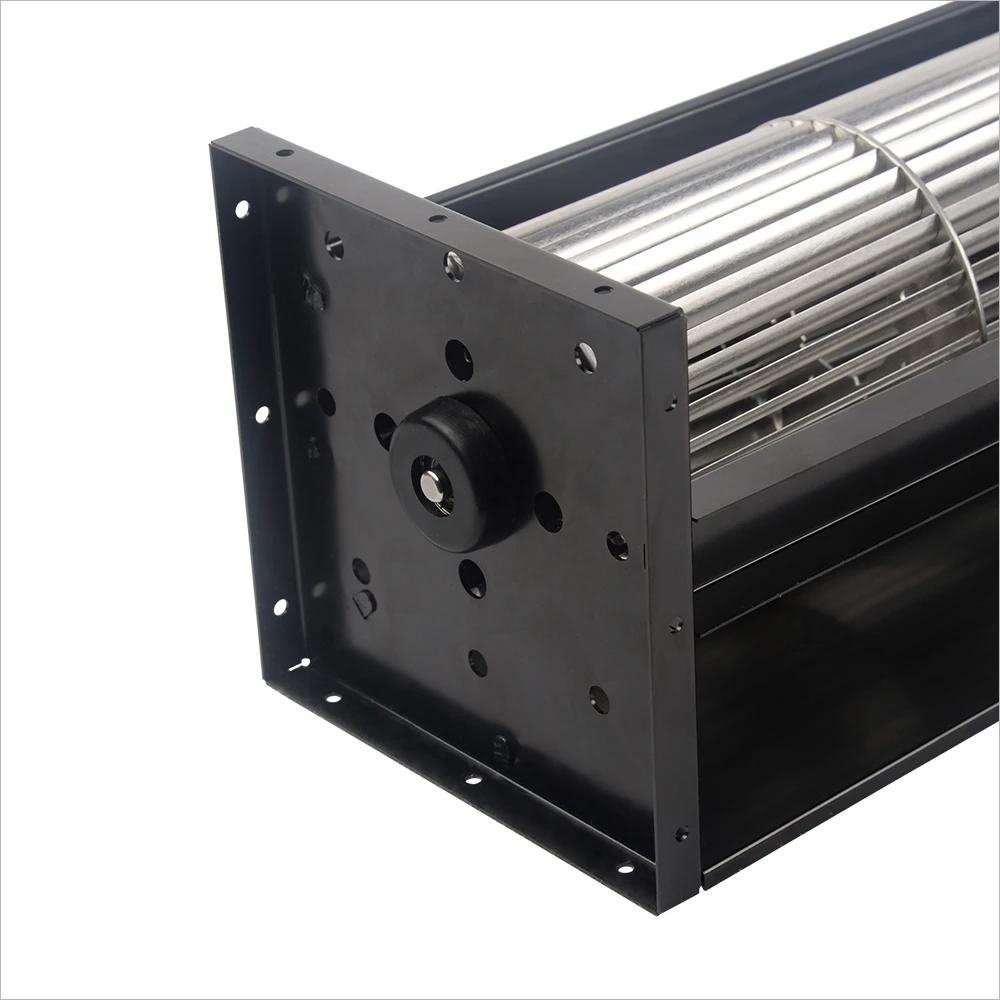

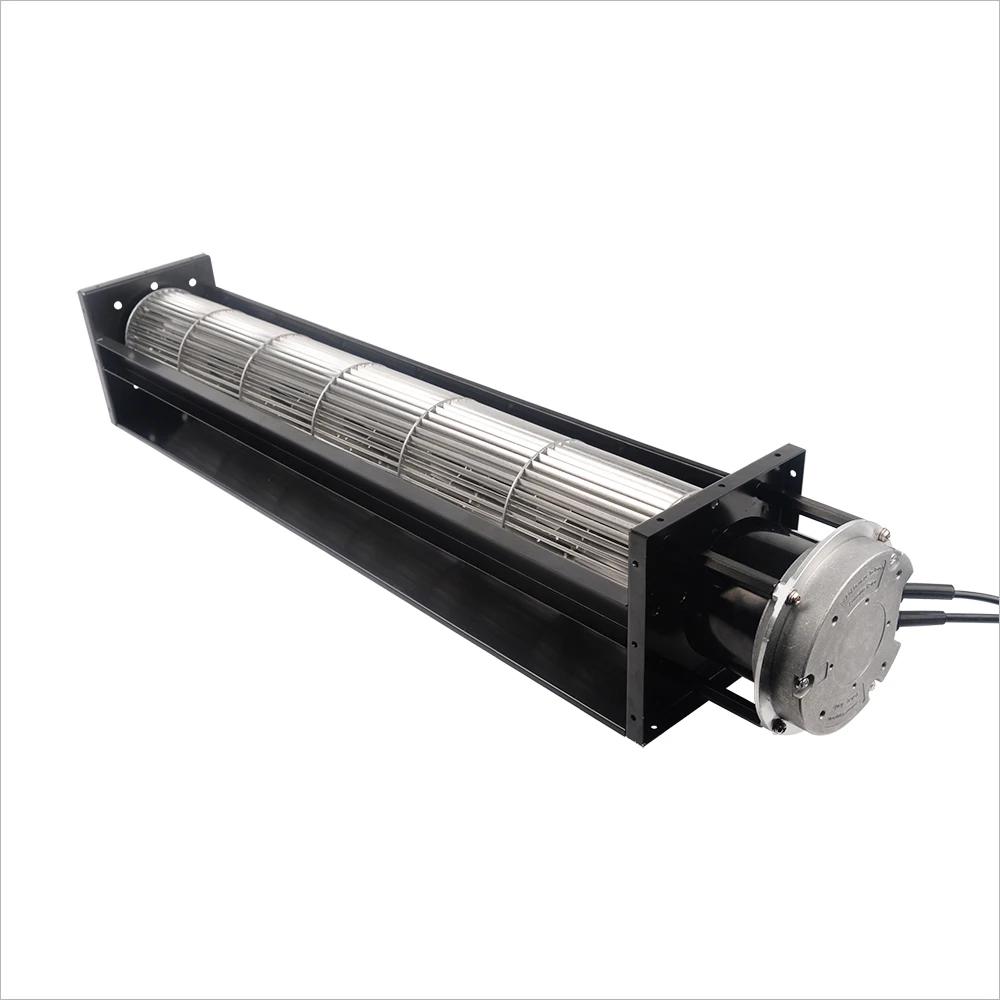

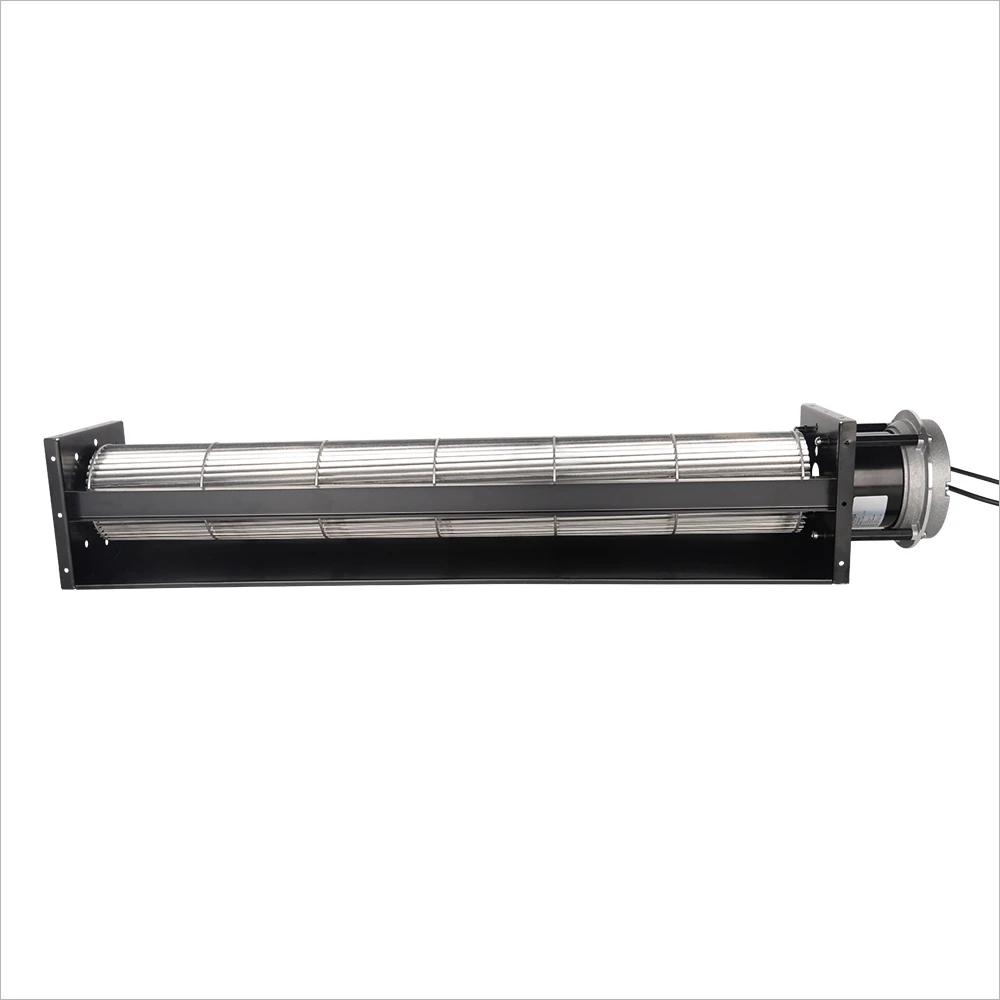

LONGWELL 110mm EC Cross Flow Fan, Tangential Blower Fan, 230V, Aluminum Alloy, for Ovens, Floor Heating, Air Purifiers

Name: LONGWELL 110mm EC Cross Flow Fan, Tangential Blower Fan, 230V, Aluminum Alloy, for Ovens, Floor Heating, Air Purifiers
Brand: Ningbo Longwell Electric Technology Co., Ltd.

Voltage 230V

ISO / CE / UL / ETL Factory & Test Lab OEM / ODM ebm-papst alternative

$ 40

Specifications

Motor: EC Motor
Speed: 4000rpm, 1100rpm, 990rpm
Impeller: Aluminumu alloy

Category: Elevator Cross Flow Fan Tags: Cross Flow Fan, EC Motor, Elevator Ventilation

CategoryElevator Cross Flow Fan

TagsCross Flow Fan EC Motor Elevator Ventilation

Get a Fast Quote from an Engineer Send your airflow, static pressure & voltage — we reply within one working day with a matching model.

✓ 1-day reply ✓ STEP / CAD on request ✓ Factory-direct

Name

Work Email

Phone / WhatsApp

Estimated order quantity

Message

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

Your specifications go straight to a sales engineer — no spam, never shared.

Prefer a datasheet?

Download Product Catalog (PDF)

Need the exact model with a measured or digitised curve? This page describes the Elevator Cross Flow Fan range. The Fan Selector lists every LONGWELL cross flow fan model with airflow, static pressure, power, noise, drawing and datasheet.

Search cross flow fan models →

Description

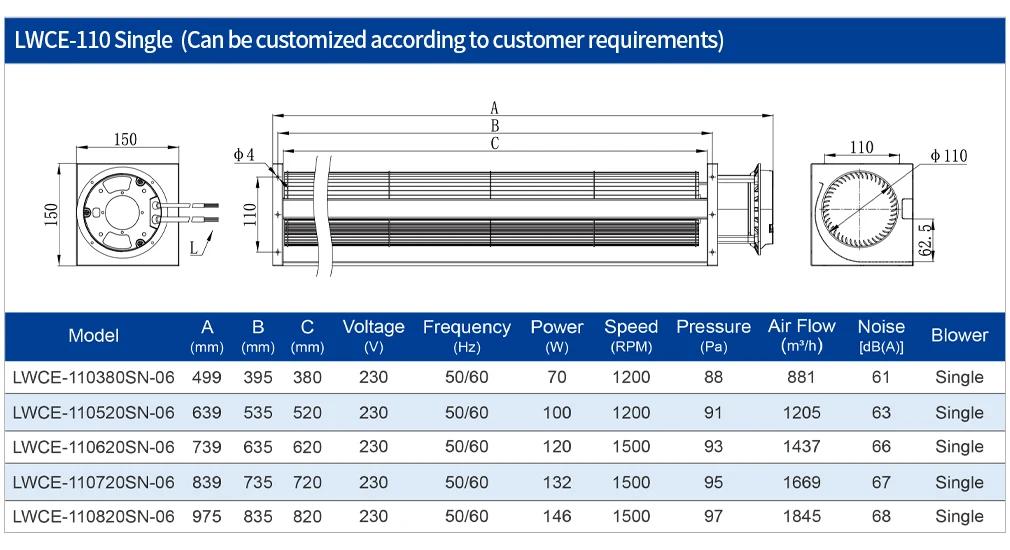

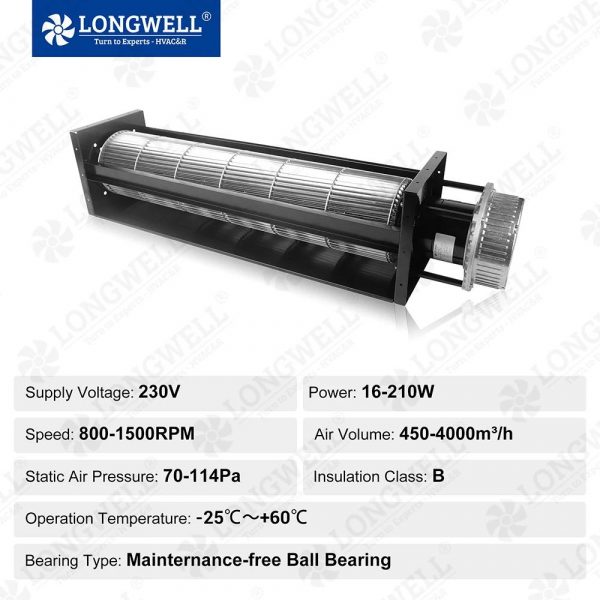

Types :	EC 110mm cross flow fan Cleaner Air, Healthier Lives Tangential Fan for Superior Indoor Air Quality
Voltage Ranges :	230V
Frequency :	50/60 Hz
Diamter :	110mm ( impeller diameters )

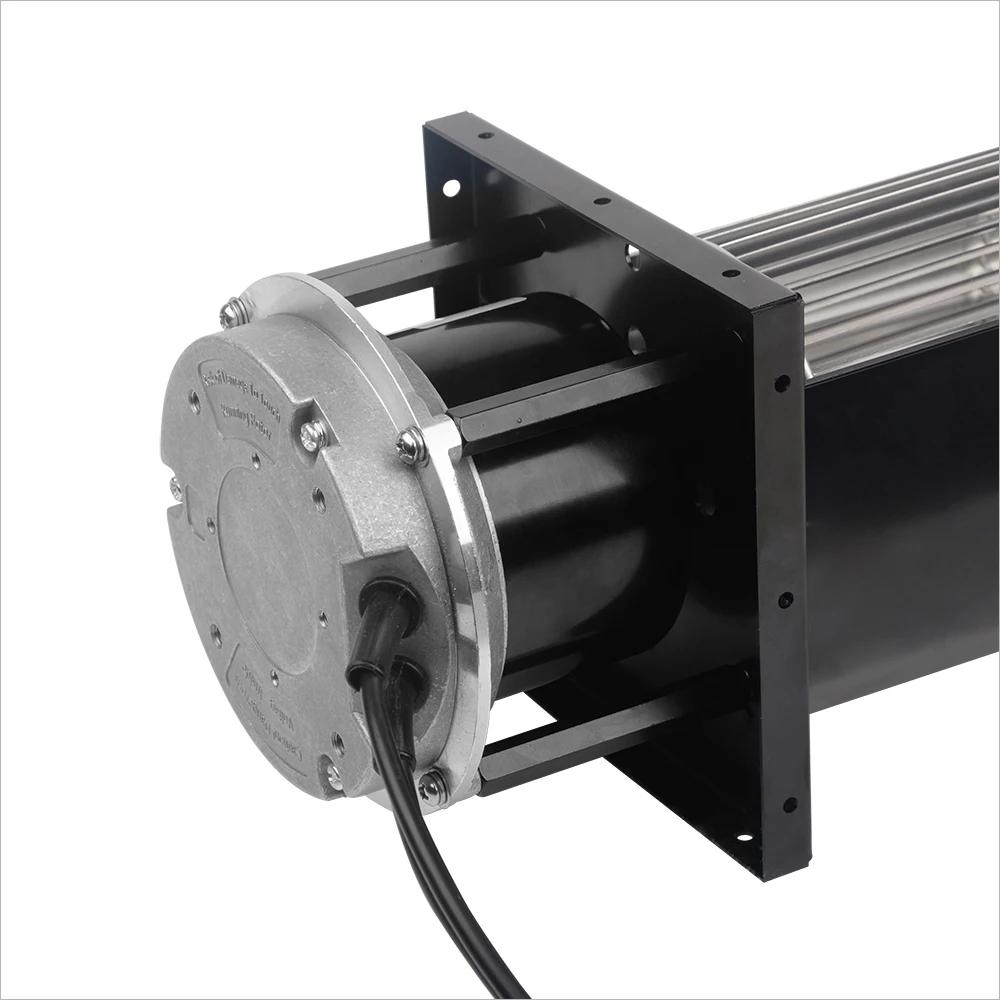

Motor Types :	BLEC External Rotor Motor
Speed Control :	0-10V Signal / PWM / RS485(Optional)
Max.ambient Temp:	-25℃～ +60℃
Certificating :	All necessary certifications suitable for USA & Europe , ETL,UL ,CE ,RoHS, ISO19001,ISO 14001,BSCI
Protection Level:	IP44 ,IP54,IP55
Electronic Protection:	Current limiting protection ,Over-temperature protection,Over-current protection,Locked-rotor protection,Soft start
Working & Storage	Operating temperature：-25~60℃；Operating humidity：0 ~ 85 % RH Storing temperature：-25 ~ 70℃；Storing humidity：0 ~ 95 % RH Applicable altitude range：＜1000m
Balancing	According to JB/T 9101-1999 requirements G6.3
Product Standards :	LVD EN60950-1 EMC EN61000-6-3,EN61000-4-2, EN61000-4-3
Mainly Applications	AUH/ AIR PURIFIER / Server Cooling & Ventilation / Grow Tent /Ventilation SYSTEM/ Equipments Cooling /Refrigerator ,etc;ventilation fan cooling;ventilation exhaust fans

Additional information

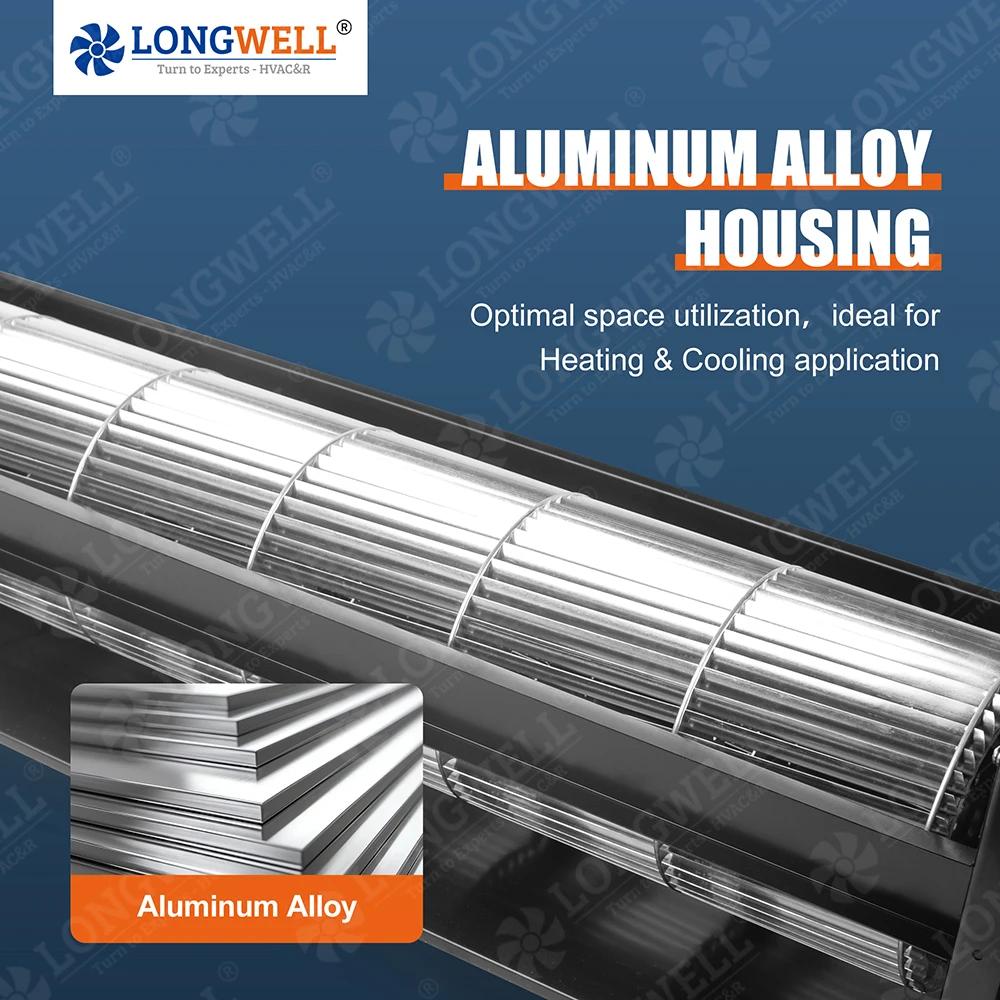

Blade Material	aluminum
mounting	Other
speed	4000rpm, 1100rpm, 990rpm
voltage	230V
customized support	OEM, ODM, OBM
place of origin	Zhejiang, China
brand name	LONGWELL
warranty	1 Year
After-sales Service Provided	Online support
Item name	EC cross flow fan
Bearing	Ball Bearing /sleeve bearing
Application	Over , heater , air purifier , home appliances , floor heating ,
Impeller Material	Aluminumu alloy
Product name	Tangential Fan
Motor type	EC Motor
Material	Steel
Usage	Split Air Conditioning
Keywords	Cross Flow Fans
Type	Cross Flow Fan Tangential Oven Fan
Selling units	Single item
Single package size	15X15X20 cm
Single gross weight	5.000 kg
