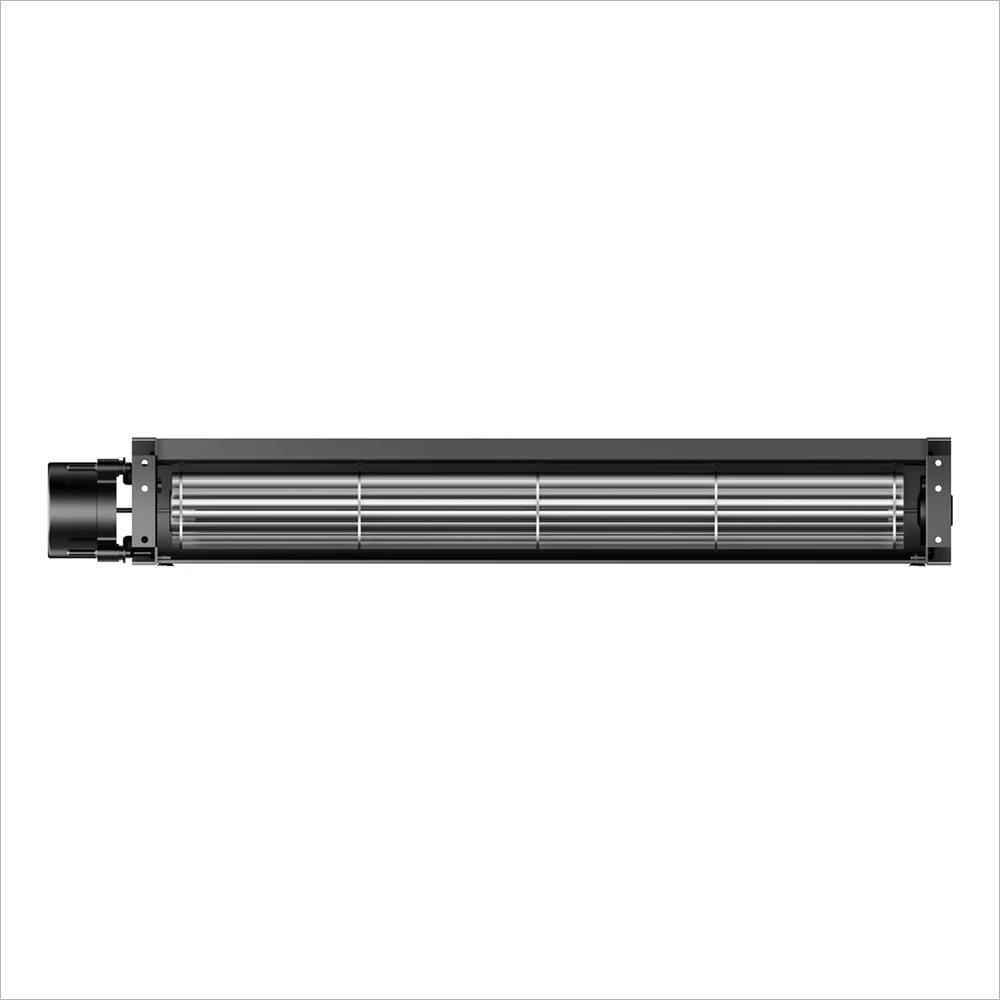

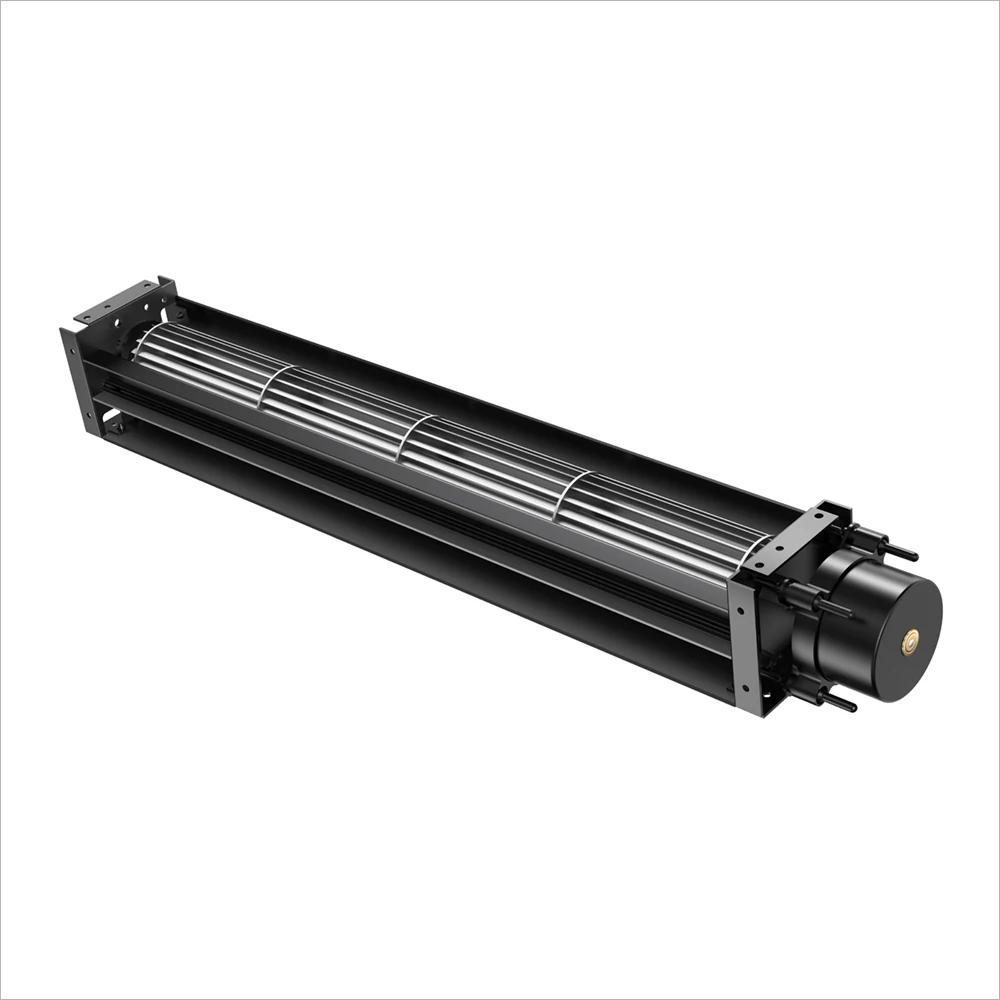

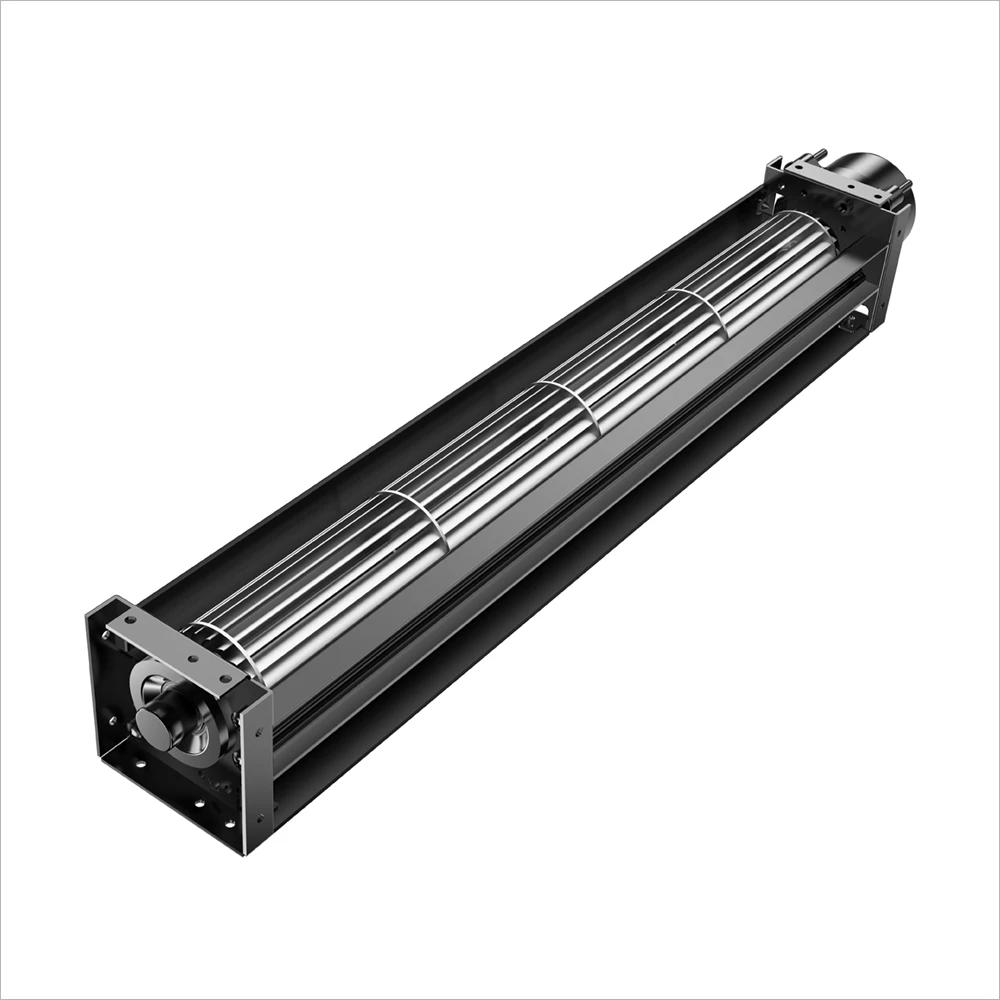

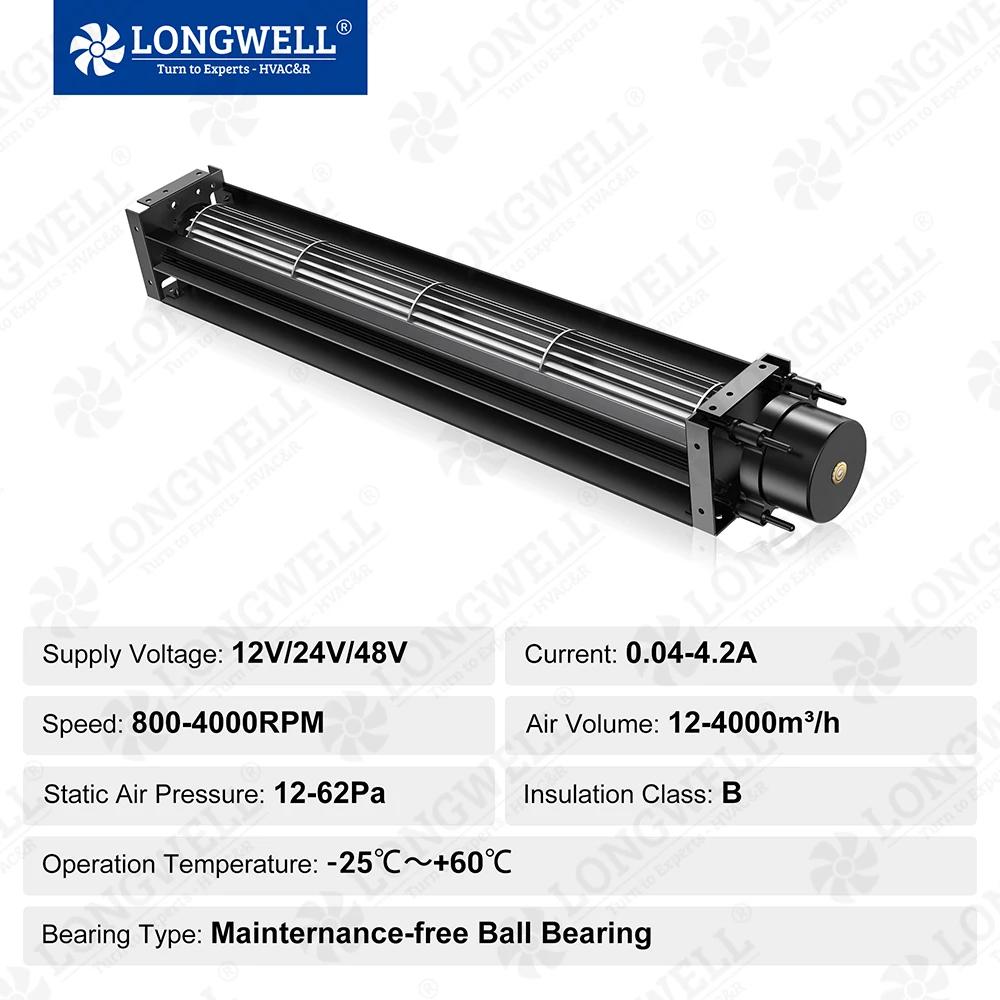

LONGWELL 40mm DC Cross Flow Fan, Tangential Blower Fan, PWM Control, for Air Curtains, Ovens, Floor Heating

Voltage Other
ISO / CE / UL / ETL Factory & Test Lab OEM / ODM ebm-papst alternative

$ 20

Specifications

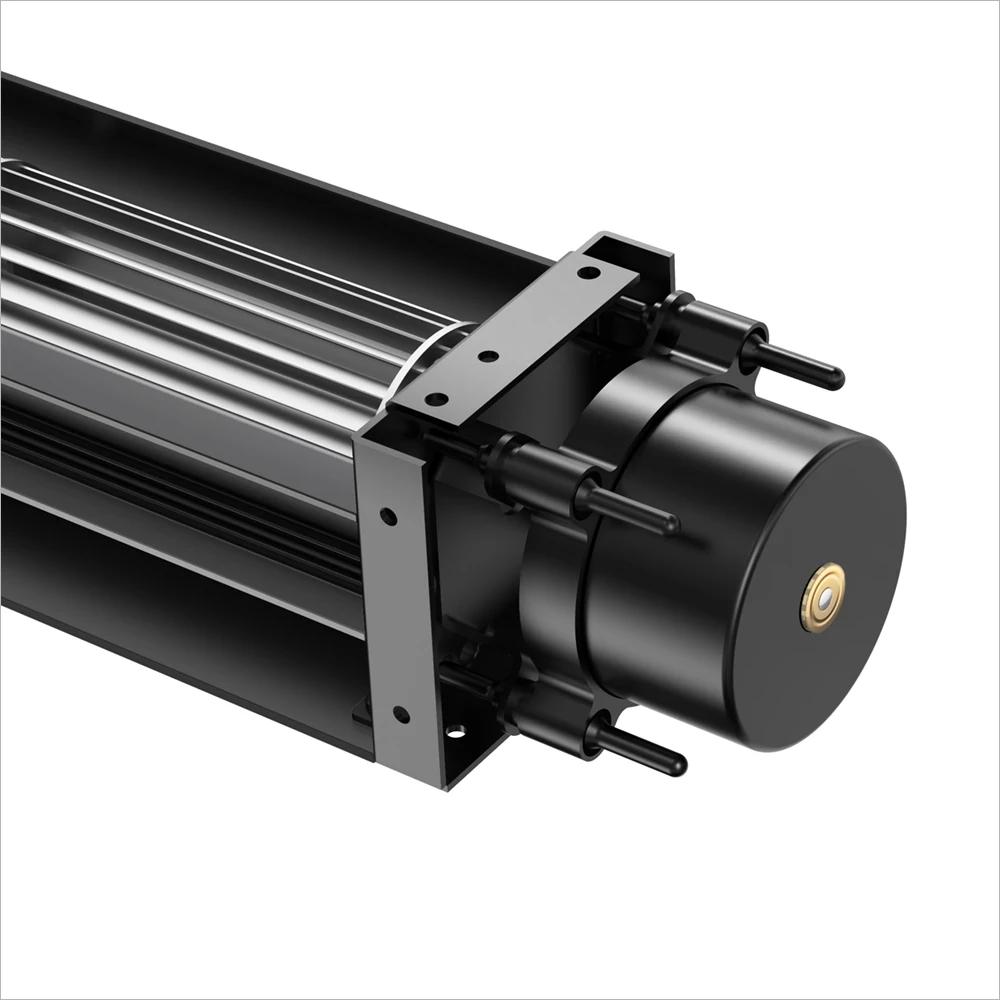

Motor
DC brushless external Motor
Speed
4000rpm, 1100rpm, 990rpm
Category: Tags: , ,
CategoryDC Cross Flow Fans
TagsAir Conditioning UnitsCross Flow FanEC Motor
Get a Fast Quote from an Engineer Send your airflow, static pressure & voltage — we reply within one working day with a matching model.
✓ 1-day reply ✓ STEP / CAD on request ✓ Factory-direct

Your specifications go straight to a sales engineer — no spam, never shared.

Prefer a datasheet?
Download Product Catalog (PDF)
Need the exact model with a measured or digitised curve? This page describes the DC Cross Flow Fans range. The Fan Selector lists every LONGWELL DC cross flow fan model with airflow, static pressure, power, noise, drawing and datasheet.
Search DC cross flow fan models →
Have your duty point?

See every LONGWELL model whose P-Q curve covers it — margins, noise and power included. No login.

Library: Ø25–1,000 mm, single units up to about 52,000 m³/h — larger duties go straight to an engineer. Prefer to talk it through? Send your specs to an engineer

Description

Types :

Commercial Comfort Perfected 40mm DC cross flow fan Achieve Ideal Indoor Conditions with Tangential Fan
Voltage Ranges :

12V,24V
Frequency :

50/60 Hz
Diamter :

40mm ( impeller diameters )
Motor Types :

BLEC External Rotor Motor
Speed Control :

0-10V Signal / PWM / RS485(Optional)
Max.ambient Temp:

-25℃～ +60℃
Certificating :

All necessary certifications suitable for USA & Europe , ETL,UL ,CE ,RoHS, ISO19001,ISO 14001,BSCI
Protection Level:

IP44 ,IP54,IP55
Electronic Protection:

Current limiting protection ,Over-temperature protection,Over-current protection,Locked-rotor protection,Soft start
Working & Storage

Operating temperature：-25~60℃；Operating humidity：0 ~ 85 % RH
Storing temperature：-25 ~ 70℃；Storing humidity：0 ~ 95 % RH
Applicable altitude range：＜1000m
Balancing

According to JB/T 9101-1999 requirements G6.3
Product Standards :

LVD EN60950-1 EMC EN61000-6-3,EN61000-4-2, EN61000-4-3
Mainly Applications

AUH/ AIR PURIFIER / Server Cooling & Ventilation / Grow Tent /Ventilation SYSTEM/ Equipments Cooling /Refrigerator ,etc;ventilation fan cooling;ventilation exhaust fans

Additional information

Blade Material

Plastic
mounting

FREE STANDING
speed

4000rpm, 1100rpm, 990rpm
voltage

Other
customized support

OEM, ODM, OBM
place of origin

Zhejiang, China
brand name

LONGWELL
warranty

1 Year
After-sales Service Provided

Video technical support
Material

Plastic, aluminum alloy, Steel
Motor type

DC brushless external Motor
Housing Material

Aluminum / Galvanized Metal
Impeller/Blade material

Aluminum Alloy
Bearing Type

Ball bearing
Operating temperature

– 25 ℃ ~ +60 ℃
Fan Speed

0~10V /PWM Variable Speed
Application

Floor Heating / air curtain / air purifier / microwave oven
Related Products

25~200mm Dia available
OEM /ODM

ventilation cooling cross flow fan
Type

CROSS FLOW FAN
Selling units

Single item
Single package size

10X10X20 cm
Single gross weight

4.000 kg
