LONGWELL 110mm DC Cross Flow Fan, Tangential Blower Fan, 24V, Aluminum Alloy, for Floor Heating, Cold Storage, Air Purifiers

Voltage Dc 24V
ISO / CE / UL / ETL Factory & Test Lab OEM / ODM ebm-papst alternative

$ 15

Category: Tags: , ,
CategoryDC Cross Flow Fans
TagsCross Flow FanDC FanFloor Heating
Get a Fast Quote from an Engineer Send your airflow, static pressure & voltage — we reply within one working day with a matching model.
✓ 1-day reply ✓ STEP / CAD on request ✓ Factory-direct

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

Your specifications go straight to a sales engineer — no spam, never shared.

Prefer a datasheet?
Download Product Catalog (PDF)
Need the exact model with a measured or digitised curve? This page describes the DC Cross Flow Fans range. The Fan Selector lists every LONGWELL DC cross flow fan model with airflow, static pressure, power, noise, drawing and datasheet.
Search DC cross flow fan models →
Have your duty point?

See every LONGWELL model whose P-Q curve covers it — margins, noise and power included. No login.

Library: Ø25–1,000 mm, single units up to about 52,000 m³/h — larger duties go straight to an engineer. Prefer to talk it through? Send your specs to an engineer

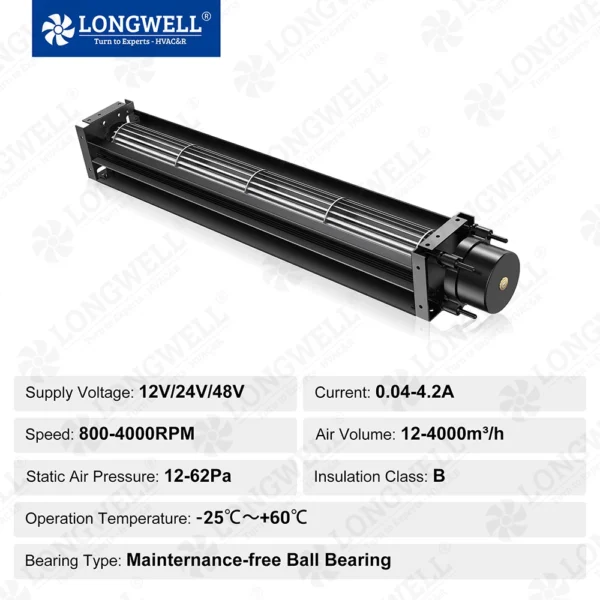

Description


COUPON
View all the coupons

Types :

DC 110mm cross flow fan Agricultural Advancements Boosting Crop Growth with Tangential Fan
Voltage Ranges :

24V
Frequency :

50/60 Hz
Diamter :

110mm ( impeller diameters )
Motor Types :

BLEC External Rotor Motor
Speed Control :

0-10V Signal / PWM / RS485(Optional)
Max.ambient Temp:

-25℃～ +60℃
Certificating :
All necessary certifications suitable for USA & Europe , ETL,UL ,CE ,RoHS, ISO19001,ISO 14001,BSCI
Protection Level:

IP44 ,IP54,IP55
Electronic Protection:
Current limiting protection ,Over-temperature protection,Over-current protection,Locked-rotor protection,Soft start
Working & Storage

Operating temperature：-25~60℃；Operating humidity：0 ~ 85 % RH

Storing temperature：-25 ~ 70℃；Storing humidity：0 ~ 95 % RH

Applicable altitude range：＜1000m
Balancing

According to JB/T 9101-1999 requirements G6.3
Product Standards :

LVD EN60950-1 EMC EN61000-6-3,EN61000-4-2, EN61000-4-3

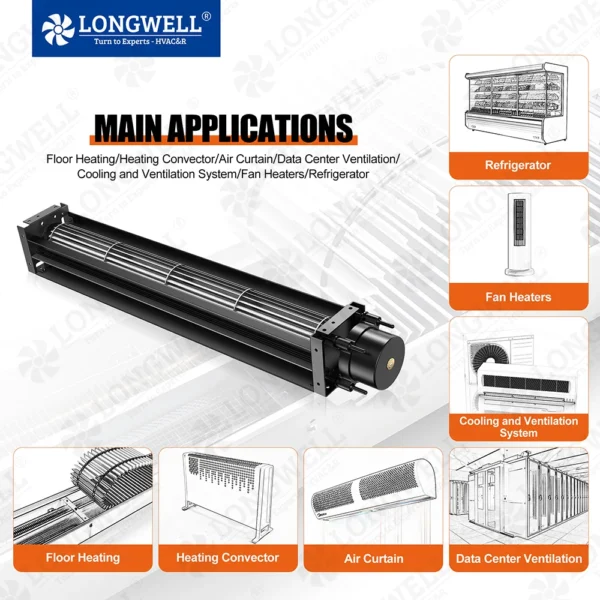

Mainly Applications

AUH/ AIR PURIFIER / Server Cooling & Ventilation / Grow Tent /Ventilation SYSTEM/ Equipments Cooling /Refrigerator ,etc;ventilation fan cooling;ventilation exhaust fans

Additional information

voltage

Dc 24V
speed

4000 RPM, 1100rpm, 990rpm
mounting

Free Standing

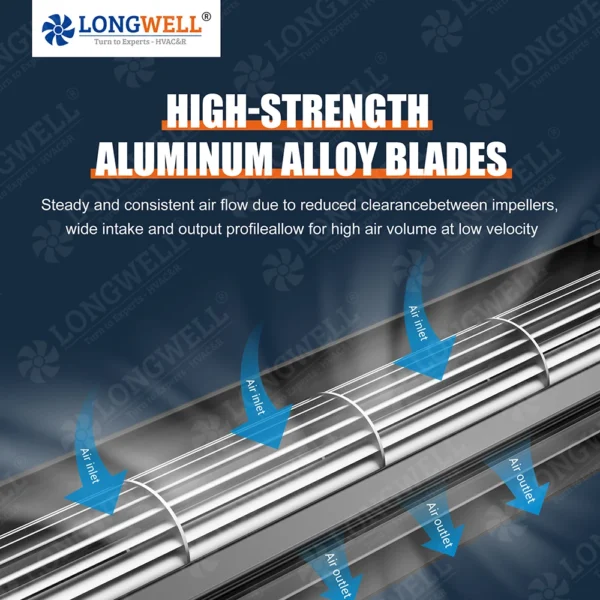

Blade Material

Aluminum Alloy
Material

Plastic, Aluminum Alloy, Steel
customized support

OEM, ODM, OBM
