High Airflow 24V DC Axial Cooling Fan for Industrial Equipment: 568 CFM Case Study

The requirement

568.95 CFM of airflow paired with an IP56 protection rating was the primary baseline for a new 1600-unit deployment requested by a domestic system integrator in late July 2026. Space was extremely tight. The client needed a highly durable cooling component capable of resisting water ingress while providing precise thermal management via PWM speed control. Given the 24 VDC bus requirement and the strict 200x200x60 mm spatial envelope, the target equipment demands aggressive heat rejection in a compact physical footprint.

The electrical limit was capped at an operating range of 12 to 26.5 VDC. System acoustics had to remain below 68.82 dBA maximum. Nominal operation should hold near 65.8 dBA. Ambient temperature fluctuations demanded operation from -10°C up to +60°C. Pricing constraints dictated a localized supply chain. The initial sales input specifically requested an RMB tax-inclusive quote for the entire 1600-piece production run.

Here the plastic housing and impeller required UL94V-0 flammability ratings to satisfy general safety compliance for enclosed electronics. Additionally, the client specified a 4-wire setup. This harness needed UL1007 22AWG leads spanning 300mm to carry power, ground, frequency generator signals, and the PWM input. Signal feedback is absolutely critical for the host controller. It detects sudden rpm drops caused by external blockages or bearing fatigue immediately. The total mass of the cooling unit could not exceed 1050 grams to prevent excessive strain on the sheet metal mounting panels.

The engineering answer: choosing the 24v dc axial cooling

We initially evaluated standard 200mm AC fans but quickly dismissed them. The customer’s 24VDC system architecture would have necessitated an additional power supply unit. That inverter would eat into the tight 60mm depth constraint. It would also drive up the per-unit cost across the 1600-piece order. Instead, we shifted focus to a high-density DC axial design.

Generating nearly 569 CFM from a compact 200x200mm square frame requires aggressive blade pitching. It also demands high rotational speeds. We settled on a 7-blade PBT plastic impeller driven at 3000 RPM. This velocity pushes the static pressure to 28.27 mmH2O. That pressure equals roughly 277 Pa. The obvious trade-off for this aerodynamic output is noise. To keep the sound levels strictly below the 68.82 dBA threshold, we implemented dual high-precision ball bearings. These bearings simultaneously limit shaft vibration and extend the continuous operational life. Testing confirms 50,000 hours of survival at 25°C ambient conditions operating at 15-65% relative humidity.

Meeting the IP56 mandate required physical barrier defenses. The motor internals underwent targeted sealing. This shields the PCB from high-pressure water jets and dust. Longwell’s SmartEC™ principles guided the motor controller layout to handle the requested PWM signal inputs. The system adjusts speed dynamically based on thermal loads. For electrical safety, impedance protection was integrated into the coils. The motor resists fire for 72 hours during a locked rotor fault.

The finalized unit, designated LWAD20060MH-08-11, draws 3.5A at a nominal 84W. It incorporates a soft starter sequence. The motor ramps to full speed in under 10 seconds. This greatly reduces sudden inrush currents on the 24VDC bus.

Final specification

Generating 28.27 mmH2O of static pressure from a 60mm deep frame ensures consistent heat dissipation even when pushing air through dense cabinet filters. The wide 12-26.5 VDC operating window protects the fan from dropping out during typical battery voltage sags in backup power situations.

Every figure above comes from our own test chamber, measured using AMCA 210/211 and ISO 5801 methods. The published procedures behind those numbers are available from AMCA. As always, confirm the duty point against the finished unit before release, since installation conditions move it.

Technical documents

longwell-dc200-technical-doc-03.pdf – This finalized 7-page specification sheet provides mechanical engineers with precise dimensional drawings, P-Q performance curves, and electrical wiring guidelines for the LWAD20060MH-08-11 model.

longwell-dc200-spec-sheet-01.docx – The editable source document containing the raw technical requirements and BOM references used by our internal PM teams during the documentation output phase.

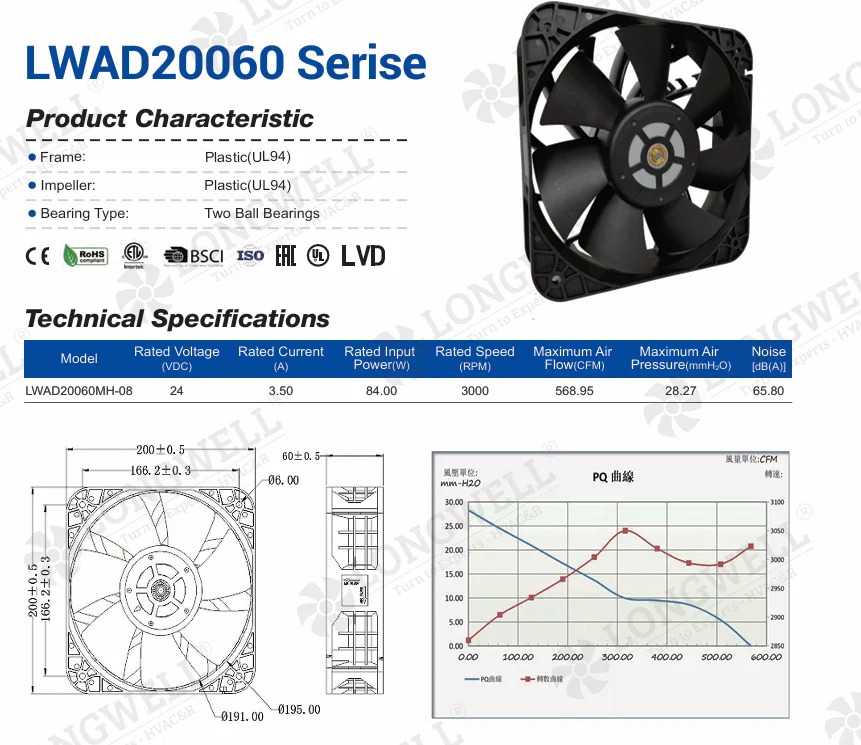

– A visual representation of the product characteristics, highlighting the 7-blade PBT impeller design and general performance metrics.

Why it landed here

• Agile NPI cycle: imported European brands frequently demand 12 to 18 months for specialized IP56-rated DC axial platforms. Our Ningbo engineering team finalized the review and production blueprint for the LWAD20060MH-08-11 in just a few days following the initial July 2026 inquiry.
• Commercial viability: The integrator requested a localized RMB quote for 1600 units. Our domestic manufacturing footprint eliminated import duties. This reduced the final unit price by roughly 35% compared to equivalent imported German hardware, all while matching the strict UL Class A insulation standard.
• Integrated aerodynamic testing: Verifying the 568.95 CFM output and 28.27 mmH2O maximum pressure happens internally. We test everything inside our AMCA 210/211 compliant airflow chambers. This facility saves the customer expensive third-party validation time and prevents project delays.
• Ready-to-deploy safety integrations: Standardizing on dual ball bearings and 72-hour locked rotor impedance protection accelerated the design phase. We did not have to engineer a completely custom PCB to pass the end user’s thermal runaway safety protocols.

Explore our full Axial Fans range.

Questions that followed

Q: How does the soft start function impact the initial startup of the LWAD20060MH-08-11 fan?

A: The integrated soft starter restricts the initial current draw by gradually ramping the motor to its maximum 3000 RPM over a delay time of less than 10 seconds. This prevents voltage spikes on the 24 VDC bus, protecting sensitive upstream electronics.

Q: What happens if debris completely jams the 200mm impeller during operation?

A: The motor features impedance protection specifically designed to withstand a locked rotor condition. It can safely sit in a stalled state for up to 72 hours at the rated 24V voltage without catching fire or permanently damaging the internal coils.

Q: Can we operate this IP56-rated cooling fan in high-humidity outdoor telecom boxes?

A: Yes. The PBT plastic frame and protected motor internals support continuous operation in environments with up to 90% relative humidity. It functions reliably across an ambient temperature spread of -10°C to +60°C.
