Project requirement and design parameters

On March 27, 2026, LONGWELL opened a project to evaluate a 200 mm DC cooling fan operating at 310 VDC. The requirement specified an airflow performance of 510 m³/h against a static pressure constraint of 50 Pa. In response, LONGWELL engineering reviewed the operational parameters and assigned model identifier LWAD20060ZL-01-00 to establish standard engineering specifications and drawings.

Axial fan with a circular wire guard and metal blades
Representative guarded axial fan; project specifications are listed below.

Technical specification and dimensional outline

The engineering team evaluated the structural and electrical requirements, completing the standard technical specification on April 8, 2026. Model LWAD20060ZL-01-00 incorporates a UL:94V-0 plastic frame and impeller supported by two ball bearings. The assembly features overall frame dimensions of 200 mm by 200 mm with a depth of 60 mm and a unit weight of 1050 grams.

Electrical connections are established via UL1007 22# lead wires measuring 500 ±10 mm. Operating on a nominal 310 VDC supply, the specification lists a rated speed of 2000 RPM (±10%) and specifies 300 CFM at 50 Pa static pressure and an average acoustical noise level of 56 dBA.

Specification Parameter Value
Model Number LWAD20060ZL-01-00
Rated Voltage 310 VDC
Operating Speed 2000 RPM (±10%)
Airflow at 50 Pa Static Pressure 300 CFM
Average Noise Level 56 dBA
Dimensions & Mounting Pitch 200 x 200 x 60 mm (166.2 mm mounting pitch)
Bearing Type Two Ball Bearings
Frame & Impeller Material PLASTIC UL:94V-0
Lead Wire Length 500 ±10 mm (UL1007 22#)

Engineering deliverables

LONGWELL engineering and technical review completed the standard drawing and specification output on April 8, 2026, establishing verified dimensional and electrical parameters for fit evaluation:

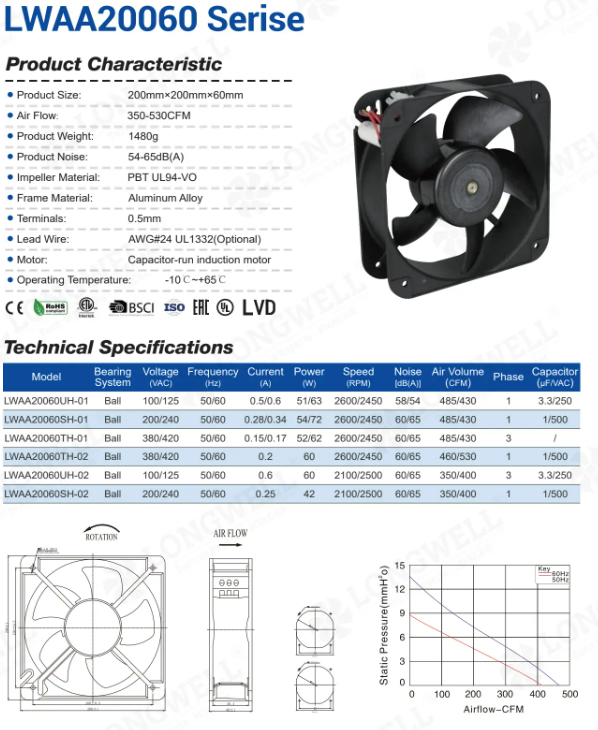

Drawing excerpt from the engineering file prepared for this request
Engineering drawing excerpt for the requested configuration.

Discuss a similar requirement

If you have specific static pressure, airflow, or custom DC voltage requirements for axial fans, contact LONGWELL to evaluate your application needs. Provide your target duty point, electrical specifications, and mounting constraints via our contact page or explore standard models using the LONGWELL Fan Selector Tool.
