Description
Technical Description
| Material | Metal |
| Cooling Method | IC41 1 |
| Protection Class | IP54/IP55 |
| Insulation Class | Class F(120℃),Class H(180℃) |
| Applied Conditions | Max.Ambient Temp:<130℃,Relative humidity:≤98%,In the ambient of weak acid,weak alkali,vapor and no flammable gas,the motor can be also used in the vacuum drying equipment according to the specific conditions. |

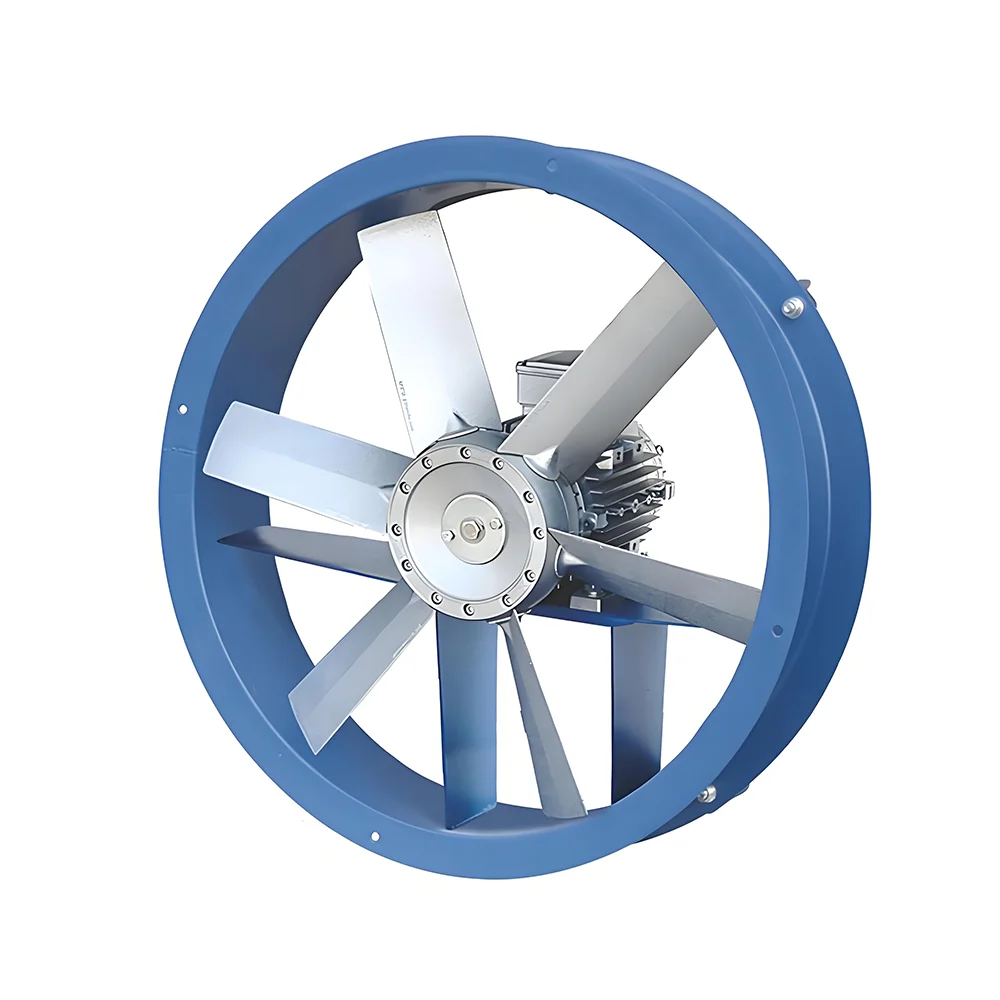

| Technical Feature | The fan adopts a new type of six curved aluminum blades,and the angle of the blades can be adjusted according to the user’s needs to adjust the air volume,similar to a right angle fan Leaf comparison has significant advantages such as high air volume,high efficiency,and energy saving,and is widely used in high-temperature and high humidity places such as tobacco baking |
Nominal data
| Dimensions | 1000mm |
| Voltage | 220V,220V/440V,220V/380V/660V, 230V/400V/690V,240V/415V/720V |
| Frequency | 50Hz/60Hz |
| Power | 5.5-4 KW-P |
| Speed | 1450RPM |
| Air Flow | 40500m³/h |
| Air Pressure | 390Pa |
| Noise | ≤88dB(A) |
