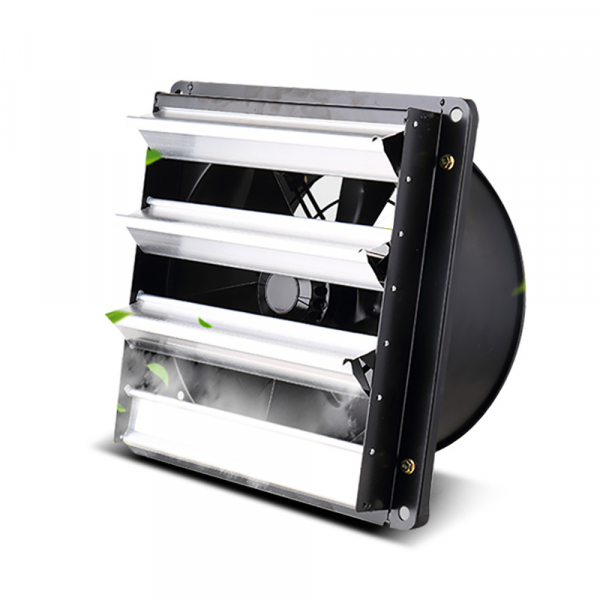

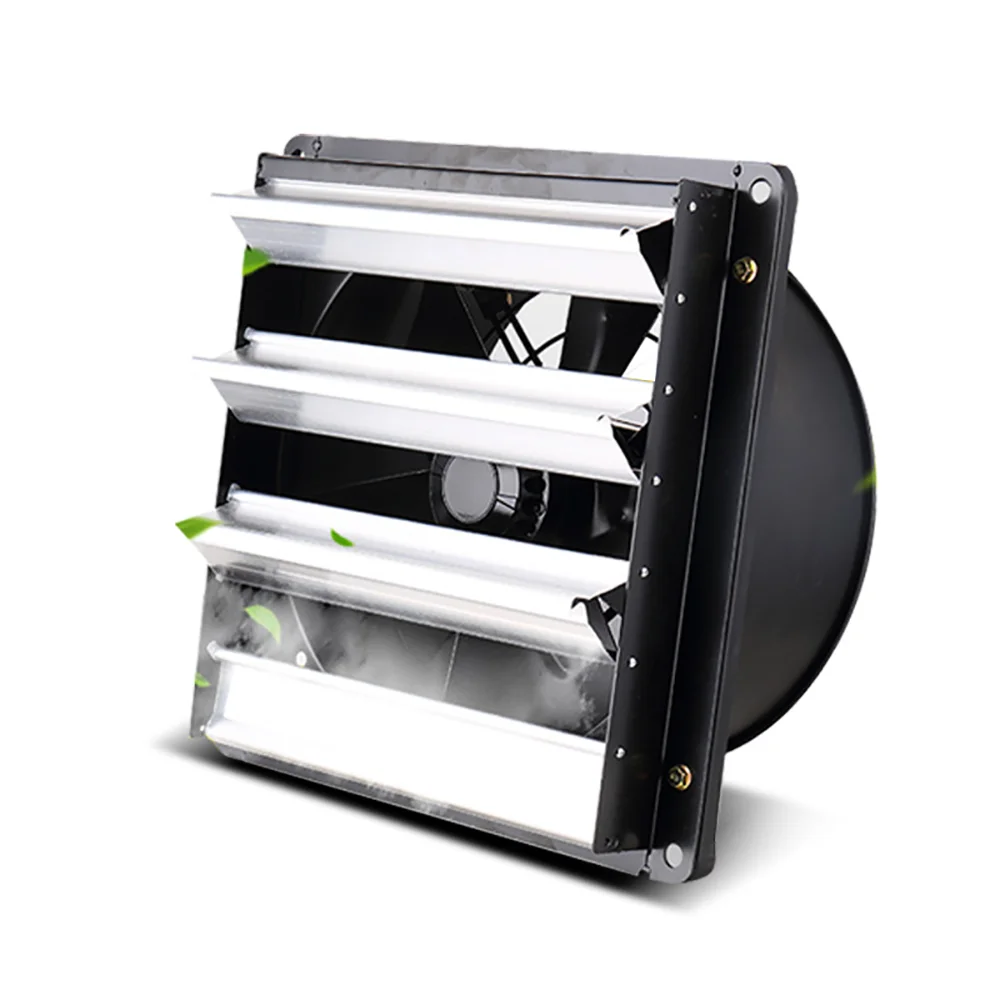

LONGWELL Industrial Fan, Industrial Ventilation Fan – LWEA6D450TM-099

Air Flow 4650 m³/h
Static Pressure 100 Pa
Inlet Ø 450 mm
Voltage 380 V
ISO / CE / UL / ETL Factory & Test Lab OEM / ODM ebm-papst alternative

$ 10

Specifications
Motor
AC
Speed
950 RPM
Power Input
155 W
Frequency
50 Hz
Category: Tags: , ,
CategoryIndustrial Exhaust Fans
TagsExhaust VentilationIndustrial Exhaust FansIndustrial Ventilation
Get a Fast Quote from an Engineer Send your airflow, static pressure & voltage — we reply within one working day with a matching model.
✓ 1-day reply ✓ STEP / CAD on request ✓ Factory-direct

Your specifications go straight to a sales engineer — no spam, never shared.

Prefer a datasheet?
Download Product Catalog (PDF)
Need the exact model with a measured or digitised curve? This page describes the Industrial Exhaust Fans range. The Fan Selector lists every LONGWELL exhaust fan model with airflow, static pressure, power, noise, drawing and datasheet.
Search exhaust fan models →
Have your duty point?

See every LONGWELL model whose P-Q curve covers it — margins, noise and power included. No login.

Library: Ø25–1,000 mm, single units up to about 52,000 m³/h — larger duties go straight to an engineer. Prefer to talk it through? Send your specs to an engineer

Description

Technical Description

Material Metal
Technical Feature 1.100% pure copper wire motor

2.Powerful airflow,various sizes for choose

Nominal data

Dimensions 450mm
Voltage 380V
Frequency 50Hz
Current 0.42A
Power 155W
Speed 950RPM
Air Flow 4650m³/h
Air Pressure 100Pa
Noise 60dB(A)
Capacitor /

Curves

Drawing
