LONGWELL 250mm AC Industrial Fan, Industrial Ventilation Fan, 220V PWM Control, for FFU, Fan Coil Units, HVAC Systems

Voltage 220V
ISO / CE / UL / ETL Factory & Test Lab OEM / ODM ebm-papst alternative

$ 10

Specifications
Motor
EC external rotor motor
Speed
4000rpm, 500RPM, 800RPM, 1500RPM, 600RPM, 900rpm, 2000RPM
Impeller
Propylene with glass fiber reinforced
Category: Tags: , ,
CategoryAC Motors
TagsAuto PartsBackward Curved Centrifugal FanEC Motor
Get a Fast Quote from an Engineer Send your airflow, static pressure & voltage — we reply within one working day with a matching model.
✓ 1-day reply ✓ STEP / CAD on request ✓ Factory-direct

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

Your specifications go straight to a sales engineer — no spam, never shared.

Prefer a datasheet?
Download Product Catalog (PDF)

Description

Product descriptions from the supplier

Warning/Disclaimer

This product has acquired the relevant product qualification(s)/license(s) of certain applicable country/countries.

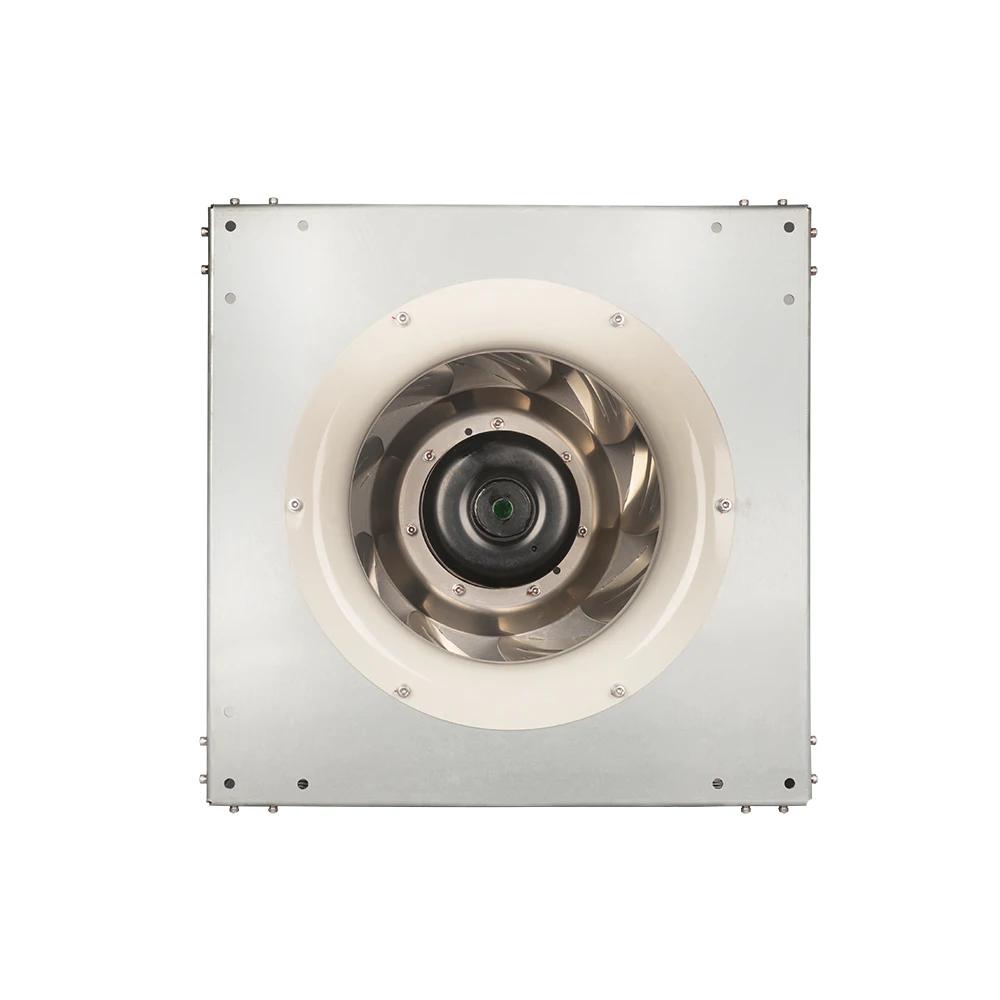

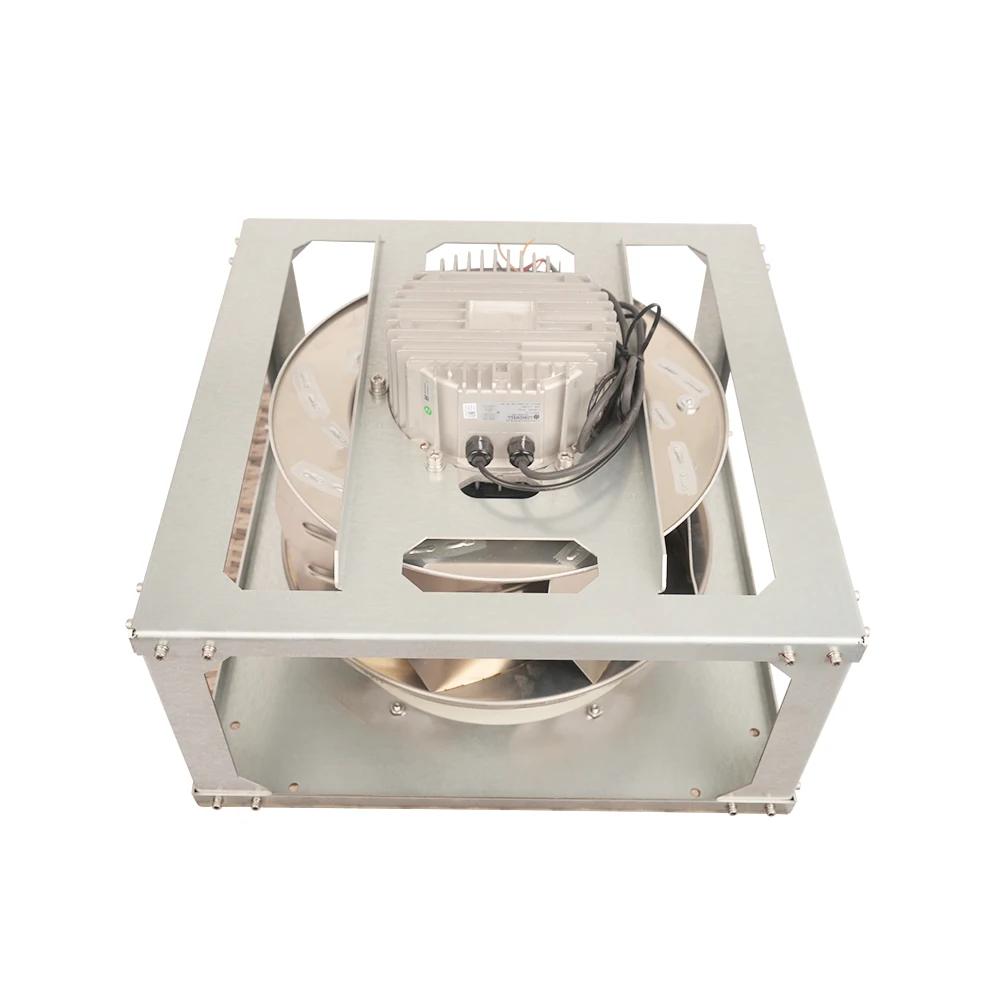

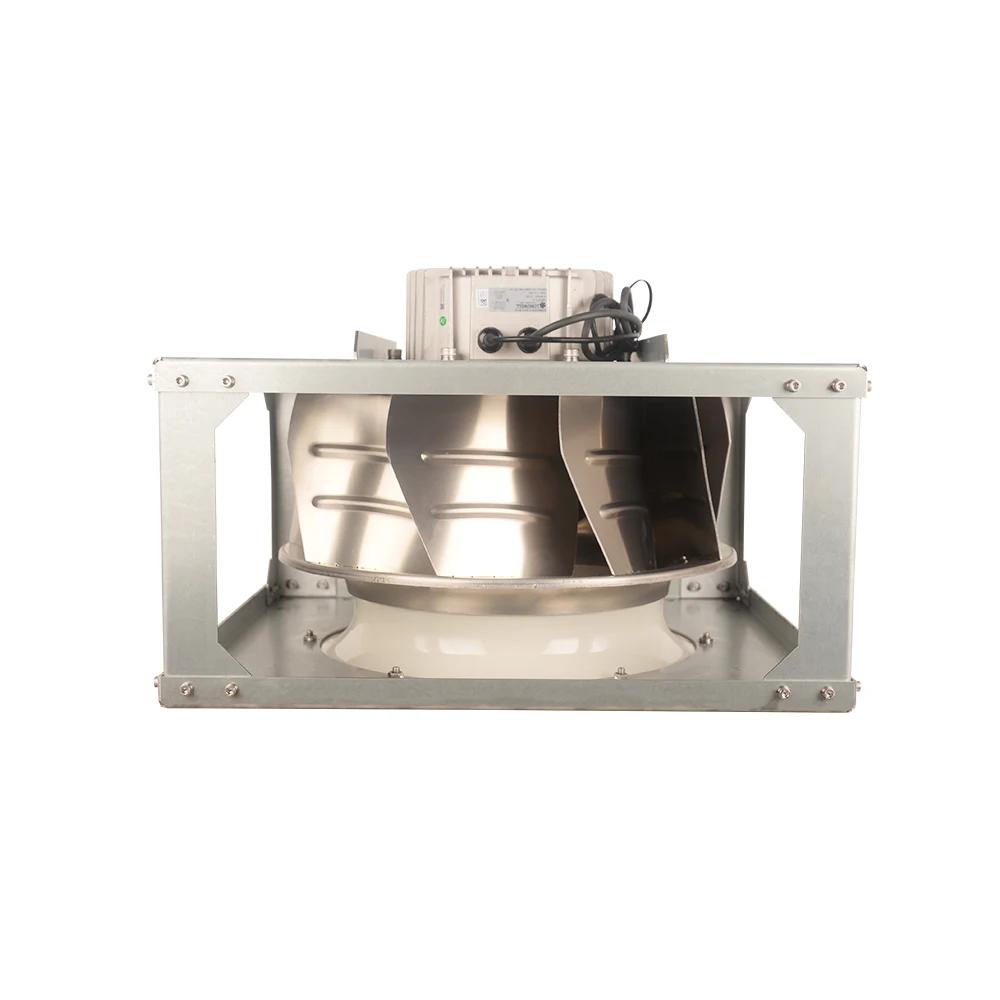

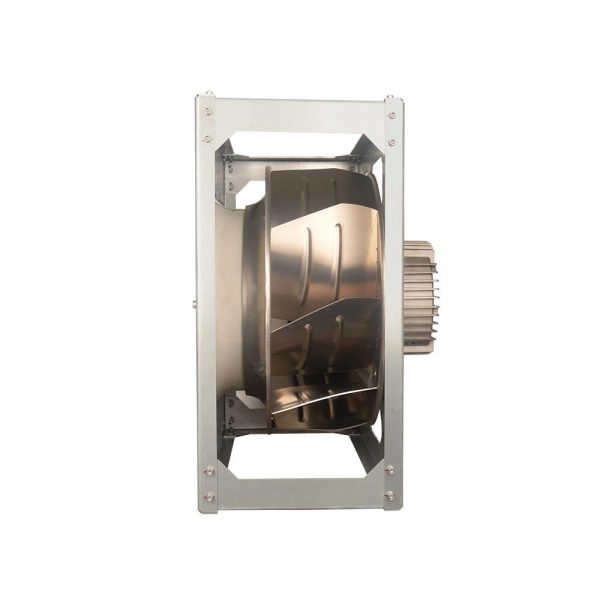

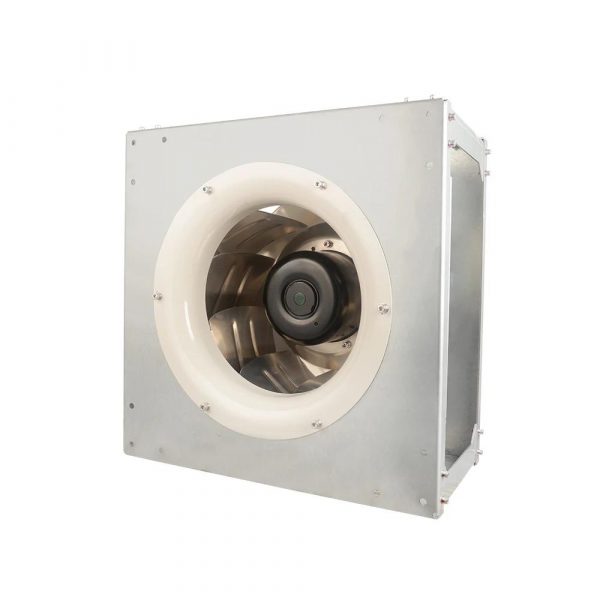

LWGA 250mm Auto parts blower fan motor  high quality industrial air conditioning blower fan

Product Description
Model Number :   LWGA -250mm EC backward curved centrifugal fan WITH FRAME
Motor Type :  BLEC External rotor motor Blade Material :  Plastic
Operation Model :  S1 Insulation Class :  IP 55
Speed control:  PWM / 0~10V  Insulation Class:  F
Operation Temperature :  -25 ℃ ~ +60 ℃

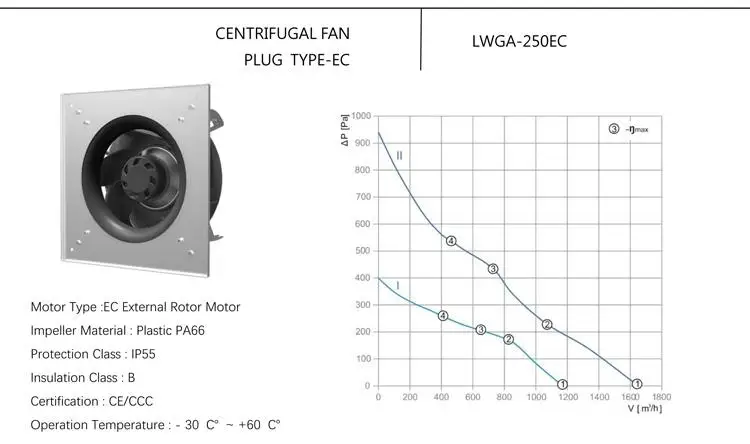

LWGA250-EC 01

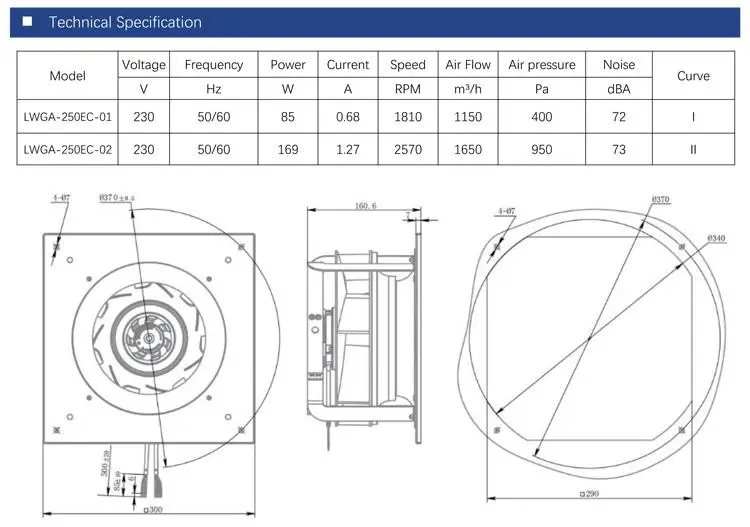

LWGA250-EC 02

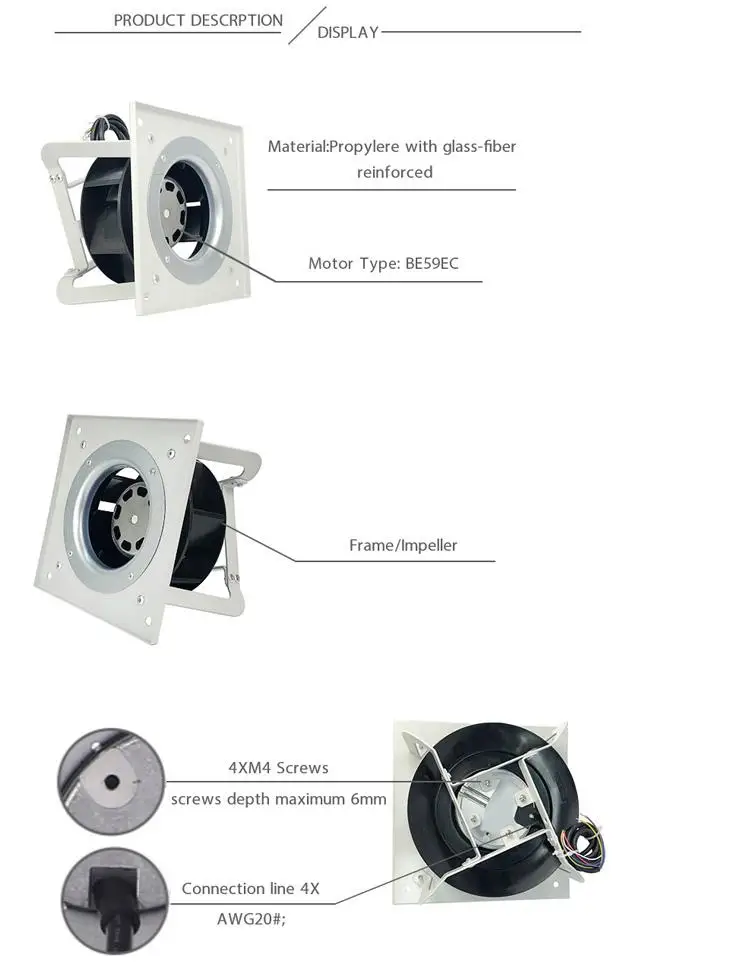

07

Product Overview
1 Centrifugal Blower Sizes 133mm – 400mm (or Customized)
2 Centrifugal Fan Sizes 133mm – 630mm (or Customized)
3 Motor Types AC Motor
BLDC Motor
ECM Motor
4 Voltage AC Motor – AC Input: 115v,220v,230v,380v,400v
BLDC Motor – DC Input: 12v,24v,48v,310v
ECM Motor – AC Input: 210v,220v,230v,380V
5 Power Up to 2300W (or Customized)
6 Speed Up to 4000RPM (or Customized)
7 Air Flow Up to 15000m³/h (or Customized)
8 Speed control Speed Controller (AC) or PWM/0 – 10V Input (DC & EC)
 General Characters
1 Direction of Air Flow All around
2 Insulation Class Class B
3 Insulation Resistance 50 Mega Ohm minimum at 1000VDC
Between frame and (+) terminal
4 Protection Type IP55

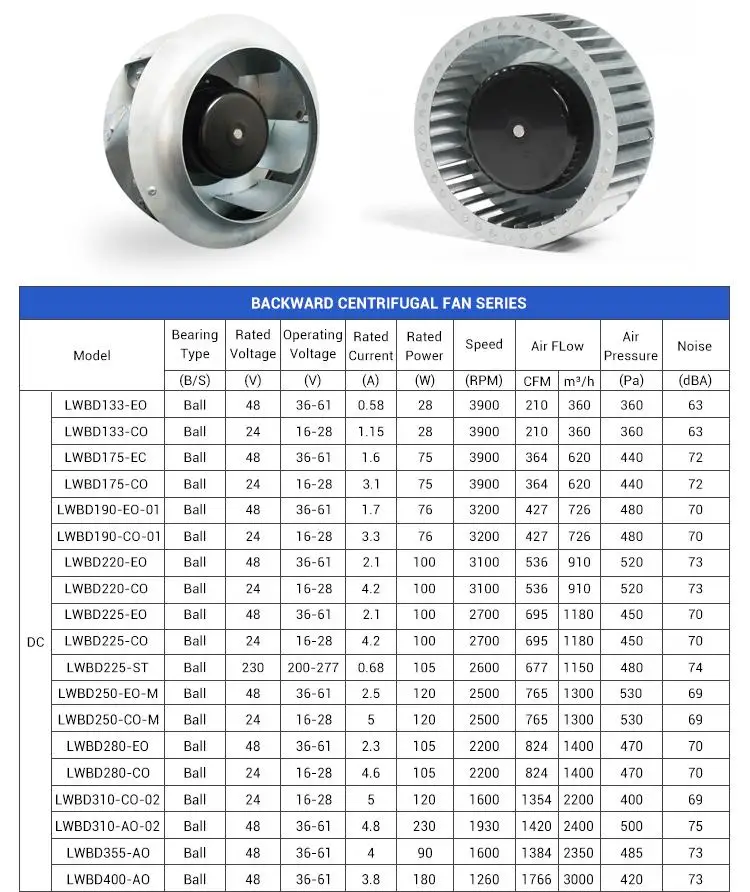

backward (6)

Custom Service

 backward (8)

Product Application

 backward (9)

Certifications

backward (14)

Company Information

backward (17)

backward (18)

backward (15)

backward (16)

Contact information

backward (20)

Buying Guides

backward (19)

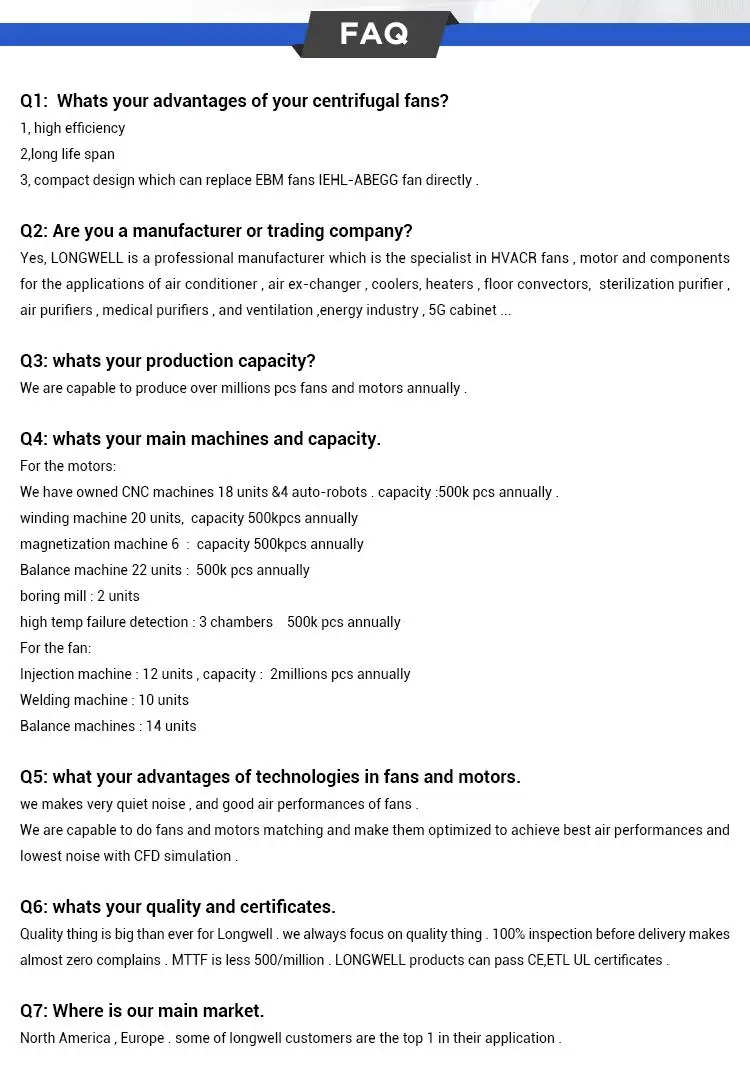

FAQ

backward (21)

Additional information

Voltage

220V
speed

4000rpm, 500RPM, 800RPM, 1500RPM, 600RPM, 900rpm, 2000RPM
Blade Material

Plastic
customized support

OEM, ODM, OBM
mounting

FREE STANDING
place of origin

Zhejiang, China
brand name

LONGWELL
model number

LWLWGA 250mm
warranty

1 Year
After-sales Service Provided

Free spare parts
Material

STAINLESS STEEL, Plastic, aluminum alloy, Steel
Type

Air conditioning blower fan
Speed control

0~10V/ PWM
Impeller material

Propylene with glass fiber reinforced
Bearing

Ball Bearing
Approvals

CE,CCC,RoHS
Motor type

EC external rotor motor
Amb,Temp

-30 to +60℃
Insulation

B
Application

HVAC,FCU,FFU
Protection

Tech out put /Over voltage protection /Over loading protection
Selling units

Single item
Single package size

50X50X40 cm
Single gross weight

10.000 kg
