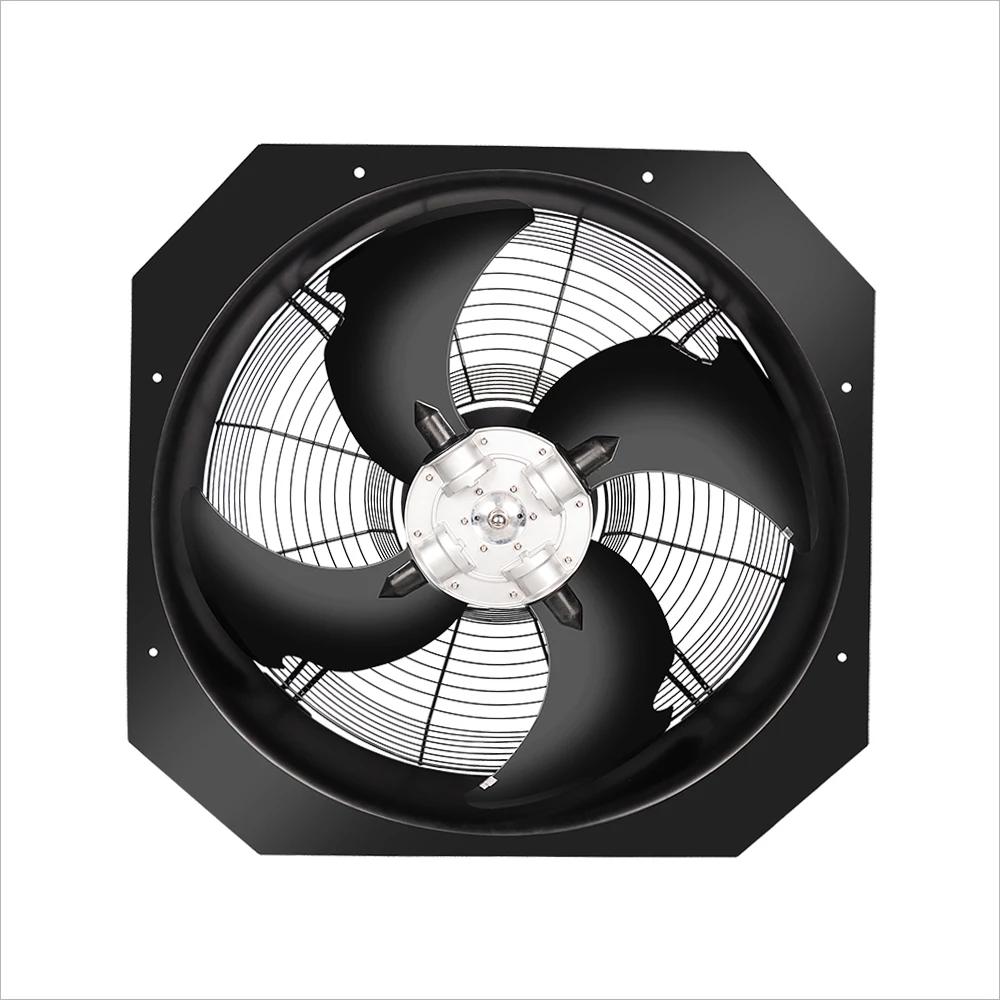

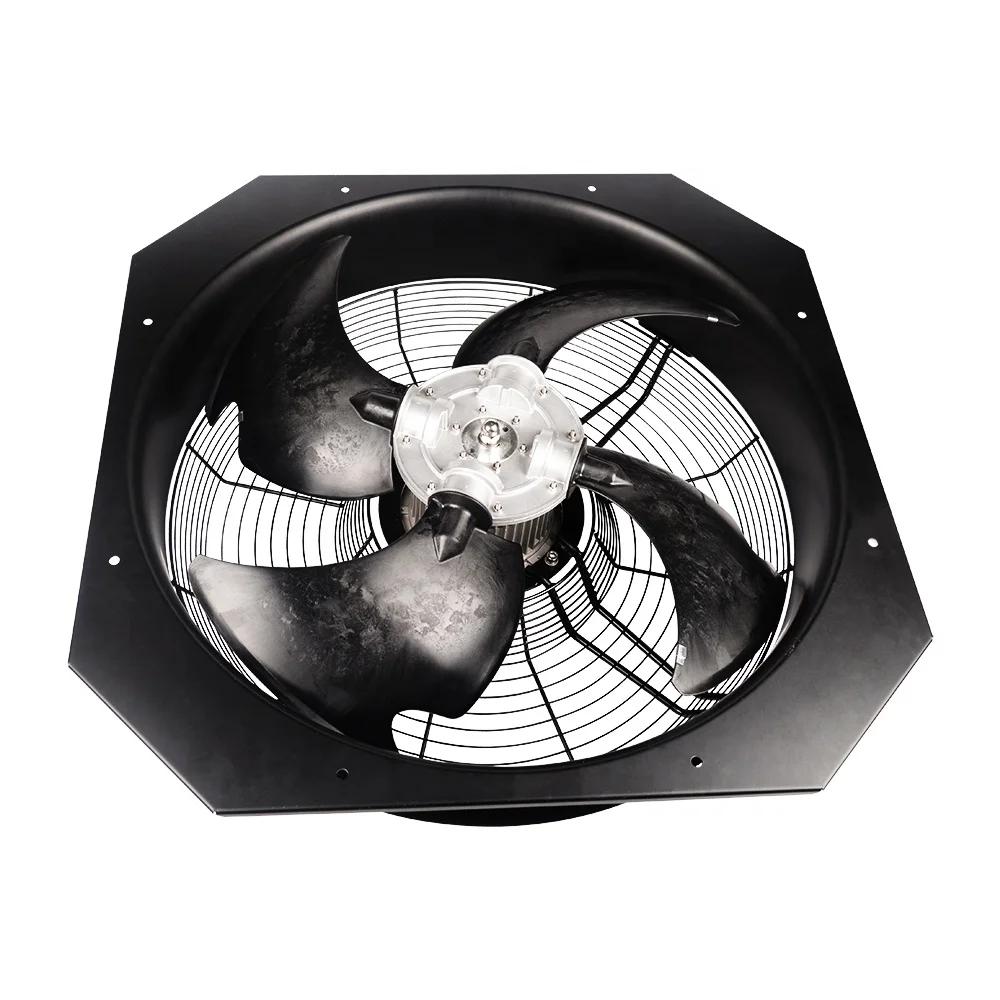

LONGWELL 800mm EC Axial Fan, Industrial Axial Ventilation Fan, 380V PWM Control, Stainless Steel, for HVAC Systems, Cold Storage, Air Purifiers

Voltage 380V, 400V
ISO / CE / UL / ETL Factory & Test Lab OEM / ODM ebm-papst alternative

$ 200

Specifications
Speed
2500rpm, 3000RPM, 4500rpm, 2700RPM, 2100rpm, 1350RPM, 14000Rpm
Frequency
50/60 Hz
Category: Tags: , ,
CategoryEC Axial Fan Manufacturer & Supplier
TagsAxial FanEC MotorHVAC System
Get a Fast Quote from an Engineer Send your airflow, static pressure & voltage — we reply within one working day with a matching model.
✓ 1-day reply ✓ STEP / CAD on request ✓ Factory-direct

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

Your specifications go straight to a sales engineer — no spam, never shared.

Prefer a datasheet?
Download Product Catalog (PDF)
Need the exact model with a measured or digitised curve? This page describes the EC Axial Fan Manufacturer & Supplier range. The Fan Selector lists every LONGWELL EC axial fan model with airflow, static pressure, power, noise, drawing and datasheet.
Search EC axial fan models →
Have your duty point?

See every LONGWELL model whose P-Q curve covers it — margins, noise and power included. No login.

Library: Ø25–1,000 mm, single units up to about 52,000 m³/h — larger duties go straight to an engineer. Prefer to talk it through? Send your specs to an engineer

Description

Types :
Commercial Comfort Revolution 800mm EC Axial Fans Uplifting Indoor Airflow in Business Spaces
Voltage Ranges :
380V,400V
Frequency :
50/60 Hz
Diamter :
800mm ( impeller diameters )
Motor Types :
BLEC External Rotor Motor
Speed Control :
0-10V Signal / PWM / RS485(Optional)
Max.ambient Temp:
-25℃～ +60℃
Certificating :
All necessary certifications suitable for USA & Europe , ETL,UL ,CE ,RoHS, ISO19001,ISO 14001,BSCI
Protection Level:
IP44 ,IP54,IP55
Electronic Protection:
Current limiting protection ,Over-temperature protection,Over-current protection,Locked-rotor protection,Soft start
Working & Storage
Operating temperature：-25~60℃；Operating humidity：0 ~ 85 % RH
Storing temperature：-25 ~ 70℃；Storing humidity：0 ~ 95 % RH
Applicable altitude range：＜1000m
Balancing
According to JB/T 9101-1999 requirements G6.3
Product Standards :
LVD EN60950-1 EMC EN61000-6-3,EN61000-4-2, EN61000-4-3
Mainly Applications
AUH/ AIR PURIFIER / Server Cooling & Ventilation / Grow Tent /Ventilation SYSTEM/ Equipments Cooling /Refrigerator ,etc;ventilation fan cooling;ventilation exhaust fans

Additional information

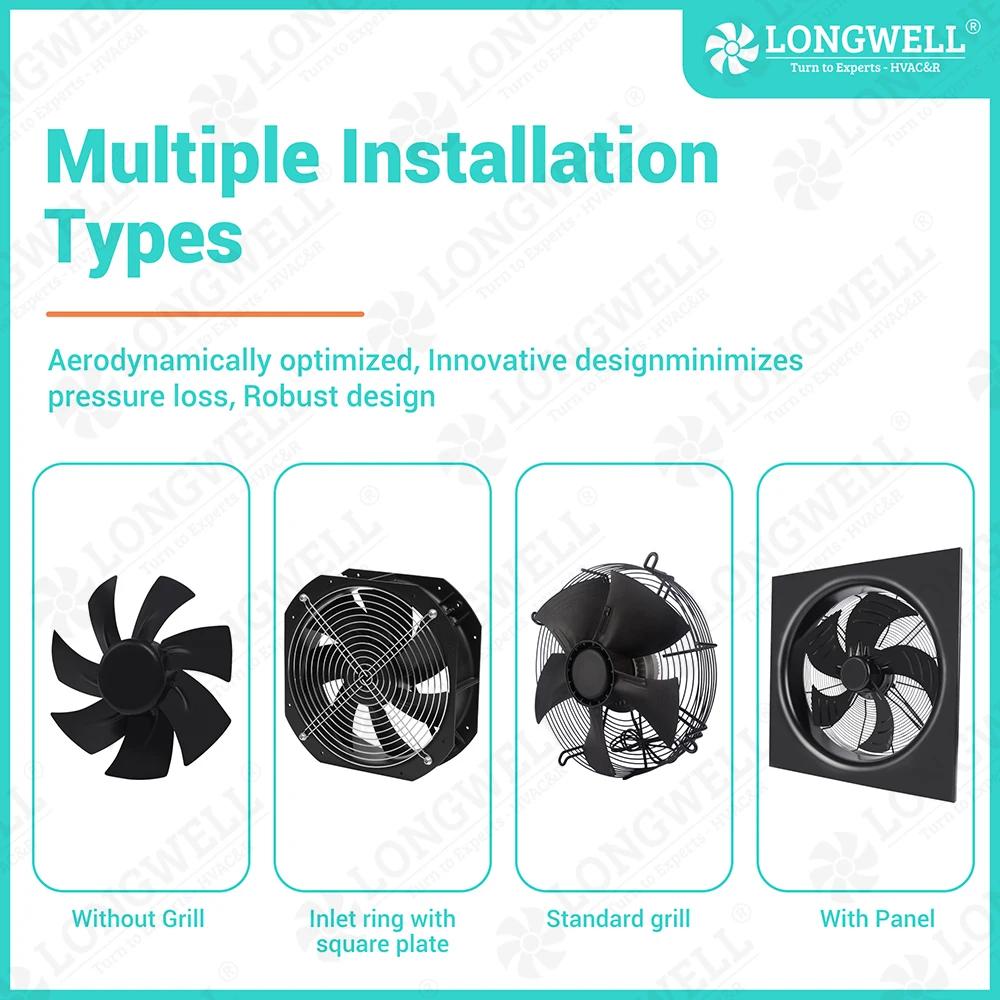

mounting type

FREE STANDING
Voltage

380V, 400V
speed

2500rpm, 3000RPM, 4500rpm, 2700RPM, 2100rpm, 1350RPM, 14000Rpm
Power Source

Electric
blade material

Stainless Steel
customized support

OEM, ODM, OBM
place of origin

Zhejiang, China
brand name

LONGWELL
warranty

1 Year
after-sales service provided

Field maintenance and repair service
Material

Stainless Steel
Usage

air cooling system
Bearing Type

Ball bearing
Frequency

50/60 Hz
Noise Level

60 dBA
Product type

EC Axial flow type
Protection

Tech out put /Over voltage protection /Over loading protection
Speed control

0~10V/ PWM
Type

Axial Flow Fan
Product name

EC Axial Flow Fan
Application

Exhaust Ventilation
Selling units

Single item
Single package size

40X40X20 cm
Single gross weight

5.000 kg
