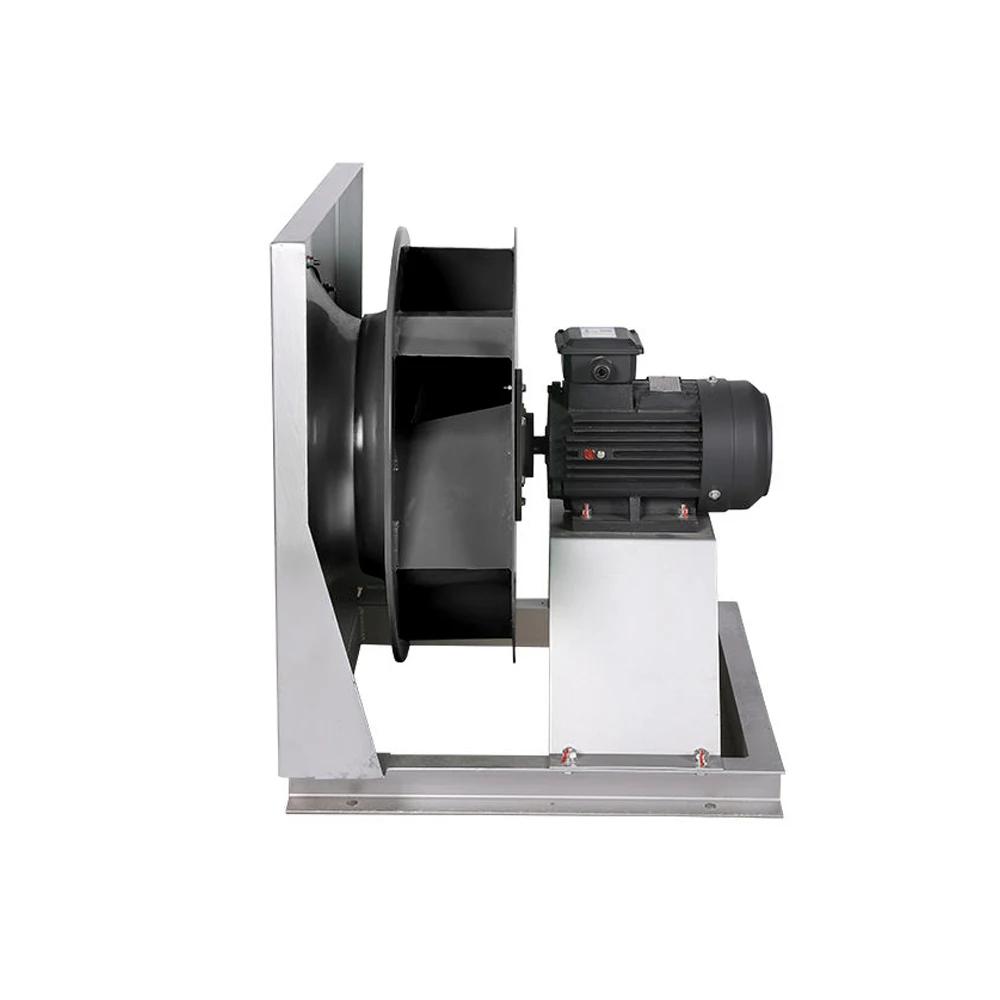

LONGWELL Plug Fan, EC Centrifugal Blower Fan, 380V, for AHU, HVAC Systems, Cold Storage – RLM450

Voltage 380V(as requiremnts)
ISO / CE / UL / ETL Factory & Test Lab OEM / ODM ebm-papst alternative

$ 120

Specifications
Motor
Internal rotor motor
Speed
4000rpm, 500RPM, 800RPM, 1500RPM, 600RPM, 900rpm, 2000RPM
Impeller
Iron
Category: Tags: , ,
CategoryAHU Plug Fan
TagsAir Handling UnitsEC MotorPlug Fan
Get a Fast Quote from an Engineer Send your airflow, static pressure & voltage — we reply within one working day with a matching model.
✓ 1-day reply ✓ STEP / CAD on request ✓ Factory-direct

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

Your specifications go straight to a sales engineer — no spam, never shared.

Prefer a datasheet?
Download Product Catalog (PDF)
Need the exact model with a measured or digitised curve? This page describes the AHU Plug Fan range. The Fan Selector lists every LONGWELL AHU plug fan model with airflow, static pressure, power, noise, drawing and datasheet.
Search AHU plug fan models →
Have your duty point?

See every LONGWELL model whose P-Q curve covers it — margins, noise and power included. No login.

Library: Ø25–1,000 mm, single units up to about 52,000 m³/h — larger duties go straight to an engineer. Prefer to talk it through? Send your specs to an engineer

Description

Types :

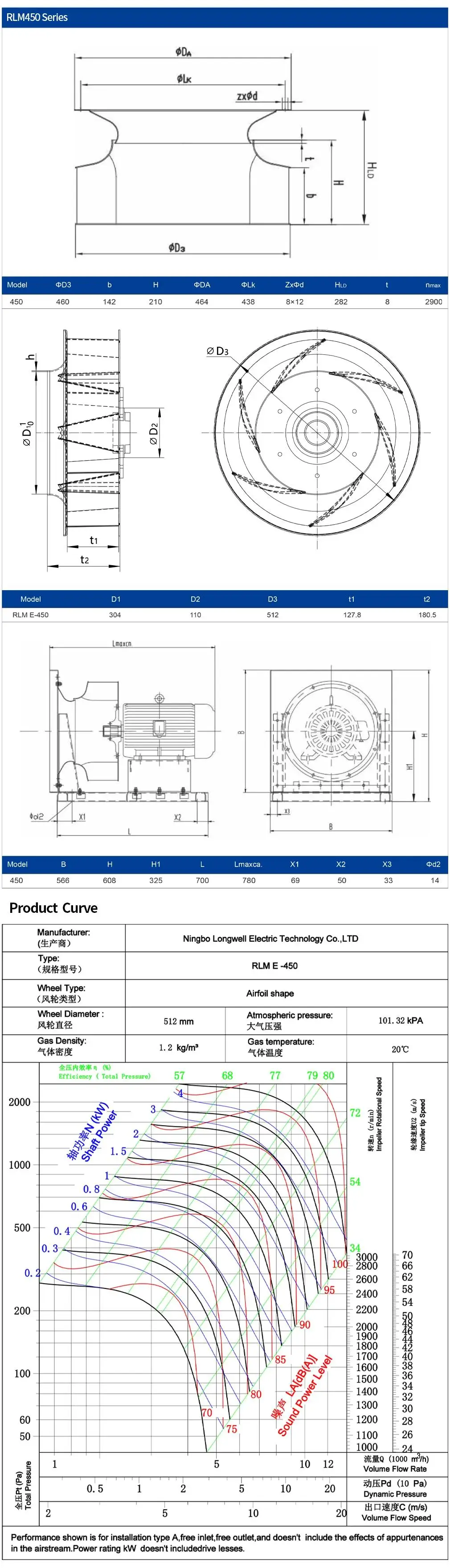

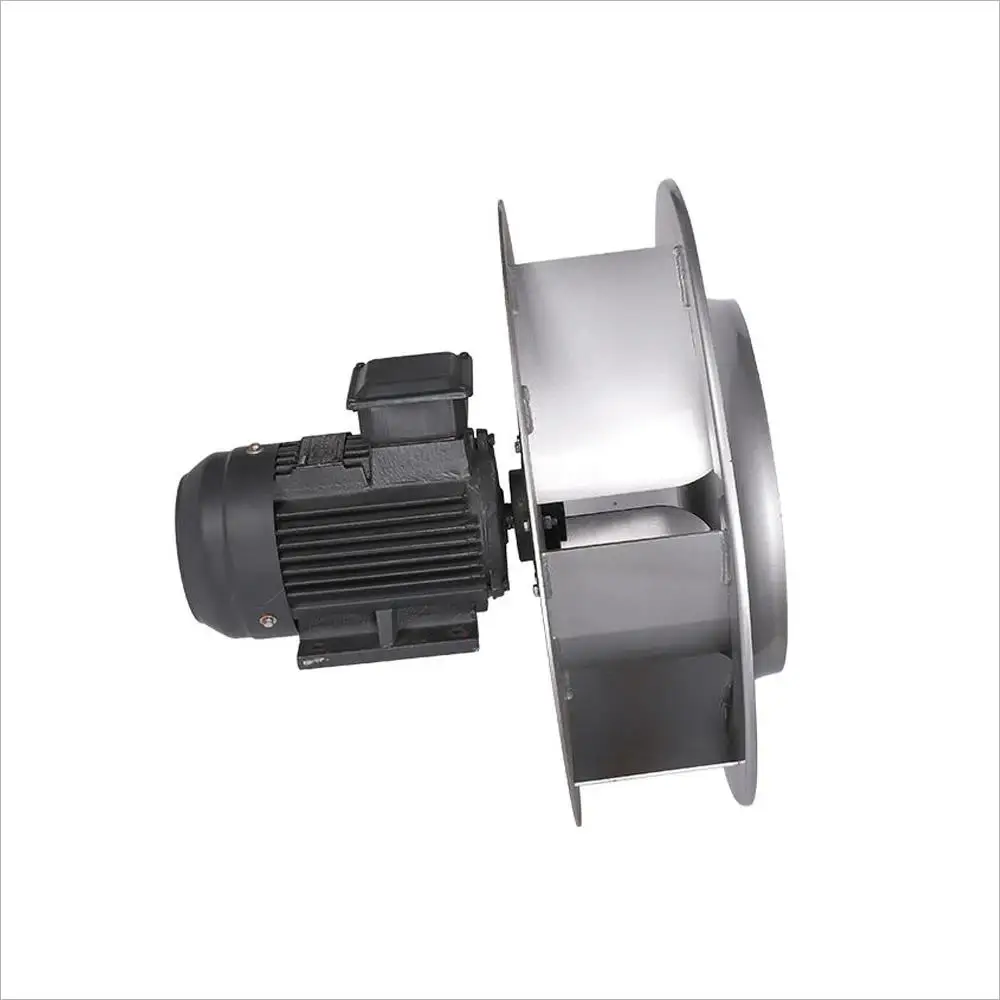

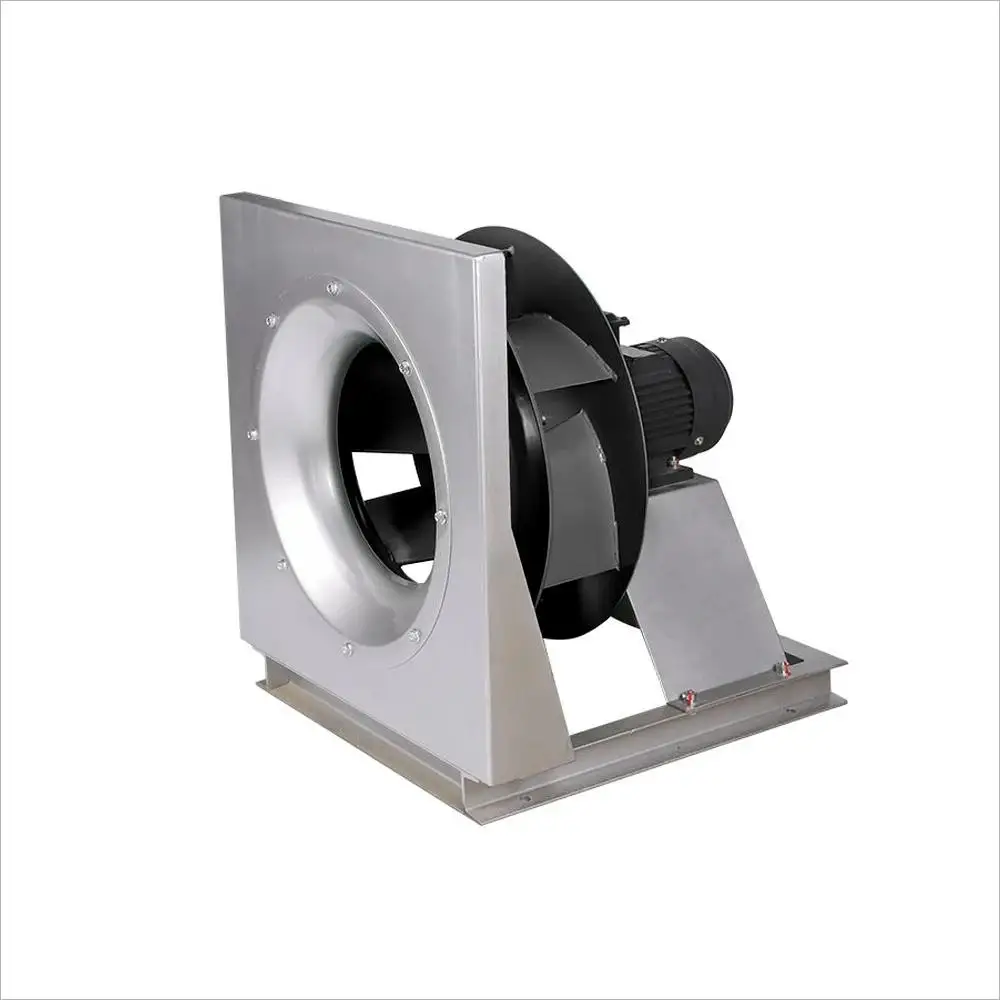

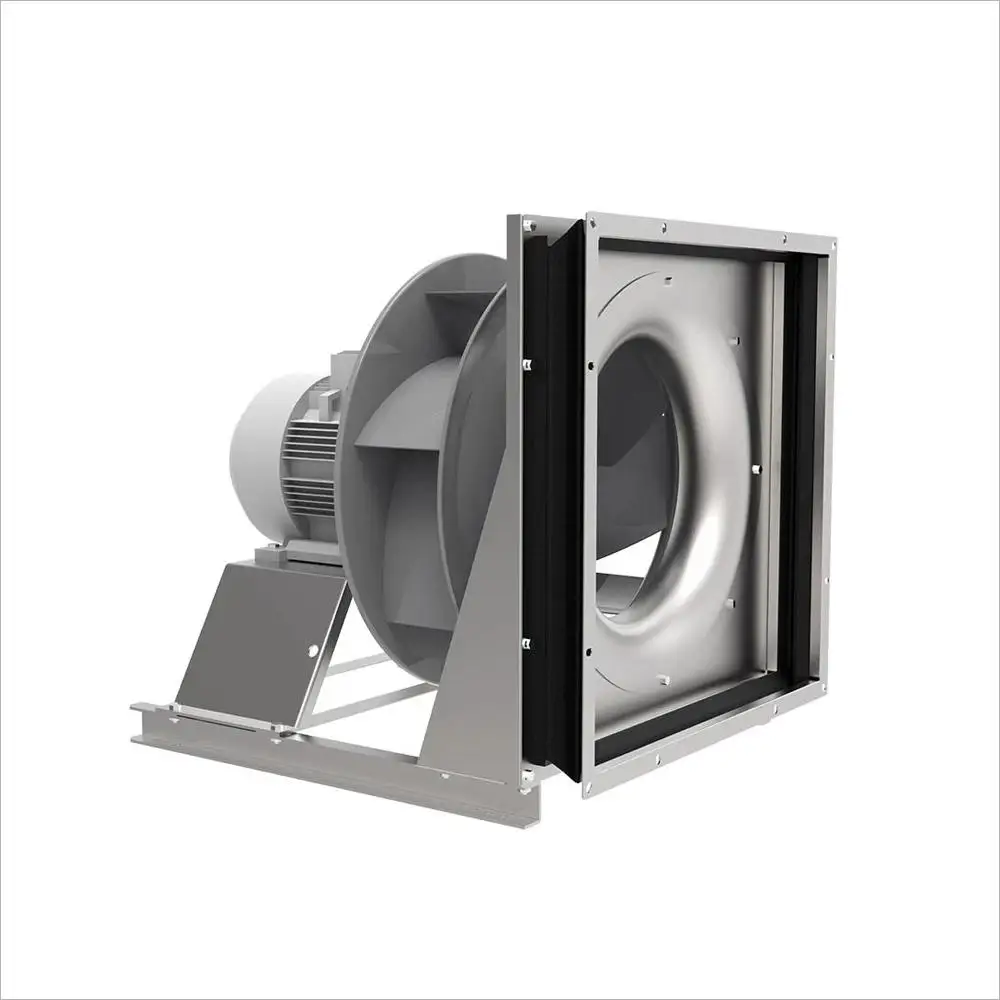

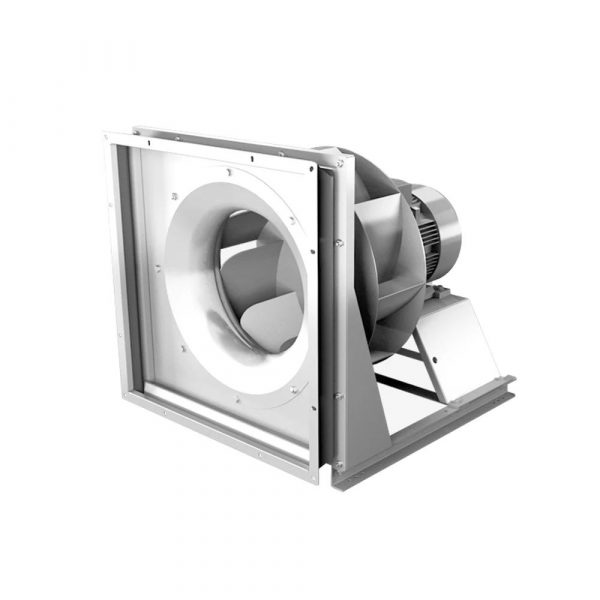

RLM450 Central Air conditioning system 380V 400V backward curved impeller plenum centrifugal fan
Frequency :

50/60 Hz
Diamter :

450mm ( impeller diameters )
Motor Types :

BLEC External Rotor Motor
Speed Control :

0-10V Signal / PWM / RS485(Optional)
Max.ambient Temp:

-25℃～ +60℃
Certificating :

All necessary certifications suitable for USA & Europe , ETL,UL ,CE ,RoHS, ISO19001,ISO 14001,BSCI
Protection Level:

IP44 ,IP54,IP55
Electronic Protection:

Current limiting protection ,Over-temperature protection,Over-current protection,Locked-rotor protection,Soft start
Working & Storage

Operating temperature：-25~60℃；Operating humidity：0 ~ 85 % RH
Storing temperature：-25 ~ 70℃；Storing humidity：0 ~ 95 % RH
Applicable altitude range：＜1000m
Balancing

According to JB/T 9101-1999 requirements G6.3
Product Standards :

LVD EN60950-1 EMC EN61000-6-3,EN61000-4-2, EN61000-4-3
Mainly Applications

AUH/ AIR PURIFIER / Server Cooling & Ventilation / Grow Tent /Ventilation SYSTEM/ Equipments Cooling /Refrigerator ,etc;ventilation fan cooling;ventilation exhaust fans

Additional information

Voltage

380V(as requiremnts)
speed

4000rpm, 500RPM, 800RPM, 1500RPM, 600RPM, 900rpm, 2000RPM
Blade Material

Iron
customized support

OEM, ODM, OBM
mounting

Other
place of origin

Zhejiang, China
brand name

Plug Fan
model number

RLM 450MM
warranty

1 Year
After-sales Service Provided

Video technical support
Type

centrifugal fan
power input

380V(as requiremnts)
Impeller material

Iron
Direction

Clockwise
Bearing

Ball Bearing
Motor type

Internal rotor motor
Insulation

B/F
Application

AHU,HVAC
Diameter of Impeller

450MM
Selling units

Single item
Single package size

70X70X40 cm
Single gross weight

20.000 kg
