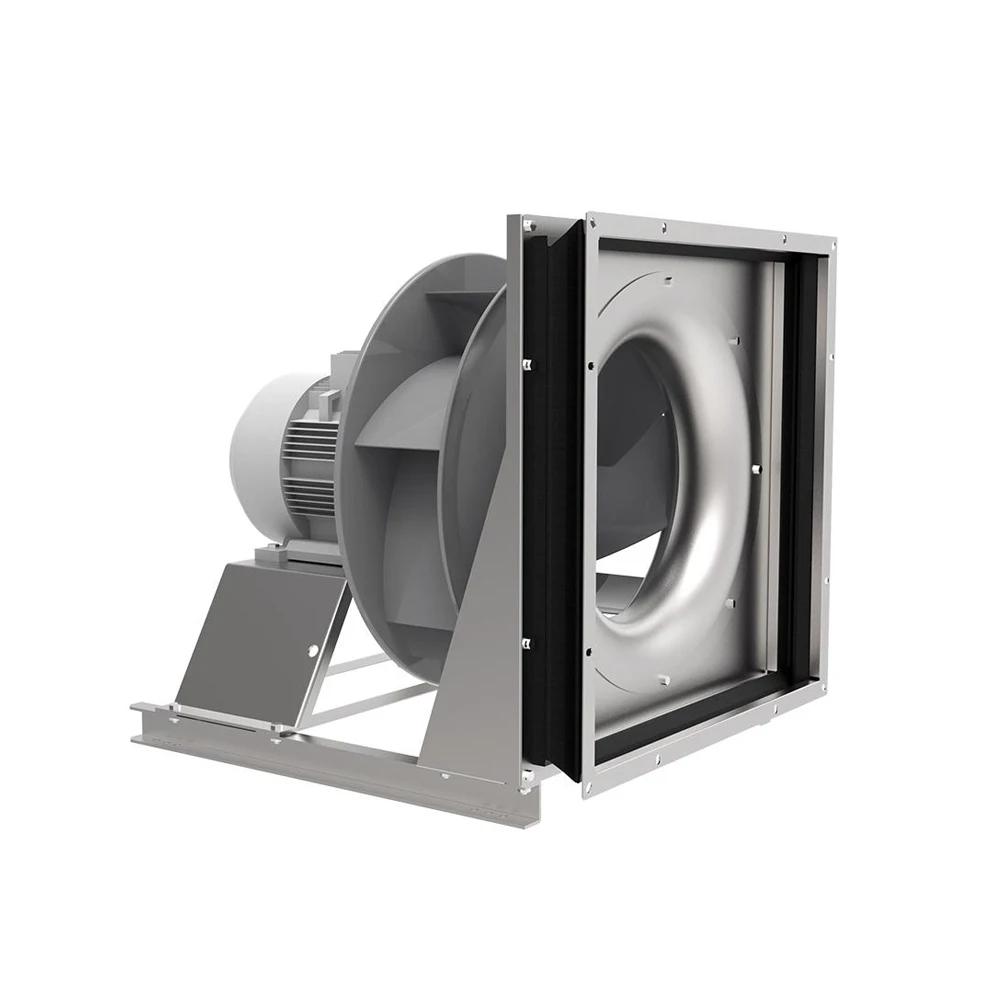

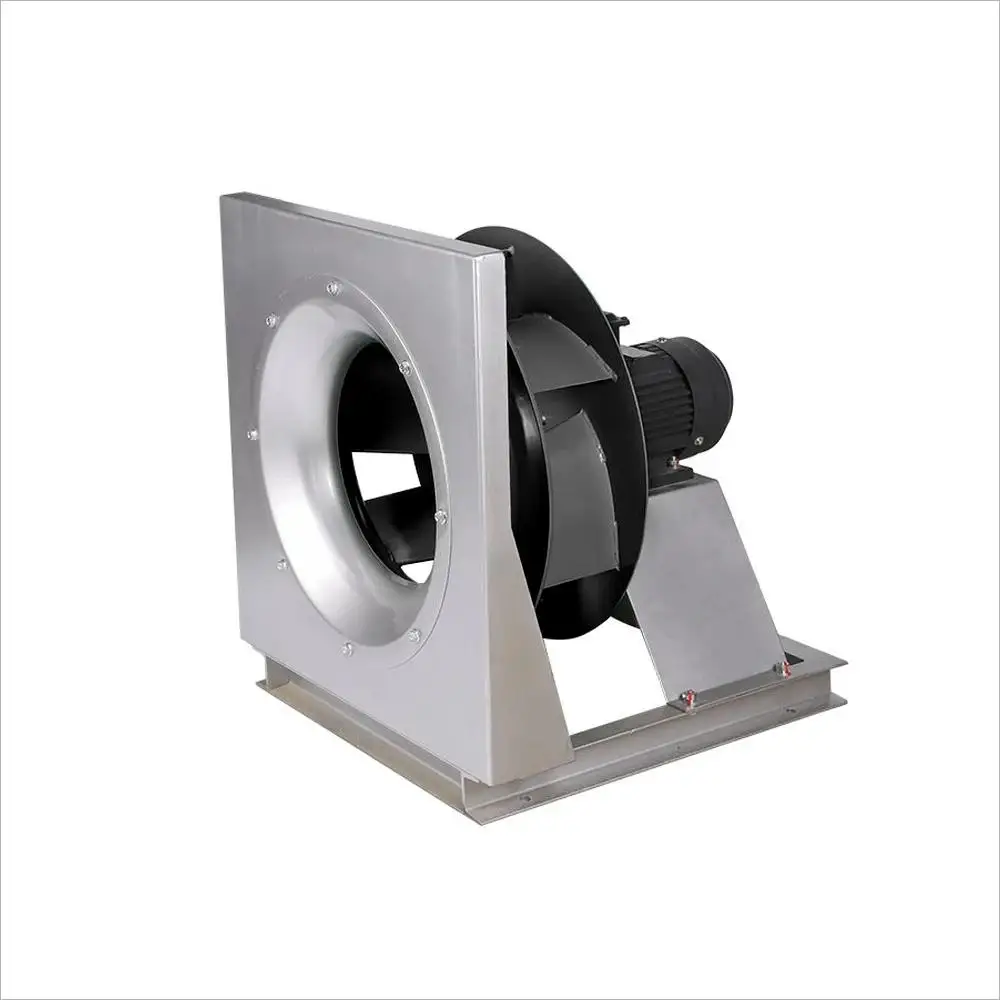

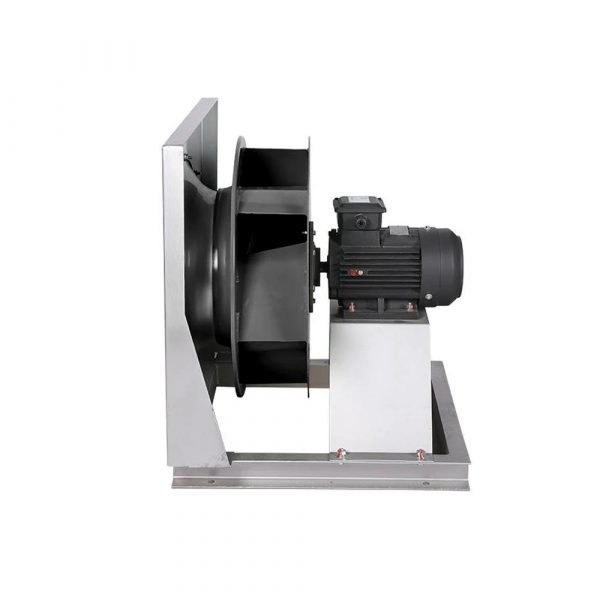

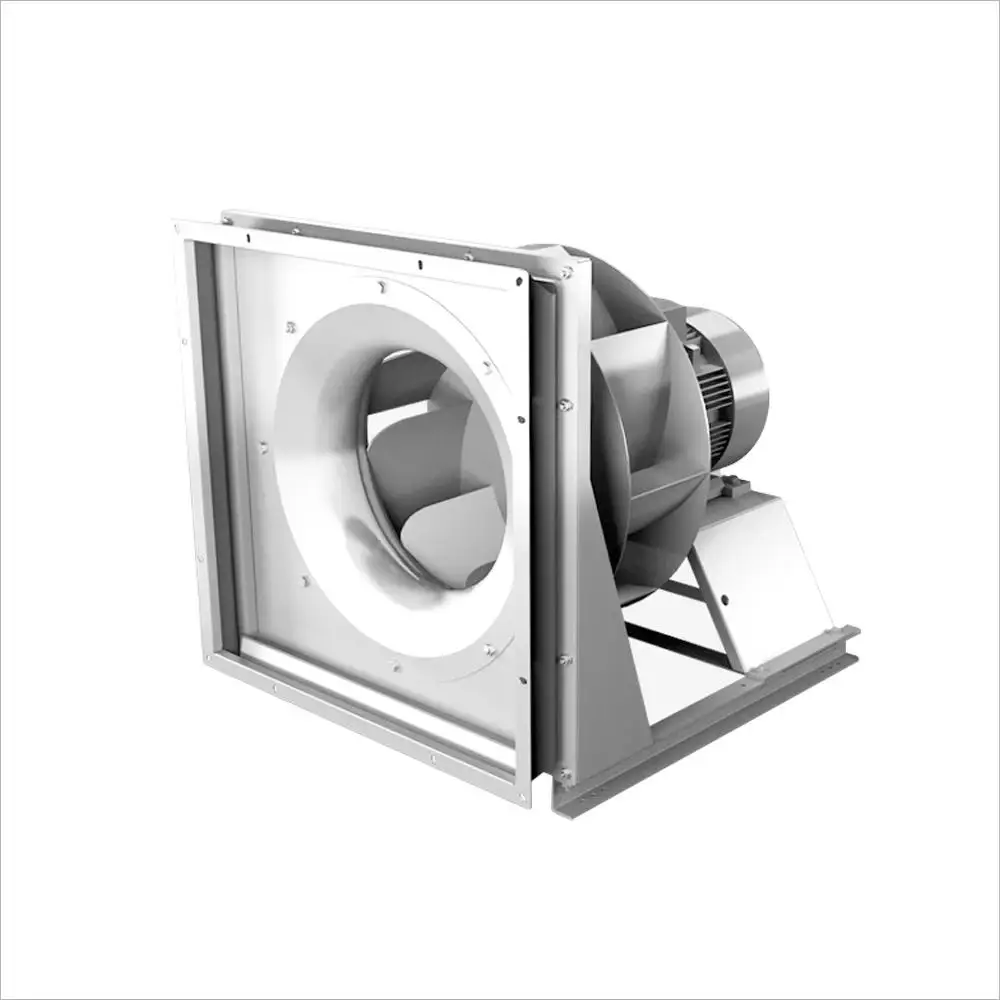

LONGWELL 400mm AC Plug Fan, EC Centrifugal Blower Fan, 380V, for AHU, FFU, HVAC Systems

Name: LONGWELL 400mm AC Plug Fan, EC Centrifugal Blower Fan, 380V, for AHU, FFU, HVAC Systems
Brand: Ningbo Longwell Electric Technology Co., Ltd.

Voltage 380V(as requiremnts)

ISO / CE / UL / ETL Factory & Test Lab OEM / ODM ebm-papst alternative

$ 80

Specifications

Motor: Internal rotor motor
Impeller: Iron

Category: AHU Plug Fan Tags: Air Handling Units, External Rotor Motor, Plug Fan

CategoryAHU Plug Fan

TagsAir Handling Units External Rotor Motor Plug Fan

Get a Fast Quote from an Engineer Send your airflow, static pressure & voltage — we reply within one working day with a matching model.

✓ 1-day reply ✓ STEP / CAD on request ✓ Factory-direct

Name

Work Email

Phone / WhatsApp

Estimated order quantity

Message

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

Your specifications go straight to a sales engineer — no spam, never shared.

Prefer a datasheet?

Download Product Catalog (PDF)

Need the exact model with a measured or digitised curve? This page describes the AHU Plug Fan range. The Fan Selector lists every LONGWELL AHU plug fan model with airflow, static pressure, power, noise, drawing and datasheet.

Search AHU plug fan models →

Description

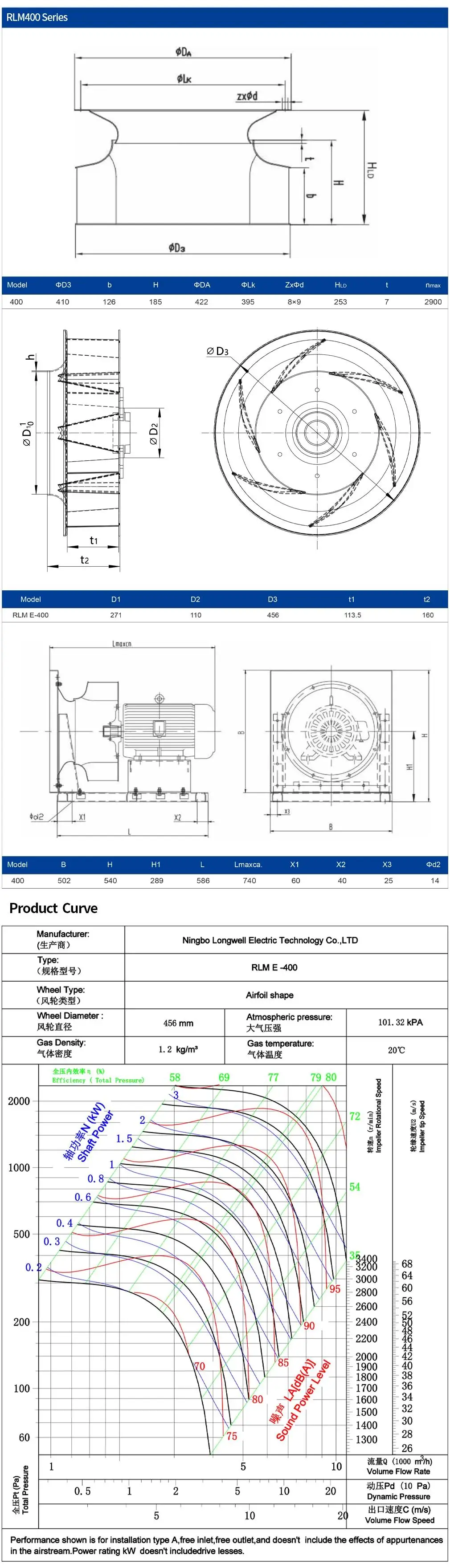

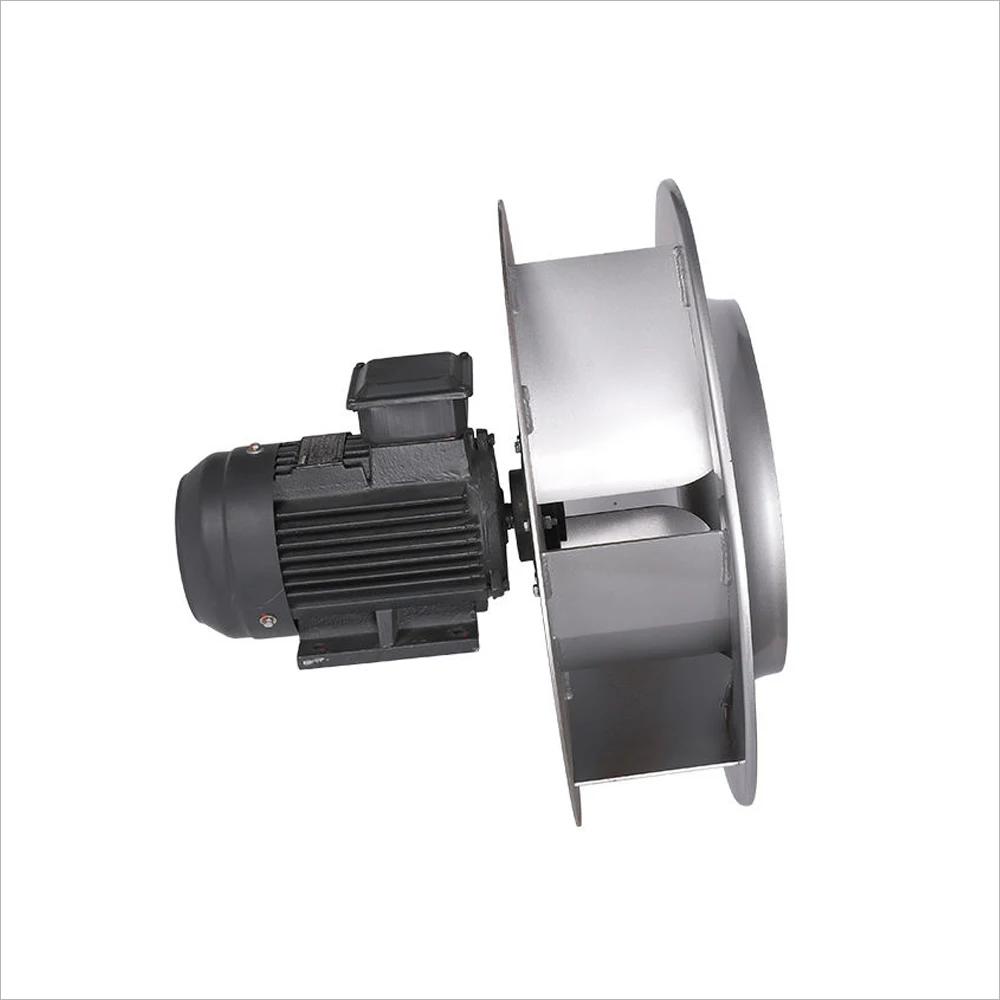

Types :	RLM 400mm AC electric Industrial Suction Centrifugal exhaust air blower for AHU ,Ventilation system
Frequency :	50/60 Hz
Diamter :	400mm ( impeller diameters )
Motor Types :	BLEC External Rotor Motor
Speed Control :	0-10V Signal / PWM / RS485(Optional)
Max.ambient Temp:	-25℃～ +60℃
Certificating :	All necessary certifications suitable for USA & Europe , ETL,UL ,CE ,RoHS, ISO19001,ISO 14001,BSCI
Protection Level:	IP44 ,IP54,IP55
Electronic Protection:	Current limiting protection ,Over-temperature protection,Over-current protection,Locked-rotor protection,Soft start
Working & Storage	Operating temperature：-25~60℃；Operating humidity：0 ~ 85 % RH Storing temperature：-25 ~ 70℃；Storing humidity：0 ~ 95 % RH Applicable altitude range：＜1000m
Balancing	According to JB/T 9101-1999 requirements G6.3
Product Standards :	LVD EN60950-1 EMC EN61000-6-3,EN61000-4-2, EN61000-4-3
Mainly Applications	AUH/ AIR PURIFIER / Server Cooling & Ventilation / Grow Tent /Ventilation SYSTEM/ Equipments Cooling /Refrigerator ,etc;ventilation fan cooling;ventilation exhaust fans

Additional information

Electric Current Type	AC
Voltage	380V(as requiremnts)
Blade Material	Iron
customized support	OEM, ODM
mounting	FREE STANDING
place of origin	Zhejiang, China
brand name	Plug Fan
model number	RLM 400MM
warranty	1 Year
After-sales Service Provided	Video technical support
Type	Cast Iron Blade Material Centrifugal blower
power input	380V(as requiremnts)
Impeller material	Iron
Direction	Clockwise
Bearing	Ball Bearing
Approvals	CE,CCC,AMCA
Motor type	Internal rotor motor
Insulation	B/F
Application	AHU,FFU,AIR CONDITIONING
Diameter of Impeller	400mm
Packaging Details	High strength cartons with polyfoam , and packed on pallet .
Selling units	Single item
Single package size	40X40X30 cm
Single gross weight	20.000 kg
Supply Ability	100000 Piece/Pieces per Month
