LONGWELL 300mm Axial Fan, Industrial Axial Ventilation Fan, 220V, for Air Curtains, HVAC Systems, Cold Storage – LW-400MM

Name: LONGWELL 300mm Axial Fan, Industrial Axial Ventilation Fan, 220V, for Air Curtains, HVAC Systems, Cold Storage – LW-400MM
Brand: Ningbo Longwell Electric Technology Co., Ltd.

Voltage 220v/110v

ISO / CE / UL / ETL Factory & Test Lab OEM / ODM ebm-papst alternative

$ 50

Category: Industrial Axial Blower Tags: Drum Fan, External Rotor Motor, OEM Applications

CategoryIndustrial Axial Blower

TagsDrum Fan External Rotor Motor OEM Applications

Get a Fast Quote from an Engineer Send your airflow, static pressure & voltage — we reply within one working day with a matching model.

✓ 1-day reply ✓ STEP / CAD on request ✓ Factory-direct

Name

Work Email

Phone / WhatsApp

Estimated order quantity

Message

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

Your specifications go straight to a sales engineer — no spam, never shared.

Prefer a datasheet?

Download Product Catalog (PDF)

Need the exact model with a measured or digitised curve? This page describes the Industrial Axial Blower range. The Fan Selector lists every LONGWELL axial fan model with airflow, static pressure, power, noise, drawing and datasheet.

Search axial fan models →

Description

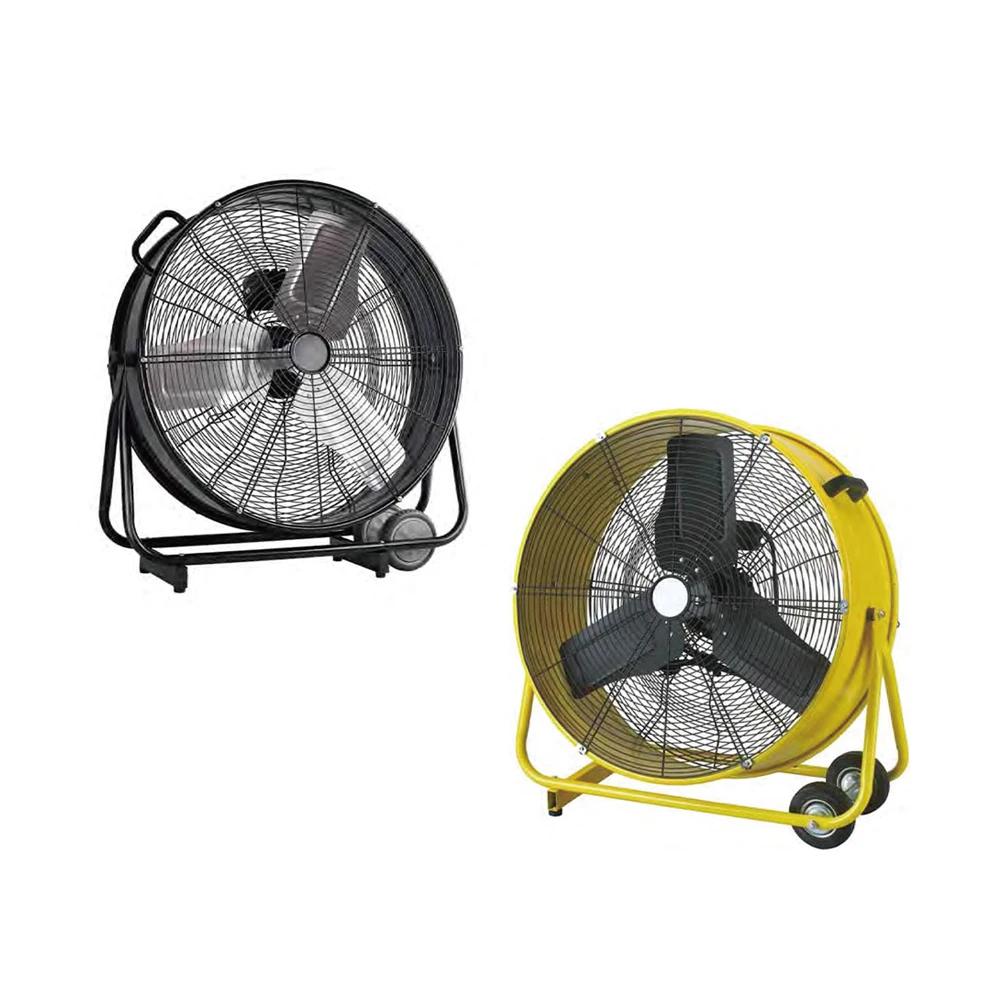

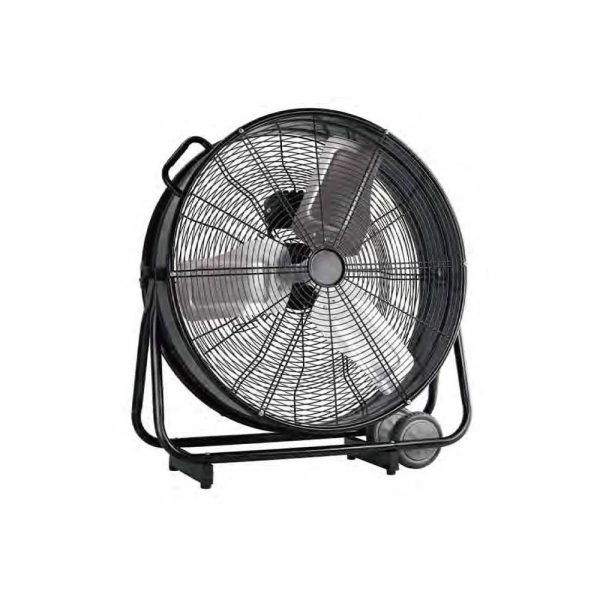

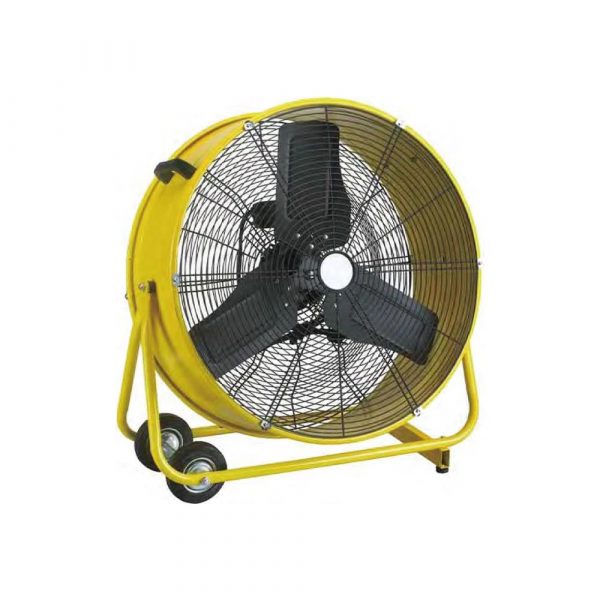

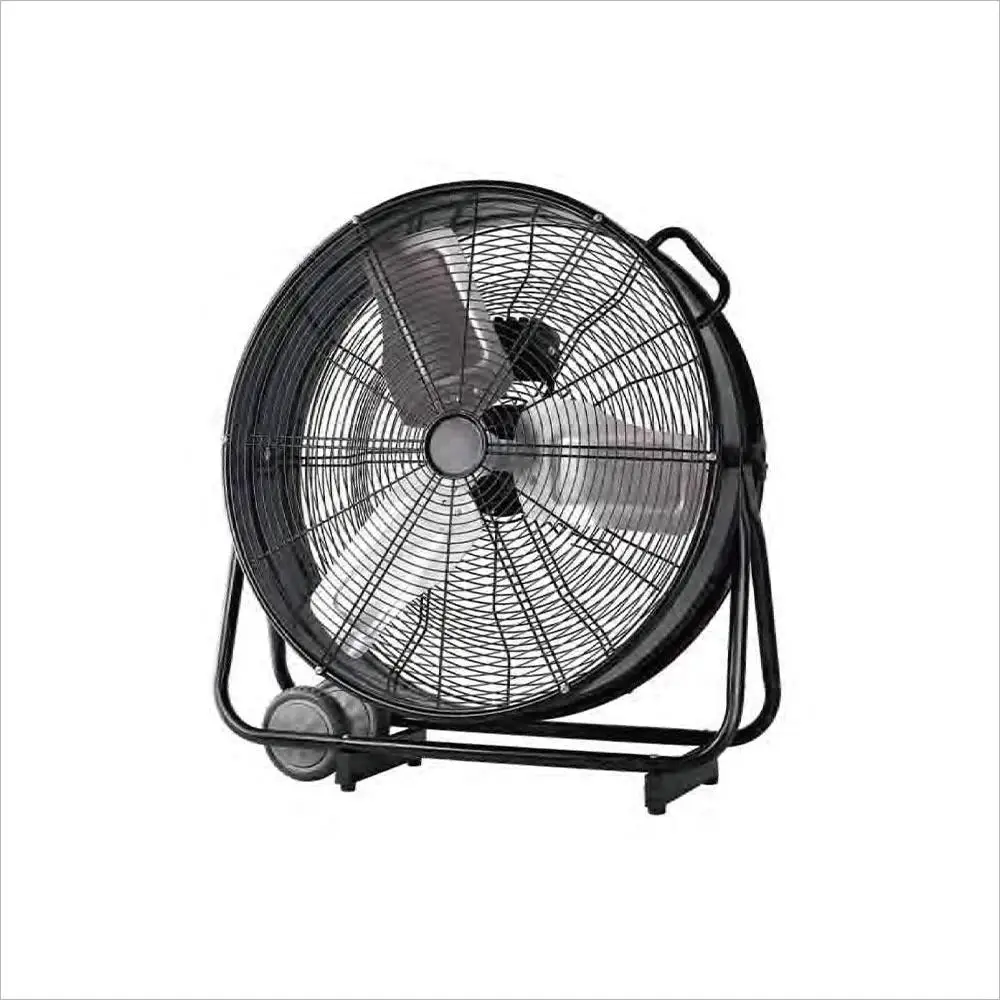

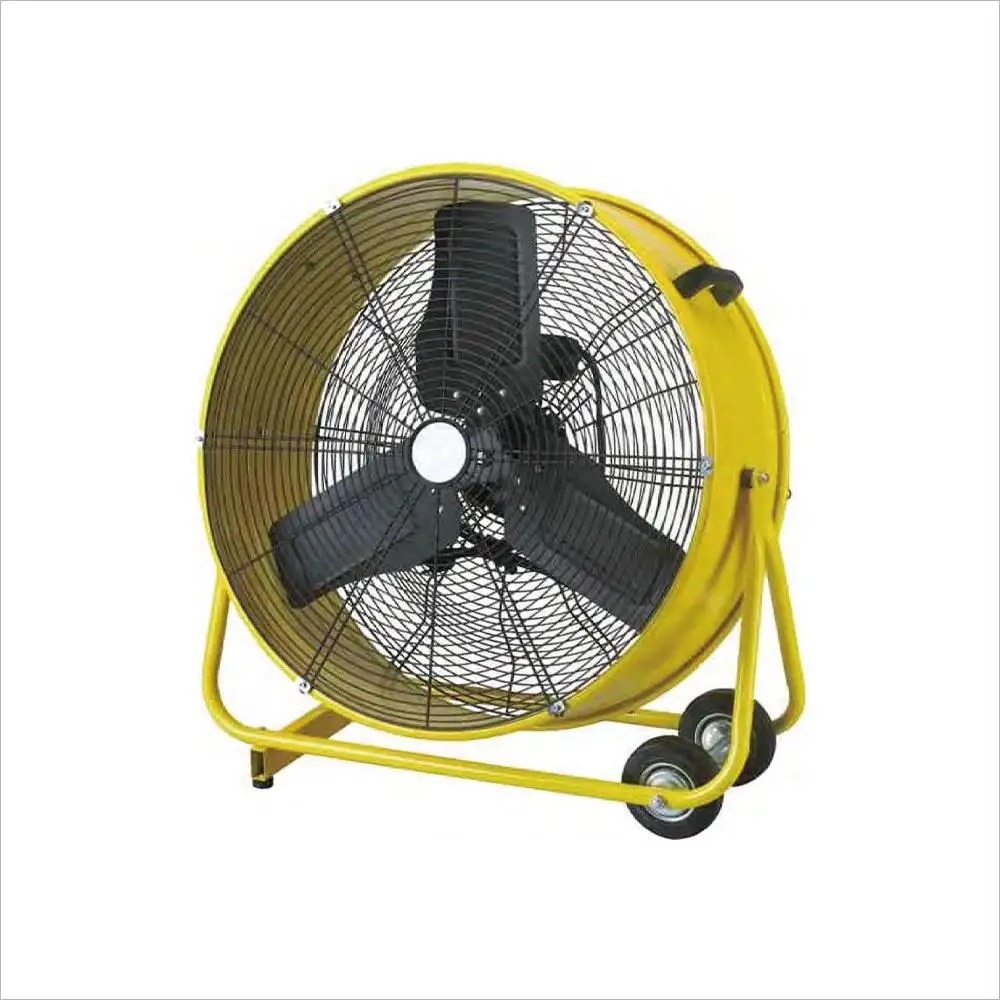

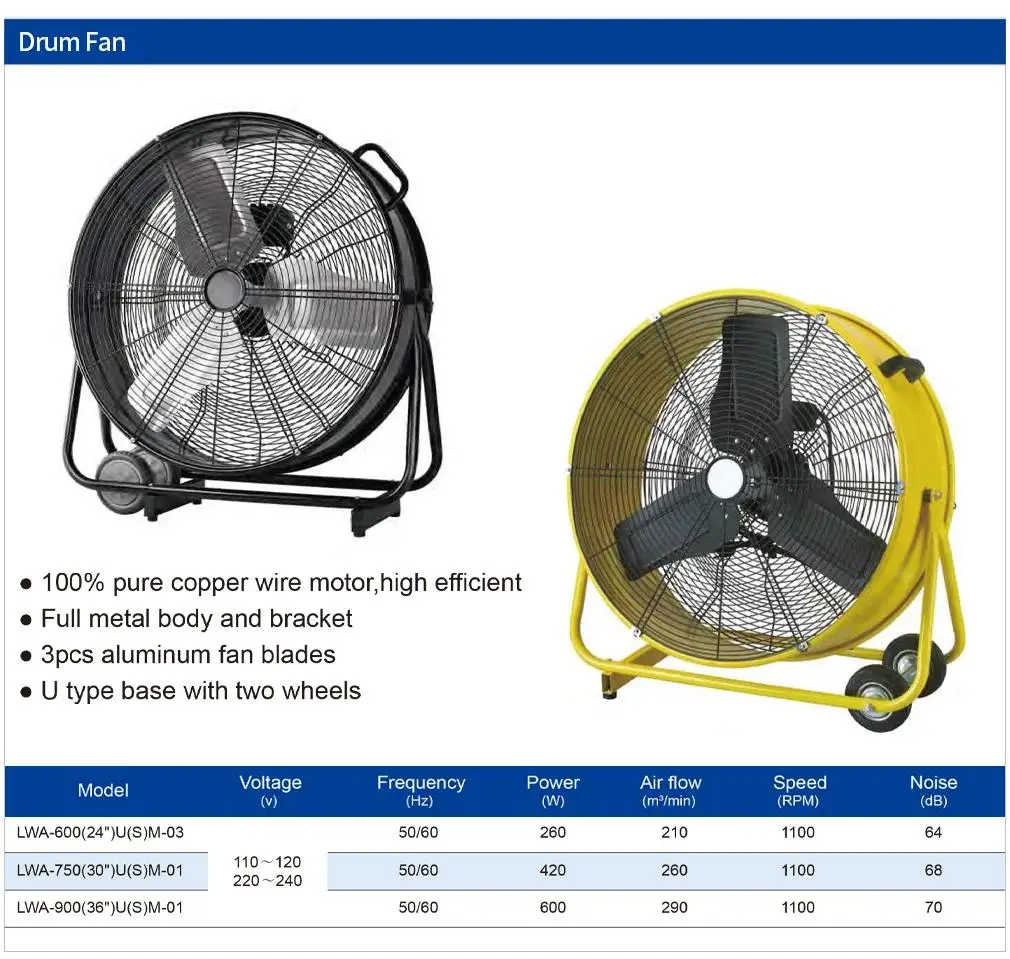

Types :	Engineered for Excellence Large air volume Drum Fan Technology at Its Finest
Voltage Ranges :	110V,220V
Frequency :	50/60 Hz
Diamter :	600-900mm ( impeller diameters )
Motor Types :	BLEC External Rotor Motor
Speed Control :	0-10V Signal / PWM / RS485(Optional)
Max.ambient Temp:	-25℃～ +60℃
Certificating :	All necessary certifications suitable for USA & Europe , ETL,UL ,CE ,RoHS, ISO19001,ISO 14001,BSCI
Protection Level:	IP44 ,IP54,IP55
Electronic Protection:	Current limiting protection ,Over-temperature protection,Over-current protection,Locked-rotor protection,Soft start
Working & Storage	Operating temperature：-25~60℃；Operating humidity：0 ~ 85 % RH Storing temperature：-25 ~ 70℃；Storing humidity：0 ~ 95 % RH Applicable altitude range：＜1000m
Balancing	According to JB/T 9101-1999 requirements G6.3
Product Standards :	LVD EN60950-1 EMC EN61000-6-3,EN61000-4-2, EN61000-4-3
Mainly Applications	AUH/ AIR PURIFIER / Server Cooling & Ventilation / Grow Tent /Ventilation SYSTEM/ Equipments Cooling /Refrigerator ,etc;ventilation fan cooling;ventilation exhaust fans

Additional information

mounting type	FREE STANDING
Voltage	220v/110v
speed	2500rpm, 3000RPM, 4500rpm, 2700RPM, 2100rpm, 1350RPM, 14000Rpm
Power Source	Electric
Type	Duct Axial Fan
blade material	Plastic
bearing type	Ball Bearing
customized support	OEM, ODM, OBM
place of origin	Zhejiang, China
brand name	Longwell
model number	LW-400mm
warranty	1 Year
after-sales service provided	Free spare parts
Material	Stainless Steel
name	axial ventilation fan
Bearing	Ball Bearing /sleeve bearing
Usage	For split air conditioning
Fan Diameter	300 mm Outer Diameter -900 mm Outer Diameter
fan length	customization available up to 1200mm
Application	split air conditioner , air curtains , cooling
lead time	15-25days
Selling units	Single item
Single package size	35X35X30 cm
Single gross weight	5.000 kg
