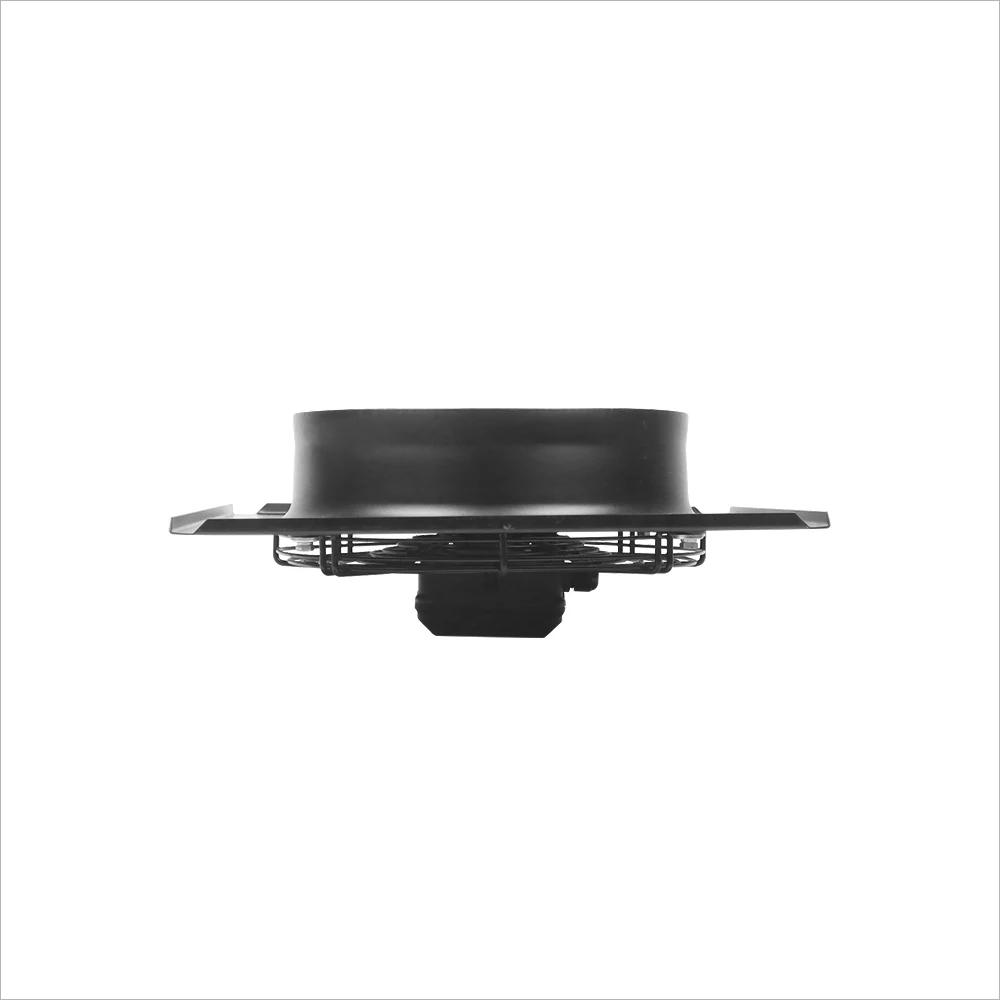

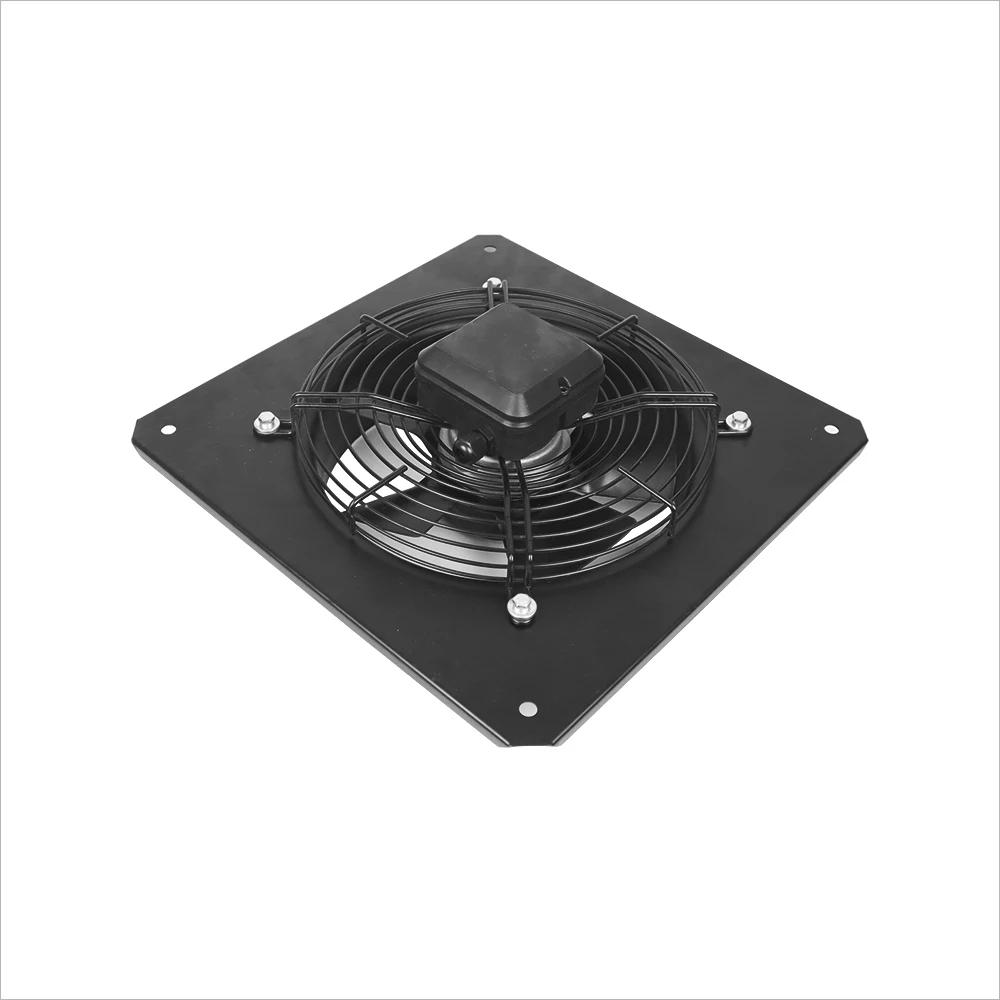

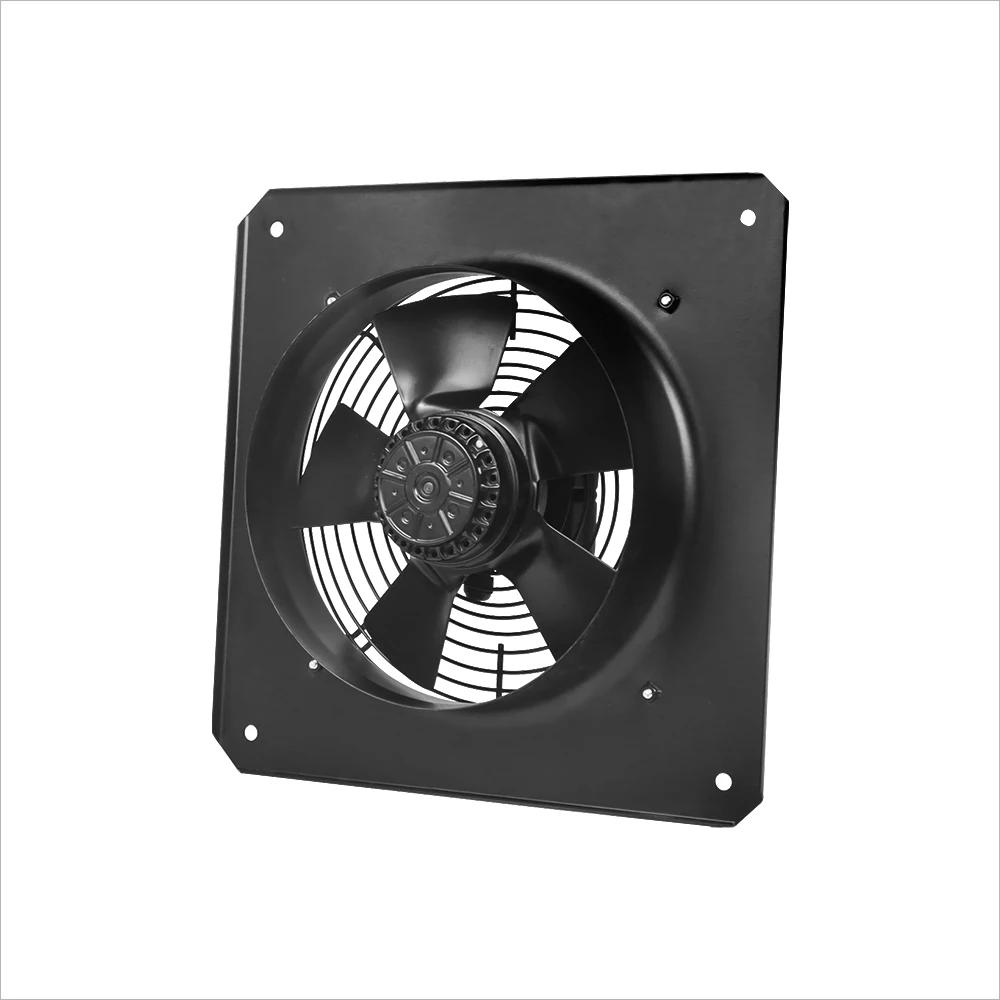

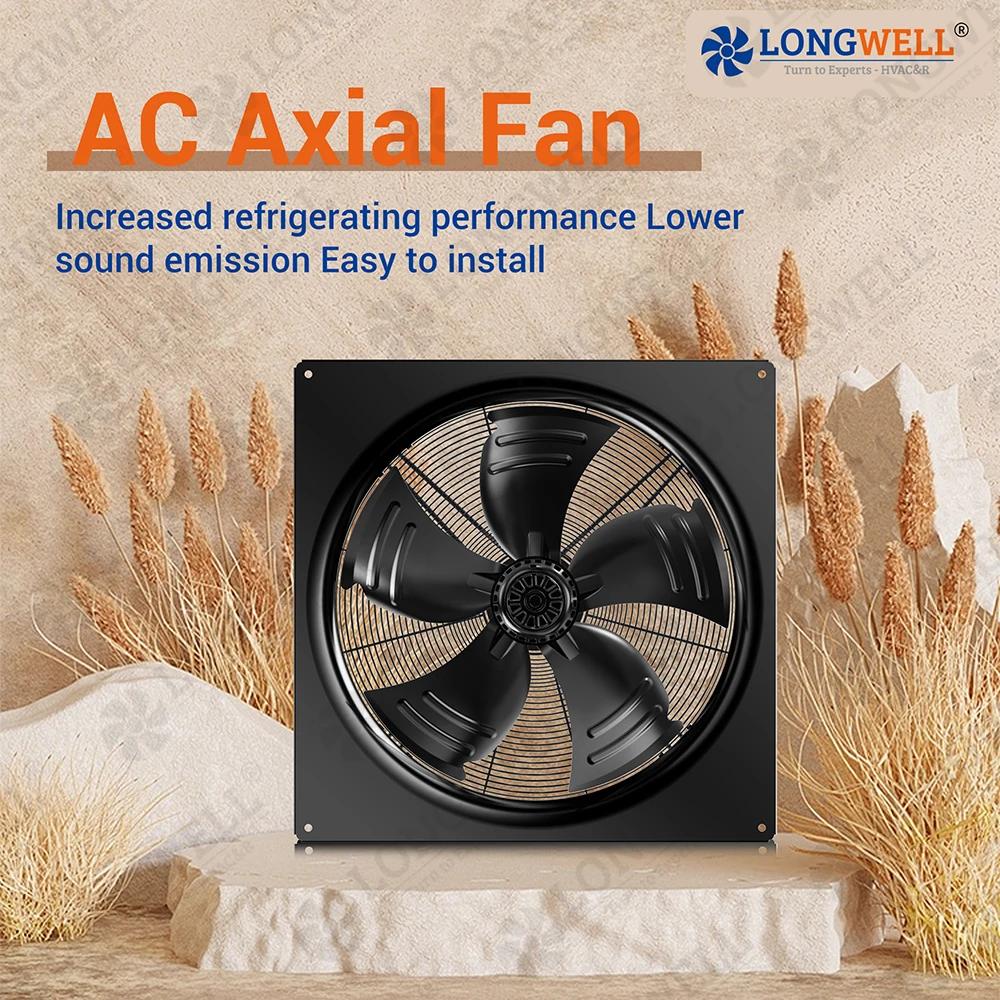

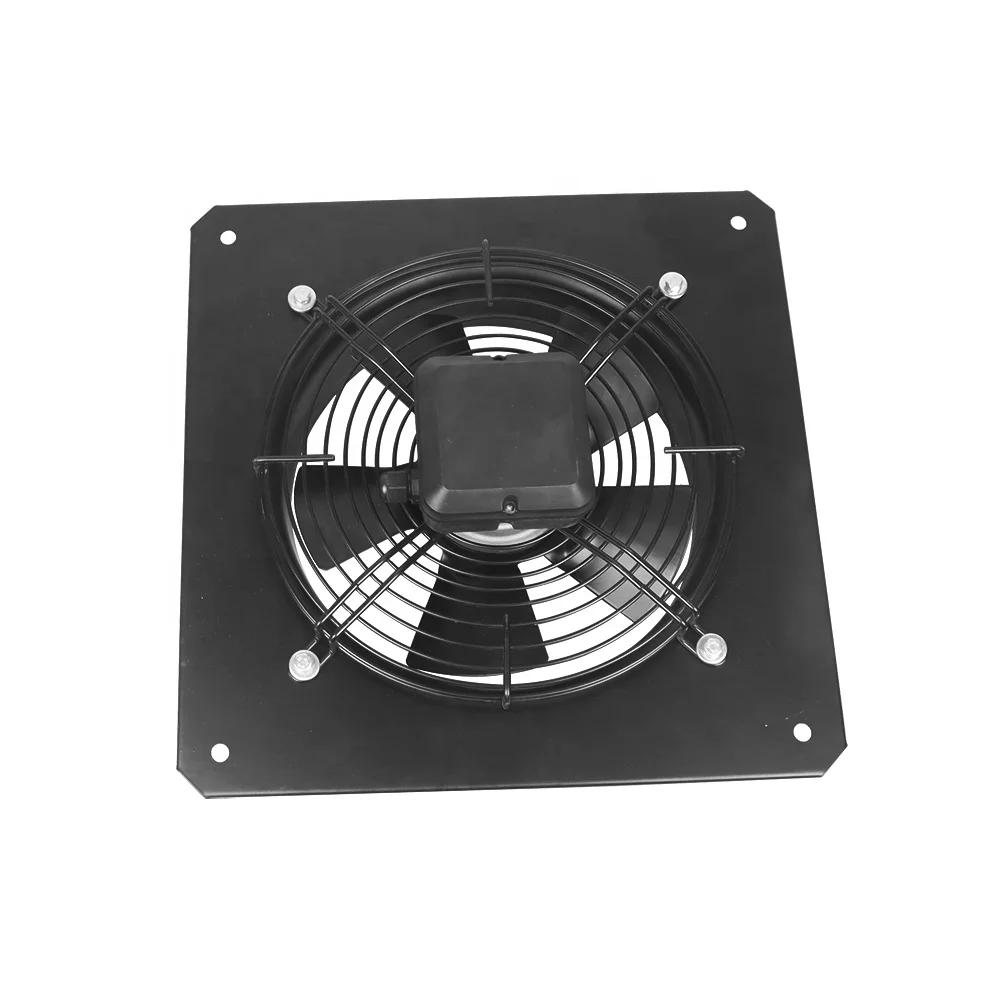

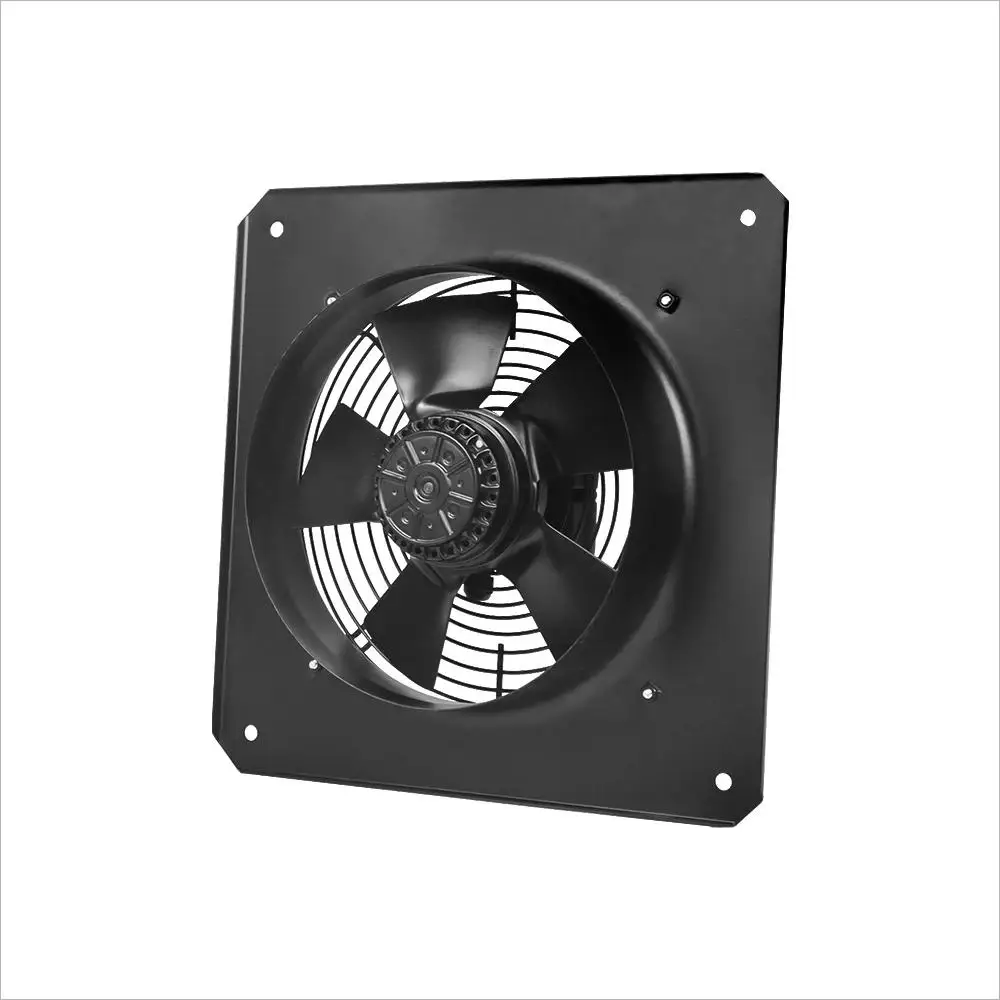

LONGWELL 185mm AC Axial Fan, Industrial Axial Ventilation Fan, 230V, Stainless Steel, for HVAC Systems, Cold Storage, Air Purifiers

Voltage 230V, 380V, 400V , 220V
ISO / CE / UL / ETL Factory & Test Lab OEM / ODM ebm-papst alternative

$ 30

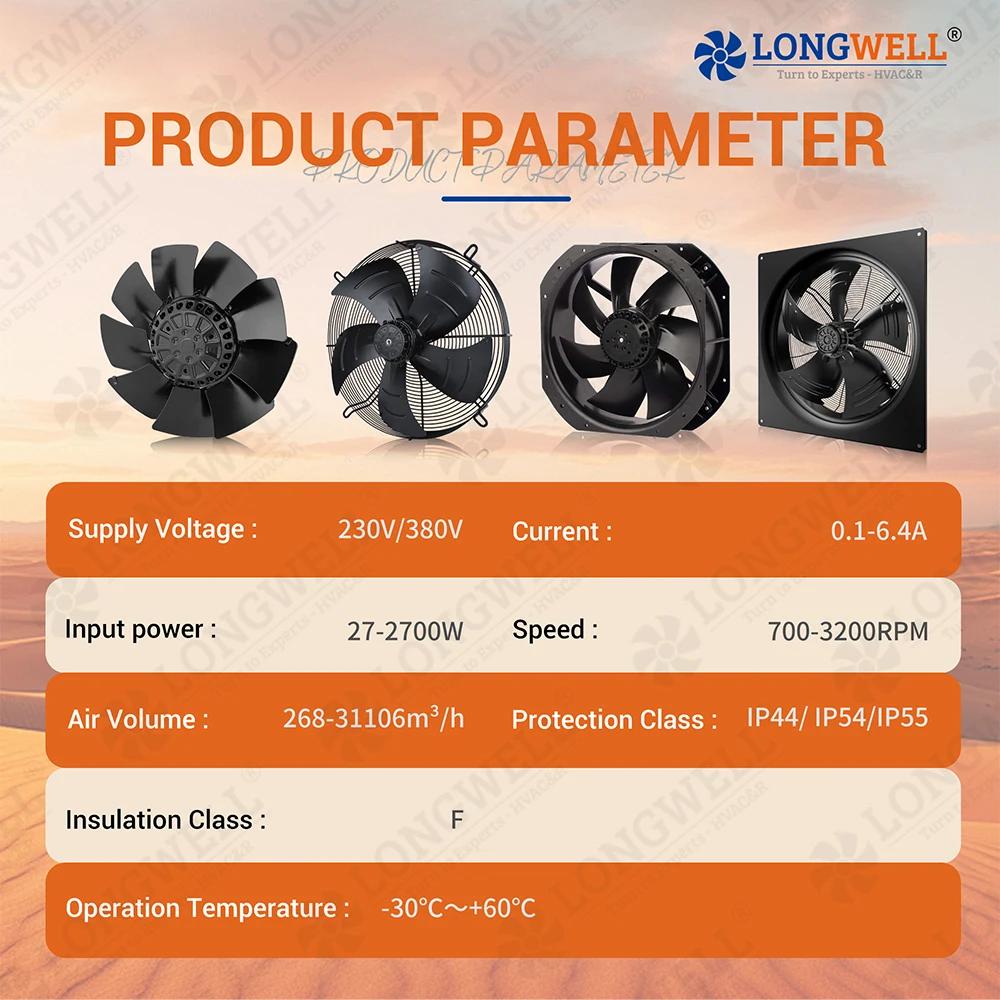

Specifications
Speed
2500rpm, 3000RPM, 4500rpm, 2700RPM, 2100rpm, 1350RPM, 14000Rpm
Frequency
50/60 Hz
Category: Tags: , ,
CategoryAC Axial Fan
TagsAxial FanExhaust VentilationExternal Rotor Motor
Get a Fast Quote from an Engineer Send your airflow, static pressure & voltage — we reply within one working day with a matching model.
✓ 1-day reply ✓ STEP / CAD on request ✓ Factory-direct

Your specifications go straight to a sales engineer — no spam, never shared.

Prefer a datasheet?
Download Product Catalog (PDF)

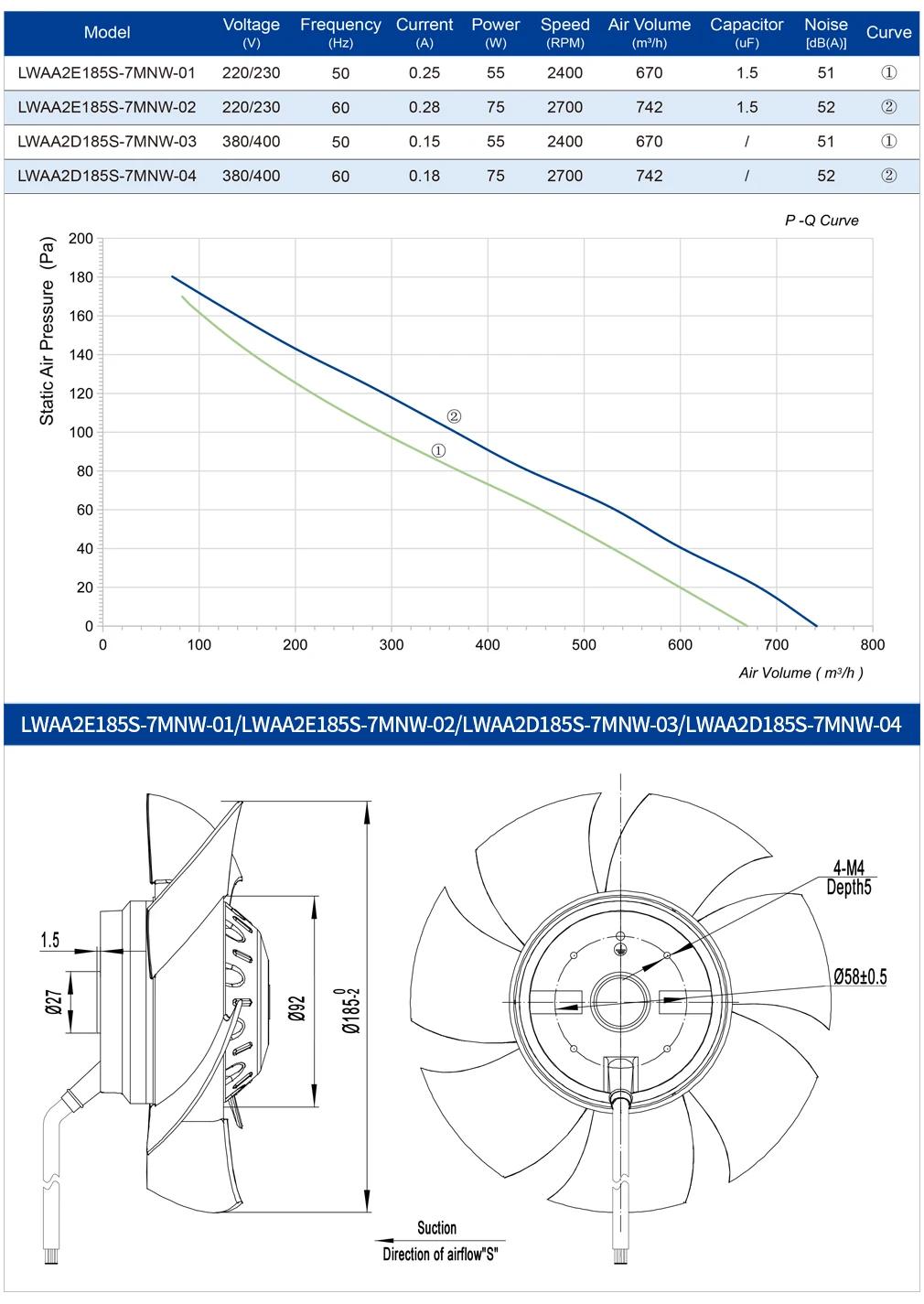

Need the exact model with a measured or digitised curve? This page describes the AC Axial Fan range. The Fan Selector lists every LONGWELL AC axial fan model with airflow, static pressure, power, noise, drawing and datasheet.
Search AC axial fan models →
Have your duty point?

See every LONGWELL model whose P-Q curve covers it — margins, noise and power included. No login.

Library: Ø25–1,000 mm, single units up to about 52,000 m³/h — larger duties go straight to an engineer. Prefer to talk it through? Send your specs to an engineer

Description

Types :

Unleashing Precision Airflow Control Tailored Solutions with Our Advanced 185mm AC Axial Fans
Voltage Ranges :

220V,230V,380V,400V;
Frequency :

50/60 Hz
Diamter :

185mm ( impeller diameters )
Motor Types :

BLEC External Rotor Motor
Speed Control :

0-10V Signal / PWM / RS485(Optional)
Max.ambient Temp:

-25℃～ +60℃
Certificating :

All necessary certifications suitable for USA & Europe , ETL,UL ,CE ,RoHS, ISO19001,ISO 14001,BSCI
Protection Level:

IP44 ,IP54,IP55
Electronic Protection:

Current limiting protection ,Over-temperature protection,Over-current protection,Locked-rotor protection,Soft start
Working & Storage

Operating temperature：-25~60℃；Operating humidity：0 ~ 85 % RH
Storing temperature：-25 ~ 70℃；Storing humidity：0 ~ 95 % RH
Applicable altitude range：＜1000m
Balancing

According to JB/T 9101-1999 requirements G6.3
Product Standards :

LVD EN60950-1 EMC EN61000-6-3,EN61000-4-2, EN61000-4-3
Mainly Applications

AUH/ AIR PURIFIER / Server Cooling & Ventilation / Grow Tent /Ventilation SYSTEM/ Equipments Cooling /Refrigerator ,etc;ventilation fan cooling;ventilation exhaust fans

Additional information

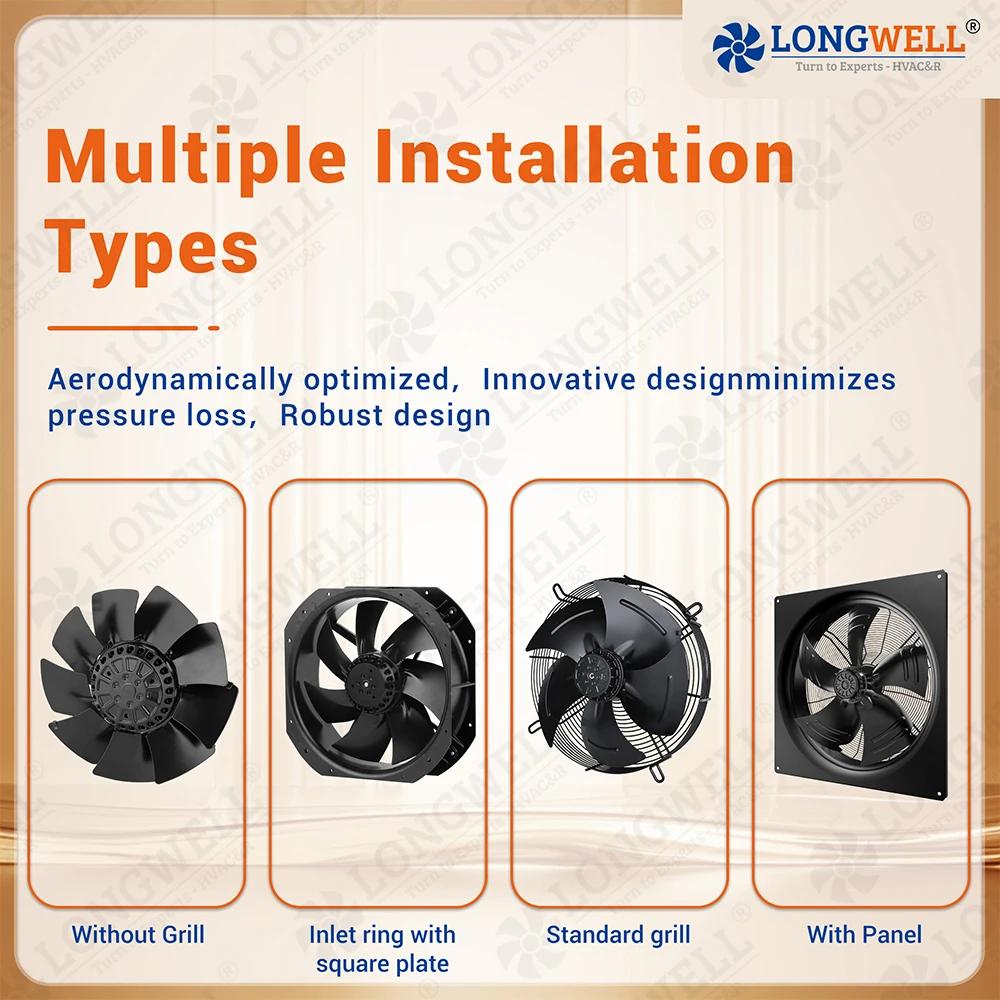

mounting type

FREE STANDING
Voltage

230V, 380V, 400V , 220V
speed

2500rpm, 3000RPM, 4500rpm, 2700RPM, 2100rpm, 1350RPM, 14000Rpm
Power Source

Electric
blade material

STAINLESS STEEL
customized support

OEM, ODM, OBM
place of origin

Zhejiang, China
brand name

LONGWELL
warranty

1 Year
after-sales service provided

Free spare parts
Material

STAINLESS STEEL
Product name

Axial Flow Fans Industrial
Usage

air cooling system
Bearing Type

NSK ball bearing
Frequency

50/60 Hz
Noise Level

50 dBA
Product type

Axial flow type
Motor

AC External rotor motor
Type

Axial Flow Fan
Application

Exhaust Ventilation
Keyword

Exhaust Fan Ventilation
Selling units

Single item
Single package size

30X30X20 cm
Single gross weight

5.000 kg
