Description
|
Motor Type :
|

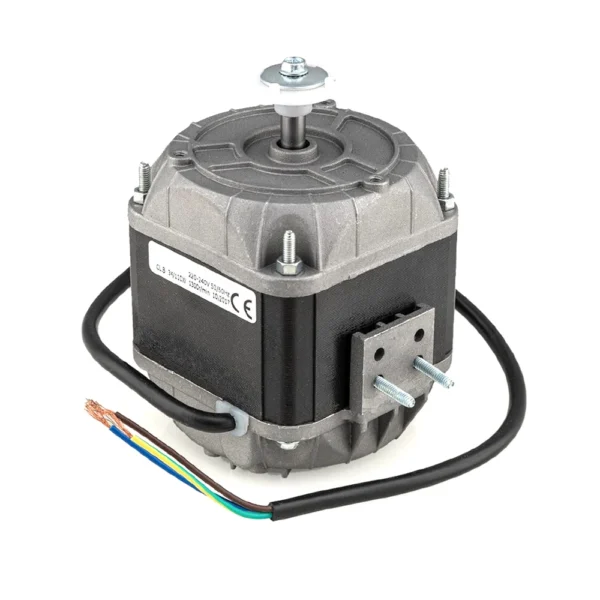

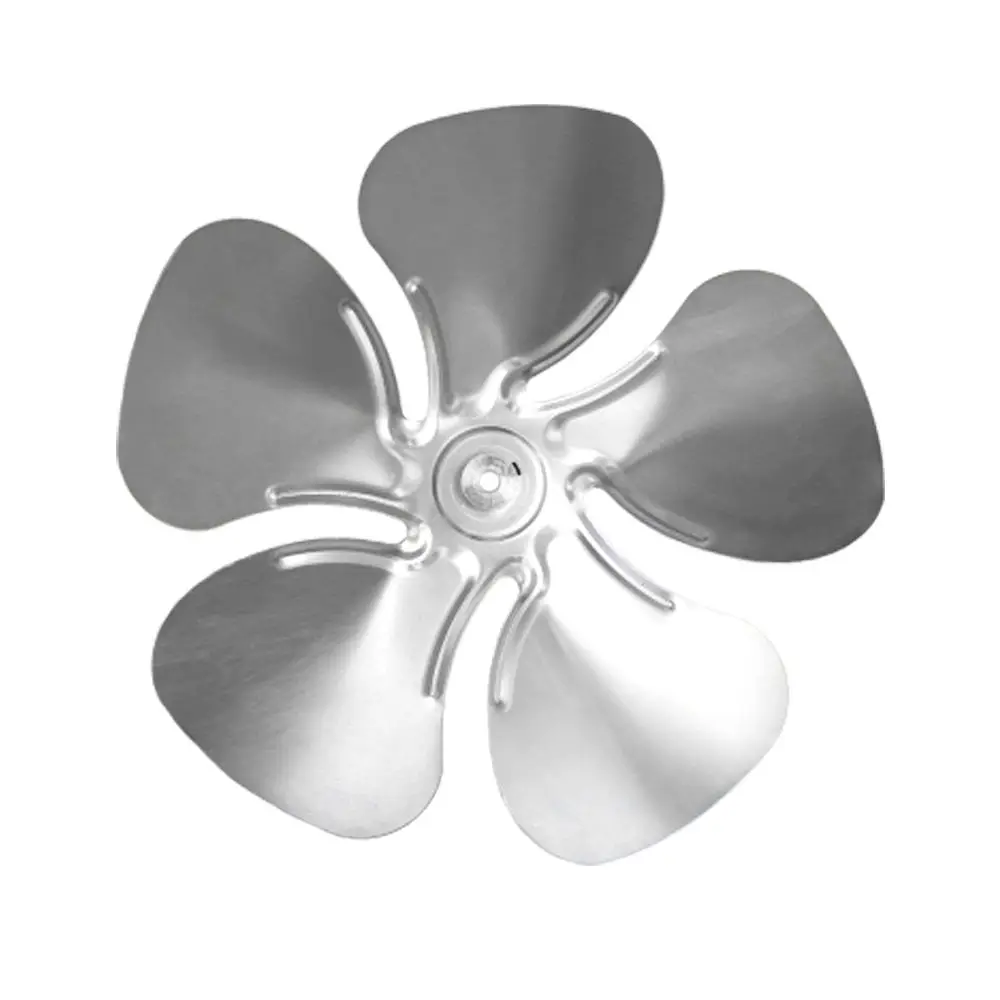

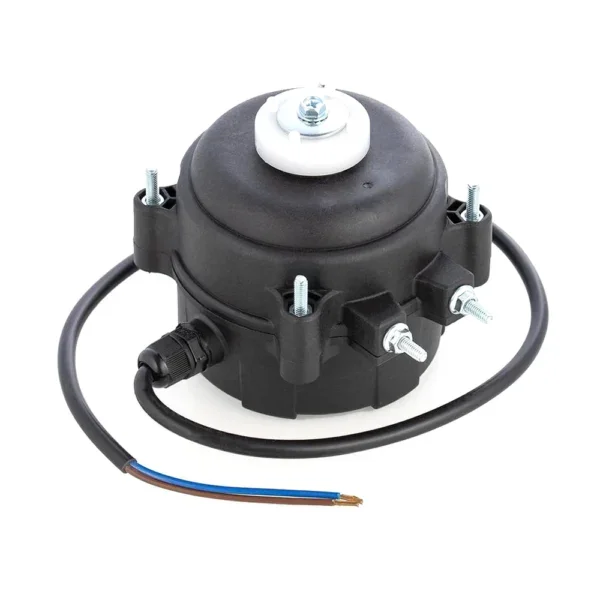

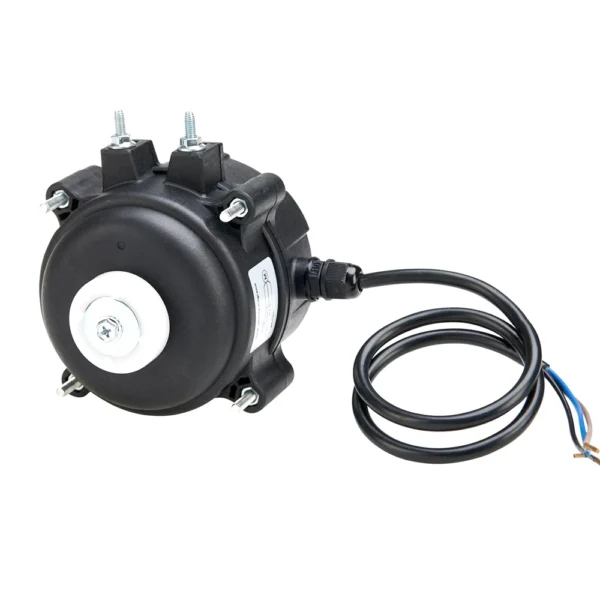

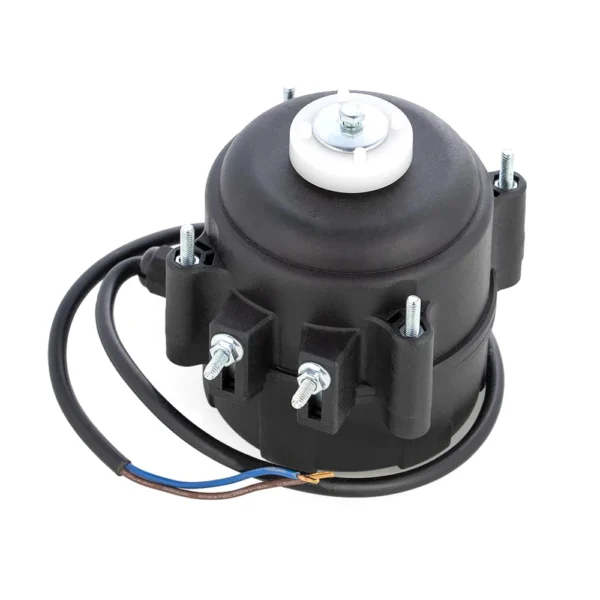

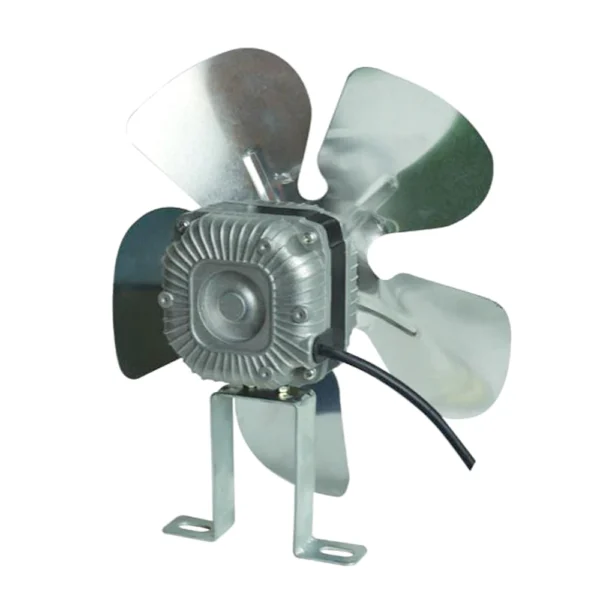

ECM Motor / Shaded Pole Motor with Holder , fan blades
|
||||||
|

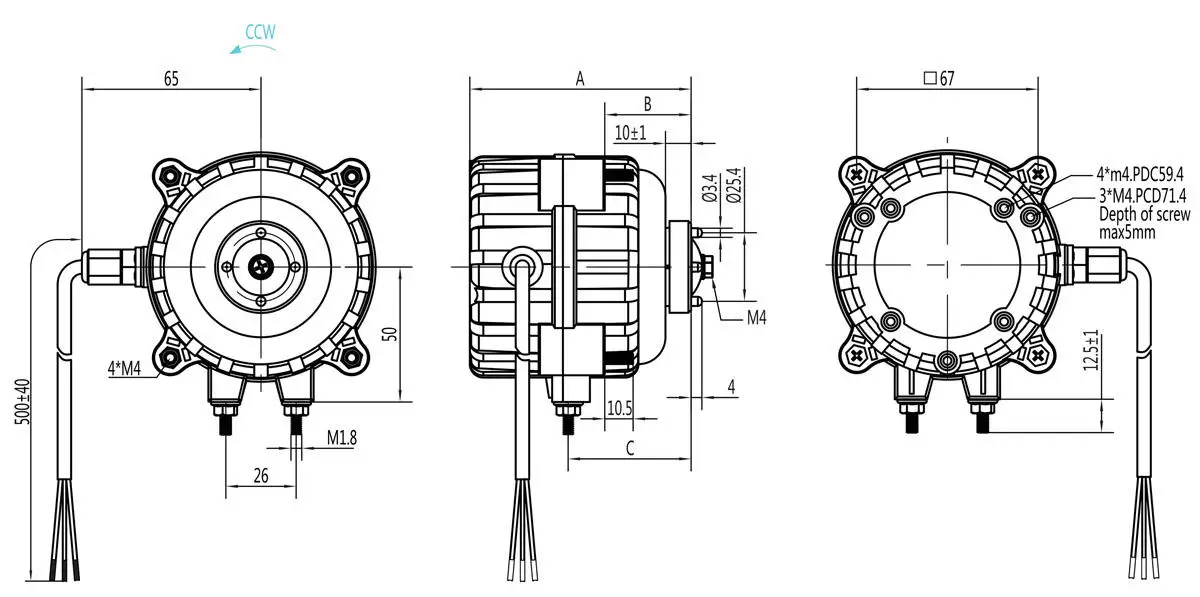

Mounting Dimensions ：
|
100% Replacement of traditional shaded-pole motors
|
||||||
|

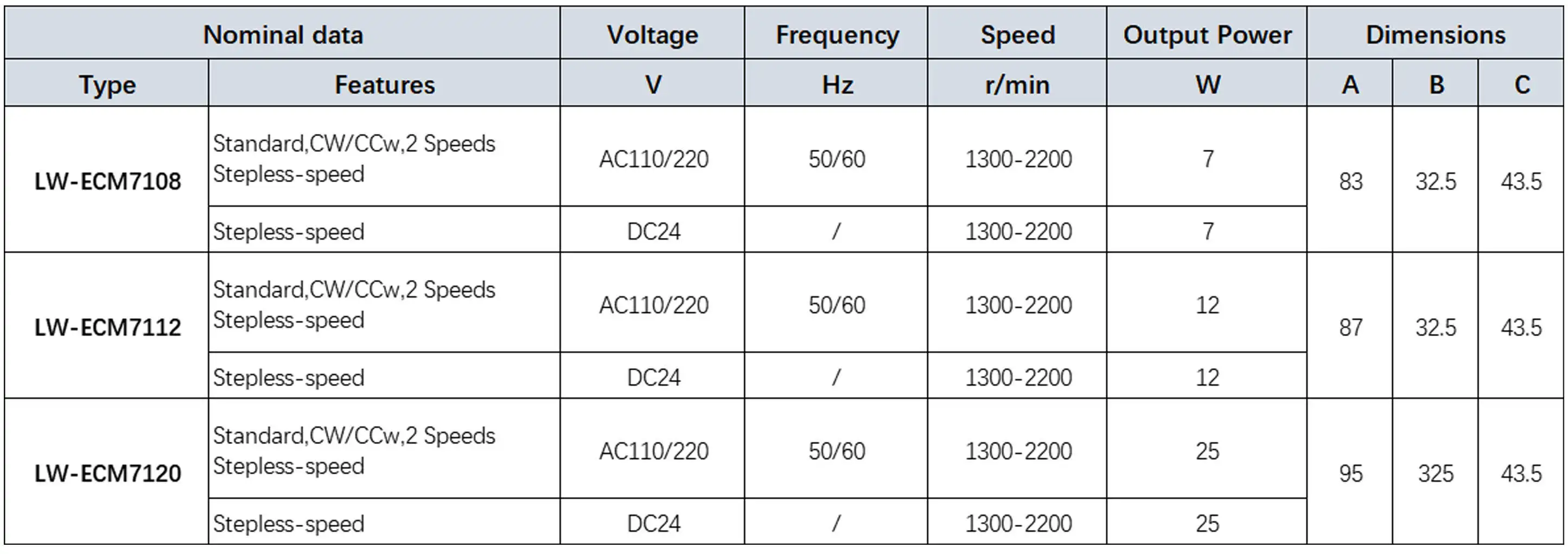

Voltage ：
|
AC100V-120V;AC11OV-220V;AC160V-25OV;DC24V;DC48V
|
||||||
|
Output Power ：
|
7W;12W; 25W
|
||||||
|
Rotation direction ：
|
Single Rotation CCW & Reverse on start & Reverse on demand
|
||||||
|
Speed ：
|
1 speed,2 speeds, 3 speeds, Stepless Speeds
|
||||||
|
Insulation class ：
|
B/F
|
||||||
|
Working ambient temperature ：
|
-40℃ ~50℃
|
||||||
|
Mounting Option ：
|

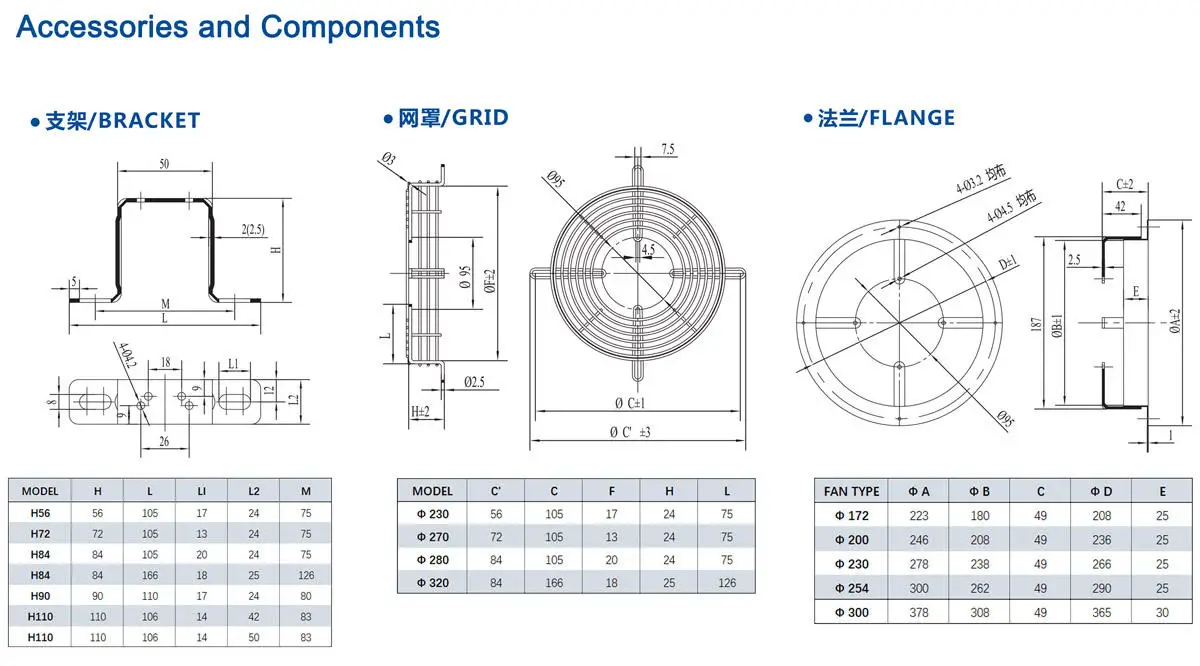

Grid,Flange,Bracket
|
||||||
|
Operating mode ：
|
S1
|
||||||
|
Type of Protection ：
|
IP65
|
||||||
|

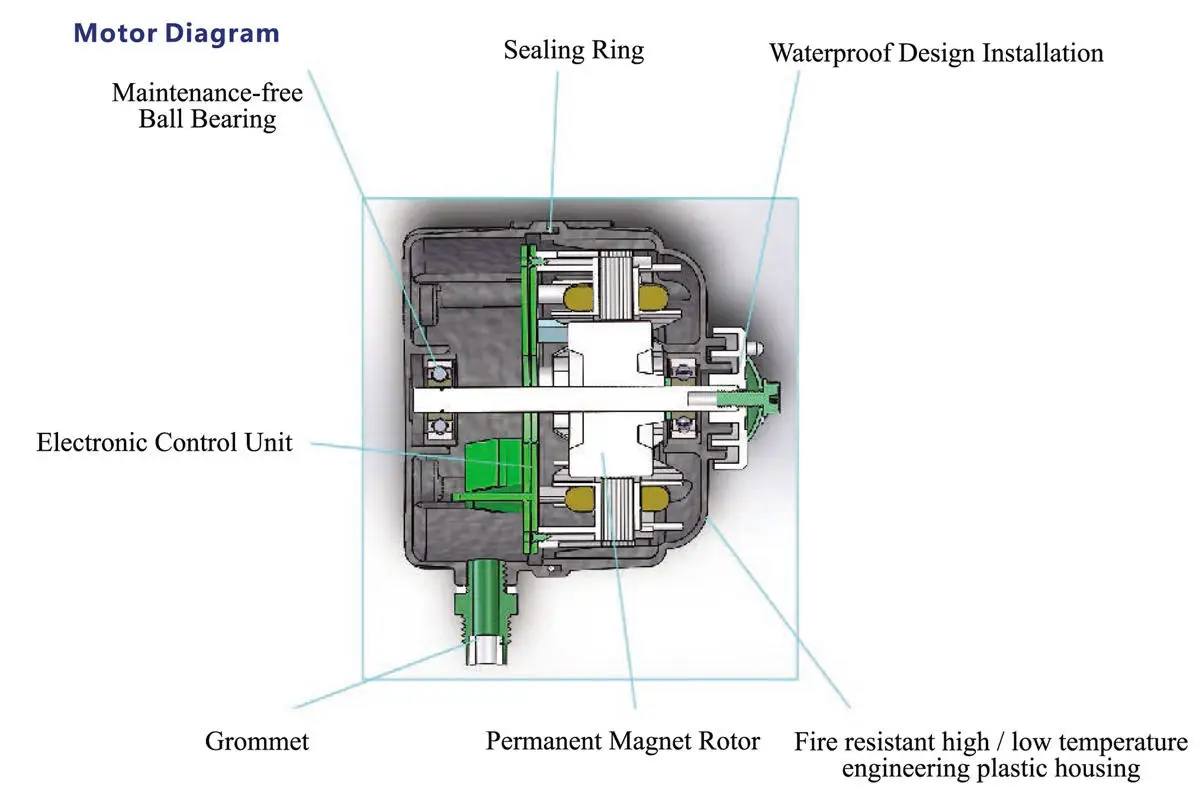

Bearings ：
|
Maintenance-free ball bearing
|
||||||
|
Motor protection ：
|
Via electronics
|
||||||
|
Service life ：
|
50000 hours
|
||||||
|
Features & Advantages :
|

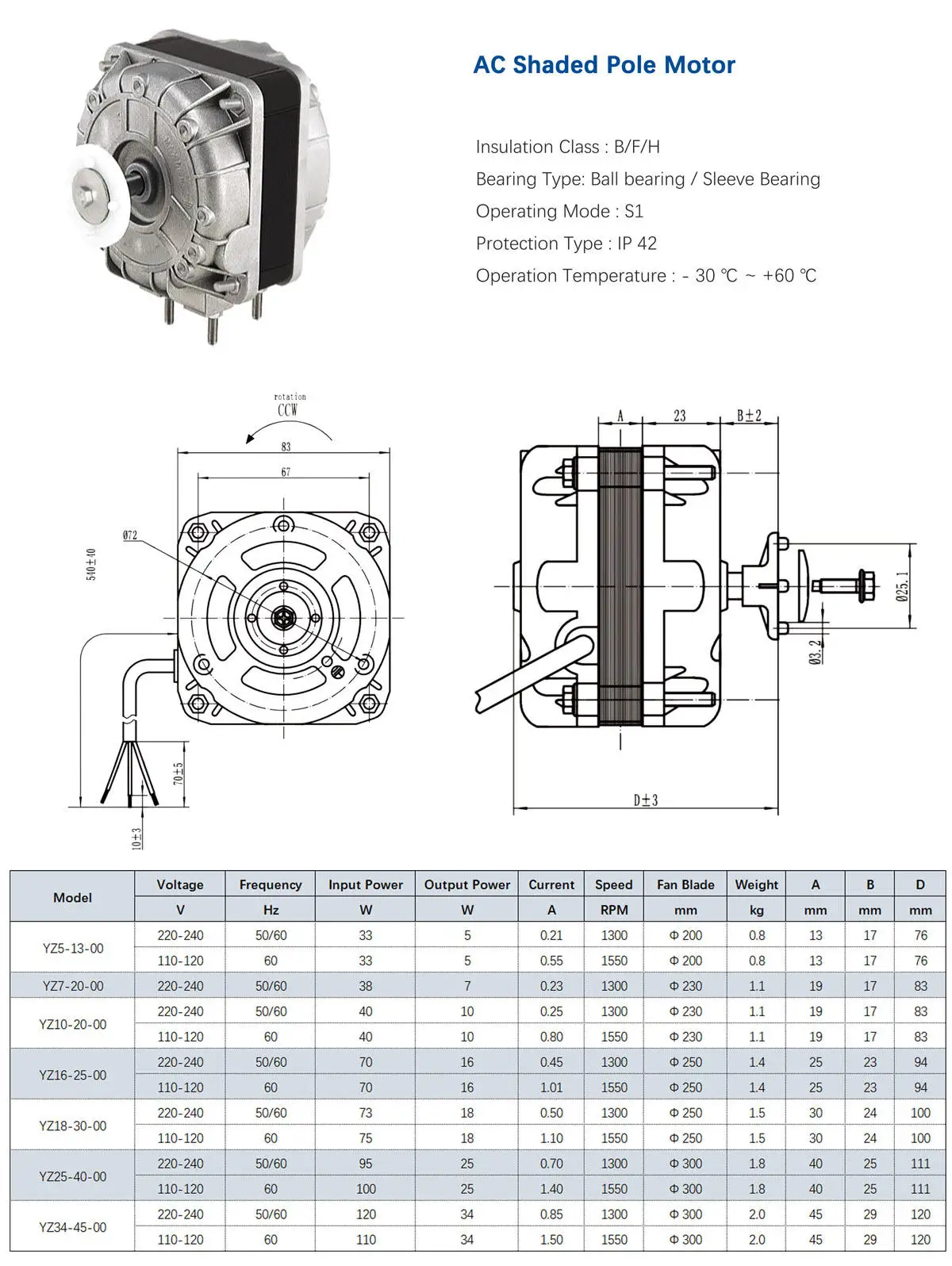

Emphasizing on energy saving, environmental protection and high efficiency, EC shaded-pole motor (ECQ67 and ECM71 series) are designed with advanced electronic control unit. The electronic control technology increase the motor efficiency greatly, while it maintains the similar external dimensions as the original YZF Shaded-pole motor. The accessories such as grid, fan blades, flange and bracket are the same as original YZF series’, therefore EC motor could completely replace YZF series without any changes.Compare with previous products, EC motor could be 70% more efficient, reduce the electric consumption greatly. Meanwhile, with help from electric control technology, the heating of EC motor itself is very low, it could help the entire refrigeration system works more efficient and stable.
|
||||||
LONGWELL EMC Technology is giving more energy saving to our world .
the advantages are :
1.Our ECM motorized fans’effiency are 30%-60% higher than the traditional motors .
2.the build-in PCBA achieved stepless speed control,and communication with customers products .
3.longer life span up to 600,000hours .
4.IP55,IP68 can be customized .
5.Sine wave ,three phase eliminate electromagnetic-acoustic and lots of other protection functions like soft start ,overload,motor block … .
A shaded pole motor is a type of single-phase induction motor that is widely used in various applications for its simplicity and low cost.
2. How does a shaded pole motor work?
The shaded pole creates a lagging magnetic field that induces rotation in the rotor, resulting in motor operation.
3. What are the advantages of shaded pole motors?
They are inexpensive, compact, and have low maintenance requirements.
4. What are the common applications of shaded pole motors?
They are often used in small fans, blowers, pumps, and other light-duty equipment.
5. How to select the right shaded pole motor for my application?
Consider factors such as load requirements, speed, and voltage.
6. What is the typical power range of shaded pole motors?
It usually ranges from a few watts to a few hundred watts.
7. How long can a shaded pole motor last?
With proper use and maintenance, it can last for several years.
8. Are shaded pole motors energy-efficient?
They are relatively less energy-efficient compared to some other motor types, but suitable for low-power applications.
9. Can shaded pole motors be used in harsh environments?
They are not suitable for extremely harsh or demanding environments.
10. What kind of maintenance does a shaded pole motor need?
Regular cleaning, checking for loose connections, and ensuring proper ventilation.
