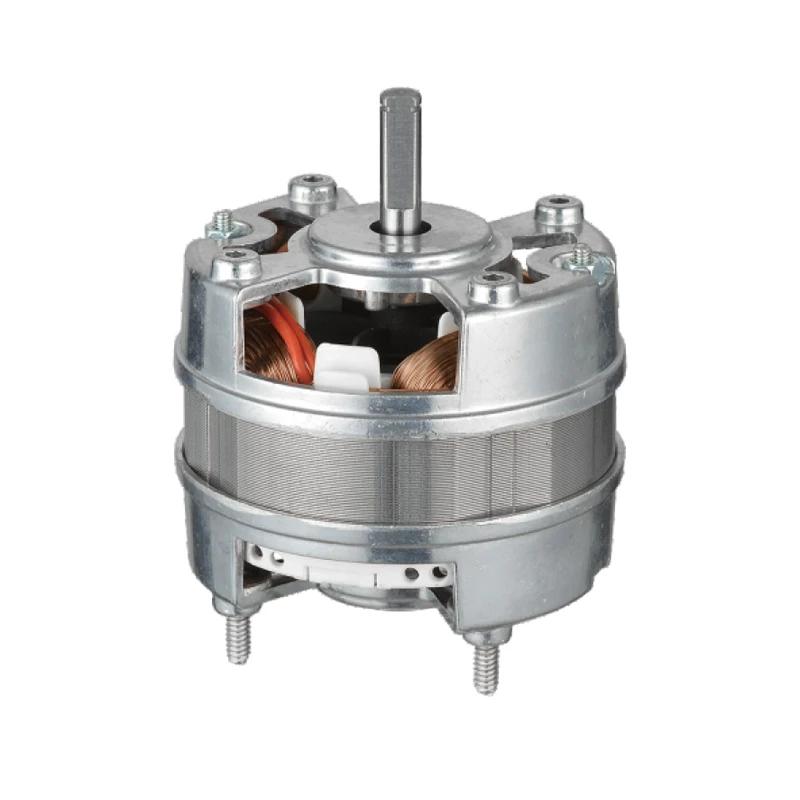

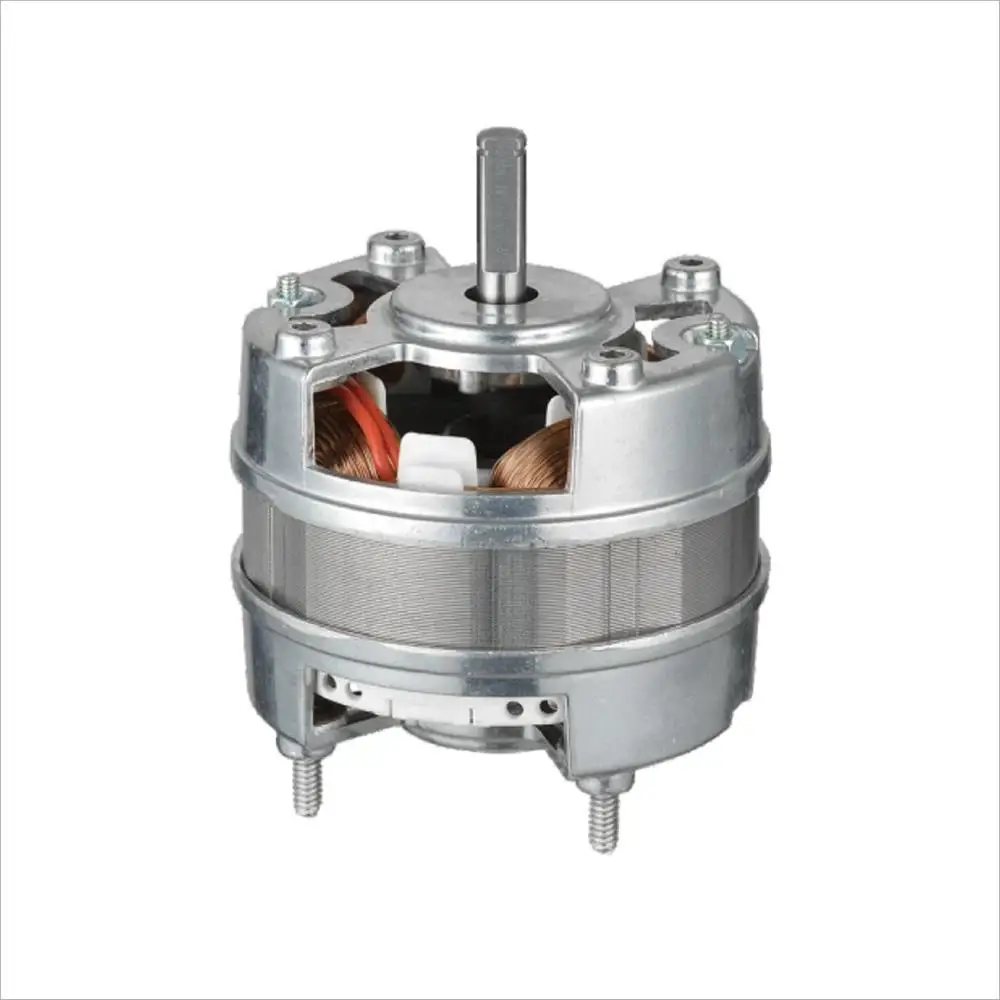

LONGWELL AC Shaded Pole Motor, HVAC Fan Motor, 220/240V, for Cold Storage – LWSPM8420-01

Voltage 100-127/220-240V
ISO / CE / UL / ETL Factory & Test Lab OEM / ODM ebm-papst alternative

$ 10

Specifications
Motor
Energy-saving Motor
Speed
1300-1800rpm
Frequency
60Hz
Phase
Single-phase
Category: Tags: , ,
CategoryAC Shade Pole Motor
TagsAC MotorRefrigeratorShaded Pole Motor
Get a Fast Quote from an Engineer Send your airflow, static pressure & voltage — we reply within one working day with a matching model.
✓ 1-day reply ✓ STEP / CAD on request ✓ Factory-direct

Your specifications go straight to a sales engineer — no spam, never shared.

Prefer a datasheet?
Download Product Catalog (PDF)

Description

Products Description

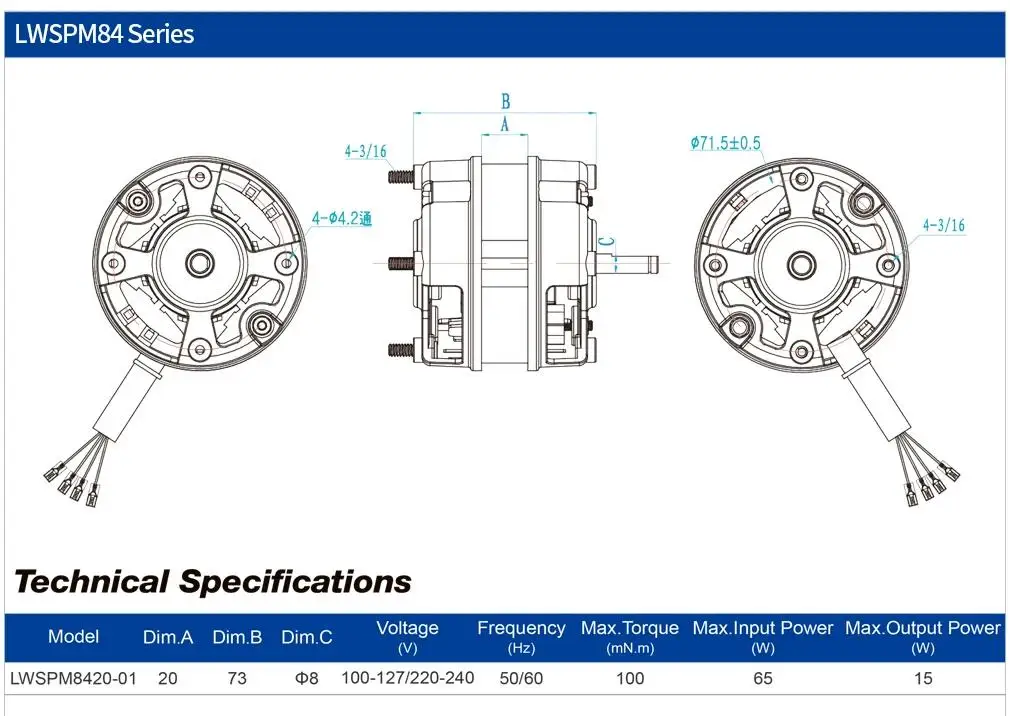

Stator Lamination Thickness:
A=16～23mm
Applied Voltage:
100～240VAC
Frequency:
60Hz
Application:
Cooker Hood

Product Applications

Company Profile

Certifications

Why Choose Us

FAQ

Additional information

AC Voltage

100-127/220-240V
Warranty

3months-1year
Place of Origin

Zhejiang, China
Brand Name

LONGWELL
Model Number

LWSPM8420-01
Type

Brushless motor
Frequency

60Hz
Phase

Single-phase
Protect Feature

Drip-proof
Efficiency

IE 4
Product Name

Shaded Pole Motor
Application

General Machinery
Usage

Machinery Equipment
Voltage

100-127/220-240V
Color

Customer Request
Rated Power

CUSTOMER
Motor type

Energy-saving Motor
Keywords

ac motor
Output Power

15W
Speed

1300-1800rpm
Selling units

Single item
Single package size

44X25.5X45 cm
Single gross weight

9.100 kg
