LONGWELL AC Shaded Pole Motor, HVAC Fan Motor, 115V, Low Noise, for Ovens, Cold Storage

$ 3

Specifications
Protection
B,F
Speed
1500~2000 RPM
Frequency
50HZ/60HZ
Phase
Single-phase
Category: Tags: , ,
CategoryAC Shade Pole Motor
TagsFan MotorOven ApplicationsShaded Pole Motor
Get a Fast Quote from an Engineer Send your airflow, static pressure & voltage — we reply within one working day with a matching model.
✓ 1-day reply ✓ STEP / CAD on request ✓ Factory-direct

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

Your specifications go straight to a sales engineer — no spam, never shared.

Prefer a datasheet?
Download Product Catalog (PDF)

Description

Product descriptions from the supplier

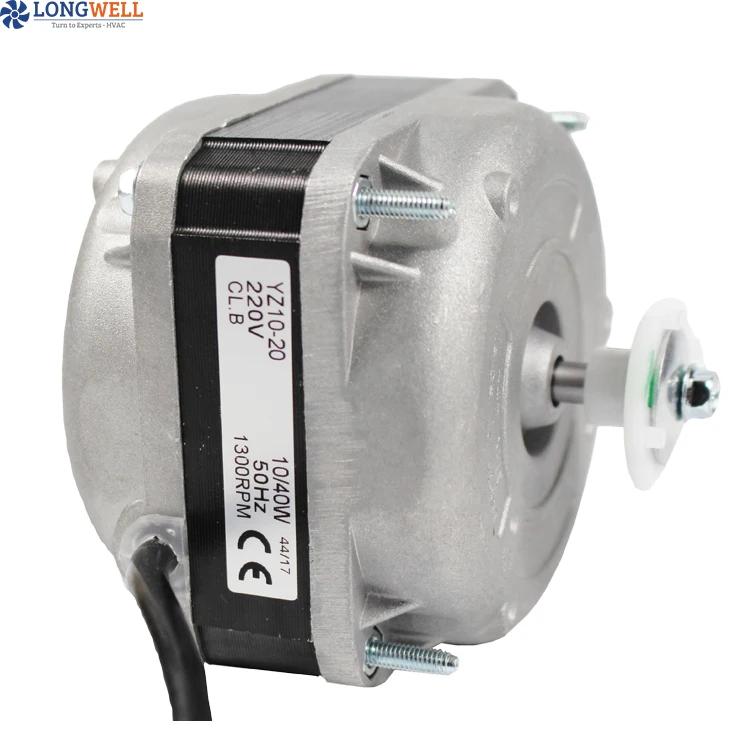

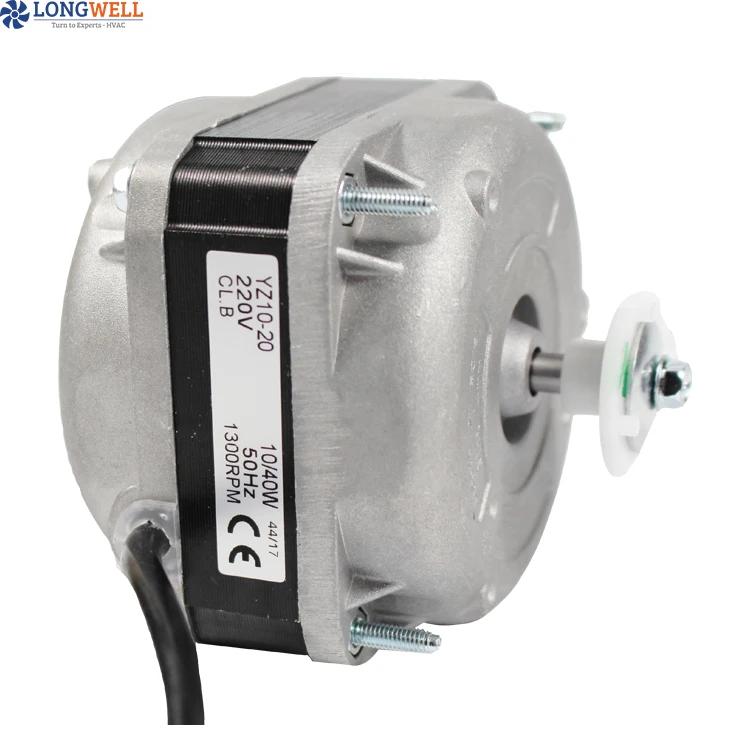

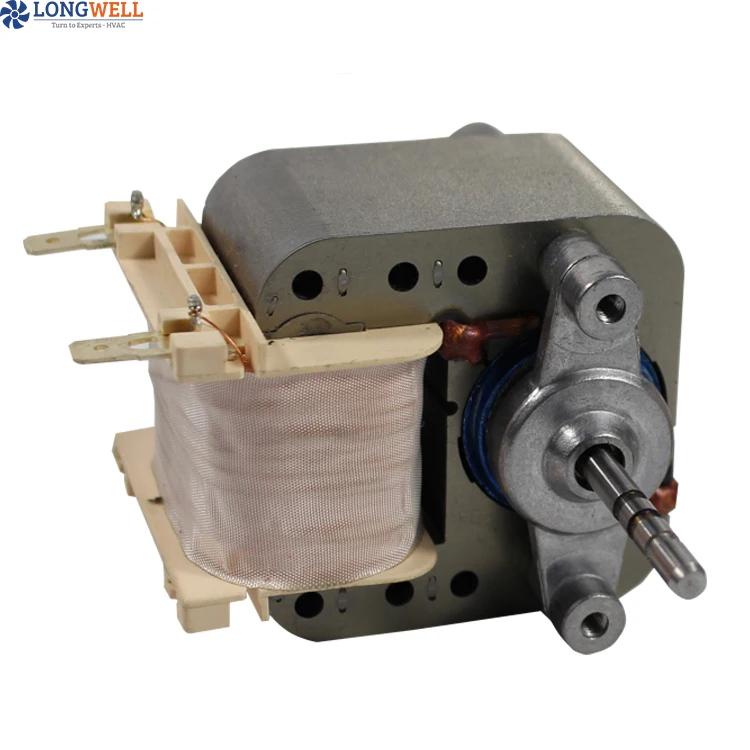

Low noise Shaded Pole Motor AC blower fan motor

Product Description
Model Number :   Low noise Shaded Pole Motor AC blower fan motor
Power  :  33W ~ 120W Blade Material :  Plastic
Speed control:  PWM / 0~10V  Insulation Class:  B/F
Operation Temperature :  -30℃ ~ +60 ℃
  • YZF series motors are Shaded Pole Air Pump Motors with single phase,4 shaded poles and running at rated voltage of 220~240V,50/60Hz or 110~120V,60Hz .They are widely used in the radiator,evaporator and other refrigeration equipment.
  • All material conform to RoHS.
  • The output power is from 2W to34W,which is relative to the stack length and coil parameters.
  • The insulation class of motors is B,and the protection class of that is IP42.On request IP44 is avaliable
  • The motor,which output power less than 10W are impedance protection and the motors,which output is bigger than 10W,are thermal protection.The thermal protetor’s is 125℃±5℃,135℃±5℃ or 150℃±5℃.
  • The average service life of motoer is over 20000 hours.

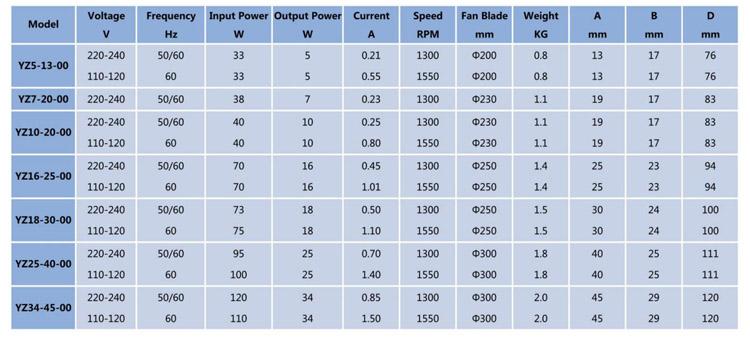

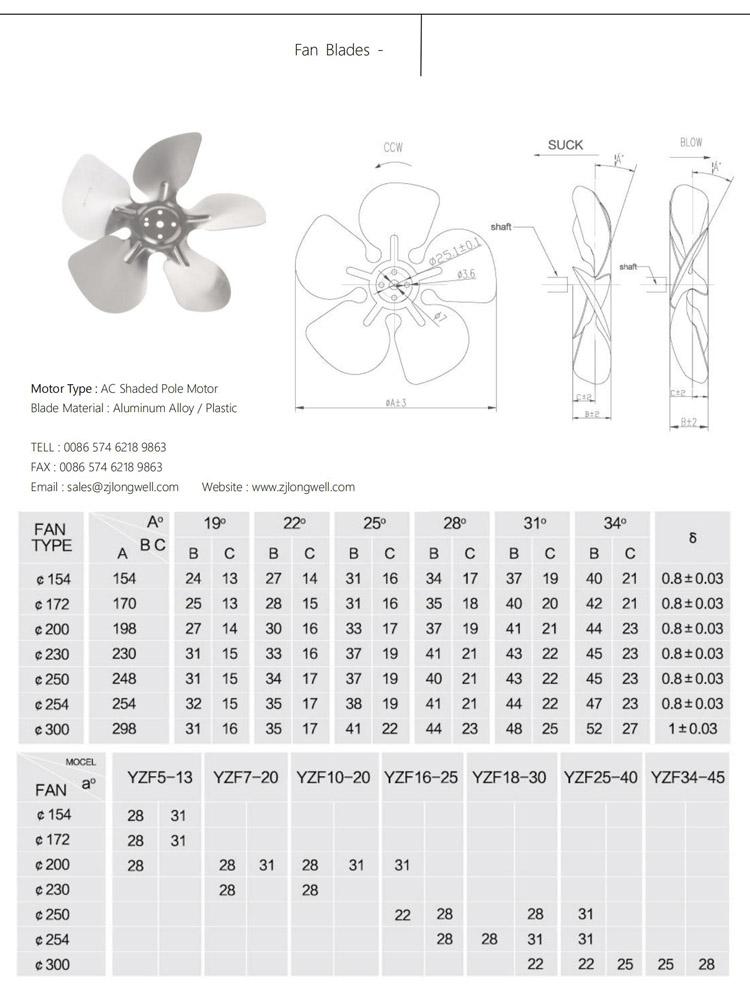

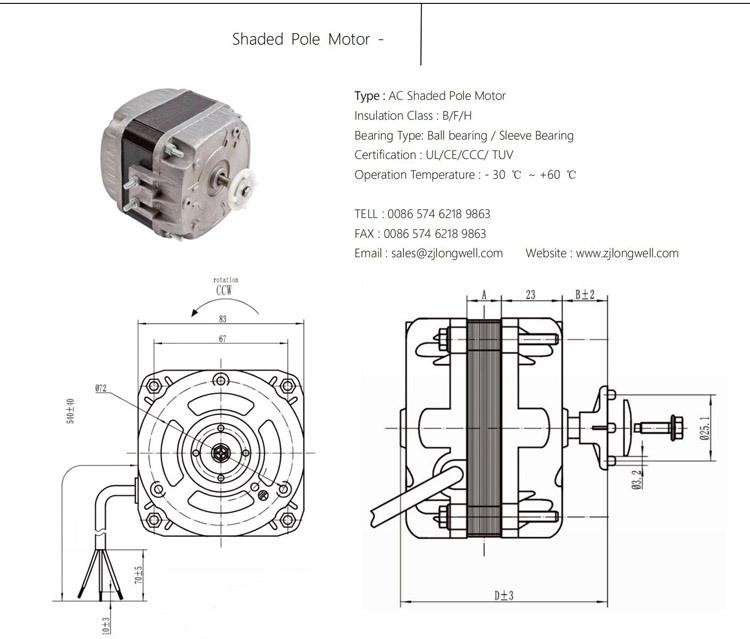

Shaded Motor and Blades_00

Shaded Motor and Blades_01

Shaded Motor and Blades_02

Shaded Motor and Blades_03

Custom Service

 backward (8)

Product Application

 cross flow fan (9)

Certifications

backward (14)

Company Information

backward (17)

backward (18)

backward (15)

backward (16)

Contact information

backward (20)

Buying Guides

backward (19)

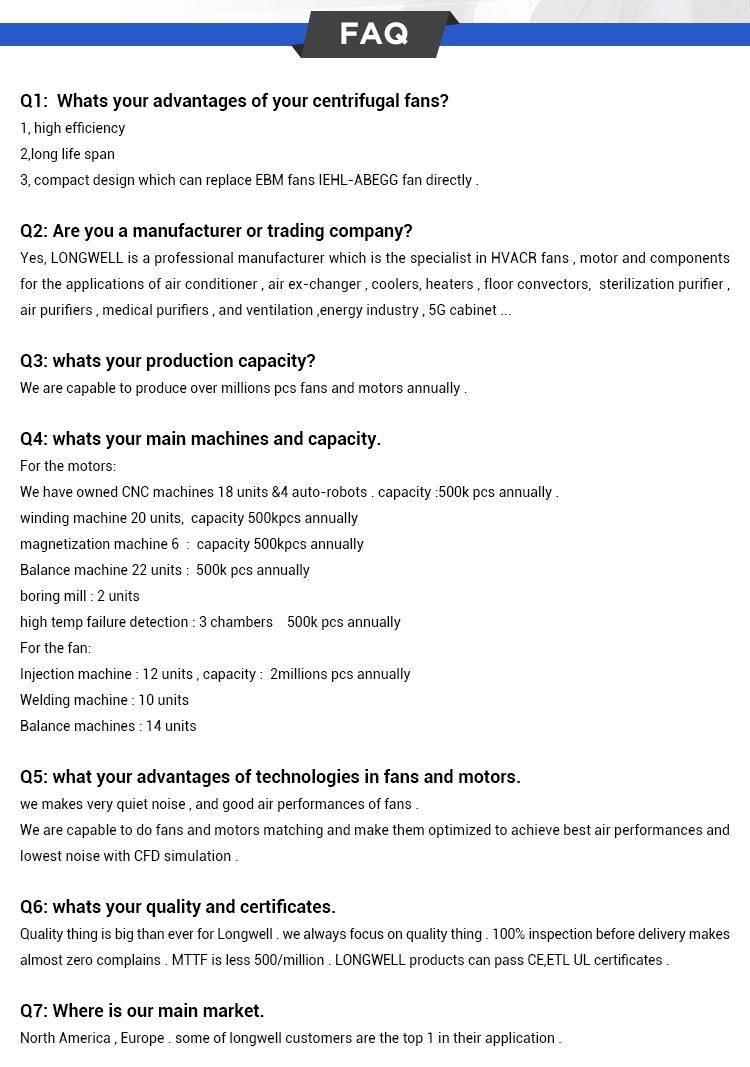

FAQ

backward (21)

Additional information

AC Voltage

220V/230V/240V/120V/110V
Place of Origin

Zhejiang, China
Brand Name

Longwell
Model Number

shade pole motor
Type

Asynchronous Motor
Frequency

50HZ/60HZ
Phase

Single-phase
Protect Feature

Other
Efficiency

IE 2
Product Name

shade pole motor
Used for

Home Appliance
Lead time

30 days after payment
Application

CROSS FLOW FAN ,OVEN ,HEATING
Speed

1500~2000 RPM
Warranty

2 YEARS
Rated Voltage

115V,230V
Rated Power

CUSTOMER DESIGN
Mounting

FREE STANDARD
Protection class

B,F
Packaging Details

25pcs per carton carton size: 48*39*16.5cm N.W/G.W:20/21kg shade pole motor
Port

NINGBO OR SHANGHAI
Selling units

Single item
Single package size

15X15X20 cm
Single gross weight

3.000 kg
Supply Ability

100000 Piece/Pieces per Month shade pole motor

Reviews

There are no reviews yet.

Be the first to review “LONGWELL AC Shaded Pole Motor, HVAC Fan Motor, 115V, Low Noise, for Ovens, Cold Storage”

Your email address will not be published. Required fields are marked *

More in this series

LONGWELL DC Shaded Pole Motor, HVAC Fan Motor, 115V, for Ovens, Cold StorageLONGWELL DC Shaded Pole Motor, HVAC Fan Motor, 115V, for Ovens, Cold Storage115V1500~2000 RPMFREE STANDARDView & InquireLONGWELL AC Shaded Pole Motor, HVAC Fan Motor, 120/220V, for Cold StorageLONGWELL AC Shaded Pole Motor, HVAC Fan Motor, 120/220V, for Cold Storage220V/230V/240V/120V/115VSingle-PhaseView & InquireLONGWELL AC Shaded Pole Motor, HVAC Fan Motor, 240V, Low NoiseLONGWELL AC Shaded Pole Motor, HVAC Fan Motor, 240V, Low Noise100-240VEnergy-saving MotorView & InquireLONGWELL AC Shaded Pole Motor, HVAC Fan Motor, 115V, for Cold StorageLONGWELL AC Shaded Pole Motor, HVAC Fan Motor, 115V, for Cold Storage115V0~2000 RPMFREE STANDARDView & InquireLONGWELL AC Shaded Pole Motor, HVAC Fan Motor, 230V – LWSPM61LONGWELL AC Shaded Pole Motor, HVAC Fan Motor, 230V – LWSPM61230VSingle-PhaseView & InquireLONGWELL AC Shaded Pole Motor, HVAC Fan Motor, 115V, for Ovens, Range Hoods, Cold StorageLONGWELL AC Shaded Pole Motor, HVAC Fan Motor, 115V, for Ovens, Range Hoods, Cold Storage115V1500~2000 RPMFREE STANDARDView & InquireLONGWELL AC Shaded Pole Motor, HVAC Fan Motor, 240VLONGWELL AC Shaded Pole Motor, HVAC Fan Motor, 240V100-240VEnergy-saving MotorView & InquireLONGWELL EC Shaded Pole Motor, HVAC Fan Motor, for Cold Storage, HVAC SystemsLONGWELL EC Shaded Pole Motor, HVAC Fan Motor, for Cold Storage, HVAC Systems220V/230V/115VSingle-PhaseView & InquireLONGWELL AC Shaded Pole Motor, HVAC Fan Motor, 120V, for Cold StorageLONGWELL AC Shaded Pole Motor, HVAC Fan Motor, 120V, for Cold Storage220V/230V/240V/120V/110VSingle-PhaseView & InquireLONGWELL AC Industrial Fan, Industrial Ventilation Fan, 115V, for Ovens, Boilers, Cold StorageLONGWELL AC Industrial Fan, Industrial Ventilation Fan, 115V, for Ovens, Boilers, Cold Storage115V1500~2000 RPMFREE STANDARDView & Inquire

Related for the same application

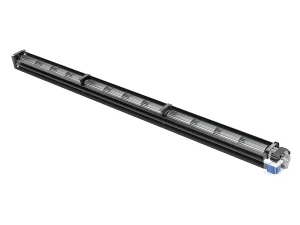

LONGWELL 30mm AC Cross Flow Fan, Tangential Blower Fan, 115V, 47 m³/h Airflow – LWCA-30190UN-06LONGWELL 30mm AC Cross Flow Fan, Tangential Blower Fan, 115V, 47 m³/h Airflow – LWCA-30190UN-0630 mm47 m³/h115 VDatasheet, curve & drawing →LONGWELL AT 7-7L2 Belt-Driven Forward-Curved Centrifugal Blower — 400–8,000 m³/h, up to 950 PaLONGWELL AT 7-7L2 Belt-Driven Forward-Curved Centrifugal Blower — 400–8,000 m³/h, up to 950 Pa312×328 mm400–8Motor selected to duty — 220/380/415 V availableView & InquireLONGWELL 40mm AC Cross Flow Fan, Tangential Blower Fan, 115V, 108 m³/h Airflow – LWCA-40350UN-06LONGWELL 40mm AC Cross Flow Fan, Tangential Blower Fan, 115V, 108 m³/h Airflow – LWCA-40350UN-0640 mm108 m³/h115 VDatasheet, curve & drawing →LONGWELL 110mm AC Cross Flow Fan, Tangential Blower Fan, 230V, 1550 m³/h Airflow – LWCA-110720SN-06LONGWELL 110mm AC Cross Flow Fan, Tangential Blower Fan, 230V, 1550 m³/h Airflow – LWCA-110720SN-06110 mm1550 m³/h230 VDatasheet, curve & drawing →LONGWELL 50mm AC Cross Flow Fan, Tangential Blower Fan, 230V, 564 m³/h Airflow – LWCA-501055SN-06LONGWELL 50mm AC Cross Flow Fan, Tangential Blower Fan, 230V, 564 m³/h Airflow – LWCA-501055SN-0650 mm564 m³/h230 VDatasheet, curve & drawing →LONGWELL Centrifugal Blower Fan, Industrial Centrifugal Fan, 230V, for AHU, Air Purifiers, Marine Ventilation – LWBE3G355LONGWELL Centrifugal Blower Fan, Industrial Centrifugal Fan, 230V, for AHU, Air Purifiers, Marine Ventilation – LWBE3G355230V2800rpmEC external rotor motorView & InquireLONGWELL AT 12-9R2 Belt-Driven Forward-Curved Centrifugal Blower — 800–10,500 m³/h, up to 1,250 PaLONGWELL AT 12-9R2 Belt-Driven Forward-Curved Centrifugal Blower — 800–10,500 m³/h, up to 1,250 Pa494×527 mm800–10Motor selected to duty — 220/380/415 V availableView & InquireLONGWELL 60mm AC Cross Flow Fan, Tangential Blower Fan, 230V, 227 m³/h Airflow – LWCA-60240SN-06LONGWELL 60mm AC Cross Flow Fan, Tangential Blower Fan, 230V, 227 m³/h Airflow – LWCA-60240SN-0660 mm227 m³/h230 VDatasheet, curve & drawing →LONGWELL 500mm Centrifugal Blower Fan, Industrial Centrifugal FanLONGWELL 500mm Centrifugal Blower Fan, Industrial Centrifugal Fan500 mmView & InquireLONGWELL AC Industrial Fan, Industrial Ventilation Fan, 24V, for Air Curtains, Marine Ventilation, Fan Coil UnitsLONGWELL AC Industrial Fan, Industrial Ventilation Fan, 24V, for Air Curtains, Marine Ventilation, Fan Coil Units24/48/310/230/380Vair conditioner motor/Synchronous Motor/Torque MotorView & Inquire
