LONGWELL AC Shaded Pole Motor, HVAC Fan Motor, 115V, for Ovens, Cold Storage

$ 3

Specifications
Protection
B,F
Speed
1500~2000 RPM
Frequency
50HZ/60HZ
Phase
Single-phase
Category: Tags: , ,
CategoryAC Shade Pole Motor
TagsAC MotorCross Flow FanShaded Pole Motor
Get a Fast Quote from an Engineer Send your airflow, static pressure & voltage — we reply within one working day with a matching model.
✓ 1-day reply ✓ STEP / CAD on request ✓ Factory-direct

Your specifications go straight to a sales engineer — no spam, never shared.

Prefer a datasheet?
Download Product Catalog (PDF)

Description

Product descriptions from the supplier

High Powerful AC Shaded Pole Motor Electric Fan Motor yj60 16

Product Description
Model Number :   AC Shaded Pole Motor YZ SERIES
Power  : 33W ~ 120W Blade Material : Plastic
Speed control: PWM / 0~10V Insulation Class: B/F
Operation Temperature :  -30℃ ~ +60 ℃
  • YZF series motors are Shaded Pole Air Pump Motors with single phase,4 shaded poles and running at rated voltage of 220~240V,50/60Hz or 110~120V,60Hz .They are widely used in the radiator,evaporator and other refrigeration equipment.
  • All material conform to RoHS.
  • The output power is from 2W to34W,which is relative to the stack length and coil parameters.
  • The insulation class of motors is B,and the protection class of that is IP42.On request IP44 is avaliable
  • The motor,which output power less than 10W are impedance protection and the motors,which output is bigger than 10W,are thermal protection.The thermal protetor’s is 125℃±5℃,135℃±5℃ or 150℃±5℃.
  • The average service life of motoer is over 20000 hours.

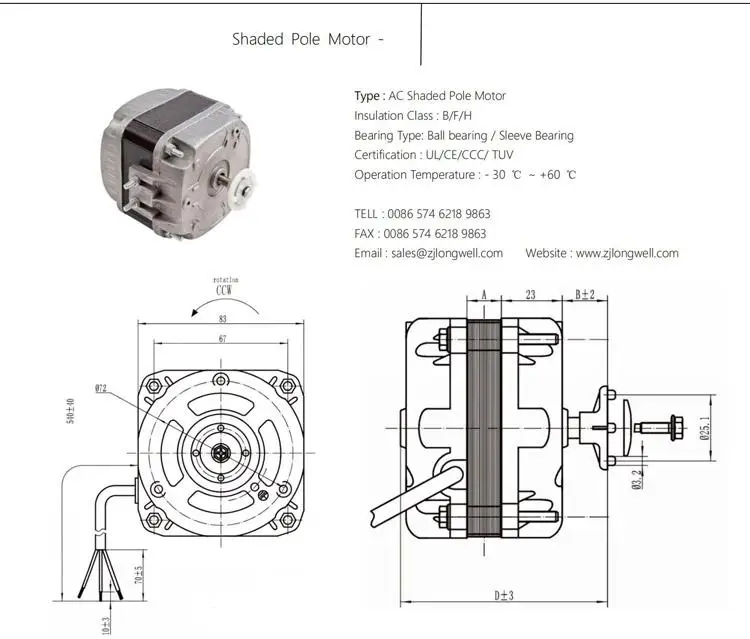

Shaded Motor and Blades_00

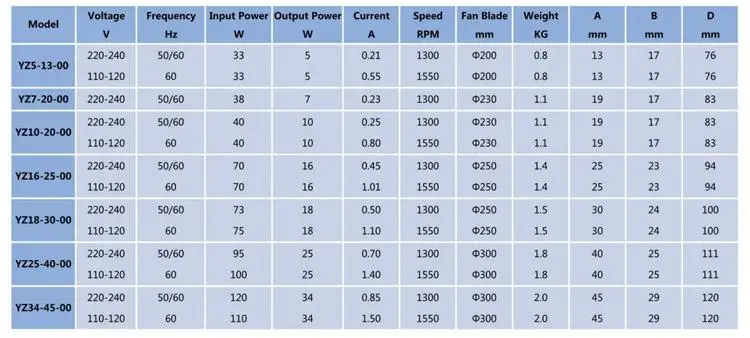

Shaded Motor and Blades_01

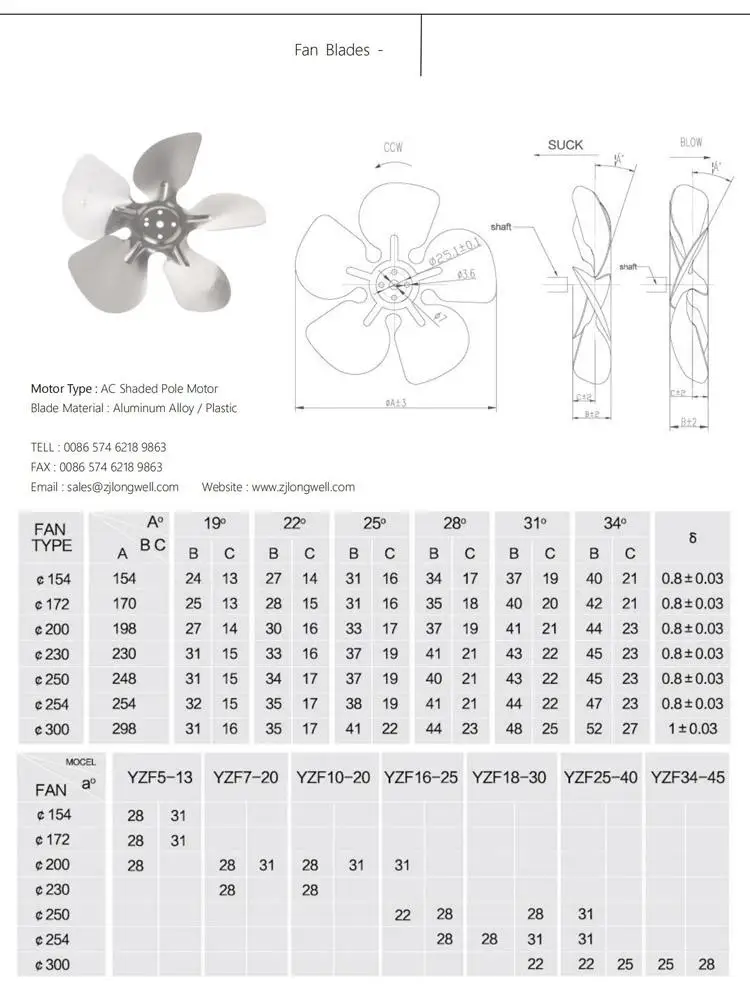

Shaded Motor and Blades_02

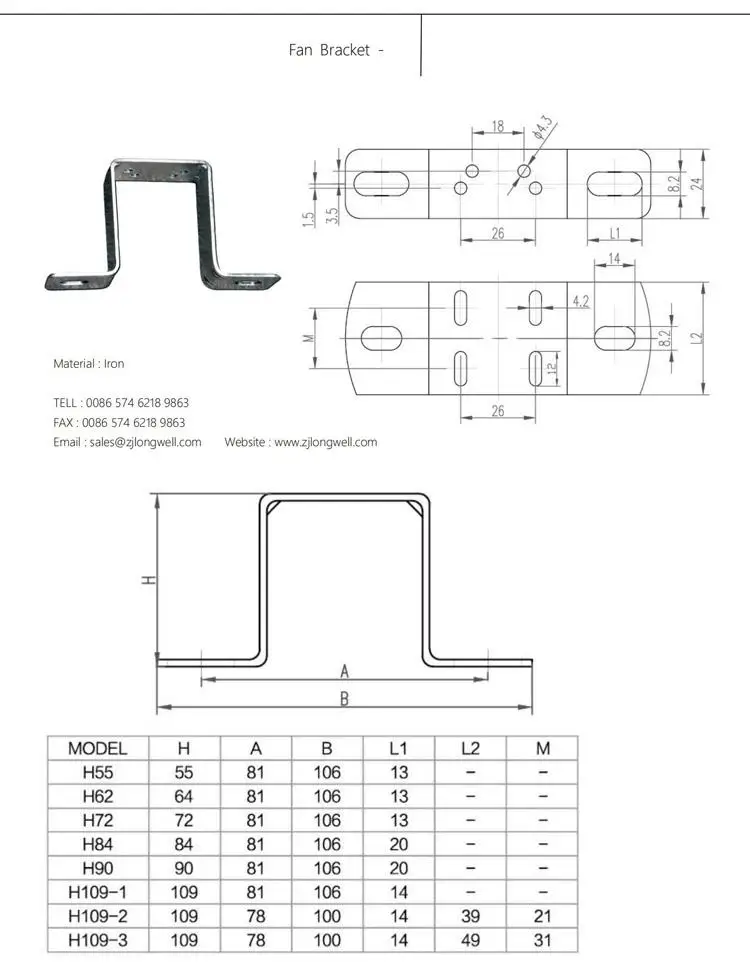

Shaded Motor and Blades_03

Custom Service

 backward (8)

Product Application

 cross flow fan (9)

Certifications

backward (14)

Company Information

backward (17)

backward (18)

backward (15)

backward (16)

Contact information

backward (20)

Buying Guides

backward (19)

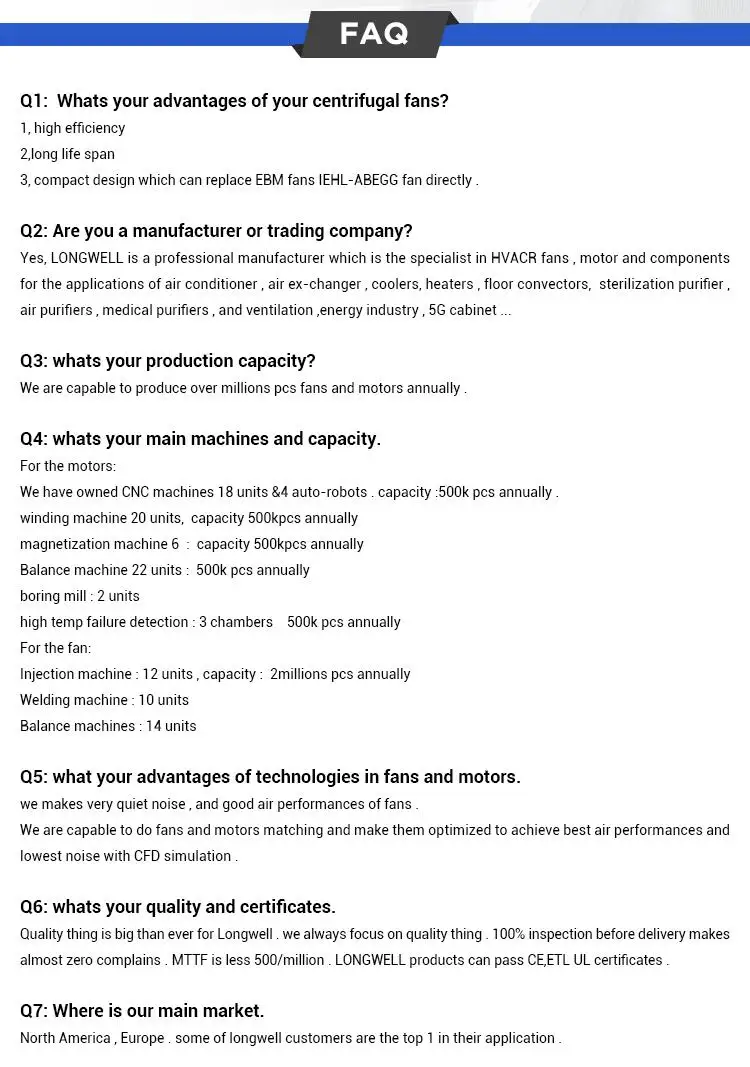

FAQ

backward (21)

Additional information

AC Voltage

220V/230V/240V/120V/110V
Place of Origin

Zhejiang, China
Brand Name

Longwell
Model Number

cooker hood motor
Type

Asynchronous Motor
Frequency

50HZ/60HZ
Phase

Single-phase
Protect Feature

Other
Efficiency

IE 2
Product Name

Shaded Pole Motor yj60 16
Used for

Home Appliance
Lead time

30 days after payment
Application

CROSS FLOW FAN ,OVEN ,HEATING
Speed

1500~2000 RPM
Warranty

2 YEARS
Rated Voltage

115V,230V
Rated Power

CUSTOMER DESIGN
Mounting

FREE STANDARD
Protection class

B,F
Packaging Details

25pcs per carton carton size: 48*39*16.5cm N.W/G.W:20/21kg Shaded Pole Motor yj60 16
Port

Ningbo
Selling units

Single item
Single package size

15X15X20 cm
Single gross weight

3.000 kg
Supply Ability

100000 Piece/Pieces per Month
