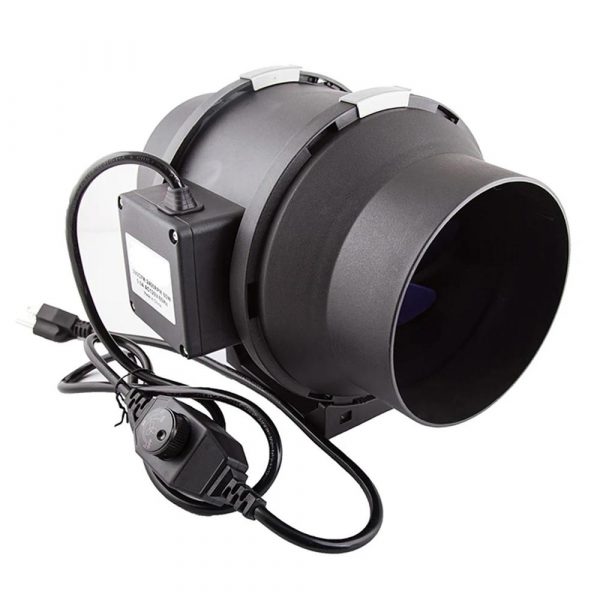

LONGWELL AC Inline Duct Fan, Exhaust Ventilation Fan, 240V, for HVAC Systems

Voltage AC 100V~240V

$ 25

Specifications
Speed
2800rpm, 1100rpm, 2600RPM
Impeller
Propylene with glass fiber reinforced
Get a Fast Quote from an Engineer Send your airflow, static pressure & voltage — we reply within one working day with a matching model.
✓ 1-day reply ✓ STEP / CAD on request ✓ Factory-direct

Your specifications go straight to a sales engineer — no spam, never shared.

Prefer a datasheet?
Download Product Catalog (PDF)
Need the exact model with a measured or digitised curve? This page describes the Mixed Inline Duct Fan range. The Fan Selector lists every LONGWELL mixed flow duct fan model with airflow, static pressure, power, noise, drawing and datasheet.
Search mixed flow duct fan models →
Have your duty point?

See every LONGWELL model whose P-Q curve covers it — margins, noise and power included. No login.

Library: Ø24–1,000 mm, single units up to about 61,000 m³/h — larger duties go straight to an engineer. Prefer to talk it through? Send your specs to an engineer

Description

Go Further with LONGWELL

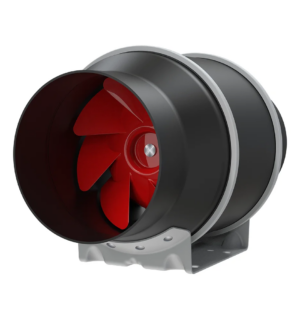

Inline Duct Fans |High quality Motor| 0-10V/PWM| High Air FLOW | Highly customizable

Air Duct : 4 inch – 8inch
Bearings: NMB or NSK ball bearings for Duct FANS
Voltages: LONGWELL Duct  fans are workable in 110V- 240 VAC
Speed Control System : 0-10V / PWM (DC/EC Motor) or 1-2-3 Speeds(AC Motor)

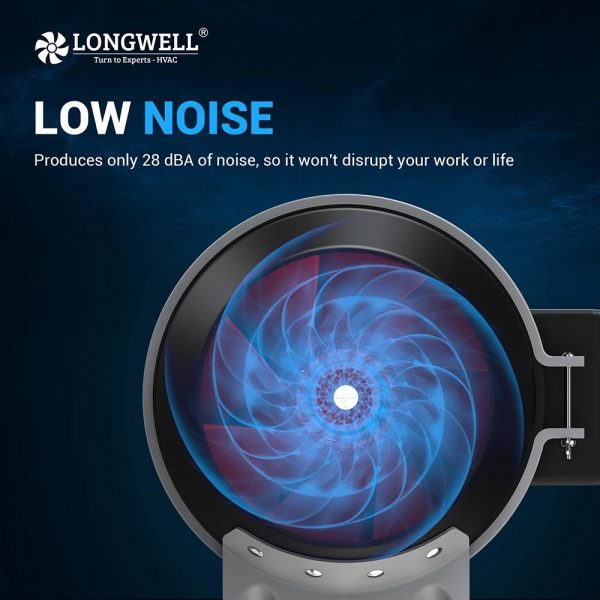

Low noise level&energy-saving

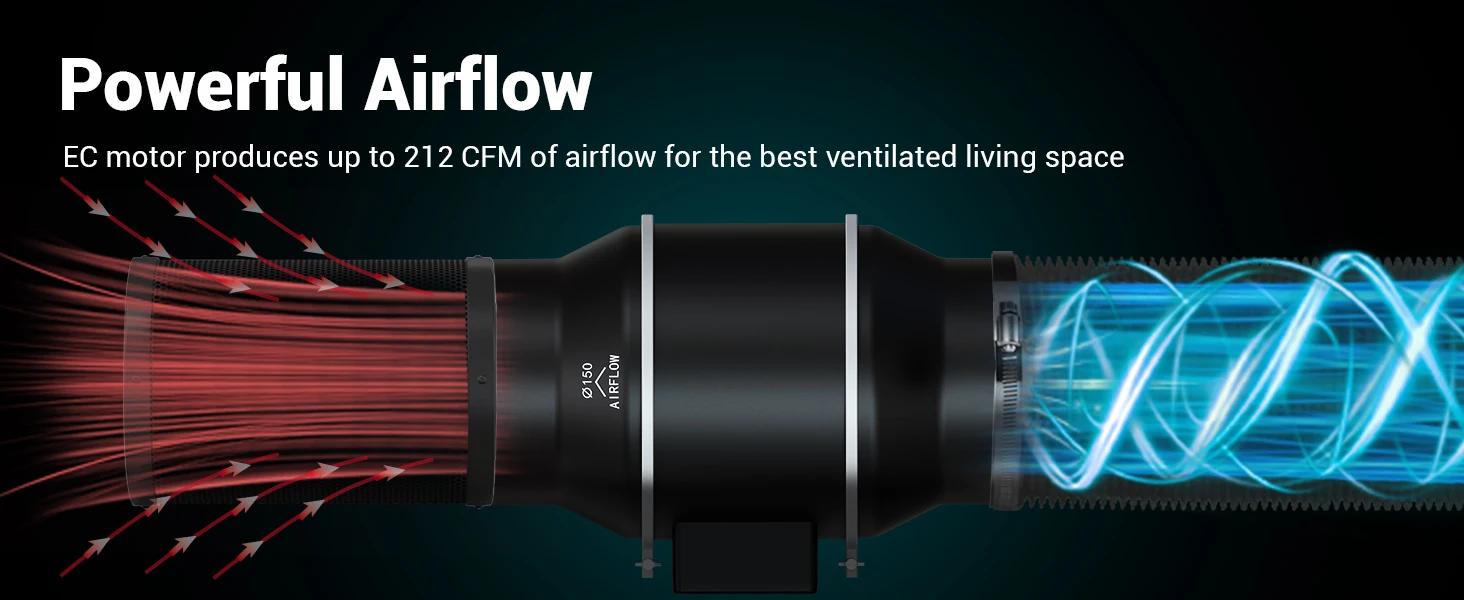

Hybrid flow design that focuses fan airflow and cuts turbulentkinetic energy down to 30 dB; Ec motor controlled by PWMfor more energy efficiency

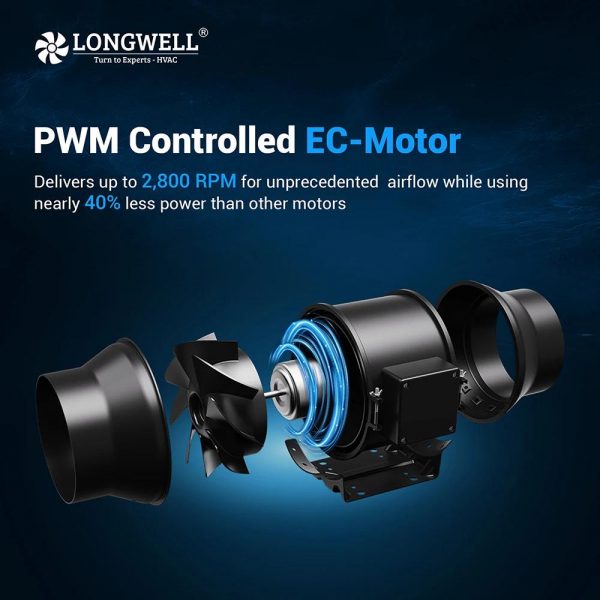

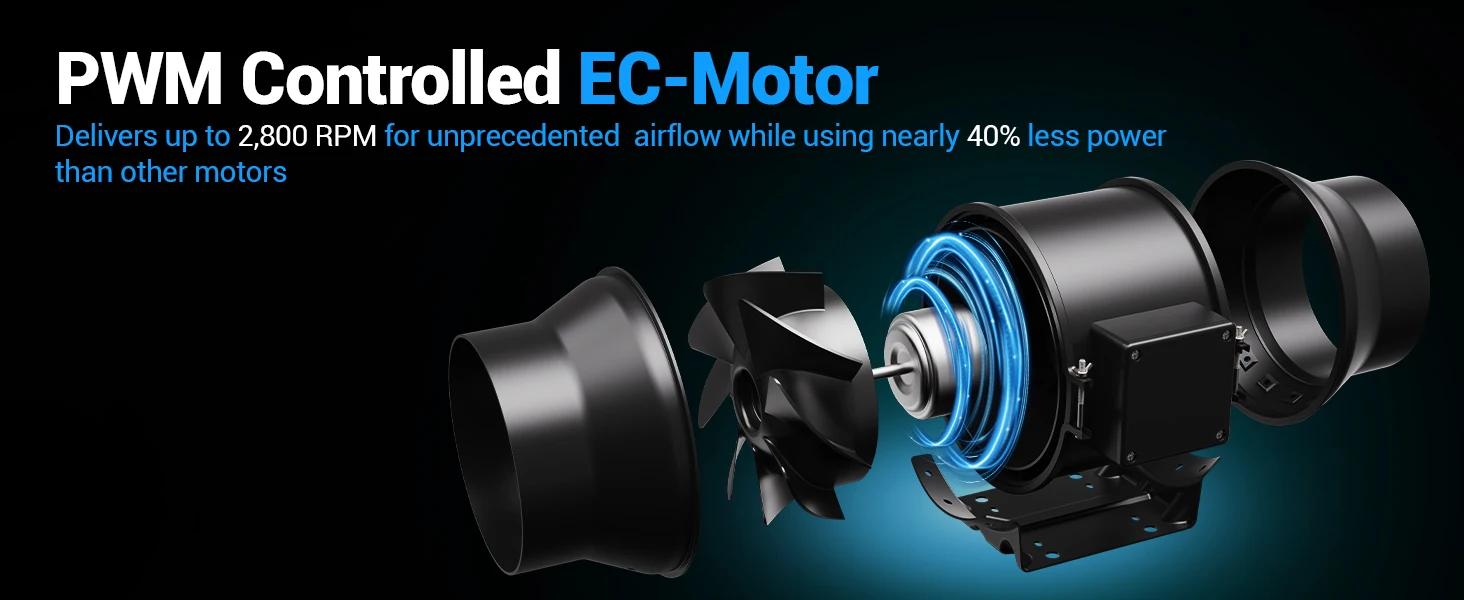

PWM Controlled EC- Motor

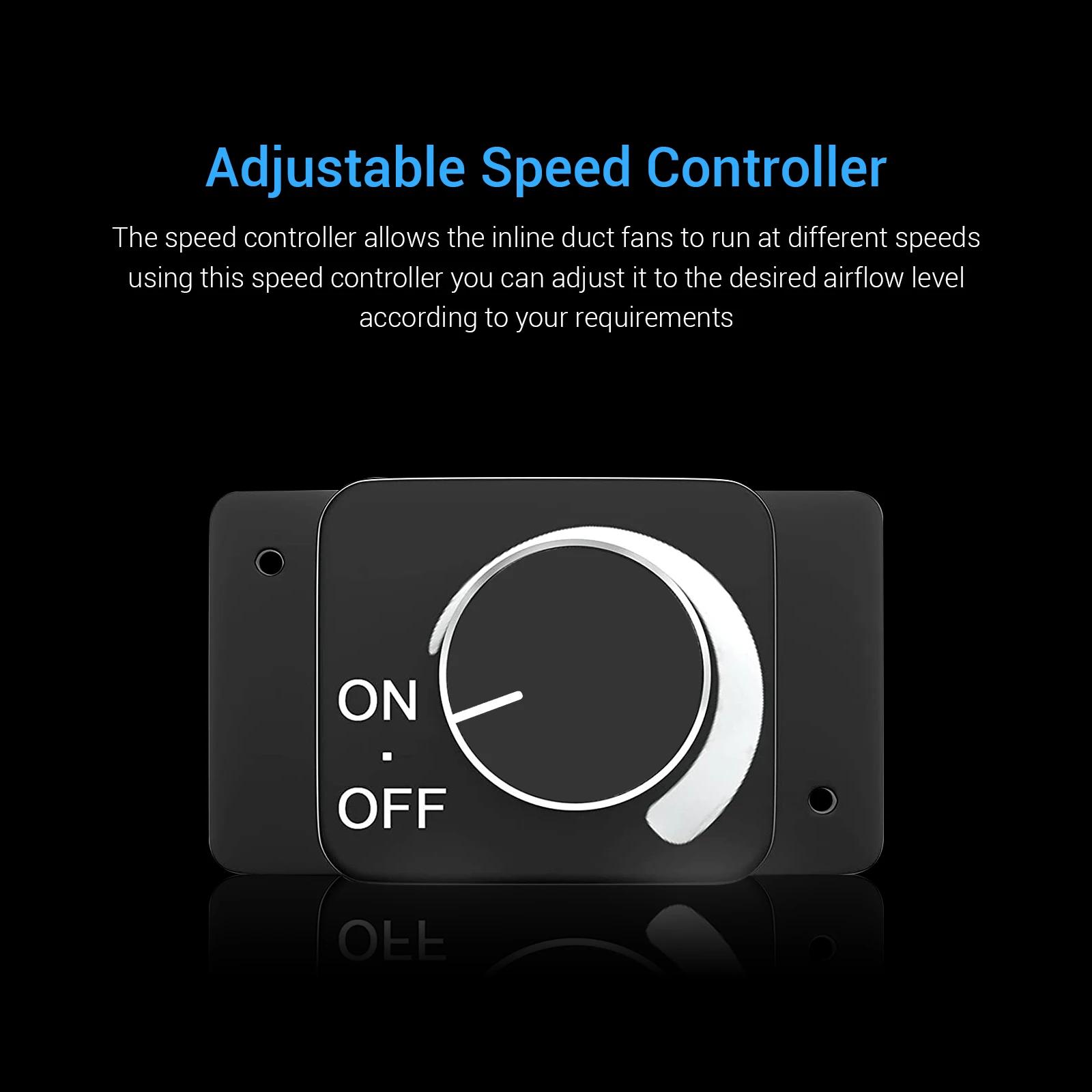

The speed controller allows the inline duct fans to run at different speedsusing this speed controller you can adjust it to the desired airflow level according to your requirements

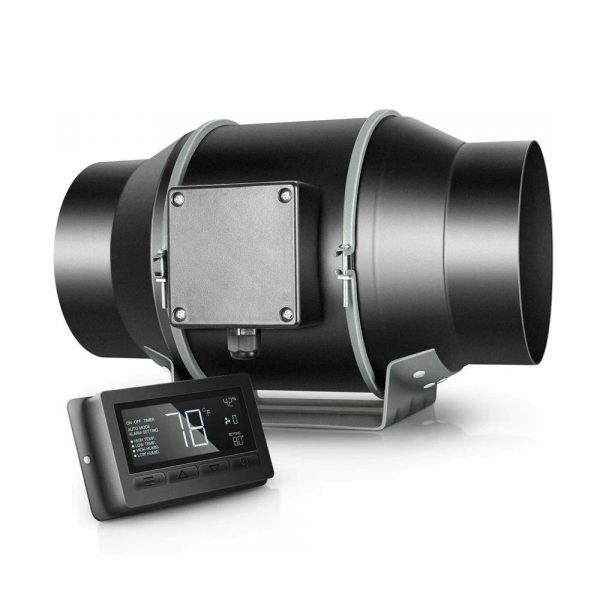

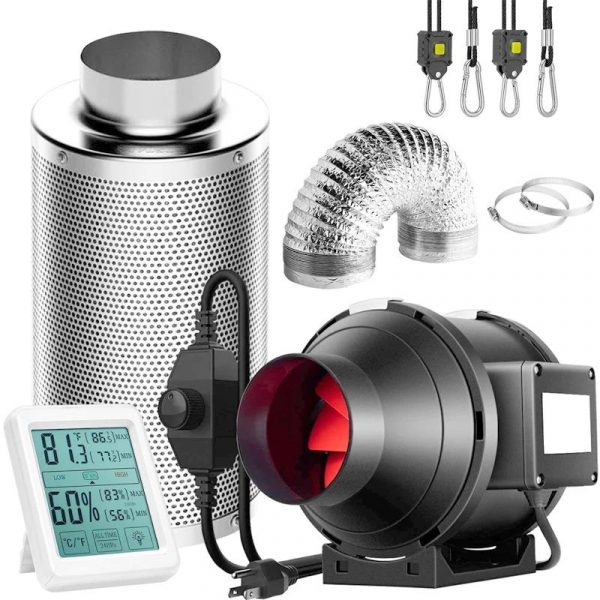

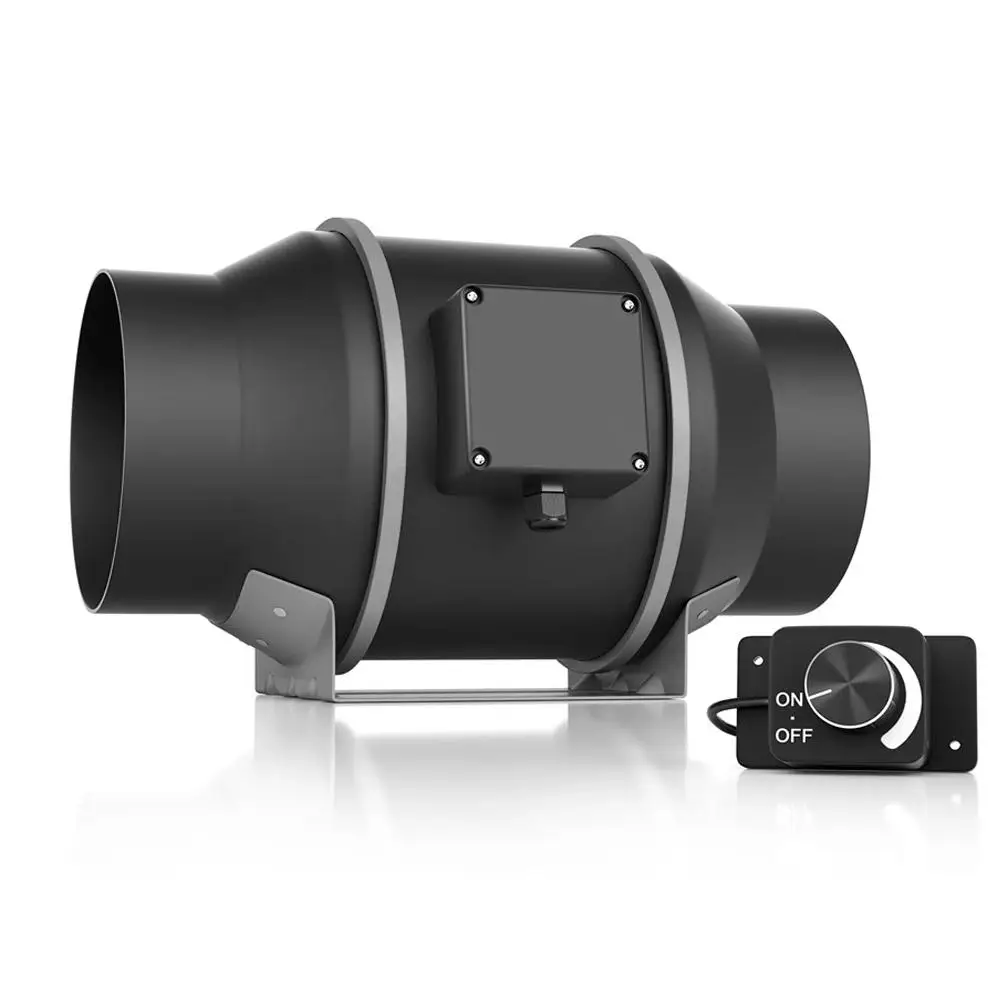

4 Inch Inline duct fan with Digital controller
Voltage:AC110V – 240V , 35W,  385  m³/h, 28dBA, Air Duct Diameter:98mm

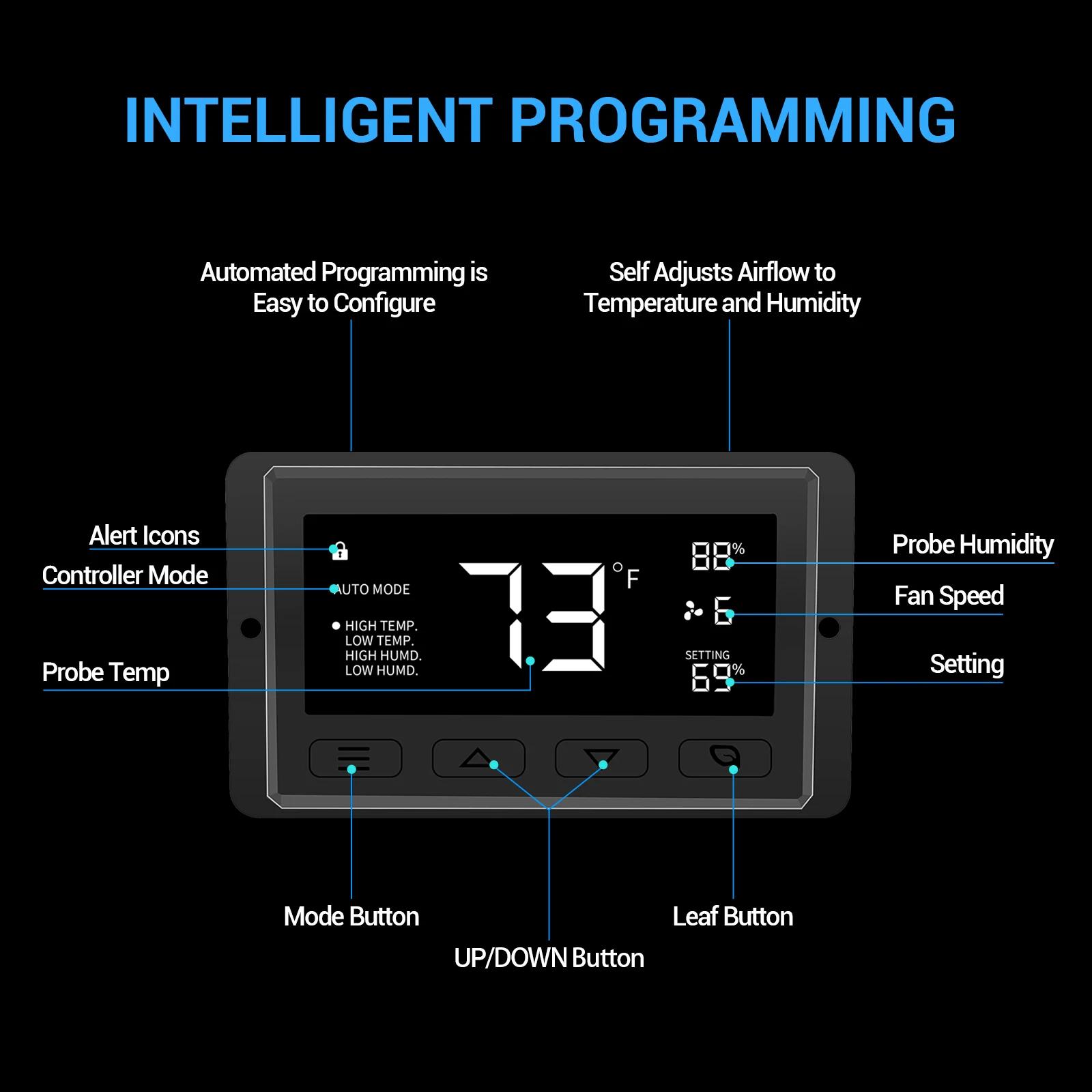

Out-side speed control box with temperature & humidity function Speed control/Timer/Alarm Function

6 Inch Inline duct fan with Digital controller
Voltage:AC110V – 240V , 70W, 705m³/h, 34dBA, Air Duct Diameter:147mm

Out-side Speed control box with temperature & humidity function Speed control/Timer/Alarm Function

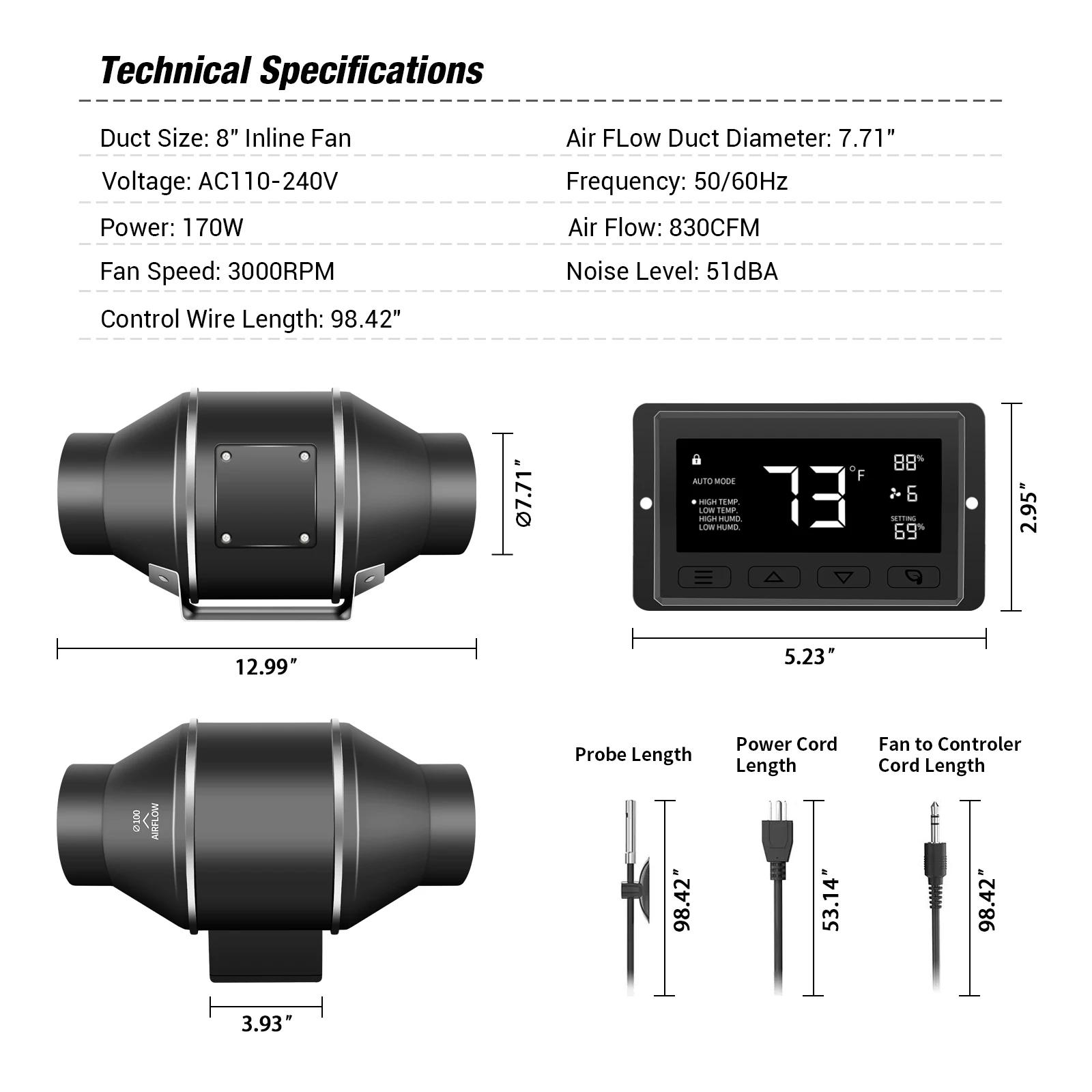

8 Inch Inline duct fan with Digital controller
Voltage:AC110V – 240V , 180W, 1453m³/h, 51dBA, Air Duct Diameter:196mm Out-side

Speed control box with temperature & humidity function Speed control/Timer/Alarm Function

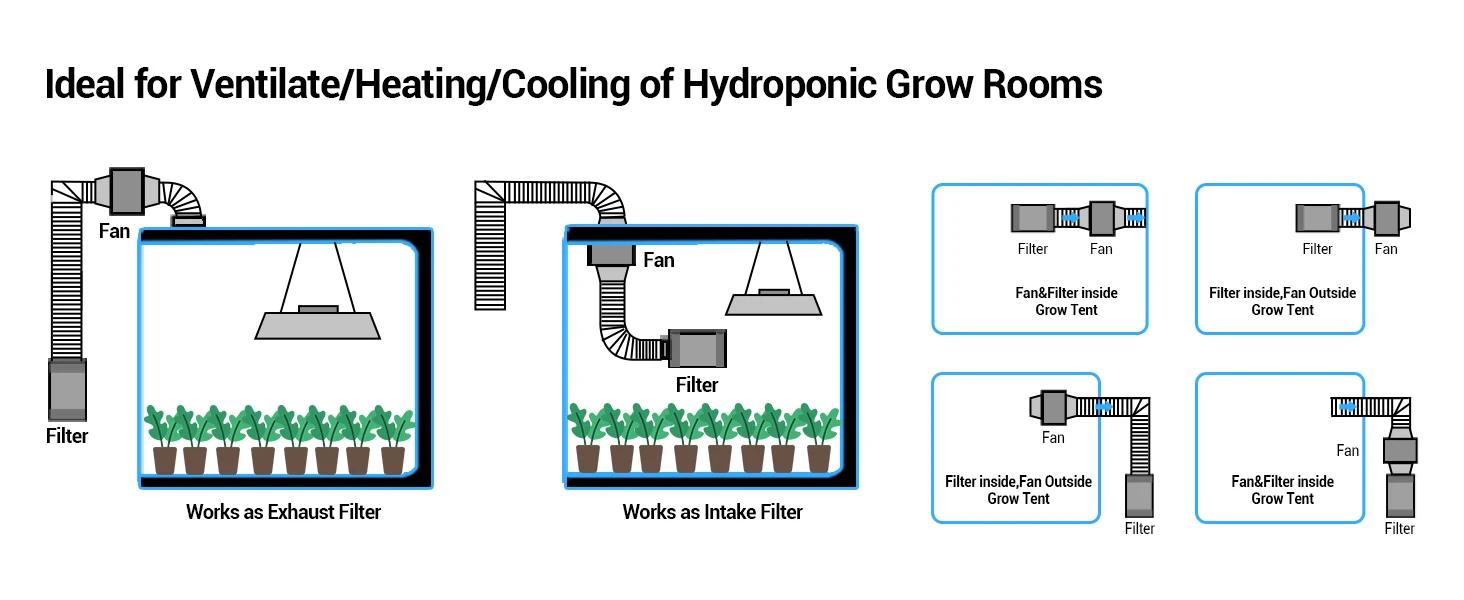

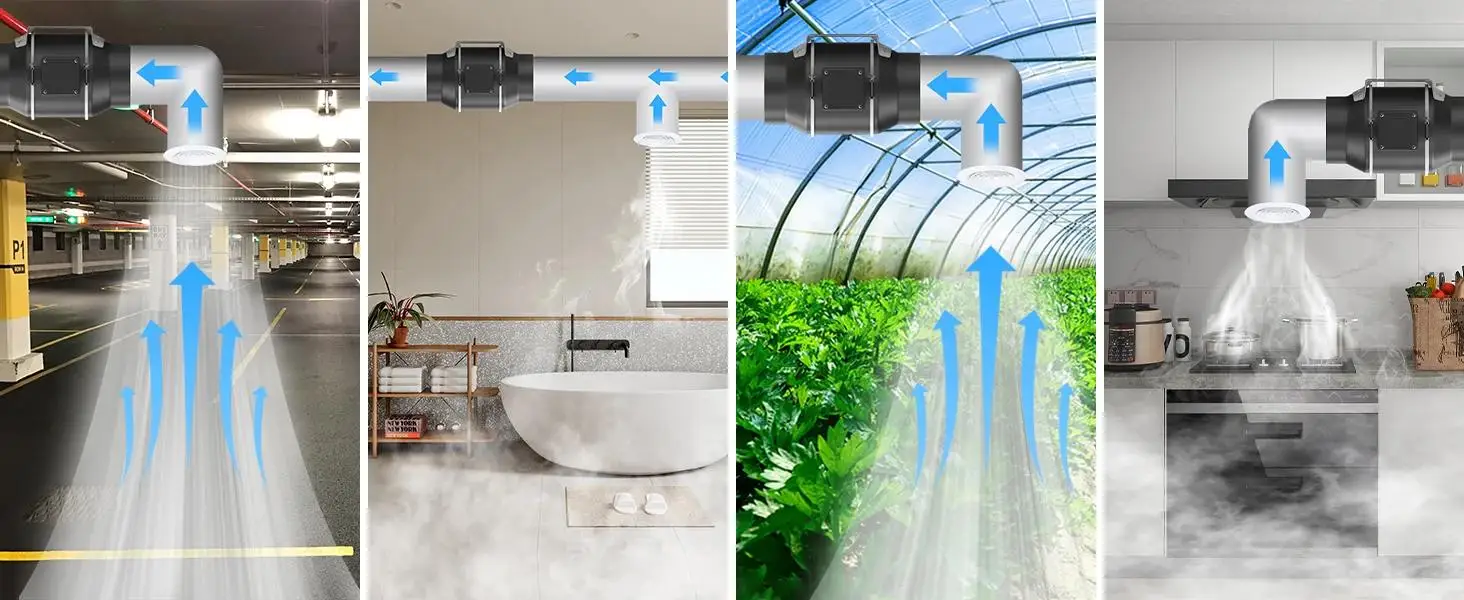

Grow Tent / Building ventilation system/Primary air system/ Bathroom ventilation/Kitchen ventilation/Air conditioning vent

NOTES:

The price attached to the above products is only the reference price or the price reference under the standard parameter configuration, please contact our sales engineer for the specific price, to provide you with the most accurate quotation and discount

The Professional’s Choice for LONGWELL Inline Duct Fans

High quality Motor| 0-10V/PWM| High Air FLOW | Highly customizable

Ningbo Longwell Electric Technology CO.,LTD

High Quality Air & Smart Fans

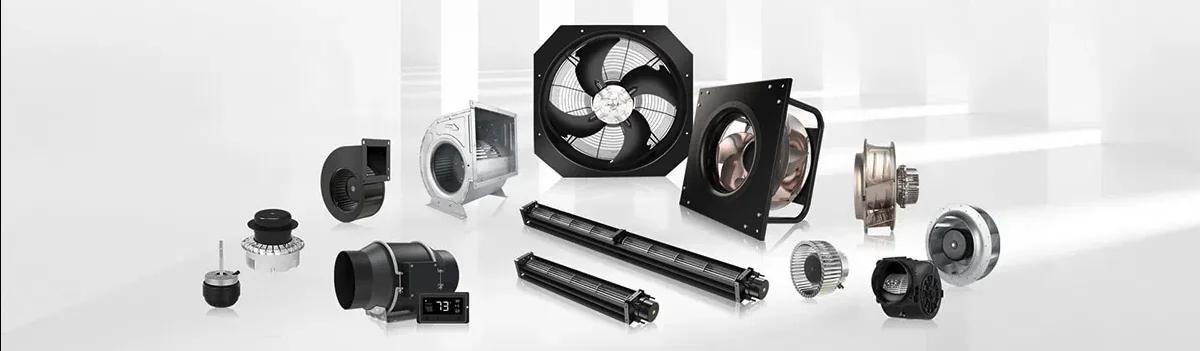

Centrifugal fans & Blowers, Cross flow fans,Axial fans ,duct fans ,motos,etc

WHY LONGWELL  ?

Centrifugal fans & blowers | Cross flow fans | Axial fans | Exhaust fans & Blowers | Motors | Air-conditioning impeller & blades| Accessories and Moulds
LONGWELL focuses on providing global customers with high-efficiency, controllable fan solutions and HVACR integrated technical solutions based on ventilation technology. Driven by technological innovation, Longwell continuously researches and develops advanced fan technology to offer customers high-performance and high-efficiency solutions. Our products cover civilian ventilation, wind power generation, industrial manufacturing, new energy, and agricultural production, earning the trust and praise of customers worldwide.

● Highly qualified : ISO9001, ISO14001, ISO45001, BSCI, CE, UL/ETL, FCC, CCC, Rohs, EMC, LVD, etc.
● OEM for well-known brands
● Supplies Fortune 500 Companies
● Global technical support (European office, North American office, Dubai office, etc.)

Trusted by top Brands

Longwell’s efforts make us advocates of sustainable development and leaders in the high-efficiency fan and motor industry.

Worldwide Marketing of LONGWELL

Exhibitions & Offices | AHR_USA ,MCE_Italy, CRH_China, ISH_China/German,HARFKO_Korea,etc

Over 15Years Ventilation fans & Motors Production Experience

Longwell’s expertise in fan manufacturing can be traced back to 1998. It is a leading fan manufacturer dedicated to providing global customers with efficient and controllable fan solutions. The company is committed to addressing global energy crisis and creating a healthier, more comfortable, and environmentally friendly living environment for people.


Longwell has a strong team of research and development professionals dedicated to studying innovative fan technologies. We adopt advanced EC (Electronically Commutated) motor drive technology to achieve high efficiency and precise airflow control. Through EC motor-driven fans, our customers can enjoy higher quality and more reliable airflow, achieving significant breakthroughs in energy utilization. We continuously promote the development of fan technology to meet the demand for high-tech and high-efficiency solutions.

Additional information

Blade Material

Plastic

Voltage

AC 100V~240V

speed

2800rpm, 1100rpm, 2600RPM

customized support

OEM, ODM, OBM

mounting

Duct Fan

place of origin

Zhejiang, China

brand name

LONGWELL

model number

LWID 4'' ~ 12''

warranty

1 Year

After-sales Service Provided

Free spare parts

Type

grow tent fan

Power input

AC 110/230V

Pasing material

plastic

Impeller material

Propylene with glass fiber reinforced

Direction

Clockwise

Bearing

Ball Bearing

Approvals

CE,CCC

Amb,Temp

-30 to +60℃

Insulation

B/F

Application

Grow tent,greenhouse,exhaustor

Selling units

Single item

Single package size

25X20X21 cm

Single gross weight

4.000 kg
