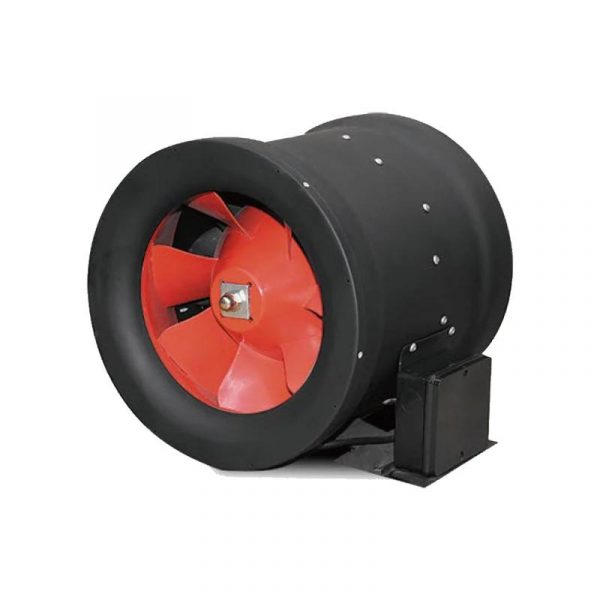

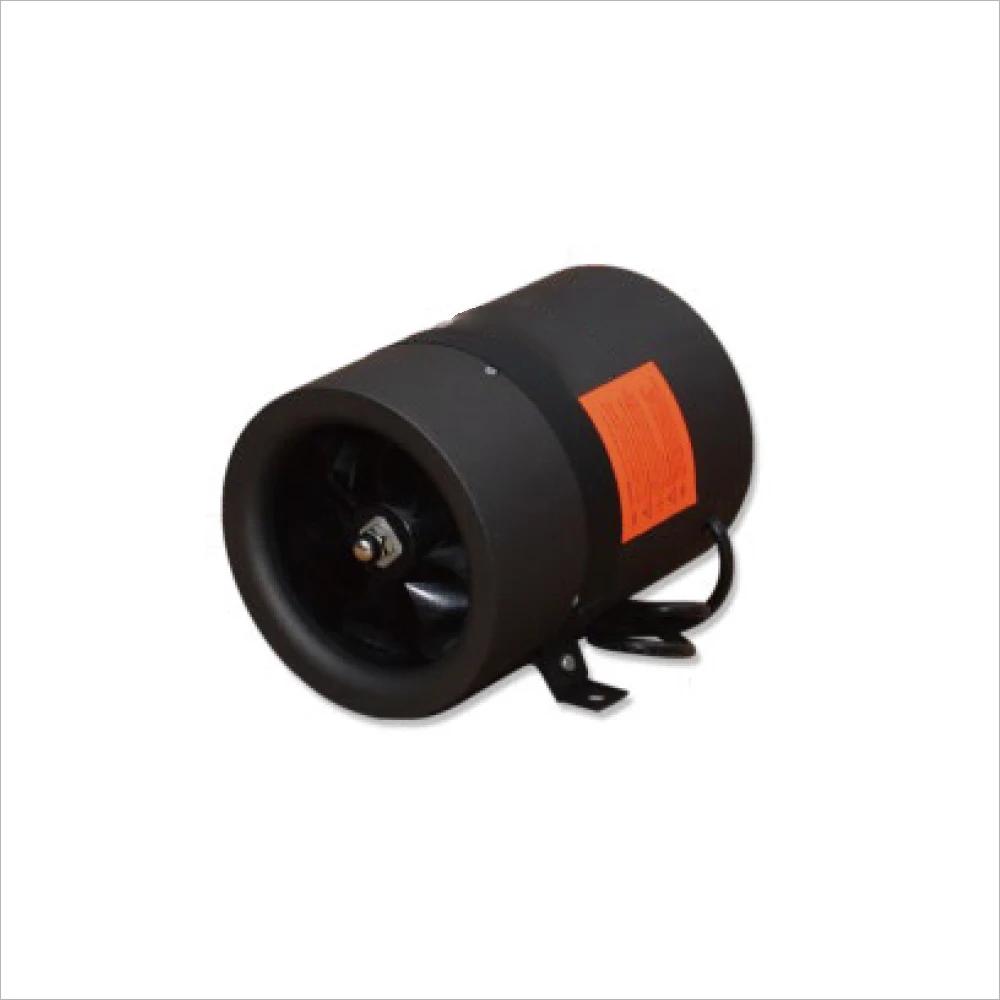

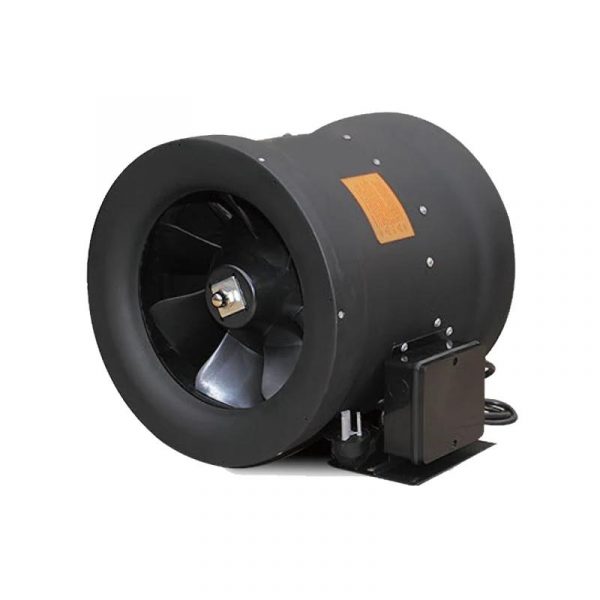

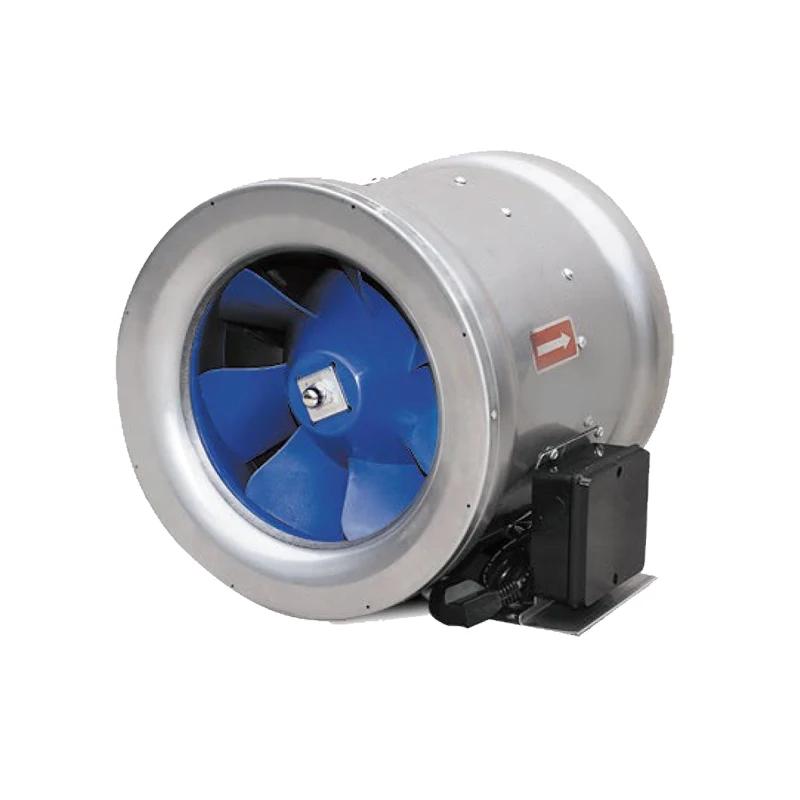

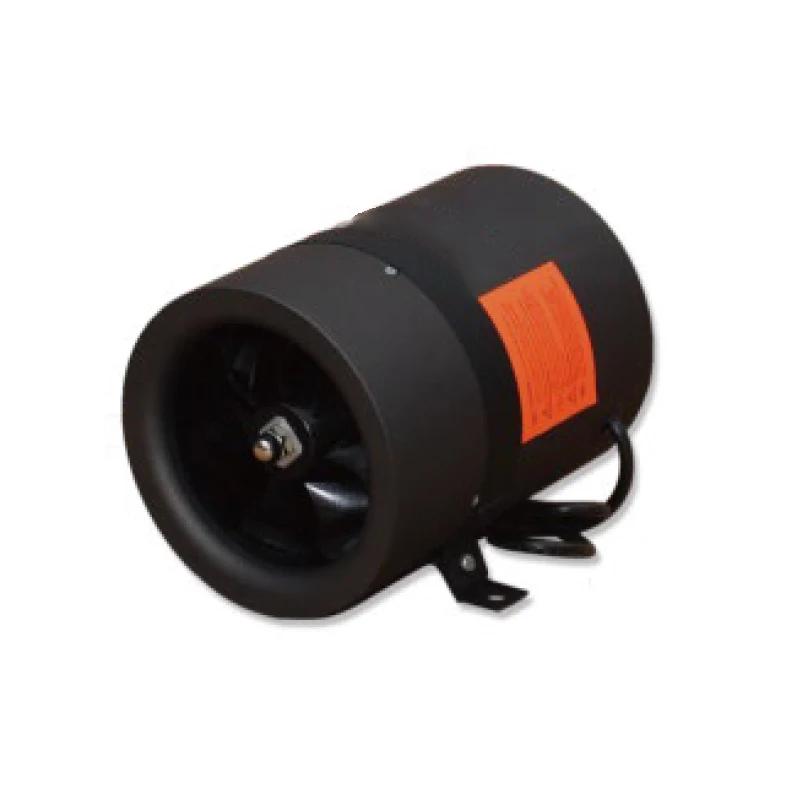

LONGWELL AC Centrifugal Blower Fan, Industrial Centrifugal Fan, 110/120V, 41 W

Voltage 110-120V/220-240V
ISO / CE / UL / ETL Factory & Test Lab OEM / ODM ebm-papst alternative

$ 35

Category: Tags: , ,
CategoryAC Mixed Inline Duct Fan
TagsDuct FanExhaust VentilationMixed Flow Fan
Get a Fast Quote from an Engineer Send your airflow, static pressure & voltage — we reply within one working day with a matching model.
✓ 1-day reply ✓ STEP / CAD on request ✓ Factory-direct

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

Your specifications go straight to a sales engineer — no spam, never shared.

Prefer a datasheet?
Download Product Catalog (PDF)
Need the exact model with a measured or digitised curve? This page describes the AC Mixed Inline Duct Fan range. The Fan Selector lists every LONGWELL mixed flow duct fan model with airflow, static pressure, power, noise, drawing and datasheet.
Search mixed flow duct fan models →
Have your duty point?

See every LONGWELL model whose P-Q curve covers it — margins, noise and power included. No login.

Library: Ø25–1,000 mm, single units up to about 52,000 m³/h — larger duties go straight to an engineer. Prefer to talk it through? Send your specs to an engineer

Description

Products Description

Model

Voltage
（V）

Frequency
（Hz）

Maximum Flow Value
（CFM）

Working Power
（W）

Speed
（RPM）

Noise
[dB(A)]

150(6”)-01
110-120
60
437
55
3400
58

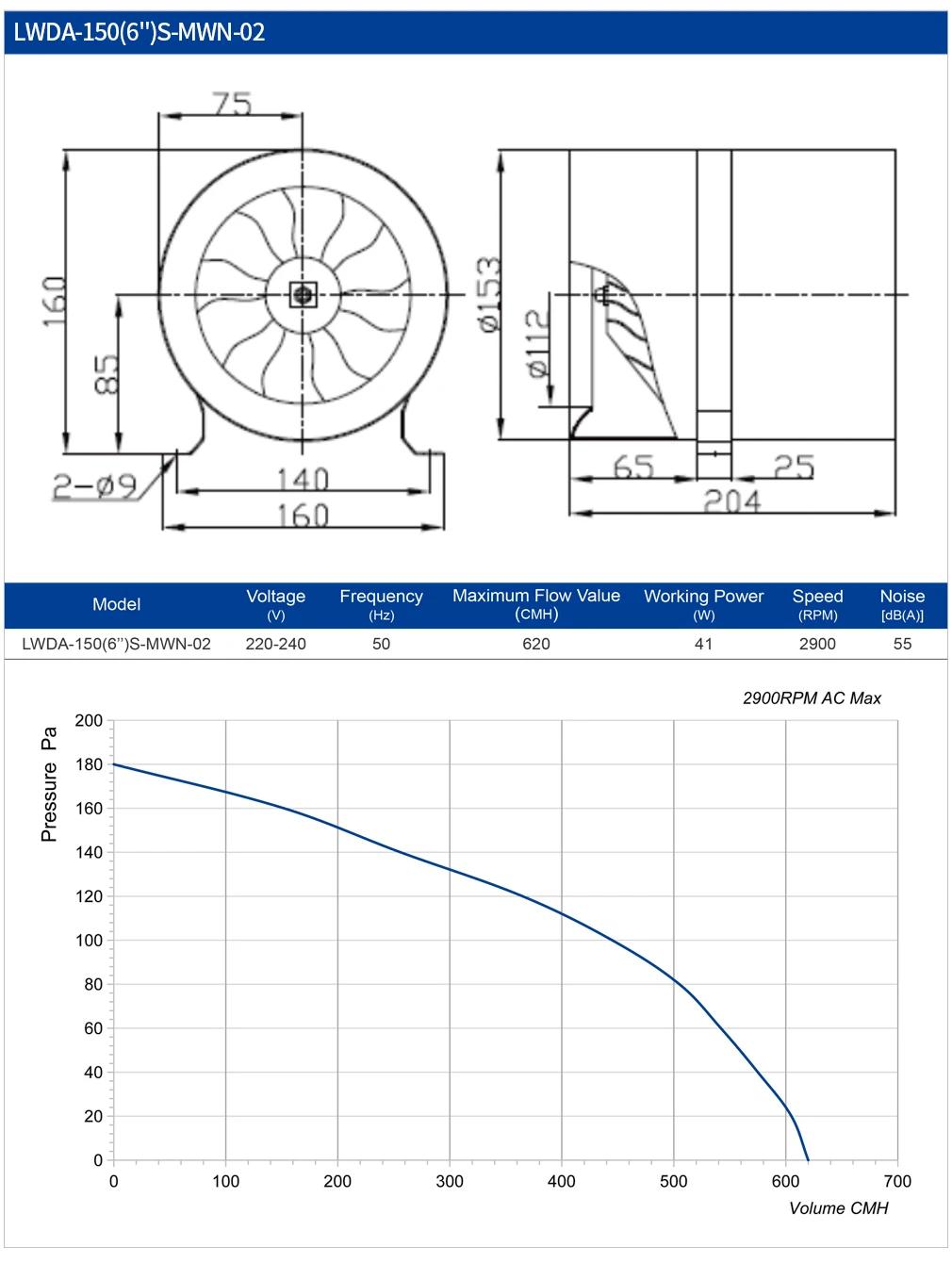

150(6”)-02
220-240
50
620
41
2900
55

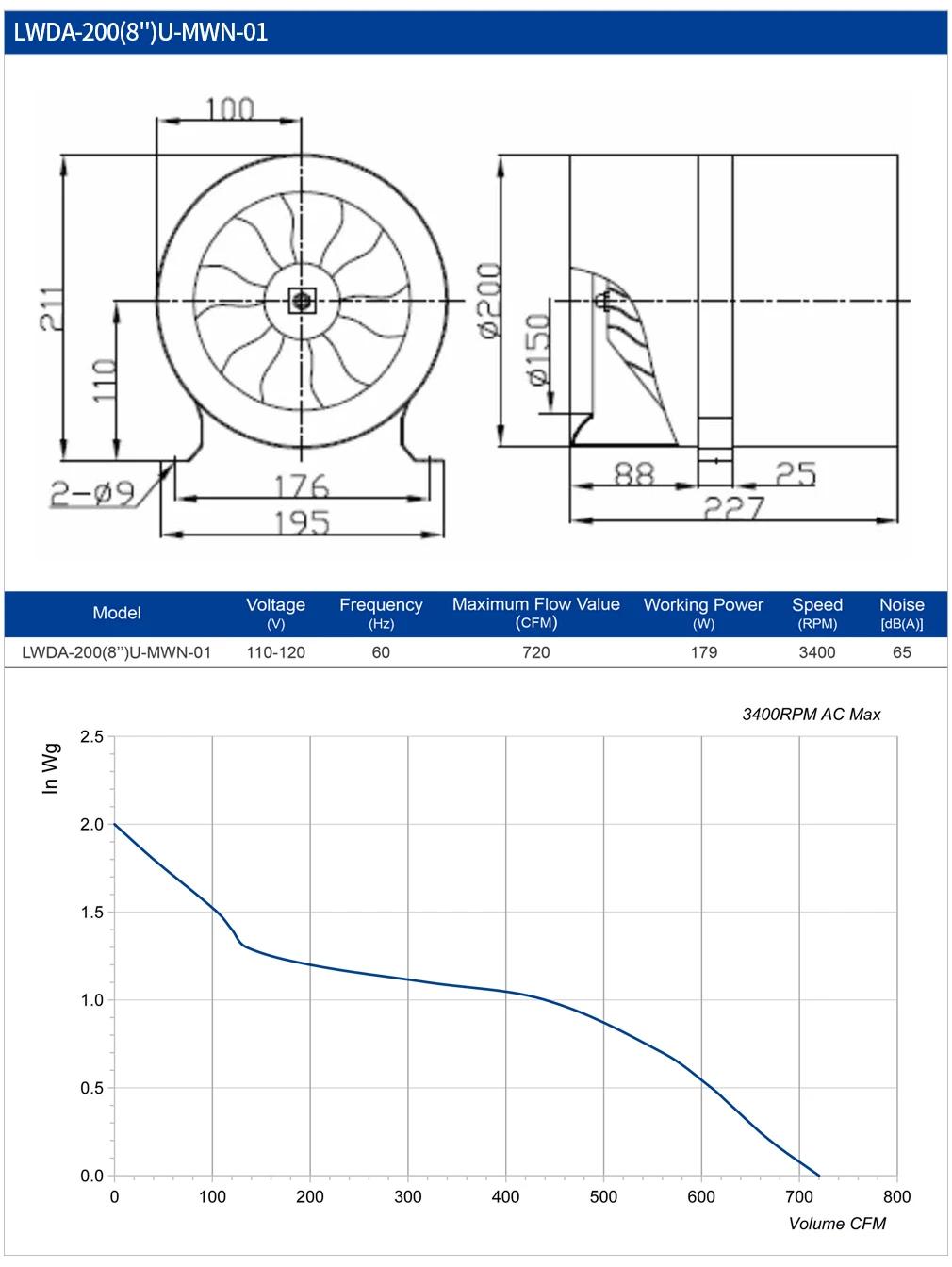

200(8”)-01
110-120
60
720
179
3400
65

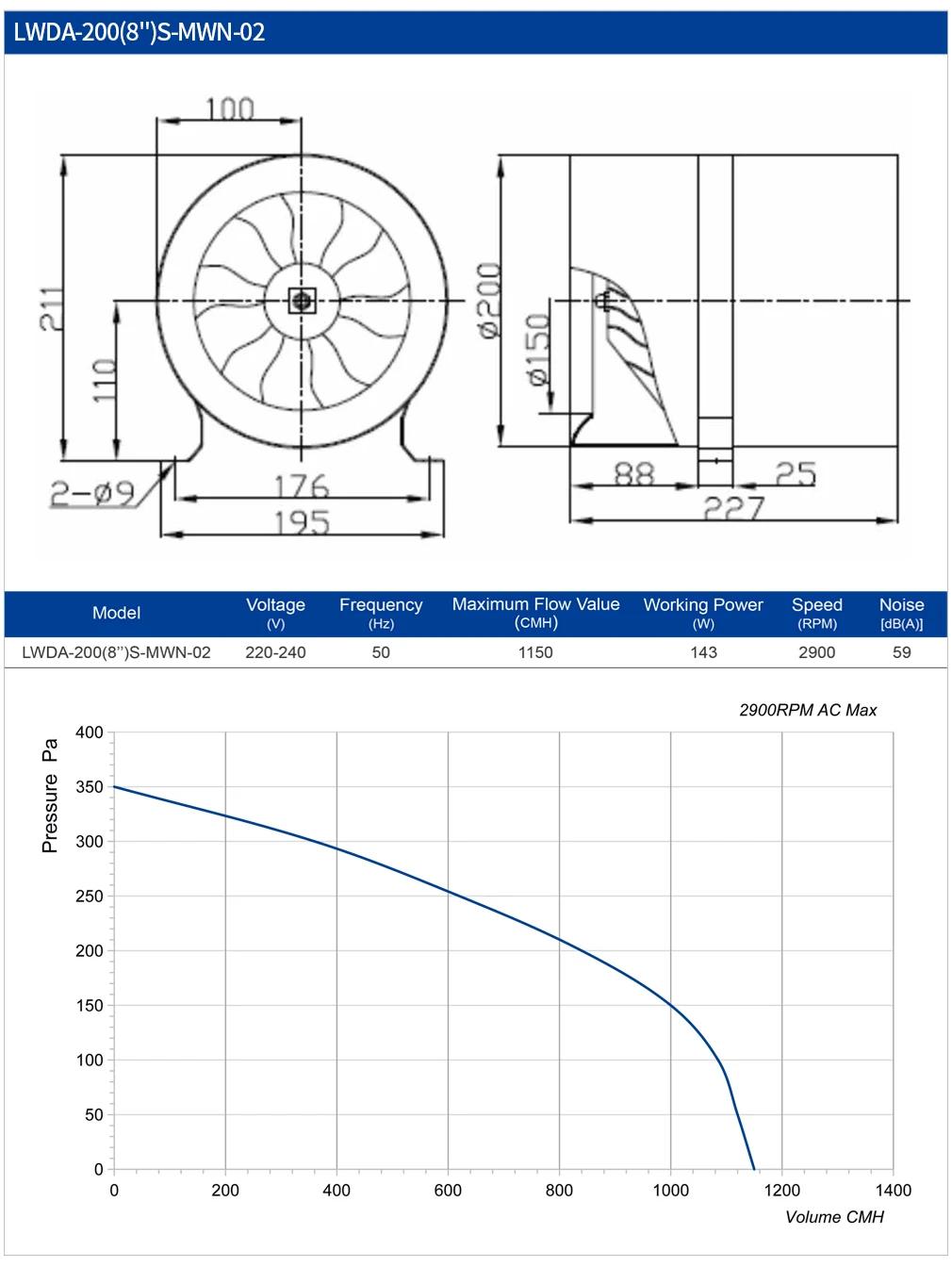

200(8”)-02
220-240
50
1150
143
2900
59

Product Applications

Recommend Products

Company Profile

Certifications

Why Choose Us

FAQ

Product packaging

Additional information

Voltage

110-120V/220-240V
speed

4000rpm, 500RPM, 800RPM, 1500RPM, 600RPM, 900rpm, 2000RPM
Blade Material

Metal
customized support

OEM, ODM
mounting

Duct Fan
place of origin

Zhejiang, China
brand name

Longwell
model number

LWDA-150(6"), LWDA-200(8")
warranty

1 Year
After-sales Service Provided

Online support
Product name

Mixed Flow Duct Fan
Application

Exhaust Ventilation
Usage

High Pressure Blowing
Feature

Low Noise Power Saving
Material

Plastic
Size

4"/5"/6"/8"/10"/12"/14"/16"
Motor

Copper Motor
Type

Centrifugal Impeller Blower
Power

41W 55W 143W 179W
Keyword

Duct Fan
Selling units

Single item
Single package size

5X5X5 cm
Single gross weight

10.000 kg

Reviews

There are no reviews yet.

Be the first to review “LONGWELL AC Centrifugal Blower Fan, Industrial Centrifugal Fan, 110/120V, 41 W”

Your email address will not be published. Required fields are marked *

More in this series

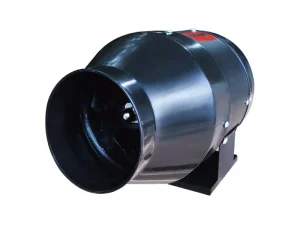

LONGWELL AC Centrifugal Blower Fan, Industrial Centrifugal Fan, 110/120VLONGWELL AC Centrifugal Blower Fan, Industrial Centrifugal Fan, 110/120V110-120V/220-240V4000 RPMDuct FanView & InquireLONGWELL AC Centrifugal Blower Fan, Industrial Centrifugal Fan, 110/120V Low Noise, 41 WLONGWELL AC Centrifugal Blower Fan, Industrial Centrifugal Fan, 110/120V Low Noise, 41 W110-120V/220-240V4000rpmDuct FanView & InquireLONGWELL AC Inline Duct Fan, Exhaust Ventilation Fan, 240V, for HVAC SystemsLONGWELL AC Inline Duct Fan, Exhaust Ventilation Fan, 240V, for HVAC SystemsAC 100V~240V2800 RPMDuct FanView & Inquire
