LONGWELL EC Inline Duct Fan, Exhaust Ventilation Fan, 110/240V, for Control Cabinet Cooling, Air Purifiers, HVAC Systems – LWDE3G100-IS-01

Voltage 110-240V, 220V
ISO / CE / UL / ETL Factory & Test Lab OEM / ODM ebm-papst alternative

$ 44

Specifications
Noise
28dB
Motor
EC/AC external rotor motor
Speed
4000rpm, 500RPM, 800RPM, 1500RPM, 600RPM, 900rpm, 2000RPM
Impeller
Propylene with glass fiber reinforced
Category: Tags: , ,
CategoryEC Mixed Inline Duct Fan
TagsEC MotorHydroponicsInline Duct Fan
Get a Fast Quote from an Engineer Send your airflow, static pressure & voltage — we reply within one working day with a matching model.
✓ 1-day reply ✓ STEP / CAD on request ✓ Factory-direct

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

Your specifications go straight to a sales engineer — no spam, never shared.

Prefer a datasheet?
Download Product Catalog (PDF)
Need the exact model with a measured or digitised curve? This page describes the EC Mixed Inline Duct Fan range. The Fan Selector lists every LONGWELL mixed flow duct fan model with airflow, static pressure, power, noise, drawing and datasheet.
Search mixed flow duct fan models →
Have your duty point?

See every LONGWELL model whose P-Q curve covers it — margins, noise and power included. No login.

Library: Ø25–1,000 mm, single units up to about 52,000 m³/h — larger duties go straight to an engineer. Prefer to talk it through? Send your specs to an engineer

Description

Products Description

EC Motor – Inline Duct Fans maily used for Vertical Farming / Cabinet / Home Ventilation / Charging Station / Negative Air pressure ward /Hydropnic Grow Tent / AIr purification /Building Ventilation

Mixed-Flow Inline Duct Fans -AC/DC/EC
Diameter ( air inlet out ΦD ) :
100mm(4 INCH) ,125mm(6INCH),150mm(6 INCH),200mm(8 INCH)
Operating Voltage :
AC 115V / 230V , DC 24V / 48V ,EC 120V / 220V ~ 50-60Hz
Motor Type :
AC Capacitor Motor / BLDC Motor / BLEC Motor
Motor Power :
25W – 182W / OEM
Air Volume :
Up to 1250 m³/h ( 735 CFM )
Static Pressure :
Up to 435 Pa
Noise Level :
24 – 41 dBA

Air Freshing
Quiet and energy efficient, Extra durable

Powerful Motor, with thermal protector inside Small volume, runniring smoothly

small vibration, higher pressure and airflow.

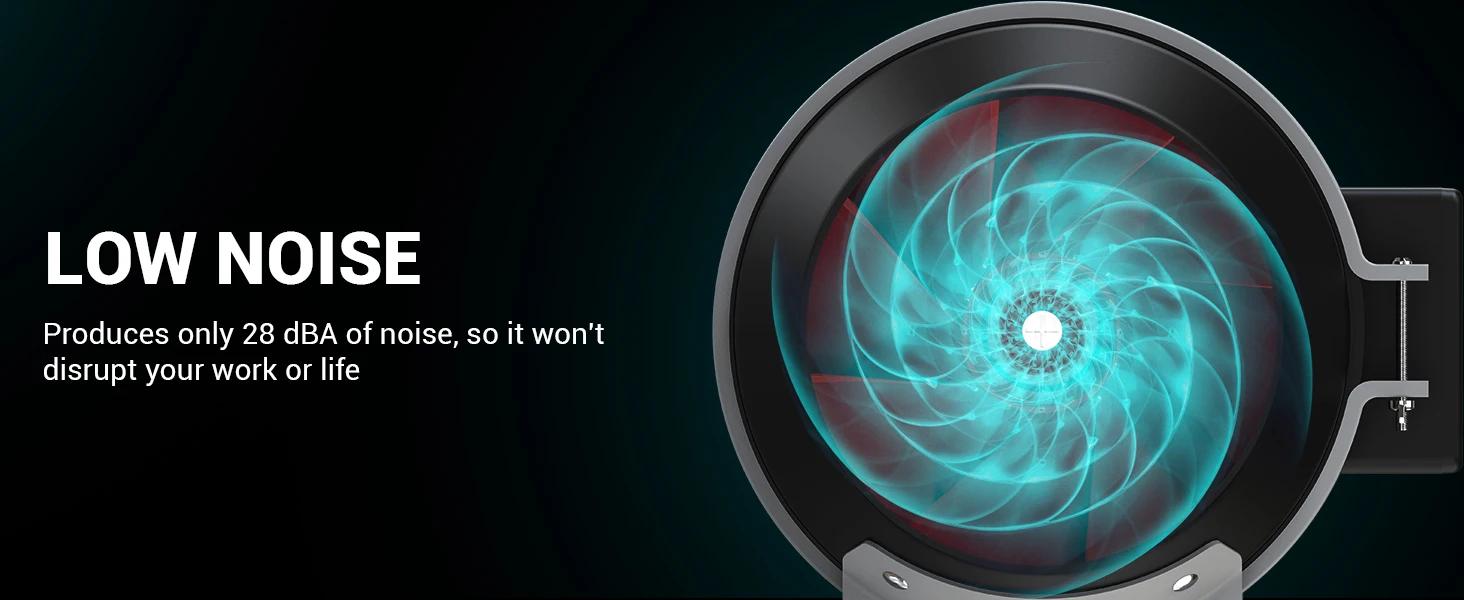

Low noise level&energy-saving
Hybrid flow design that focuses fan airflow and cuts turbulentkinetic energy down to 30 dB; Ec motor controlled by PWMfor more energy efficiency

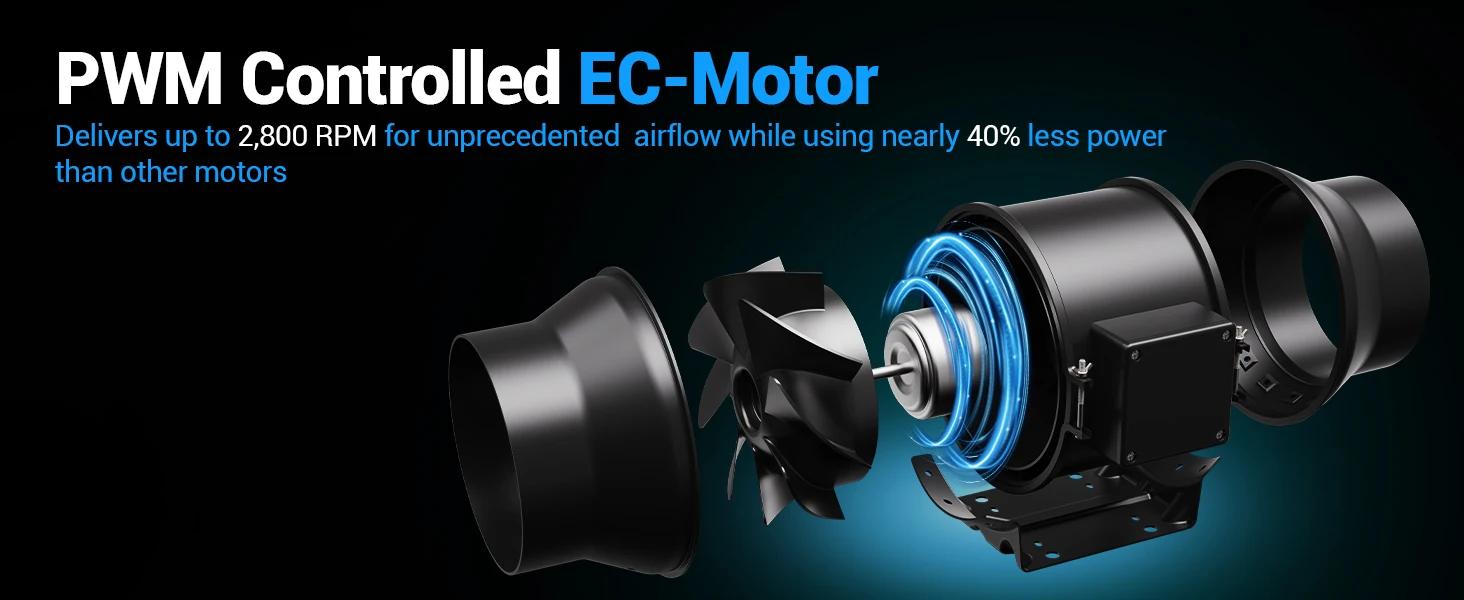

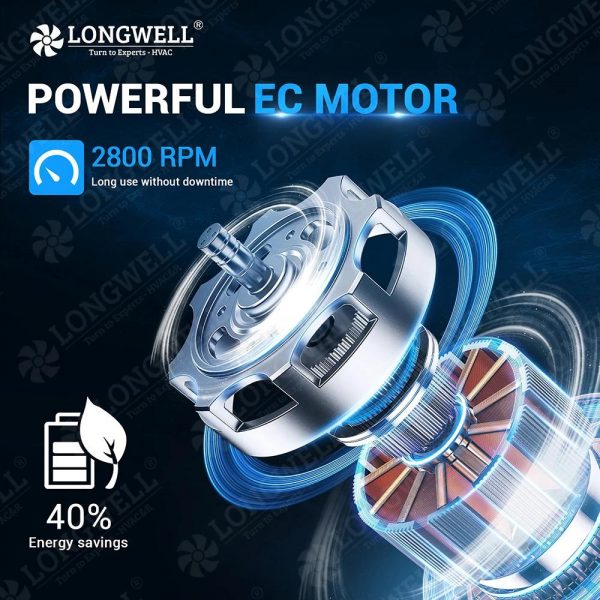

PWM Controlled EC- Motor

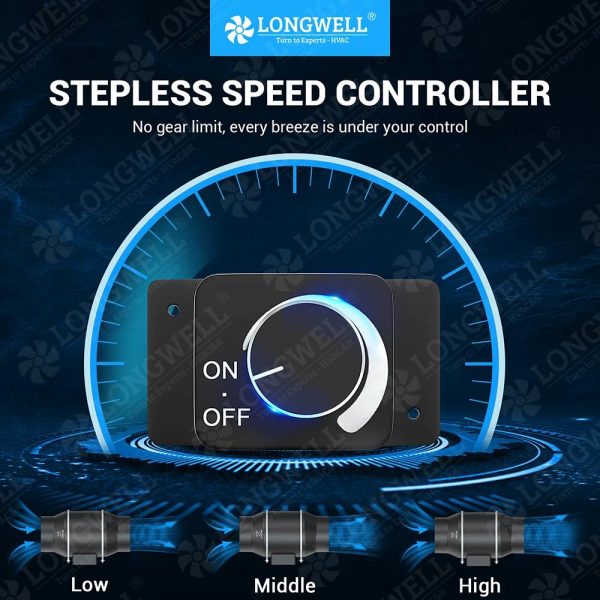

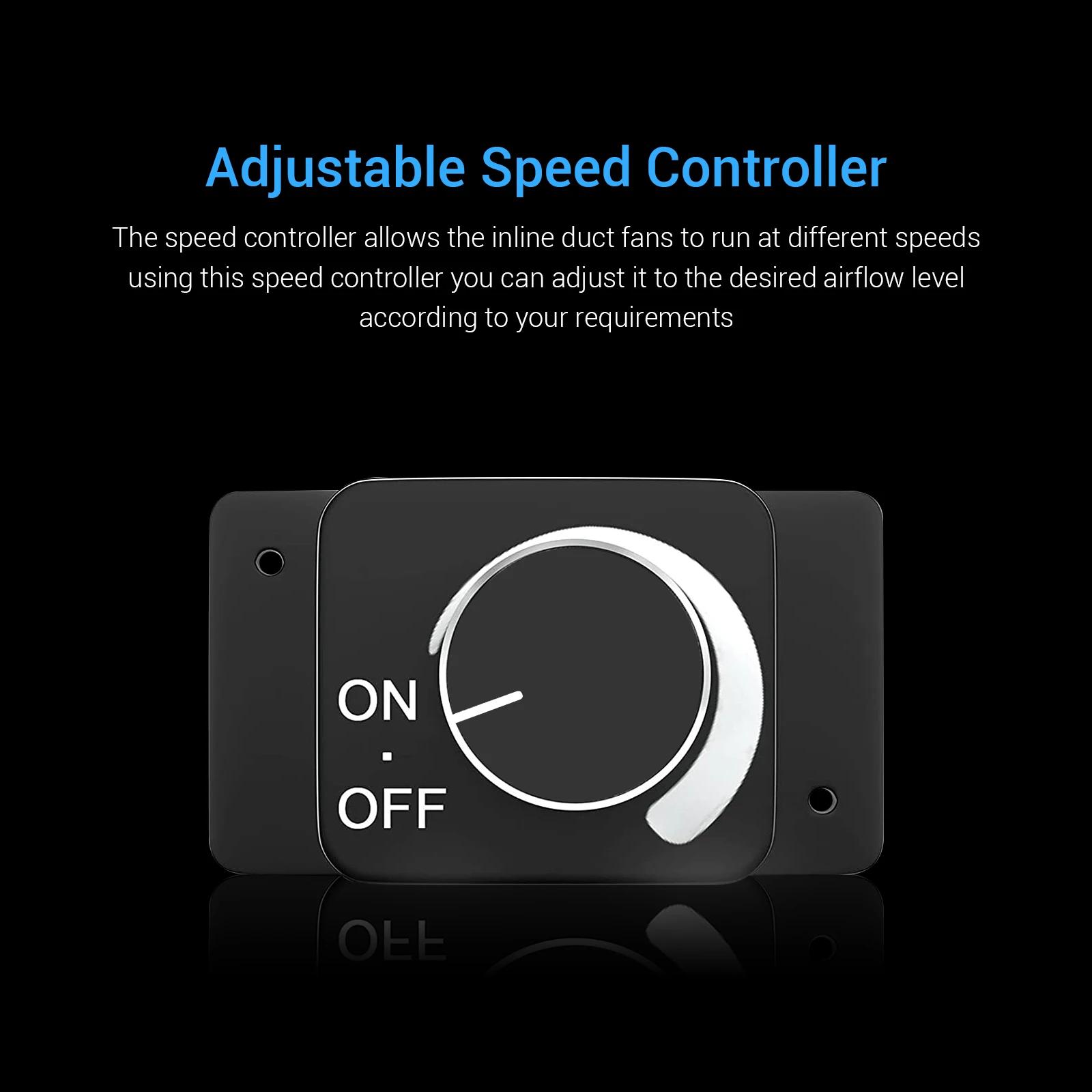

The speed controller allows the inline duct fans to run at different speedsusing this speed controller you can adjust it to the desired airflow level according to your requirements

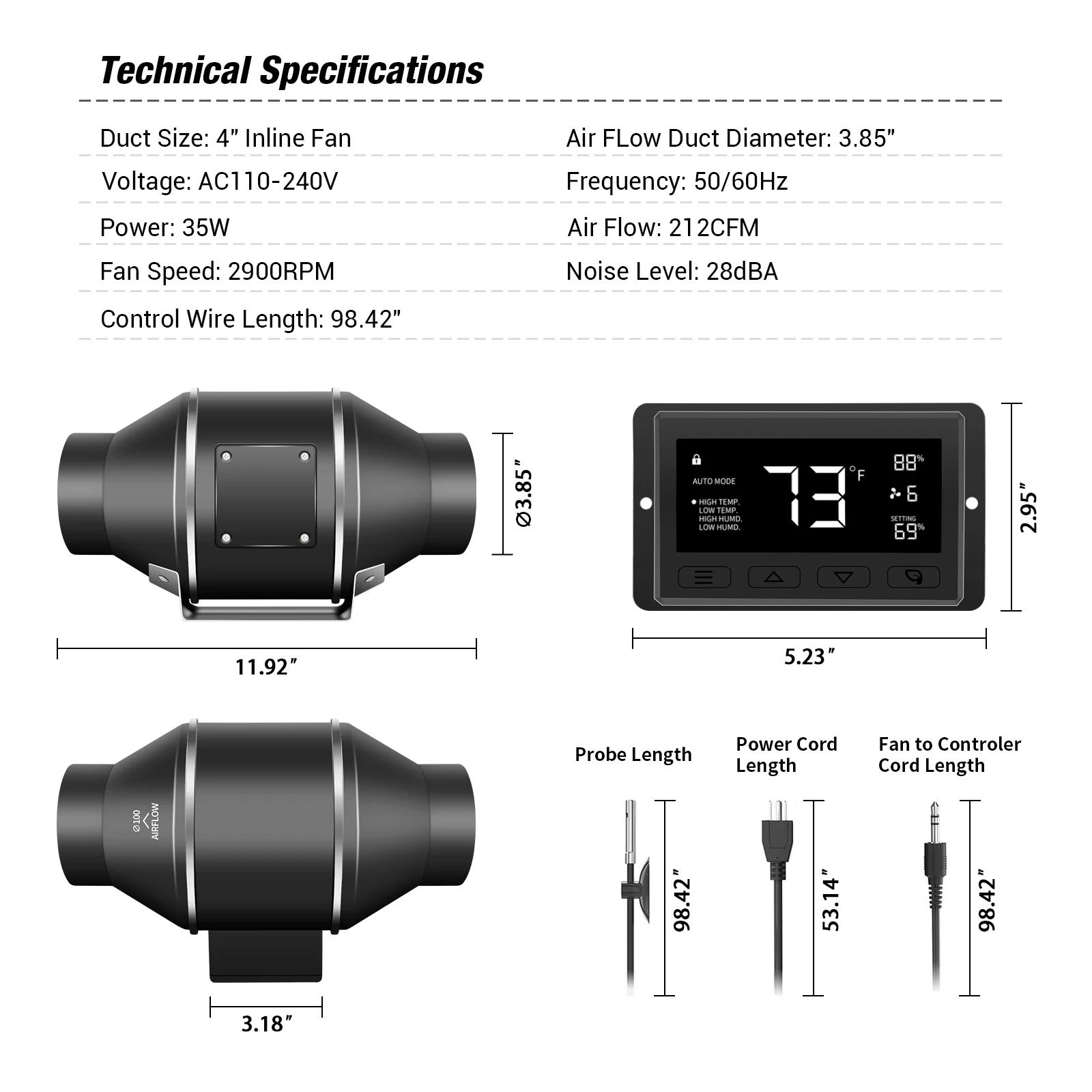

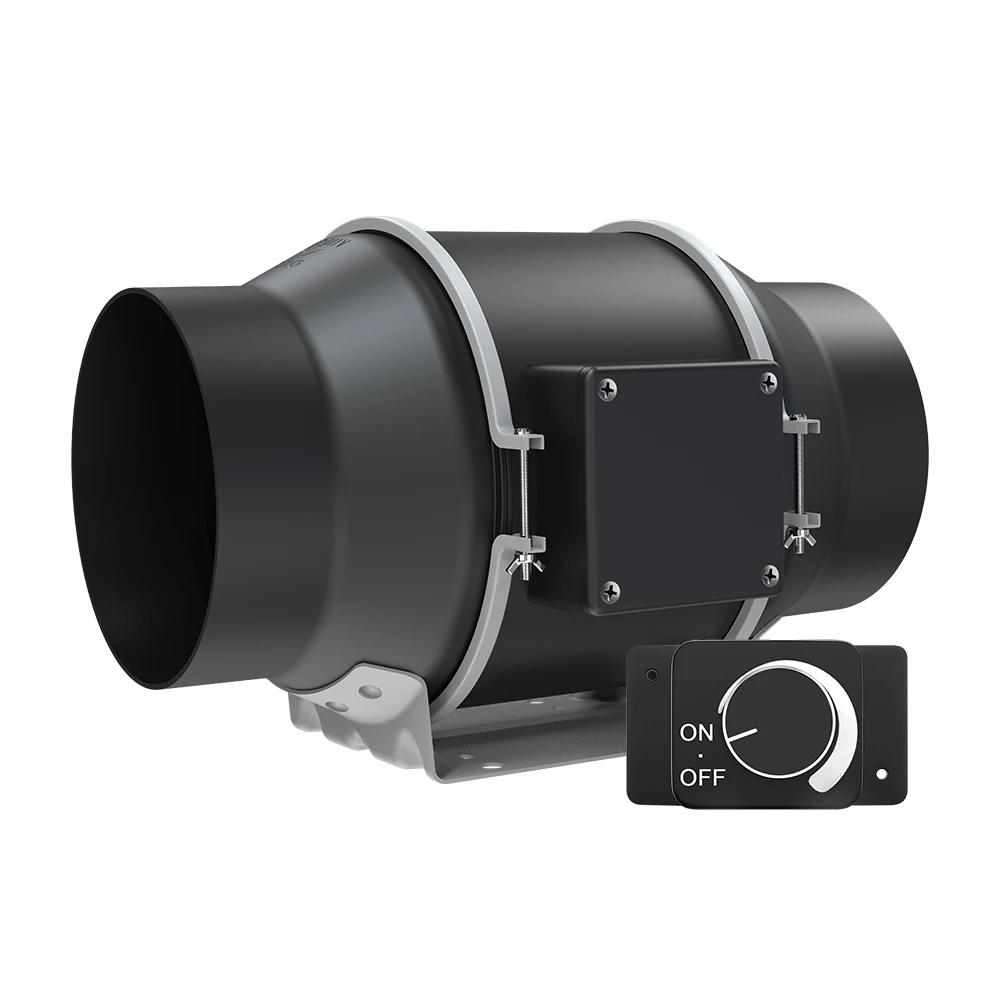

4 Inch Inline duct fan with Digital controller
Voltage:AC110V – 240V , 35W,  385  m³/h, 28dBA, Air Duct Diameter:98mm

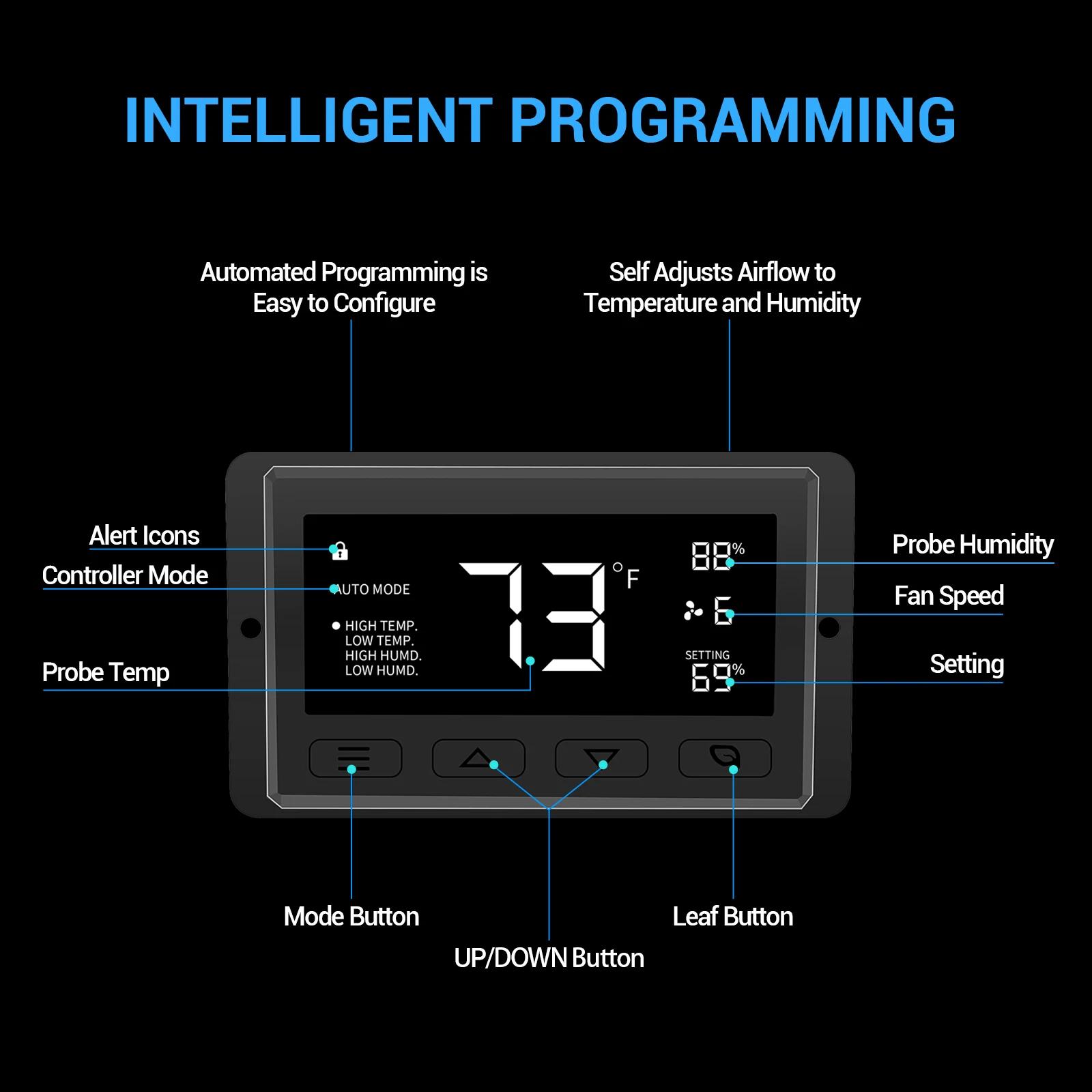

Out-side speed control box with temperature & humidity function Speed control/Timer/Alarm Function

6 Inch Inline duct fan with Digital controller
Voltage:AC110V – 240V , 70W, 705m³/h, 34dBA, Air Duct Diameter:147mm

Out-side Speed control box with temperature & humidity function Speed control/Timer/Alarm Function

8 Inch Inline duct fan with Digital controller
Voltage:AC110V – 240V , 180W, 1453m³/h, 51dBA, Air Duct Diameter:196mm Out-side

Speed control box with temperature & humidity function Speed control/Timer/Alarm Function

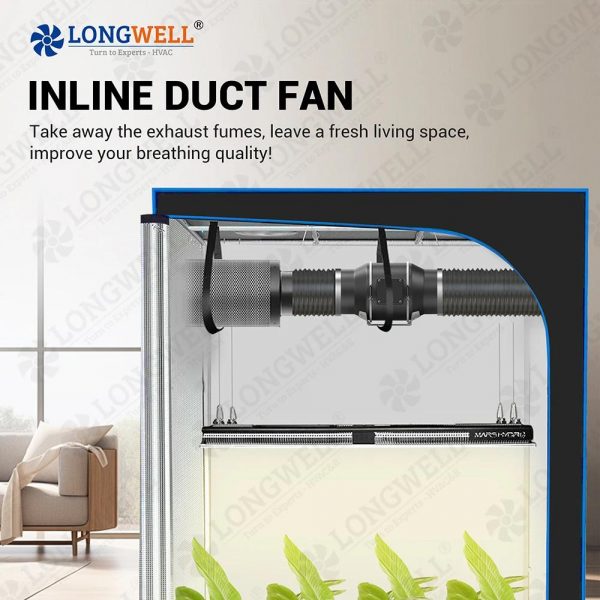

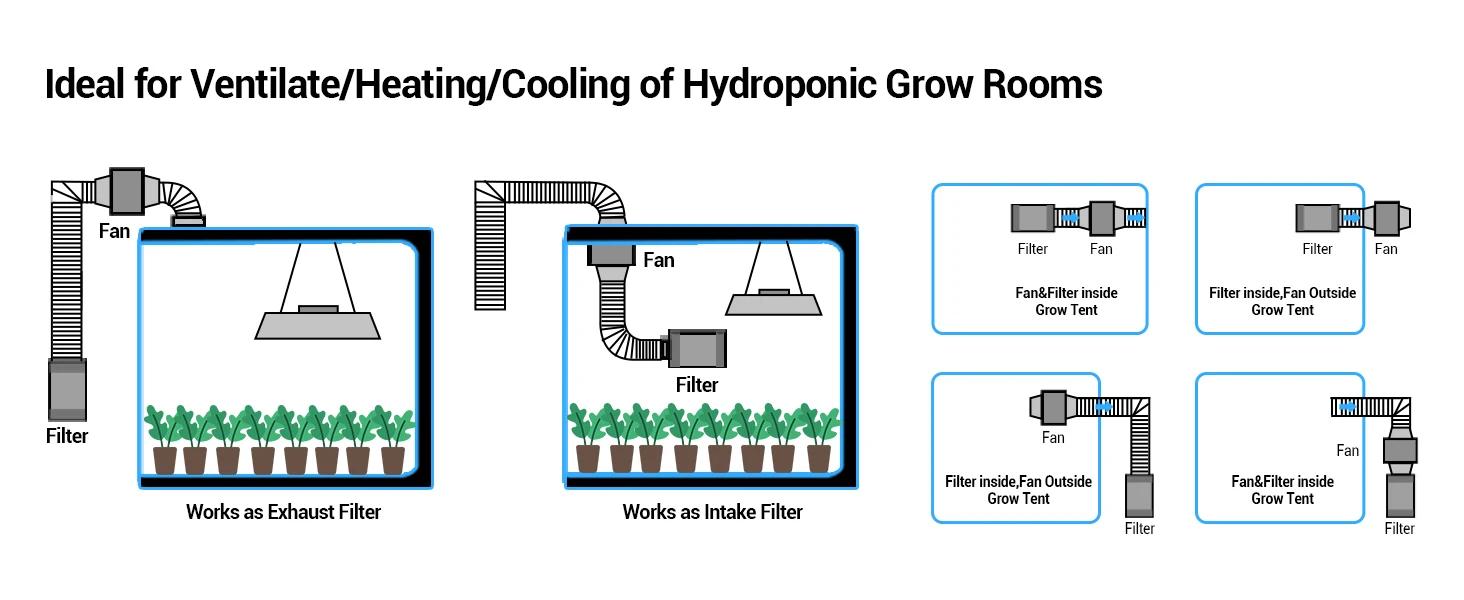

Grow Tent / Building ventilation system/Primary air system/ Bathroom ventilation/Kitchen ventilation/Air conditioning vent

Additional information

Voltage

110-240V, 220V
speed

4000rpm, 500RPM, 800RPM, 1500RPM, 600RPM, 900rpm, 2000RPM
Blade Material

Plastic
customized support

OEM, ODM, OBM
mounting

Duct Fan
place of origin

Zhejiang, China
brand name

LONGWELL
model number

LWDE3G100-IS-01
warranty

1 Year
After-sales Service Provided

Online support
Material

STAINLESS STEEL, Plastic, iron, metal, Cast Iron, Aluminum, fiberglass
Power source type

Battery powered
Noise Level

35-39db
Duct Diameter

4in, 6IN, 8in, 12in, 10in, 5IN, 14in
Product name

Mixed Flow Inline Duct Fan
Type

Inline Duct Fan
power input

110-240V
casing material

Plastic or Galvanized Metal
Impeller material

Propylene with glass fiber reinforced
Bearing

Ball Bearing
Motor type

EC/AC external rotor motor
Amb,Temp

-10 to +60℃
Application

Vertical Farming / Cabinet / Home Ventilation
Noise

28dB
Selling units

Single item
Single package size

33.5X24.5X22 cm
Single gross weight

2.600 kg
