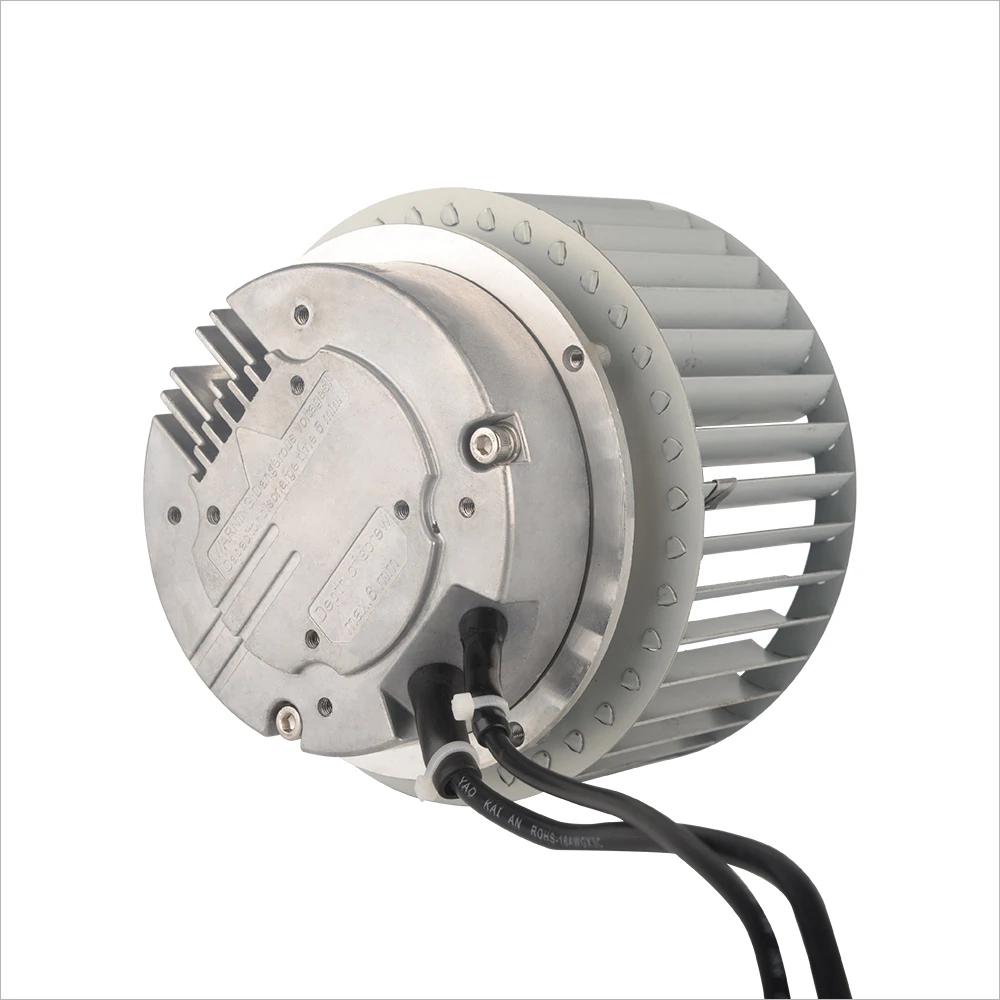

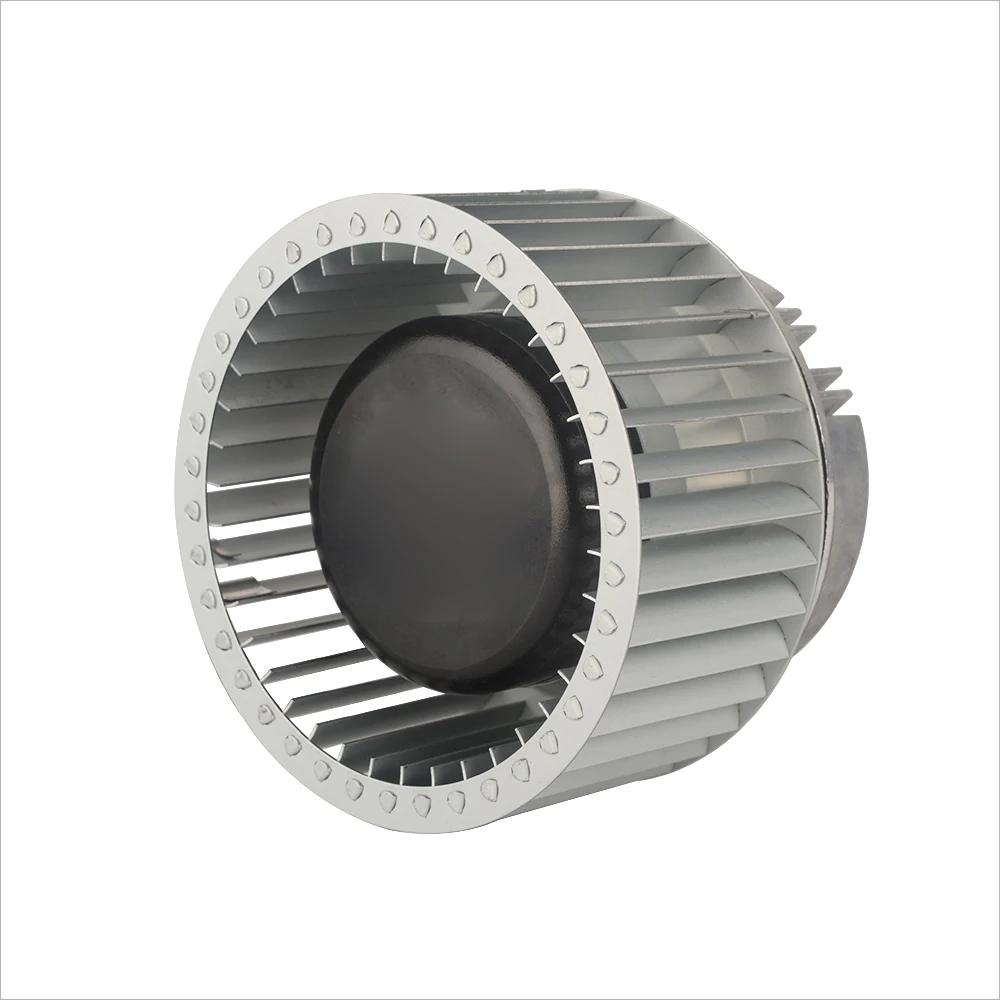

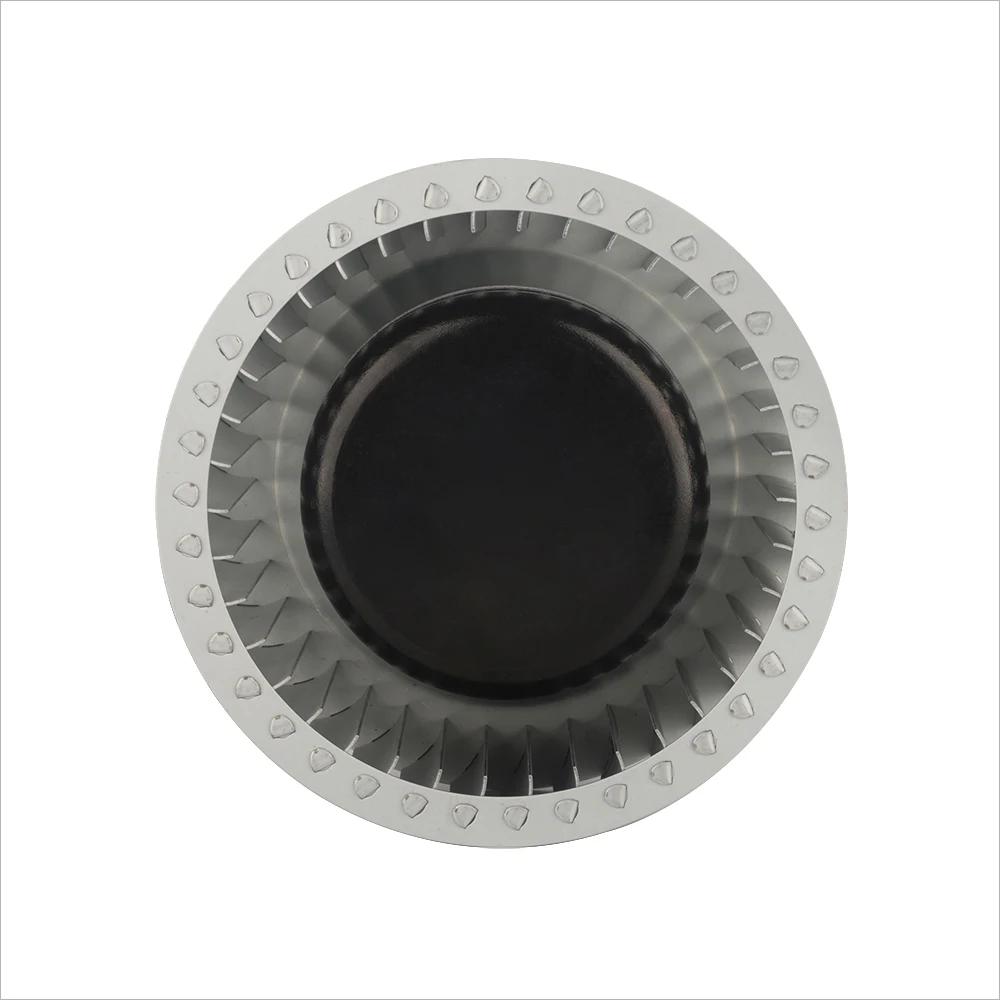

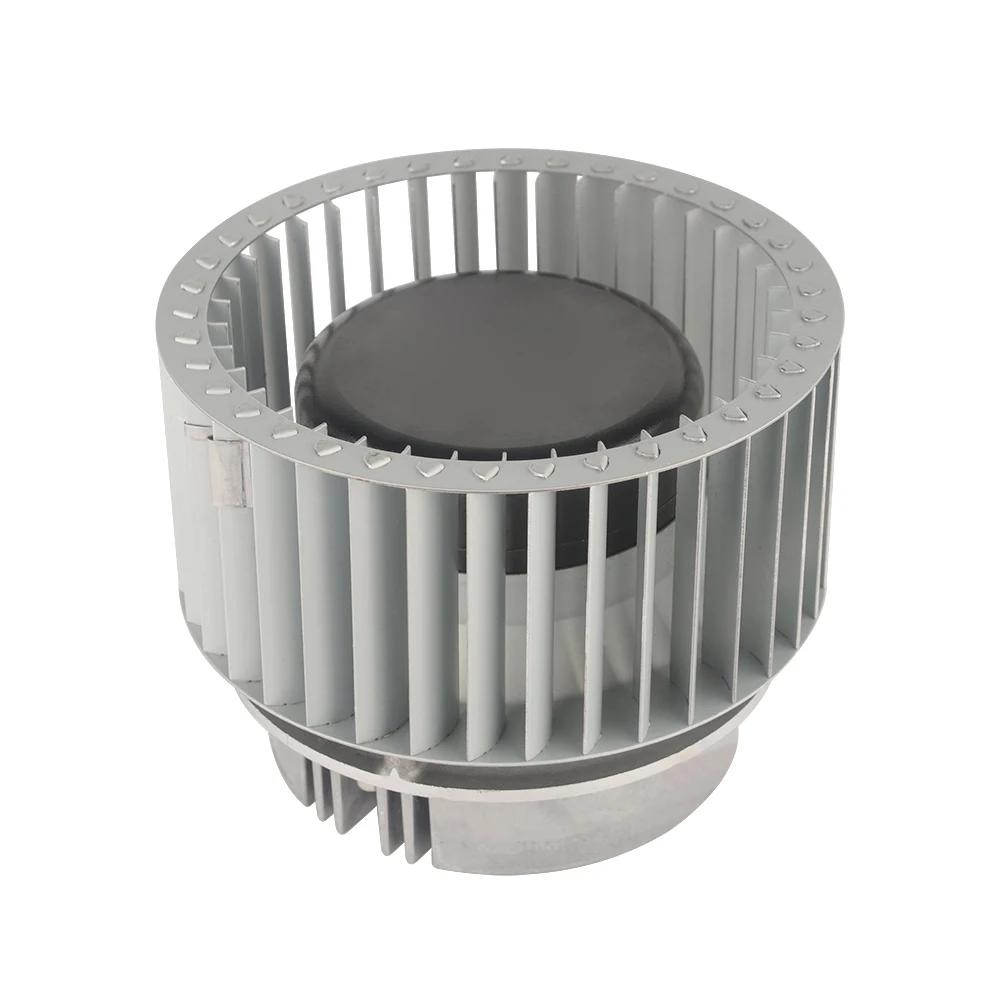

LONGWELL 133mm EC Forward Curved Centrifugal Blower, Forward Curved Blower Fan, 230V, for Cold Storage, Air Purifiers, HVAC Systems

Voltage 230V
ISO / CE / UL / ETL Factory & Test Lab OEM / ODM ebm-papst alternative

$ 20

Specifications
Motor
external rotor motor
Speed
4000rpm, 500RPM, 800RPM, 1500RPM, 600RPM, 900rpm, 2000RPM
Impeller
Propylene with glass fiber reinforced
Category: Tags: , ,
CategoryForward Curved Centrifugal Fans
TagsEC MotorForward Curved Centrifugal FanHeat Exchangers
Get a Fast Quote from an Engineer Send your airflow, static pressure & voltage — we reply within one working day with a matching model.
✓ 1-day reply ✓ STEP / CAD on request ✓ Factory-direct

Your specifications go straight to a sales engineer — no spam, never shared.

Prefer a datasheet?
Download Product Catalog (PDF)
Need the exact model with a measured or digitised curve? This page describes the Forward Curved Centrifugal Fans range. The Fan Selector lists every LONGWELL forward-curved centrifugal fan model with airflow, static pressure, power, noise, drawing and datasheet.
Search forward-curved centrifugal fan models →
Have your duty point?

See every LONGWELL model whose P-Q curve covers it — margins, noise and power included. No login.

Library: Ø25–1,000 mm, single units up to about 52,000 m³/h — larger duties go straight to an engineer. Prefer to talk it through? Send your specs to an engineer

Description

Types :

133mm EC Large air volume Centrifugal Fan for industrial applications ,Heat exchangers
Voltage Ranges :

230V
Frequency :

50/60 Hz
Diamter :

133mm ( impeller diameters )
Motor Types :

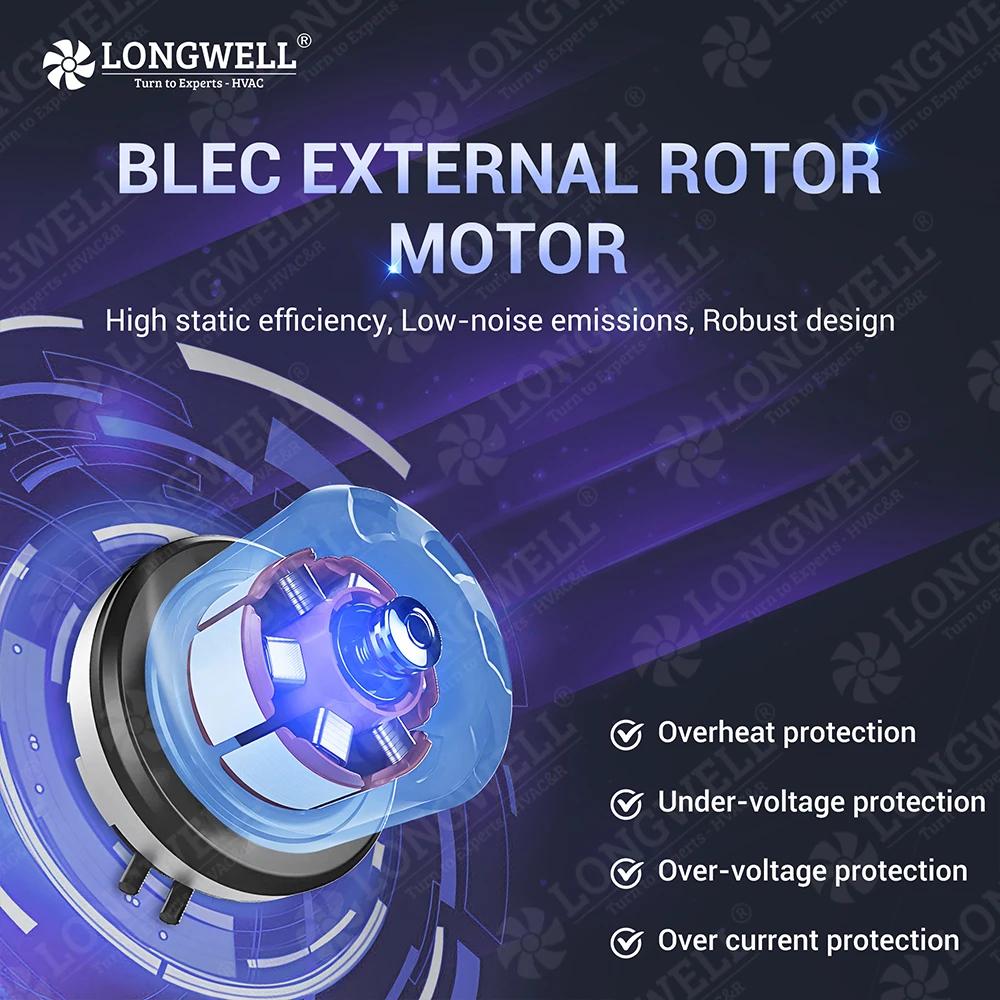

BLEC External Rotor Motor ( EC )
Speed Control :

0-10V Signal / PWM / RS485(Optional)
Max.ambient Temp:

-25℃～ +60℃
Certificating :

All necessary certifications suitable for USA & Europe , ETL,UL ,CE ,RoHS, ISO19001,ISO 14001,BSCI
Protection Level:

IP44 ,IP54,IP55
Electronic Protection:

Current limiting protection ,Over-temperature protection,Over-current protection,Locked-rotor protection,Soft start
Working & Storage

Operating temperature：-25~60℃；Operating humidity：0 ~ 85 % RH
Storing temperature：-25 ~ 70℃；Storing humidity：0 ~ 95 % RH
Applicable altitude range：＜1000m
Balancing

According to JB/T 9101-1999 requirements G6.3
Product Standards :

LVD EN60950-1 EMC EN61000-6-3,EN61000-4-2, EN61000-4-3

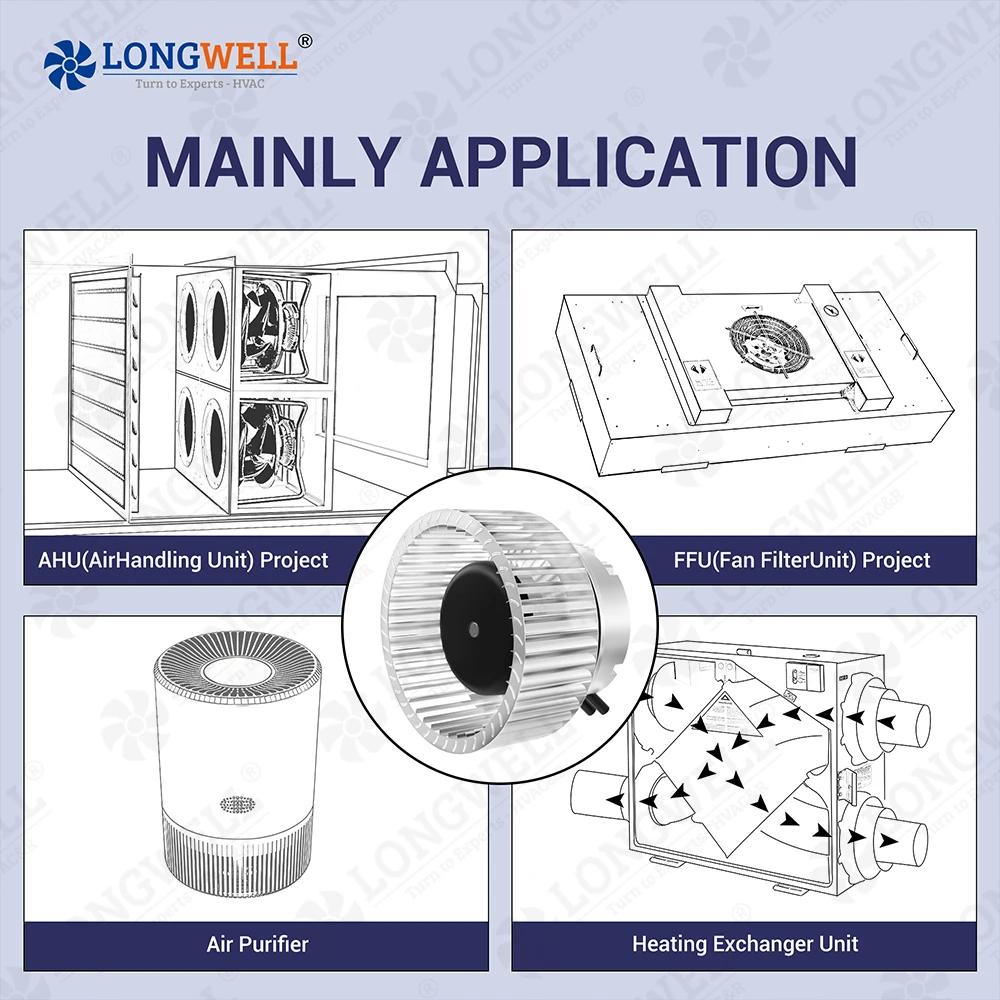

Mainly Applications

AUH/ AIR PURIFIER / Server Cooling & Ventilation / Grow Tent / Medical equipments/Ventilation SYSTEM/ Equipments Cooling /
Refrigerator ,etc;ventilation fan cooling;ventilation exhaust fans

Additional information

Voltage

230V
speed

4000rpm, 500RPM, 800RPM, 1500RPM, 600RPM, 900rpm, 2000RPM
Blade Material

aluminum alloy
customized support

OEM, ODM, OBM
mounting

Other
place of origin

Zhejiang, China
brand name

LONGWELL
warranty

1 Year
After-sales Service Provided

Free spare parts
Material

STAINLESS STEEL, Plastic, aluminum alloy, Steel
Type

centrifugal fan
power input

EC
Impeller material

Propylene with glass fiber reinforced
Direction

Clockwise
Bearing

Ball Bearing
Motor type

external rotor motor
Amb,Temp

-25 to +60℃
Insulation

B/F
Product name

EC Centrifugal Fan
Application

Exhaust Ventilation
Selling units

Single item
Single package size

50X50X20 cm
Single gross weight

6.000 kg

Reviews

There are no reviews yet.

Be the first to review “LONGWELL 133mm EC Forward Curved Centrifugal Blower, Forward Curved Blower Fan, 230V, for Cold Storage, Air Purifiers, HVAC Systems”

Your email address will not be published. Required fields are marked *

More in this series

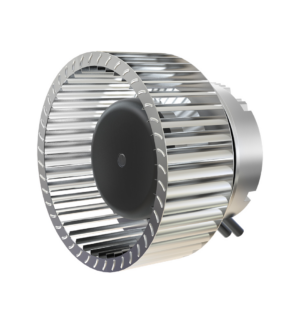

LONGWELL 150mm AC Forward Curved Centrifugal Blower, Forward Curved Blower Fan, 230V, for Cold Storage, Air Purifiers, HVAC Systems – LWFA-150LONGWELL 150mm AC Forward Curved Centrifugal Blower, Forward Curved Blower Fan, 230V, for Cold Storage, Air Purifiers, HVAC Systems – LWFA-150230V4000rpmAC Capacitor motorView & InquireLONGWELL 133mm EC Forward Curved Centrifugal Blower, Forward Curved Blower Fan, 230V, for AHU, FFU, Cold StorageLONGWELL 133mm EC Forward Curved Centrifugal Blower, Forward Curved Blower Fan, 230V, for AHU, FFU, Cold Storage4 in230 V4000 RPMView & InquireLONGWELL 146mm EC Double Inlet Forward Curved Centrifugal Fan, Double Inlet Blower Fan, 230V, for AHU, Cold Storage, Air PurifiersLONGWELL 146mm EC Double Inlet Forward Curved Centrifugal Fan, Double Inlet Blower Fan, 230V, for AHU, Cold Storage, Air Purifiers4 in230 V4000 RPMView & InquireLONGWELL 160mm EC Forward Curved Centrifugal Blower, Forward Curved Blower Fan, 230V, for Control Cabinet Cooling, Cold Storage, Air PurifiersLONGWELL 160mm EC Forward Curved Centrifugal Blower, Forward Curved Blower Fan, 230V, for Control Cabinet Cooling, Cold Storage, Air Purifiers230V4000rpmAC external rotor motorView & InquireLONGWELL 133mm EC Forward Curved Centrifugal Blower, Forward Curved Blower Fan, 230V, 105 W, for Cold Storage, Air Purifiers, HVAC SystemsLONGWELL 133mm EC Forward Curved Centrifugal Blower, Forward Curved Blower Fan, 230V, 105 W, for Cold Storage, Air Purifiers, HVAC Systems4 in230 V4000 RPMView & InquireLONGWELL EC Double Inlet Forward Curved Centrifugal Fan, Double Inlet Blower Fan, 230V, for Industrial Ventilation, Cold Storage, Air PurifiersLONGWELL EC Double Inlet Forward Curved Centrifugal Fan, Double Inlet Blower Fan, 230V, for Industrial Ventilation, Cold Storage, Air Purifiers230 V1500 RPMECView & InquireLONGWELL 120mm DC Forward Curved Centrifugal Blower, Forward Curved Blower Fan, 24V, for HVAC Systems, Cold Storage, Air Purifiers – LWFD-120LONGWELL 120mm DC Forward Curved Centrifugal Blower, Forward Curved Blower Fan, 24V, for HVAC Systems, Cold Storage, Air Purifiers – LWFD-1204inDC 24V/48V/310VDC external rotor motorView & InquireLONGWELL 72mm EC Forward Curved Centrifugal Blower, Forward Curved Blower Fan, 230V, 484 m³/h Airflow, 216 Pa Static Pressure – LWFE3G140-072NS-01LONGWELL 72mm EC Forward Curved Centrifugal Blower, Forward Curved Blower Fan, 230V, 484 m³/h Airflow, 216 Pa Static Pressure – LWFE3G140-072NS-0172 mm484 m³/h230 VDatasheet, curve & drawing →LONGWELL 146mm DC Forward Curved Centrifugal Blower, Forward Curved Blower Fan, for Cold Storage, Air Purifiers, HVAC Systems – LWFD-146LONGWELL 146mm DC Forward Curved Centrifugal Blower, Forward Curved Blower Fan, for Cold Storage, Air Purifiers, HVAC Systems – LWFD-14624VDC/ 48VDC 310V4000rpmDC external rotor motorView & InquireLONGWELL 72mm EC Forward Curved Centrifugal Blower, Forward Curved Blower Fan, 230V, 494 m³/h Airflow, 845 Pa Static Pressure – LWFE3G140-072NS-02LONGWELL 72mm EC Forward Curved Centrifugal Blower, Forward Curved Blower Fan, 230V, 494 m³/h Airflow, 845 Pa Static Pressure – LWFE3G140-072NS-0272 mm494 m³/h230 VDatasheet, curve & drawing →
