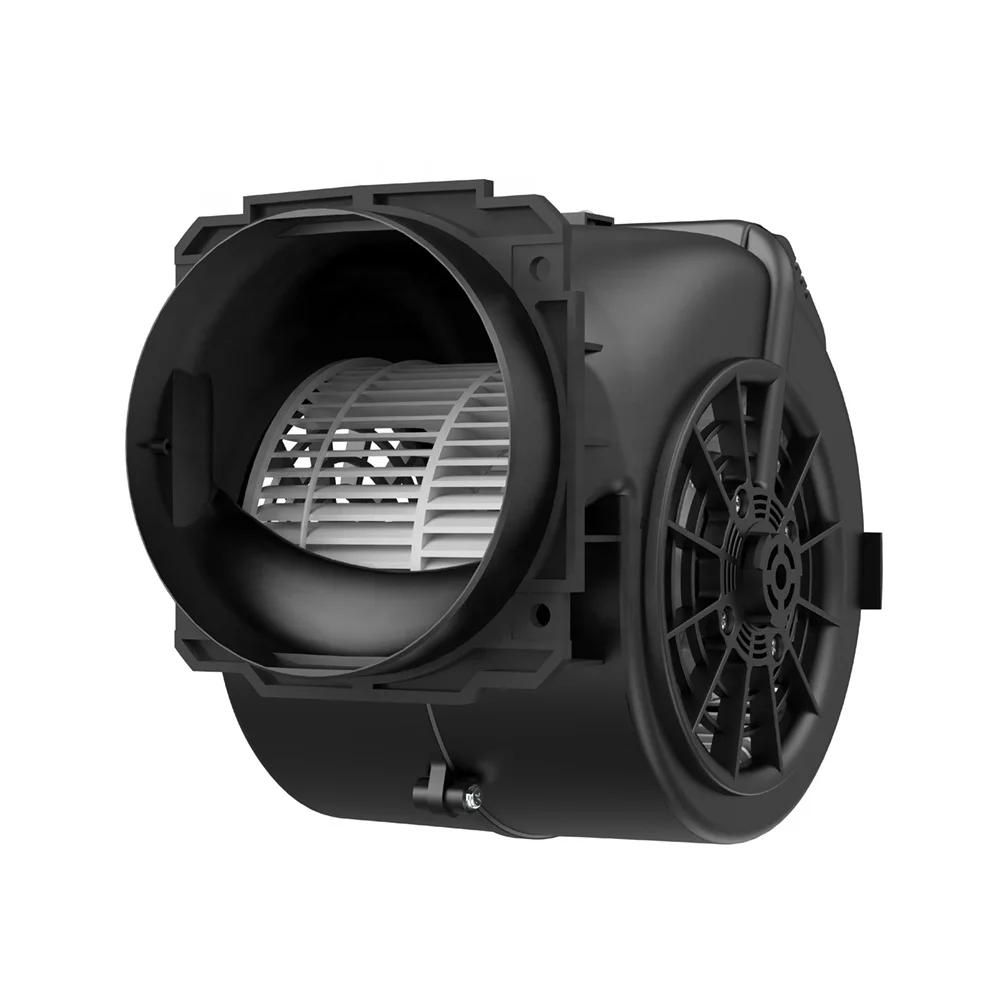

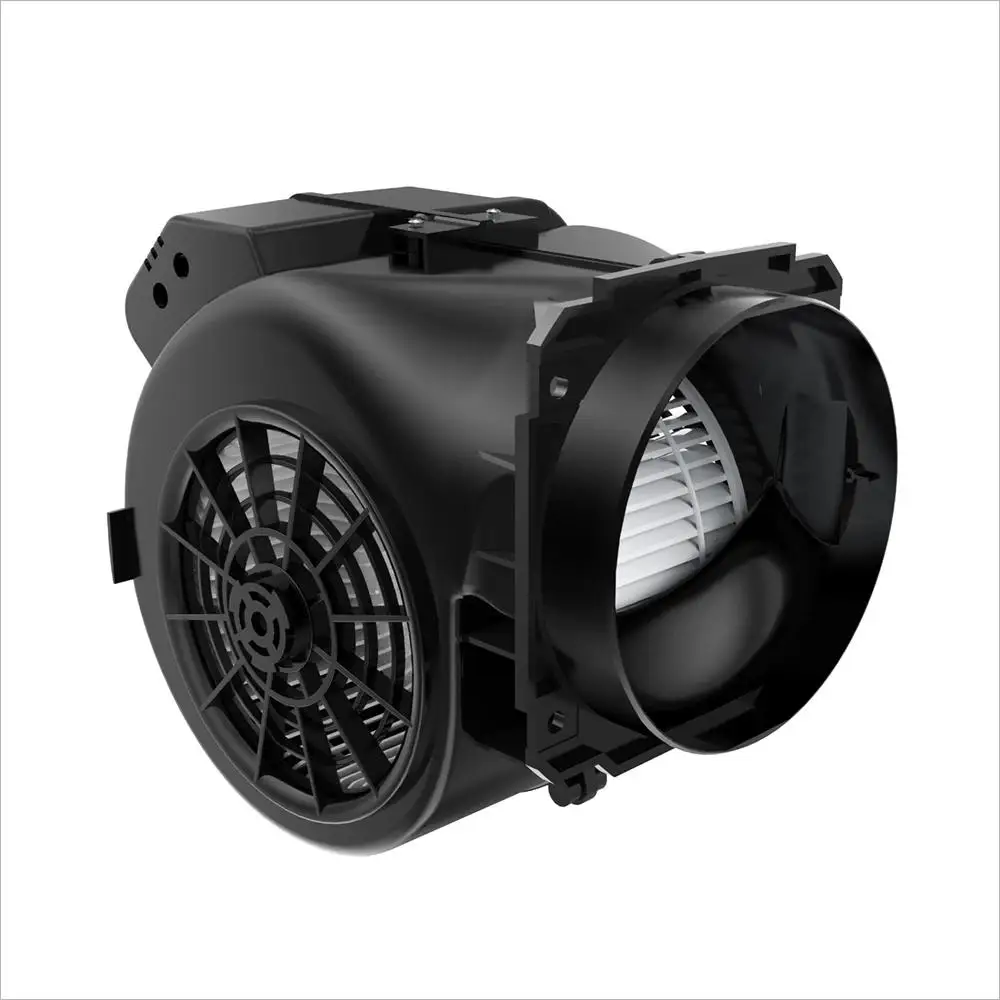

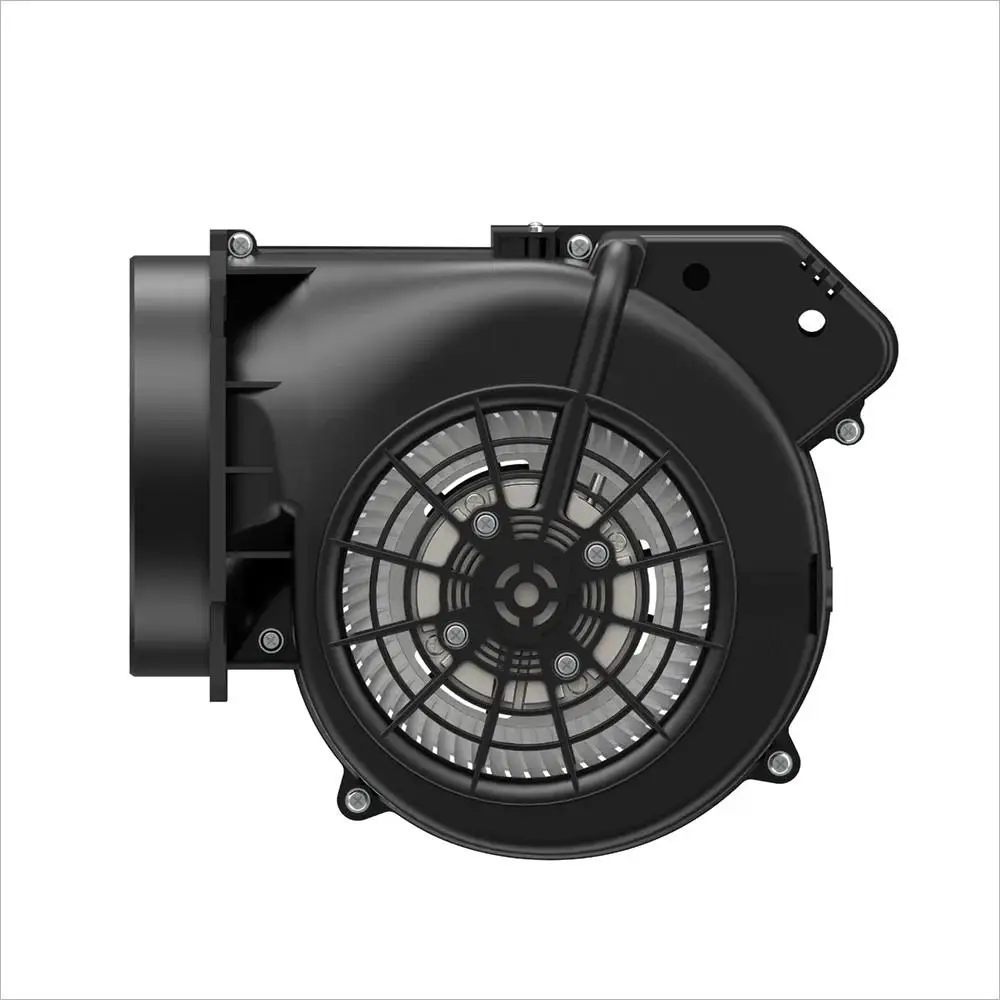

LONGWELL 146mm AC Forward Curved Centrifugal Blower, Forward Curved Blower Fan, 220/230V, Galvanized Steel, for Cold Storage, Air Purifiers, Industrial Ventilation

Voltage 220/230V
ISO / CE / UL / ETL Factory & Test Lab OEM / ODM ebm-papst alternative

$ 50

Specifications
Speed
4000rpm, 500RPM, 800RPM, 1500RPM, 600RPM, 900rpm, 2000RPM

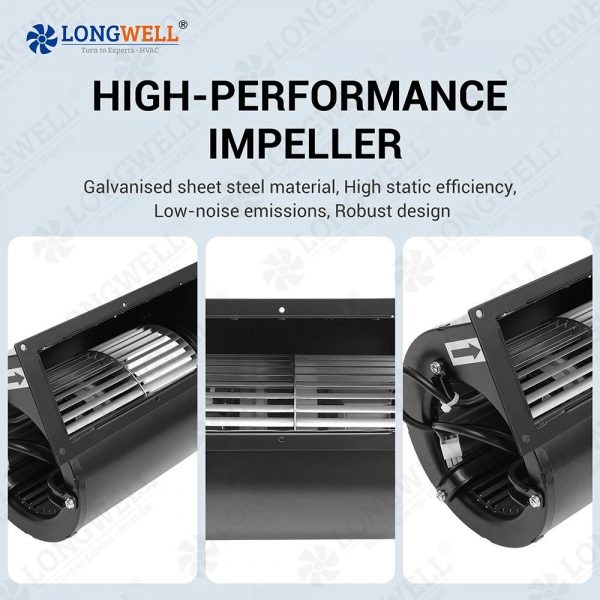

Impeller
Galvanized Metal Sheet
Category: Tags: , ,
CategoryForward Curved Centrifugal Fans
TagsExternal Rotor MotorForward Curved Centrifugal FanIndustrial Ventilation
Get a Fast Quote from an Engineer Send your airflow, static pressure & voltage — we reply within one working day with a matching model.
✓ 1-day reply ✓ STEP / CAD on request ✓ Factory-direct

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

Your specifications go straight to a sales engineer — no spam, never shared.

Prefer a datasheet?
Download Product Catalog (PDF)
Need the exact model with a measured or digitised curve? This page describes the Forward Curved Centrifugal Fans range. The Fan Selector lists every LONGWELL forward-curved centrifugal fan model with airflow, static pressure, power, noise, drawing and datasheet.
Search forward-curved centrifugal fan models →
Have your duty point?

See every LONGWELL model whose P-Q curve covers it — margins, noise and power included. No login.

Library: Ø25–1,000 mm, single units up to about 52,000 m³/h — larger duties go straight to an engineer. Prefer to talk it through? Send your specs to an engineer

Description

Types :

146mm Revolutionize Industrial Ventilation with our High-Performance AC Centrifugal Fan Single Inlet Solution.
Voltage Ranges :

230V
Frequency :

50/60 Hz
Diamter :

146mm ( impeller diameters )
Motor Types :

BLEC External Rotor Motor
Speed Control :

0-10V Signal / PWM / RS485(Optional)
Max.ambient Temp:

-25℃～ +60℃
Certificating :

All necessary certifications suitable for USA & Europe , ETL,UL ,CE ,RoHS, ISO19001,ISO 14001,BSCI
Protection Level:

IP44 ,IP54,IP55
Electronic Protection:

Current limiting protection ,Over-temperature protection,Over-current protection,Locked-rotor protection,Soft start
Working & Storage

Operating temperature：-25~60℃；Operating humidity：0 ~ 85 % RH
Storing temperature：-25 ~ 70℃；Storing humidity：0 ~ 95 % RH
Applicable altitude range：＜1000m
Balancing

According to JB/T 9101-1999 requirements G6.3
Product Standards :

LVD EN60950-1 EMC EN61000-6-3,EN61000-4-2, EN61000-4-3

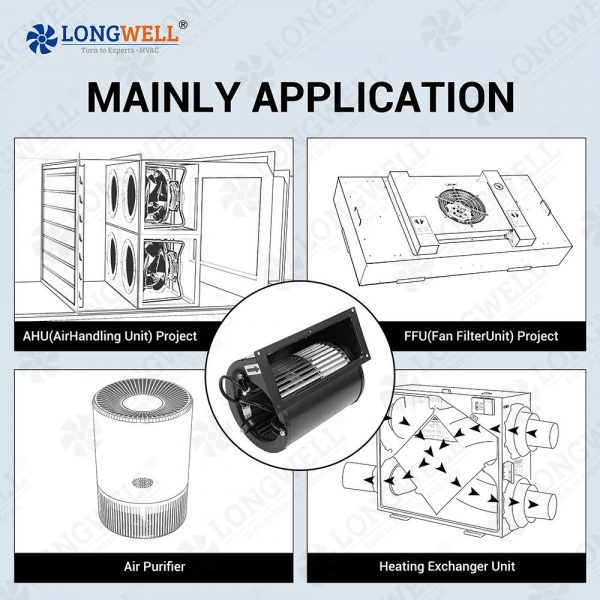

Mainly Applications

AUH/ AIR PURIFIER / Server Cooling & Ventilation / Grow Tent / Medical equipments/Ventilation SYSTEM/ Equipments Cooling /
Refrigerator ,etc;ventilation fan cooling;ventilation exhaust fans

Additional information

Voltage

220/230V
speed

4000rpm, 500RPM, 800RPM, 1500RPM, 600RPM, 900rpm, 2000RPM
Blade Material

Galvanized Metal
customized support

OEM, ODM, OBM
mounting

FREE STANDING
place of origin

Zhejiang, China
brand name

LONGWELL
warranty

1 Year
After-sales Service Provided

Video technical support
Material

STAINLESS STEEL, Plastic, aluminum alloy, Steel
Power source type

Battery powered
Noise Level

35-39db
Duct Diameter

4in, 6IN, 8in, 12in, 10in, 5IN, 14in
Impeller material

Galvanized Metal Sheet
Bearing

Ball Bearing
Insulation

F
Protection Classs

IP44
Speed control

1 / 2 /3 Speed available
Protection

Thermal Overload Protector ( TOP)
Type

Centrifugal Fan
Product name

Ac Centrifugal Fan
Application

Exhaust Ventilation
Usage

High Pressure Blowing
Selling units

Single item
Single package size

30X30X20 cm
Single gross weight

5.000 kg
