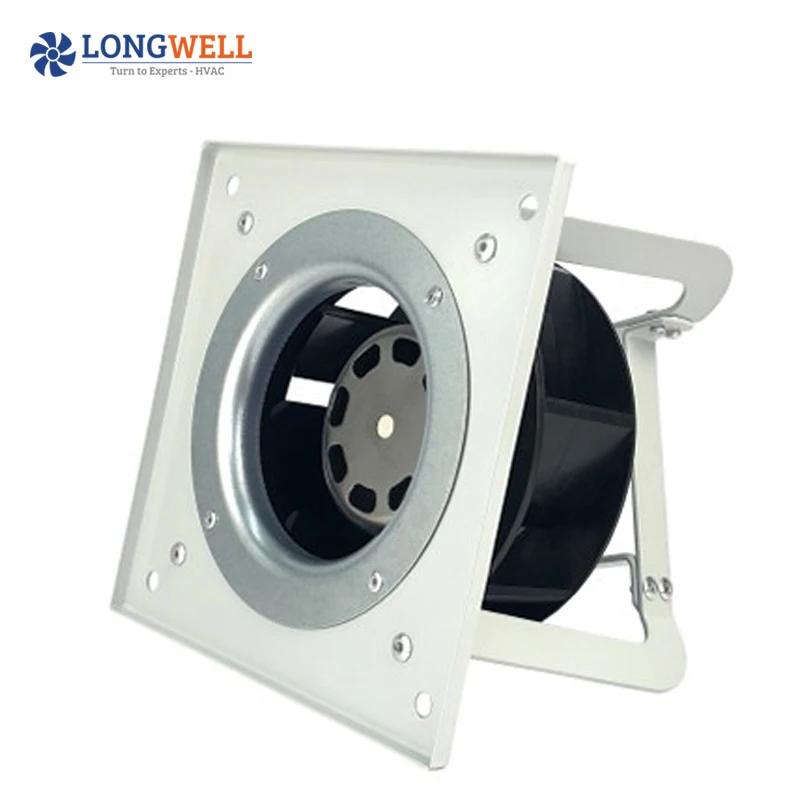

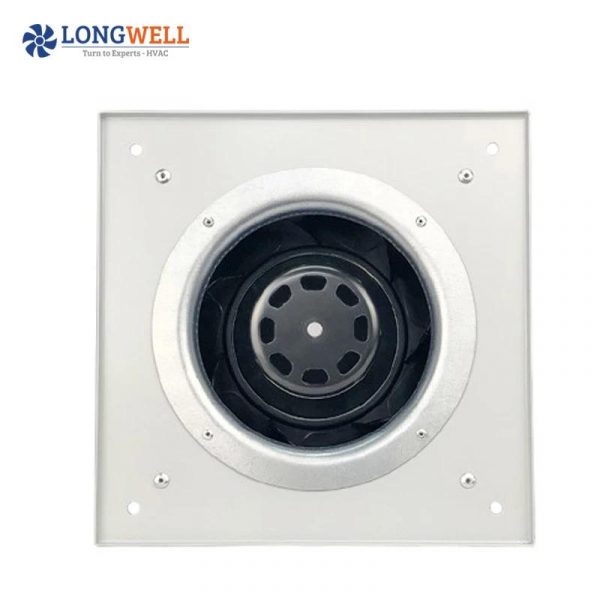

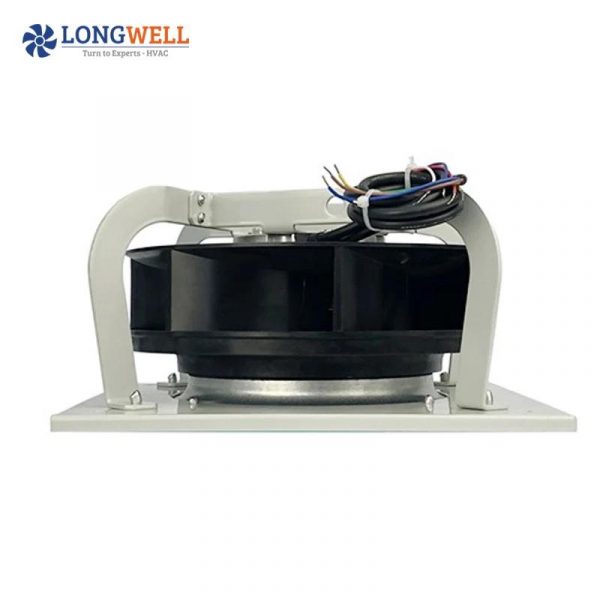

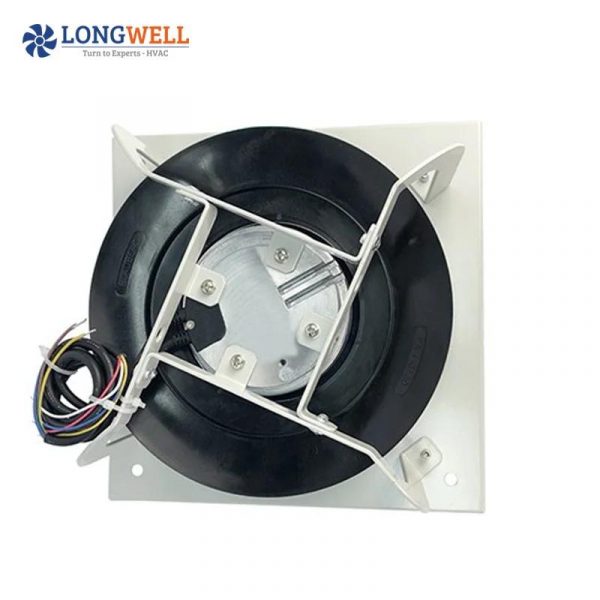

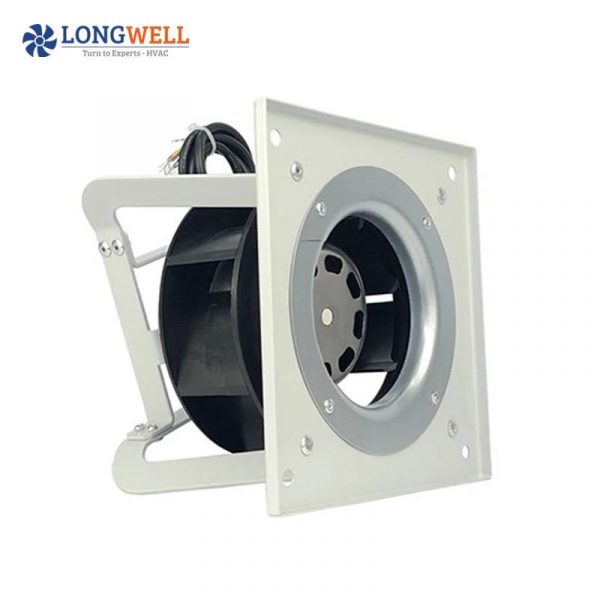

LONGWELL 133mm AC Backward Curved Centrifugal Fan, Industrial Centrifugal Blower, 220V IP55 PWM Control, for FFU, Fan Coil Units, HVAC Systems

Voltage 220V
ISO / CE / UL / ETL Factory & Test Lab OEM / ODM ebm-papst alternative

$ 10

Specifications
Protection
IP55
Motor
EC external rotor motor
Category: Tags: , ,
CategoryBackward Curved Centrifugal Fans
TagsBackward Curved Centrifugal FanExternal Rotor MotorHVAC System
Get a Fast Quote from an Engineer Send your airflow, static pressure & voltage — we reply within one working day with a matching model.
✓ 1-day reply ✓ STEP / CAD on request ✓ Factory-direct

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

Your specifications go straight to a sales engineer — no spam, never shared.

Prefer a datasheet?
Download Product Catalog (PDF)
Need the exact model with a measured or digitised curve? This page describes the Backward Curved Centrifugal Fans range. The Fan Selector lists every LONGWELL backward-curved centrifugal fan model with airflow, static pressure, power, noise, drawing and datasheet.
Search backward-curved centrifugal fan models →
Have your duty point?

See every LONGWELL model whose P-Q curve covers it — margins, noise and power included. No login.

Library: Ø25–1,000 mm, single units up to about 52,000 m³/h — larger duties go straight to an engineer. Prefer to talk it through? Send your specs to an engineer

Description

Product descriptions from the supplier

LWGA 133mm AC 110V 220V backward curved centrifugal blower fan radial ventilation fan with Frame

Product Description
Model Number :   LWGA -133mm EC backward curved centrifugal fan WITH FRAME
Motor Type :  BLEC External rotor motor Blade Material :  Plastic
Operation Model :  S1 Insulation Class :  IP 55
Speed control:  PWM / 0~10V  Insulation Class:  F
Operation Temperature :  -25 ℃ ~ +60 ℃

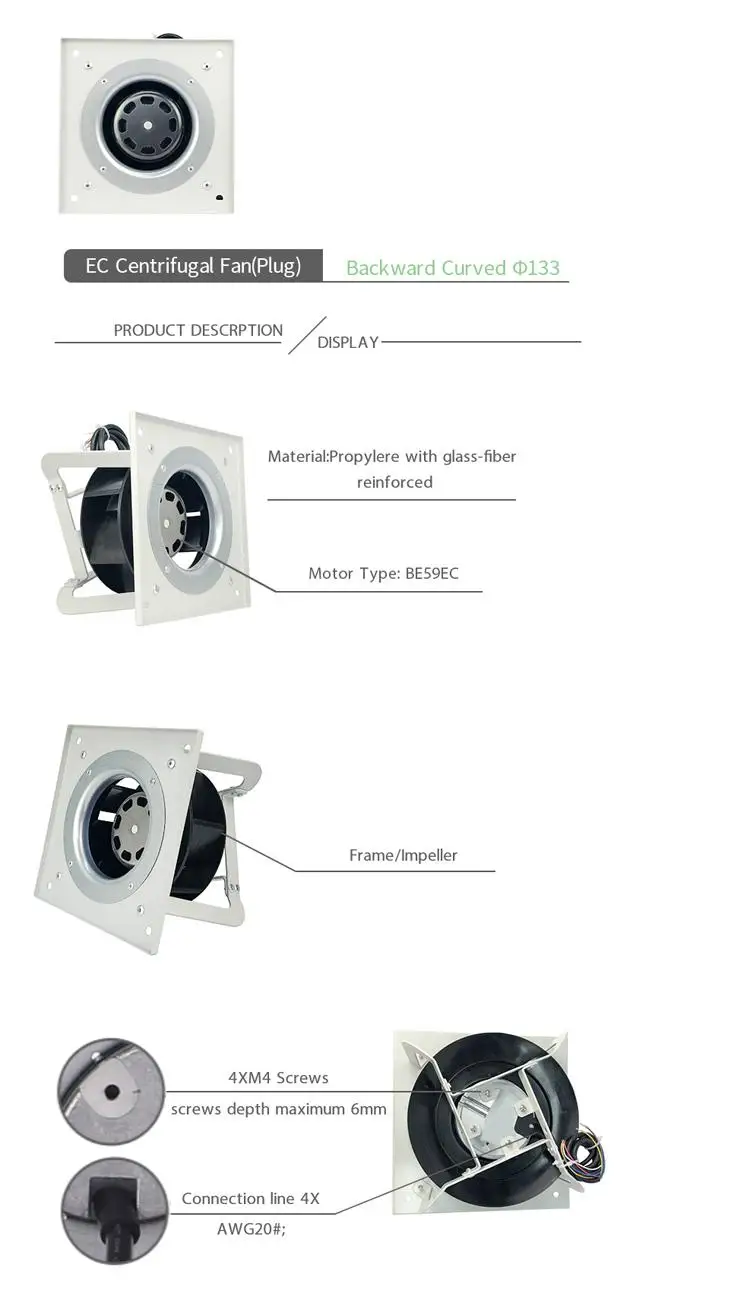

06

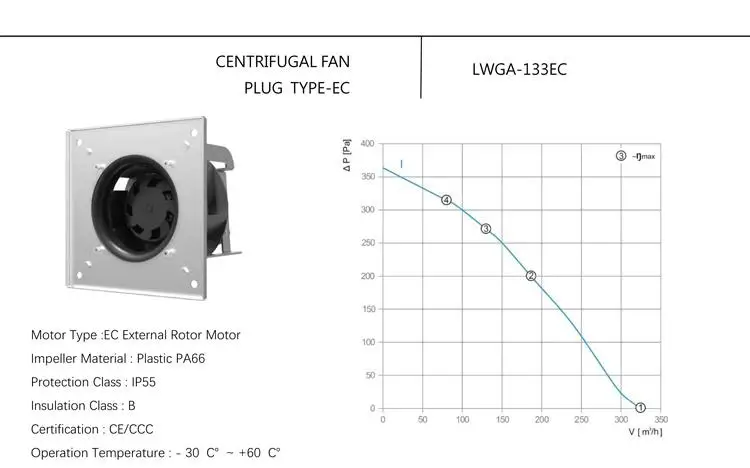

LWGA133-EC 01

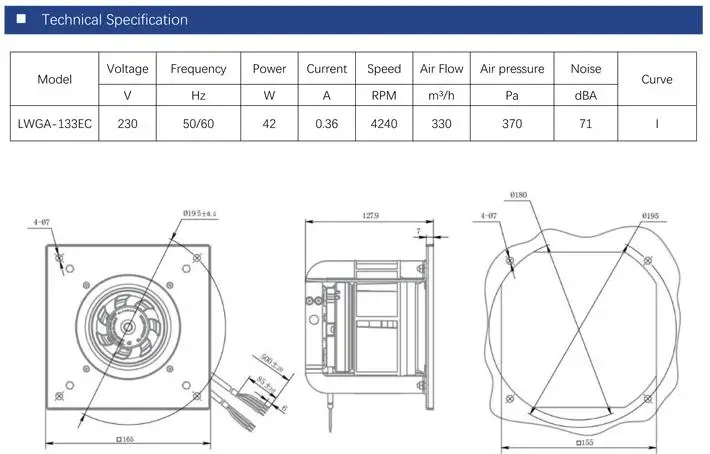

LWGA133-EC 02

Product Overview
1 Centrifugal Blower Sizes 133mm – 400mm (or Customized)
2 Centrifugal Fan Sizes 133mm – 630mm (or Customized)
3 Motor Types AC Motor
BLDC Motor
ECM Motor
4 Voltage AC Motor – AC Input: 115v,220v,230v,380v,400v
BLDC Motor – DC Input: 12v,24v,48v,310v
ECM Motor – AC Input: 210v,220v,230v,380V
5 Power Up to 2300W (or Customized)
6 Speed Up to 4000RPM (or Customized)
7 Air Flow Up to 15000m³/h (or Customized)
8 Speed control Speed Controller (AC) or PWM/0 – 10V Input (DC & EC)
 General Characters
1 Direction of Air Flow All around
2 Insulation Class Class B
3 Insulation Resistance 50 Mega Ohm minimum at 1000VDC
Between frame and (+) terminal
4 Protection Type IP55

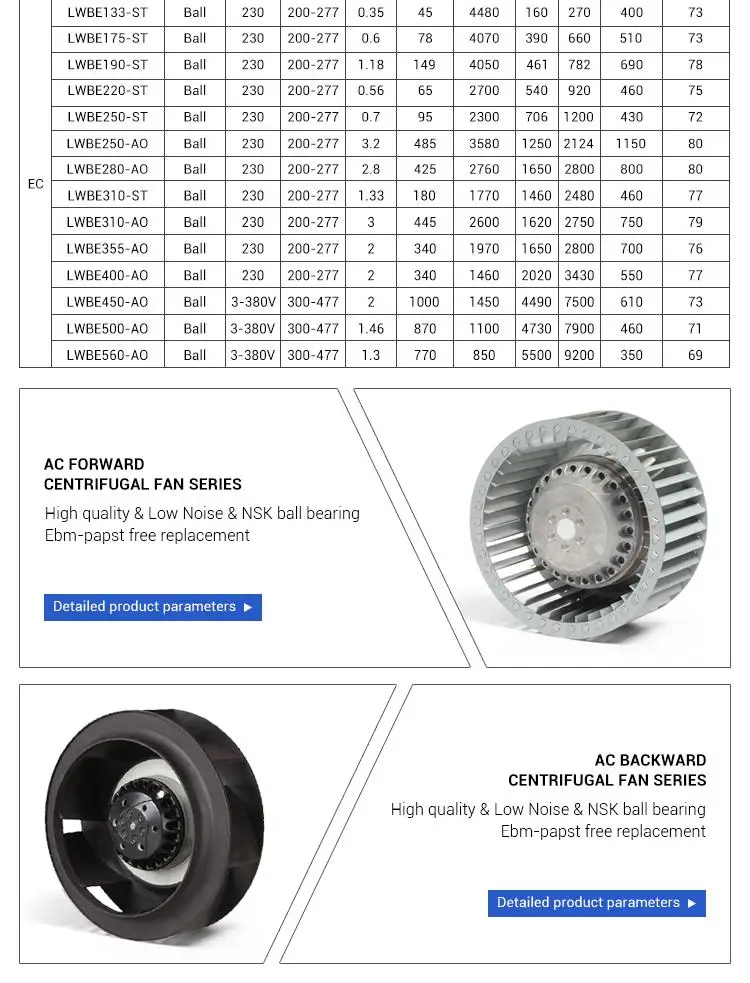

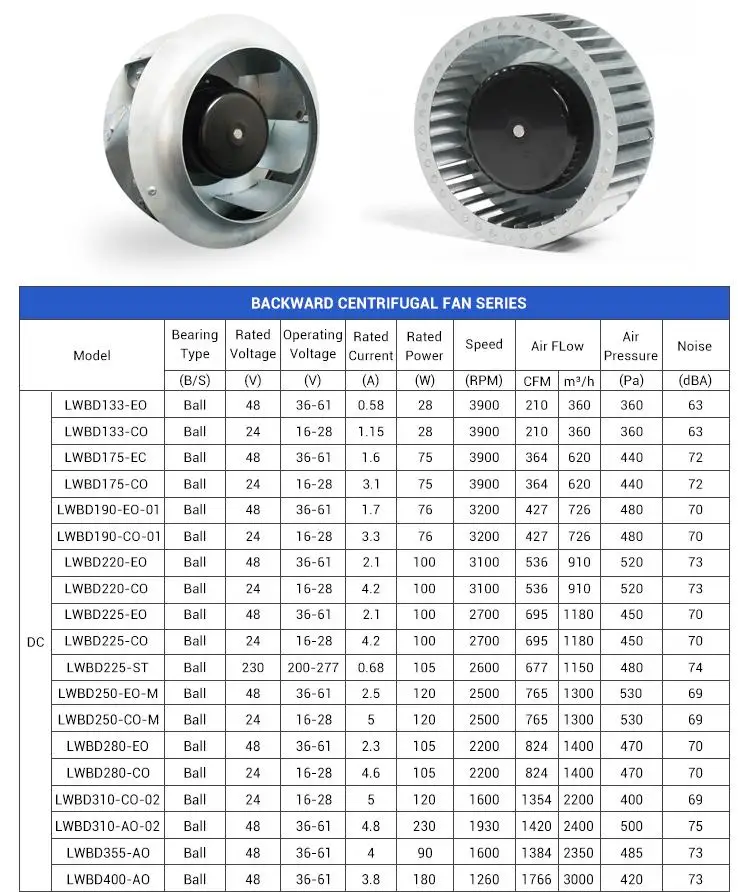

backward (6)

Custom Service

 backward (8)

Product Application

 backward (9)

Certifications

backward (14)

Company Information

backward (17)

backward (18)

backward (15)

backward (16)

Contact information

backward (20)

Buying Guides

backward (19)

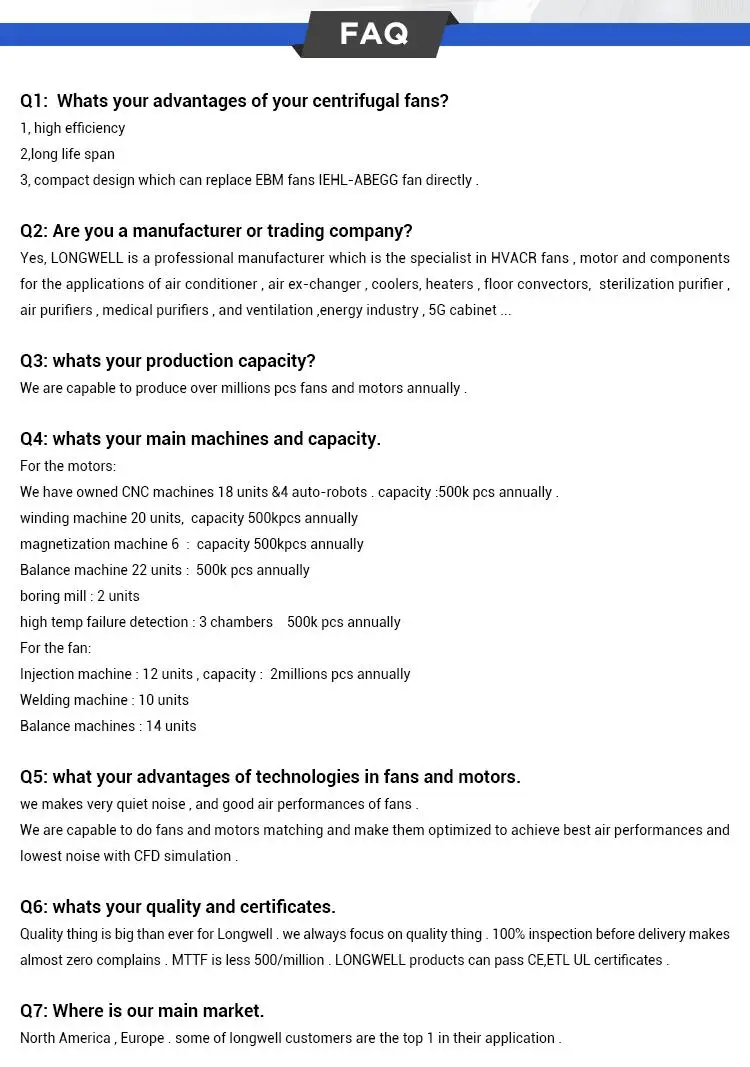

FAQ

backward (21)

Additional information

Blade Material

Plastic
Voltage

220V
electric current type

AC
customized support

OEM, ODM, OBM
mounting

Duct Fan
place of origin

Zhejiang, China
brand name

Longwell
model number

LWGA 133mm
warranty

1 Year
After-sales Service Provided

Free spare parts
Type

centrifugal blower fan radial ventilation fan
power input

AC/DC/EC
Speed control

0~10V/ PWM
Bearing

Ball Bearing
Approvals

CE,CCC,Rohs
Motor type

EC external rotor motor
Amb,Temp

-30 to +60℃
Protection class

IP55
Application

HVAC,FCU,FFU
Protection

Tech out put /Over voltage protection /Over loading protection
Packaging Details

High strength cartons with polyfoam , and packed on pallet .
Port

Ningbo/Shanghai
Selling units

Single item
Single package size

30X30X30 cm
Single gross weight

5.000 kg
Supply Ability

100000 Piece/Pieces per Month
