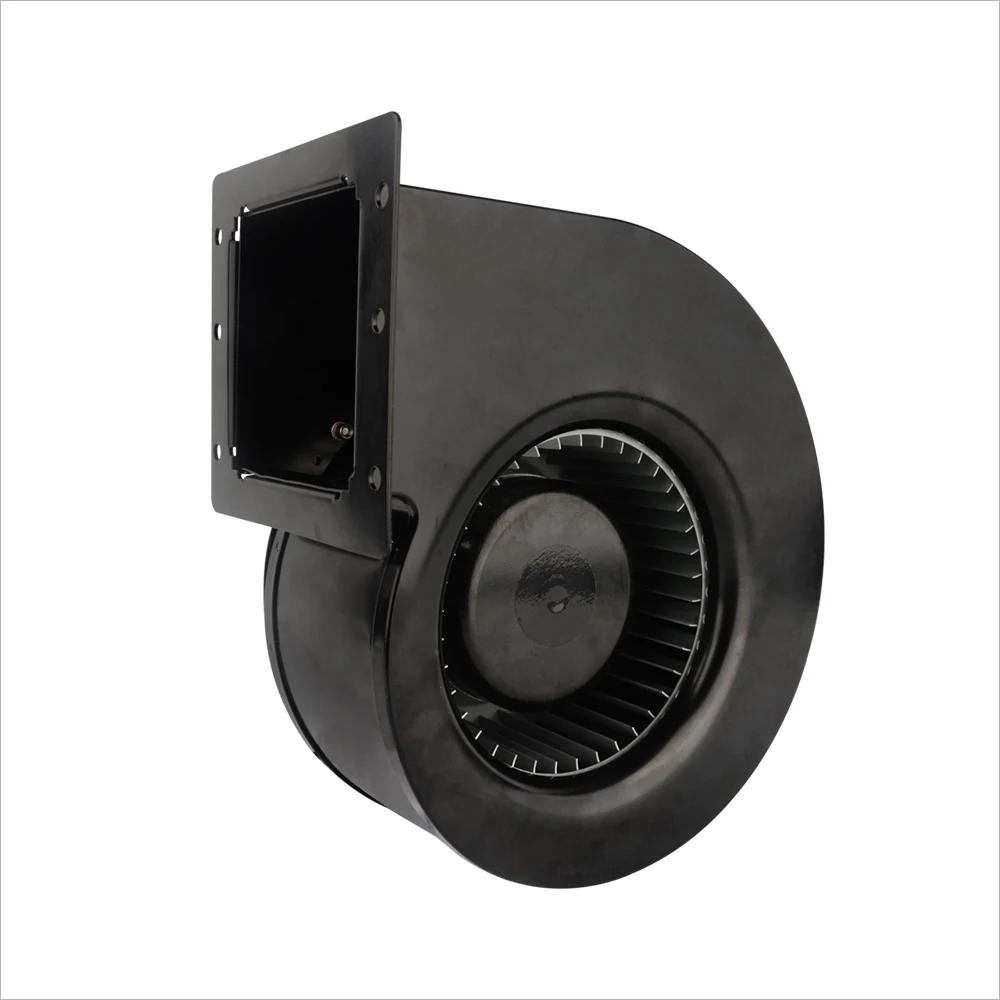

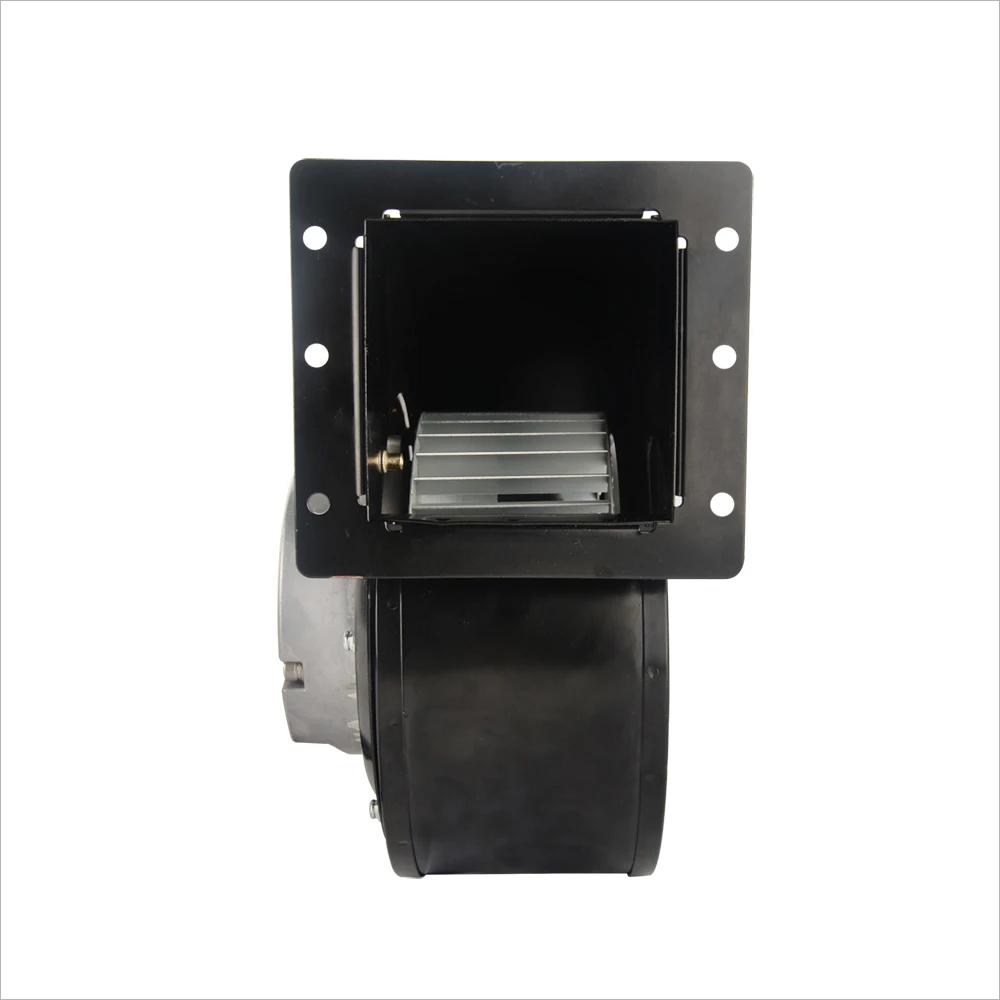

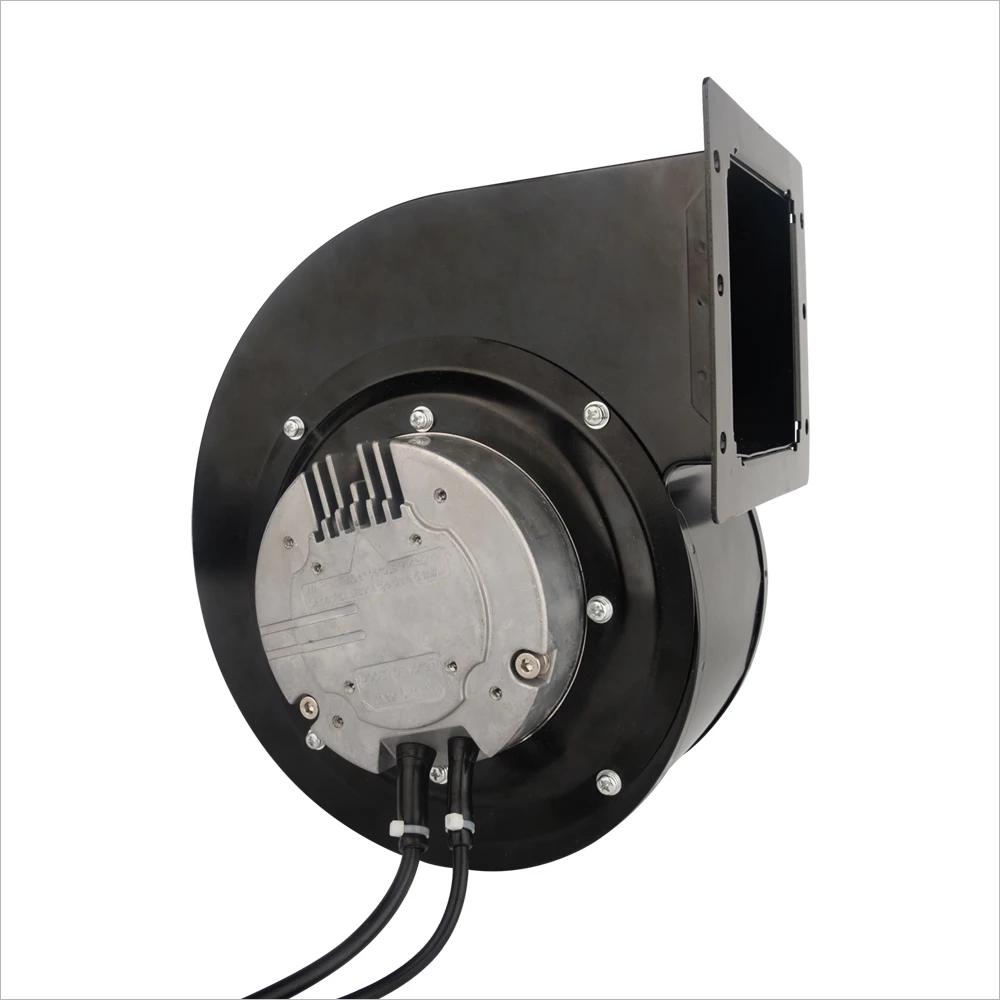

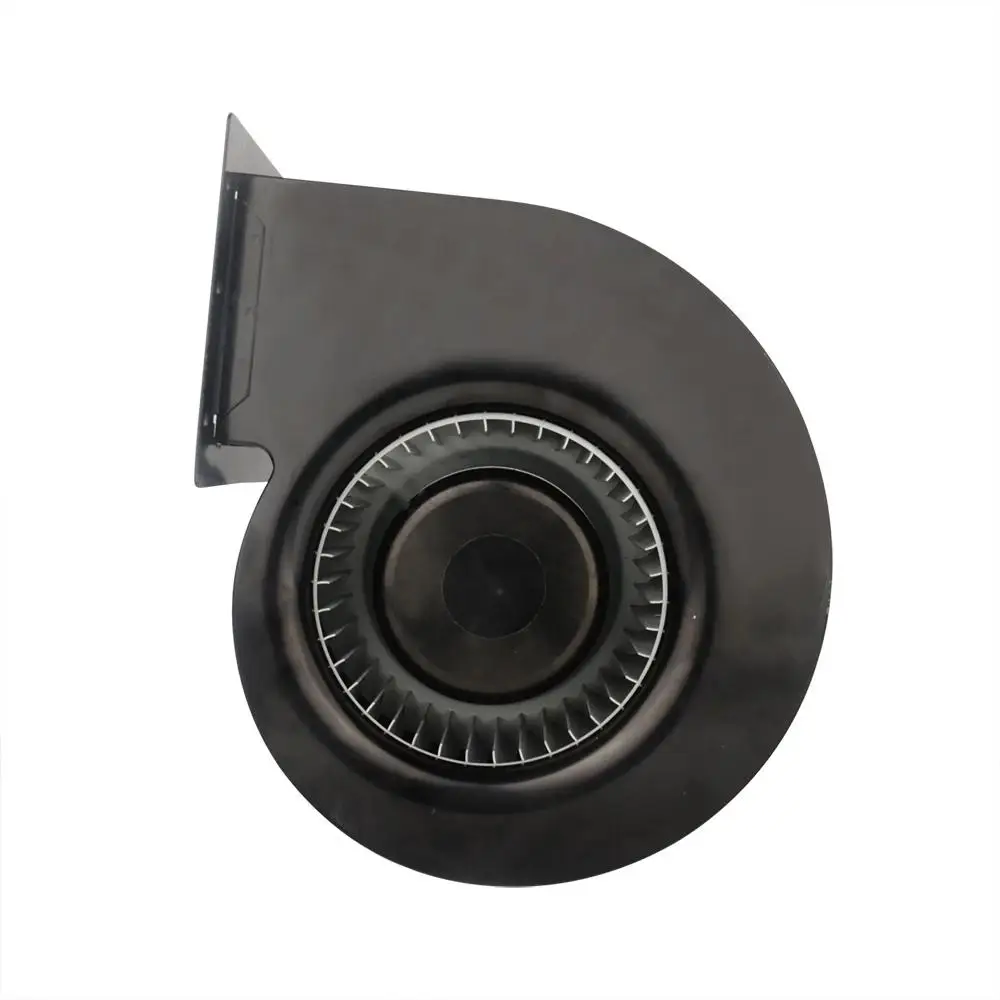

LONGWELL 133mm EC Forward Curved Centrifugal Blower, Forward Curved Blower Fan, 110V, for HVAC Systems, Cold Storage, Air Purifiers

Voltage 110v /220v 24VDC/ 48VDC
ISO / CE / UL / ETL Factory & Test Lab OEM / ODM ebm-papst alternative

$ 100

Specifications
Motor
AC external rotor motor
Speed
4000rpm, 500RPM, 800RPM, 1500RPM, 600RPM, 900rpm, 2000RPM

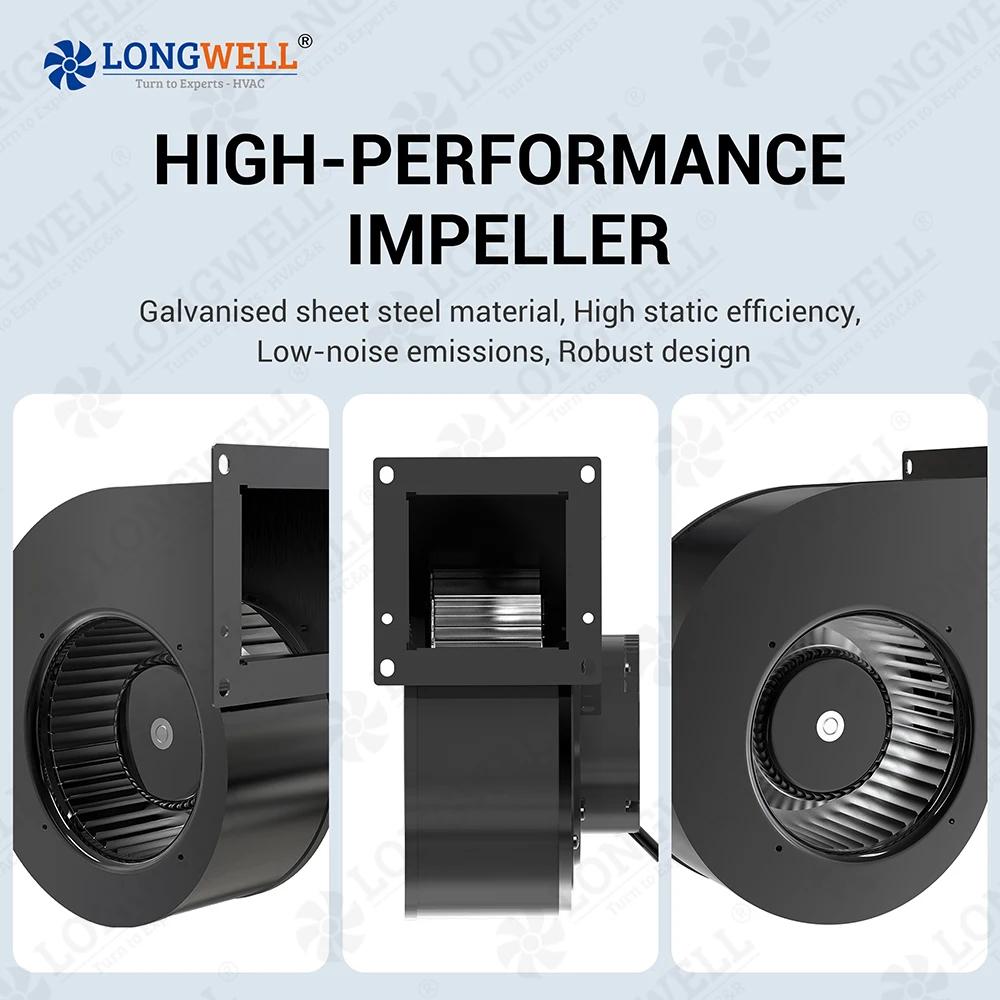

Impeller
Propylene with glass fiber reinforced
Category: Tags: , ,
CategoryForward Curved Centrifugal Fans
TagsAir ConditionerEC MotorForward Curved Centrifugal Fan
Get a Fast Quote from an Engineer Send your airflow, static pressure & voltage — we reply within one working day with a matching model.
✓ 1-day reply ✓ STEP / CAD on request ✓ Factory-direct

Your specifications go straight to a sales engineer — no spam, never shared.

Prefer a datasheet?
Download Product Catalog (PDF)
Need the exact model with a measured or digitised curve? This page describes the Forward Curved Centrifugal Fans range. The Fan Selector lists every LONGWELL forward-curved centrifugal fan model with airflow, static pressure, power, noise, drawing and datasheet.
Search forward-curved centrifugal fan models →
Have your duty point?

See every LONGWELL model whose P-Q curve covers it — margins, noise and power included. No login.

Library: Ø25–1,000 mm, single units up to about 52,000 m³/h — larger duties go straight to an engineer. Prefer to talk it through? Send your specs to an engineer

Description

Types :

133 mm improve heat dissipation EC Forward centrifugal fan for air conditioning condenser
Voltage Ranges :

230V
Frequency :

50/60 Hz
Diamter :

133mm ( impeller diameters )
Motor Types :

BLEC External Rotor Motor ( EC )
Speed Control :

0-10V Signal / PWM / RS485(Optional)
Max.ambient Temp:

-25℃～ +60℃
Certificating :

All necessary certifications suitable for USA & Europe , ETL,UL ,CE ,RoHS, ISO19001,ISO 14001,BSCI
Protection Level:

IP44 ,IP54,IP55
Electronic Protection:

Current limiting protection ,Over-temperature protection,Over-current protection,Locked-rotor protection,Soft start
Working & Storage

Operating temperature：-25~60℃；Operating humidity：0 ~ 85 % RH
Storing temperature：-25 ~ 70℃；Storing humidity：0 ~ 95 % RH
Applicable altitude range：＜1000m
Balancing

According to JB/T 9101-1999 requirements G6.3
Product Standards :

LVD EN60950-1 EMC EN61000-6-3,EN61000-4-2, EN61000-4-3
Mainly Applications

AUH/ AIR PURIFIER / Server Cooling & Ventilation / Grow Tent / Medical equipments/Ventilation SYSTEM/ Equipments Cooling /
Refrigerator ,etc;ventilation fan cooling;ventilation exhaust fans

Additional information

Voltage

110v /220v 24VDC/ 48VDC
speed

4000rpm, 500RPM, 800RPM, 1500RPM, 600RPM, 900rpm, 2000RPM
Blade Material

aluminum alloy
customized support

OEM, ODM, OBM
mounting

Other
place of origin

Zhejiang, China
brand name

LONGWELL
warranty

1 Year
After-sales Service Provided

Free spare parts
Material

STAINLESS STEEL, Plastic, aluminum alloy, Steel
Type

centrifugal fan
Impeller material

Propylene with glass fiber reinforced
Direction

Clockwise
Bearing

Ball Bearing
Motor type

AC external rotor motor
Amb,Temp

-25 to +60℃
Insulation

B/F
Product name

Blower Fan
Application

Exhaust Ventilation
Selling units

Single item
Single package size

50X50X20 cm
Single gross weight

6.000 kg
