LONGWELL DC Industrial Fan, Industrial Ventilation Fan, 120V

Voltage 120V, 230V, 24V, 48V
ISO / CE / UL / ETL Factory & Test Lab OEM / ODM ebm-papst alternative

$ 10

Specifications
Motor
AC external rotor motor
Speed
2500rpm, 3000RPM, 4500rpm, 2700RPM, 2100rpm, 1350RPM, 14000Rpm
Impeller
Propylene with glass fiber reinforced
Category: Tags: , ,
CategoryDuct Fans
TagsDuct FanExhaust VentilationMixed Flow Fan
Get a Fast Quote from an Engineer Send your airflow, static pressure & voltage — we reply within one working day with a matching model.
✓ 1-day reply ✓ STEP / CAD on request ✓ Factory-direct

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

Your specifications go straight to a sales engineer — no spam, never shared.

Prefer a datasheet?
Download Product Catalog (PDF)
Need the exact model with a measured or digitised curve? This page describes the Duct Fans range. The Fan Selector lists every LONGWELL duct fan model with airflow, static pressure, power, noise, drawing and datasheet.
Search duct fan models →
Have your duty point?

See every LONGWELL model whose P-Q curve covers it — margins, noise and power included. No login.

Library: Ø25–1,000 mm, single units up to about 52,000 m³/h — larger duties go straight to an engineer. Prefer to talk it through? Send your specs to an engineer

Description

Product descriptions from the supplier

Warning/Disclaimer

This product has acquired the relevant product qualification(s)/license(s) of certain applicable country/countries.

12V 24V 48V DC AC Ventilation fan Accessories Centrifuge Tube Exhaust Fan inline duct fan

duct fan 06

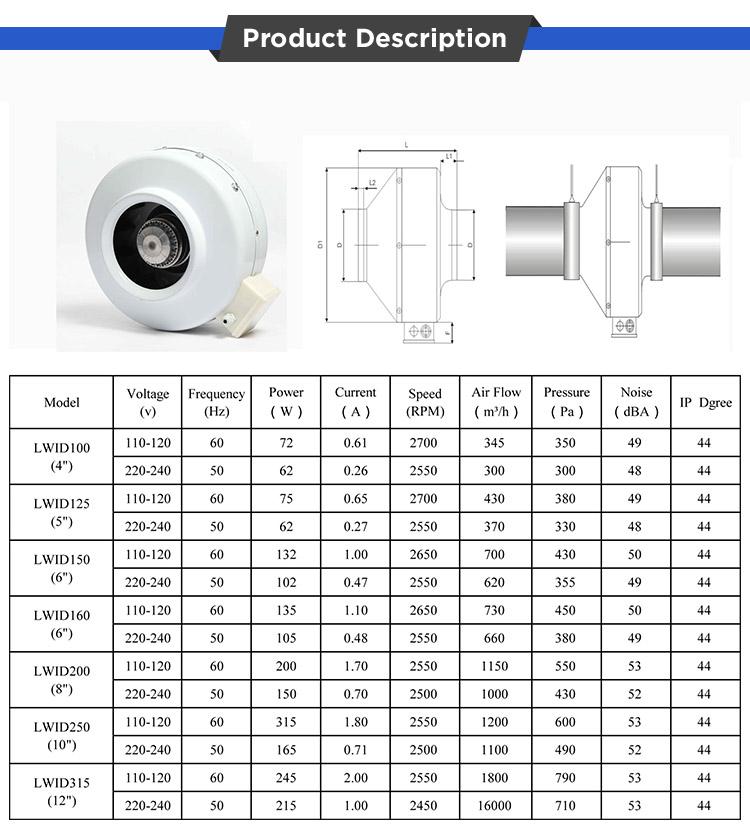

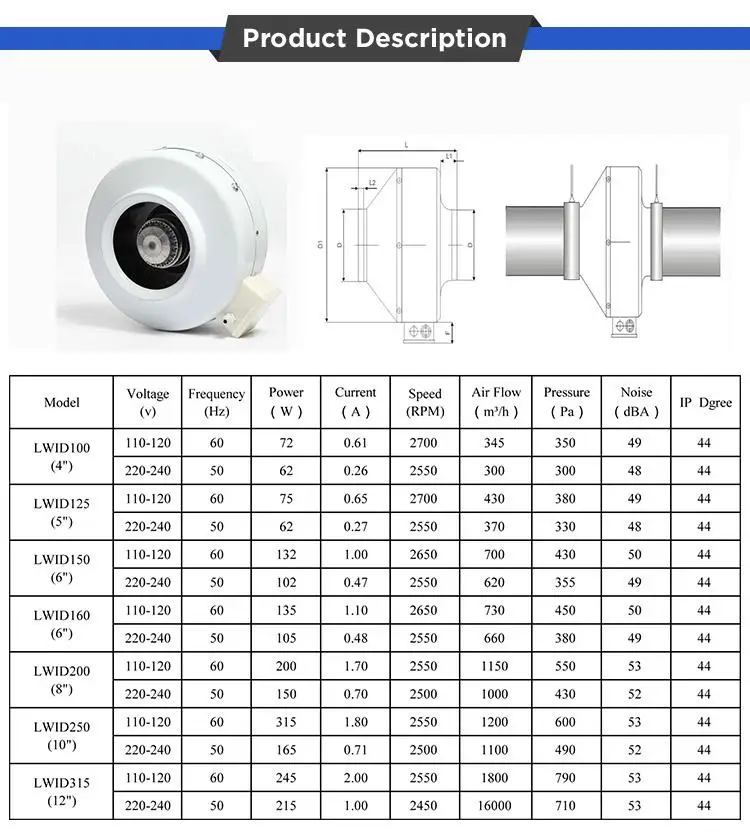

Product Description
Model Number :   LWID – Duct fans mixed flow fans ( Plastic material )
Motor Type :  AC External rotor motor Blade Material :  Plastic
Operation Model :  S1 Insulation Class :  IP 44
Speed control:  1 / 2 / 3 Speeds Insulation Class:  F
Operation Temperature :  -25 ℃ ~ +60 ℃

duct fan 01

duct fan 02

duct fan 08

Custom Service

 backward (8)

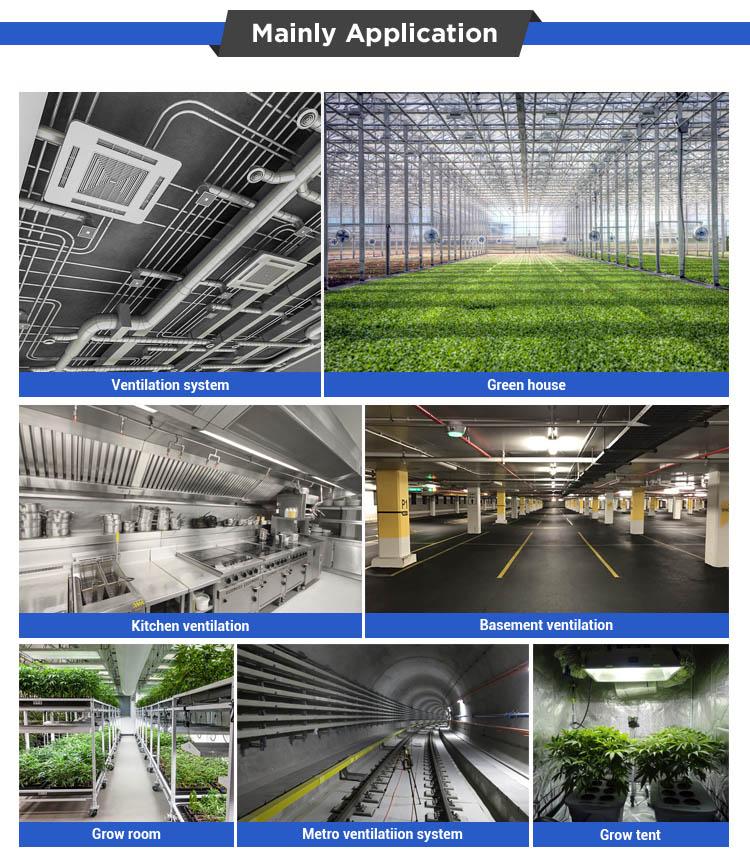

Product Application

duct fan 05

Certifications

backward (14)

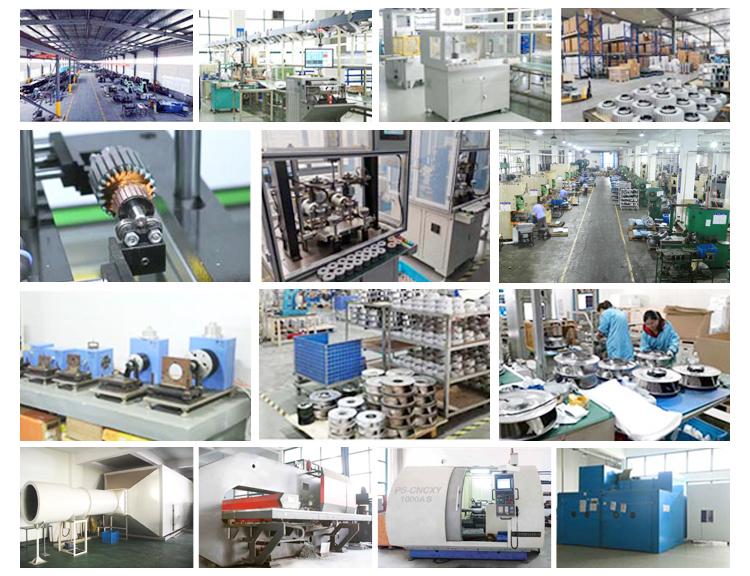

Company Information

backward (17)

duct fan 03

backward (15)

backward (16)

Contact information

backward (20)

Buying Guides

backward (19)

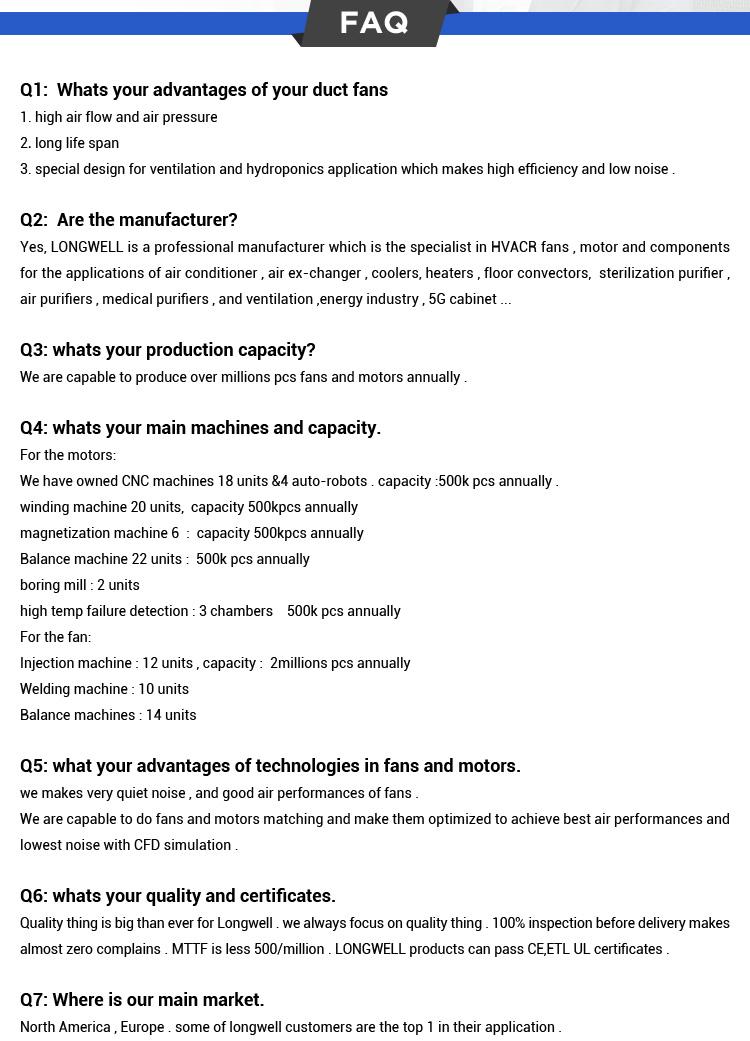

FAQ

duct fan 04

Additional information

mounting type

Duct Fan
Voltage

120V, 230V, 24V, 48V
speed

2500rpm, 3000RPM, 4500rpm, 2700RPM, 2100rpm, 1350RPM, 14000Rpm
Power Source

Electric
blade material

Plastic
bearing type

Ball Bearing
customized support

OEM, ODM, OBM
place of origin

Zhejiang, China
brand name

LONGWELL
model number

LWID 4'' ~ 12''
warranty

1 Year
after-sales service provided

Free spare parts
Material

STAINLESS STEEL
Type

Centrifuge Tube Exhaust Fan
power input

AC 110/230
casing material

Steel
Impeller material

Propylene with glass fiber reinforced
Direction

Clockwise
Bearing

Ball Bearing
Motor type

AC external rotor motor
Amb,Temp

-40 to +60℃
Insulation

B/F
Selling units

Single item
Single package size

30X30X30 cm
Single gross weight

4.000 kg
