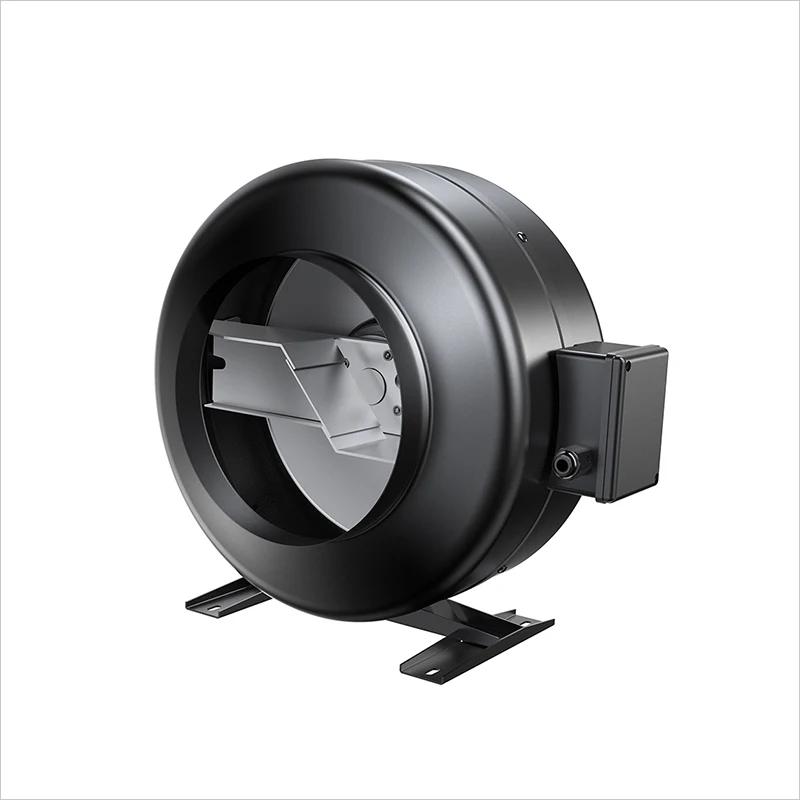

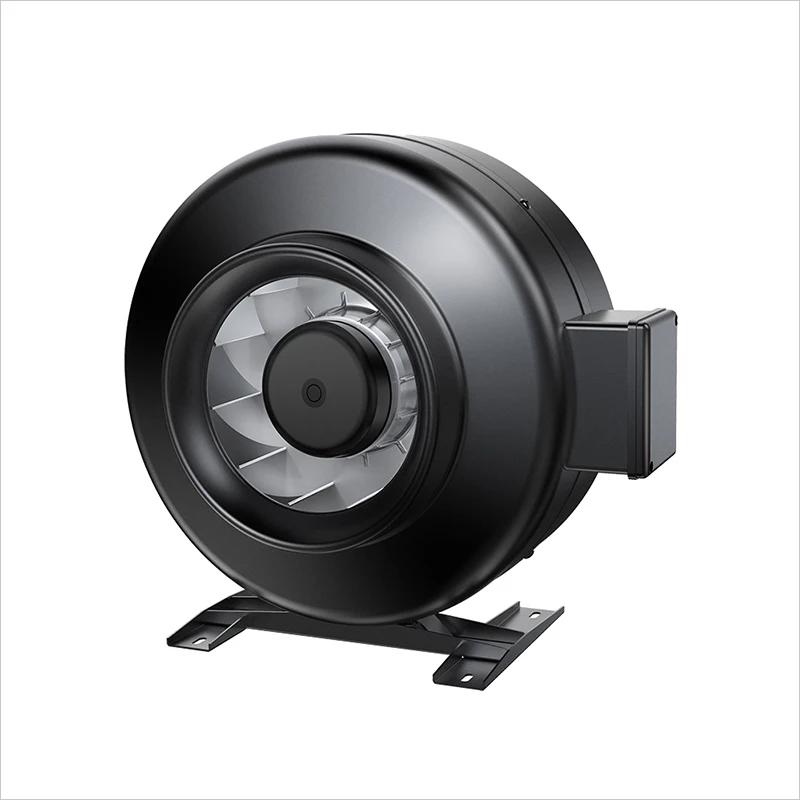

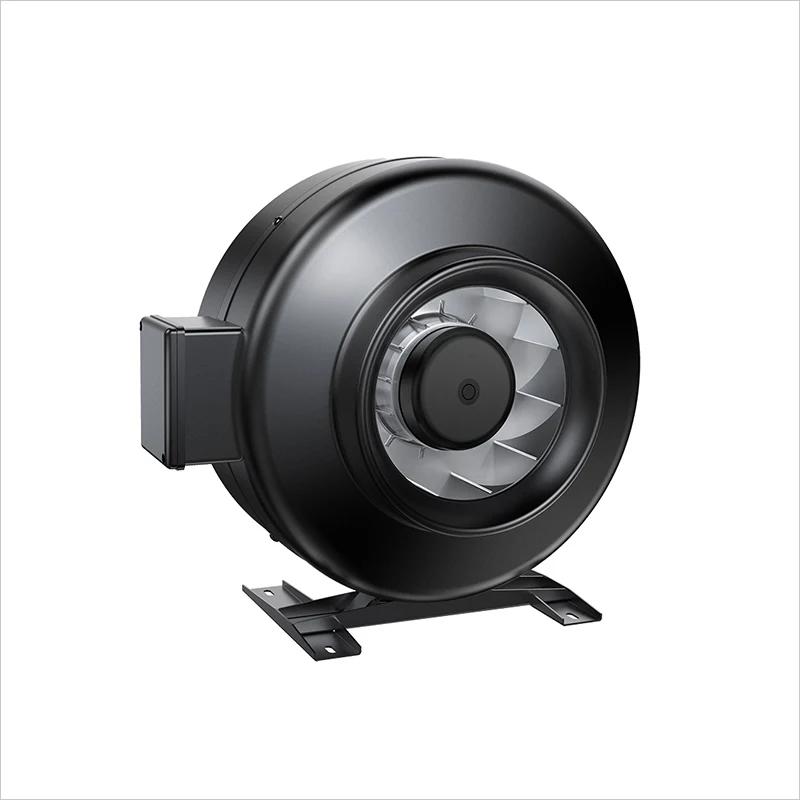

LONGWELL 250mm EC Industrial Fan, Industrial Ventilation Fan, 110V, for Control Cabinet Cooling, Cold Storage, Air Purifiers

Name: LONGWELL 250mm EC Industrial Fan, Industrial Ventilation Fan, 110V, for Control Cabinet Cooling, Cold Storage, Air Purifiers
Brand: Ningbo Longwell Electric Technology Co., Ltd.

Voltage 110v /220v 24VDC/ 48VDC

ISO / CE / UL / ETL Factory & Test Lab OEM / ODM ebm-papst alternative

$ 10

Specifications

Motor: EC/AC external rotor motor
Speed: 4000rpm, 500RPM, 800RPM, 1500RPM, 600RPM, 900rpm, 2000RPM
Impeller: Propylene with glass fiber reinforced

Category: EC Metal Duct Fans Tags: Duct Fan, EC Motor, Hydroponic Grow Tents

CategoryEC Metal Duct Fans

TagsDuct Fan EC Motor Hydroponic Grow Tents

Get a Fast Quote from an Engineer Send your airflow, static pressure & voltage — we reply within one working day with a matching model.

✓ 1-day reply ✓ STEP / CAD on request ✓ Factory-direct

Name

Work Email

Phone / WhatsApp

Estimated order quantity

Message

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

Your specifications go straight to a sales engineer — no spam, never shared.

Prefer a datasheet?

Download Product Catalog (PDF)

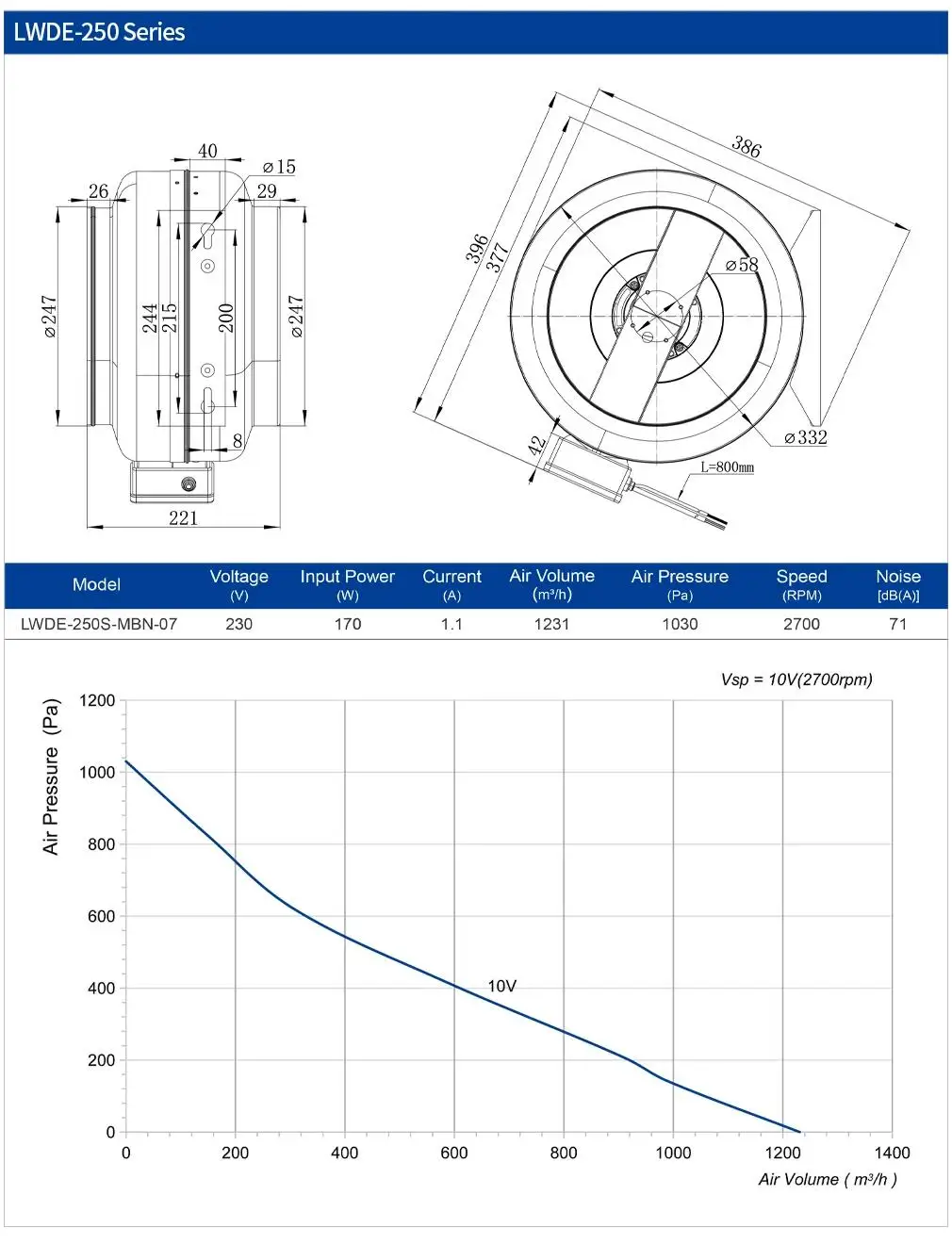

Need the exact model with a measured or digitised curve? This page describes the EC Metal Duct Fans range. The Fan Selector lists every LONGWELL EC metal duct fan model with airflow, static pressure, power, noise, drawing and datasheet.

Search EC metal duct fan models →

Description

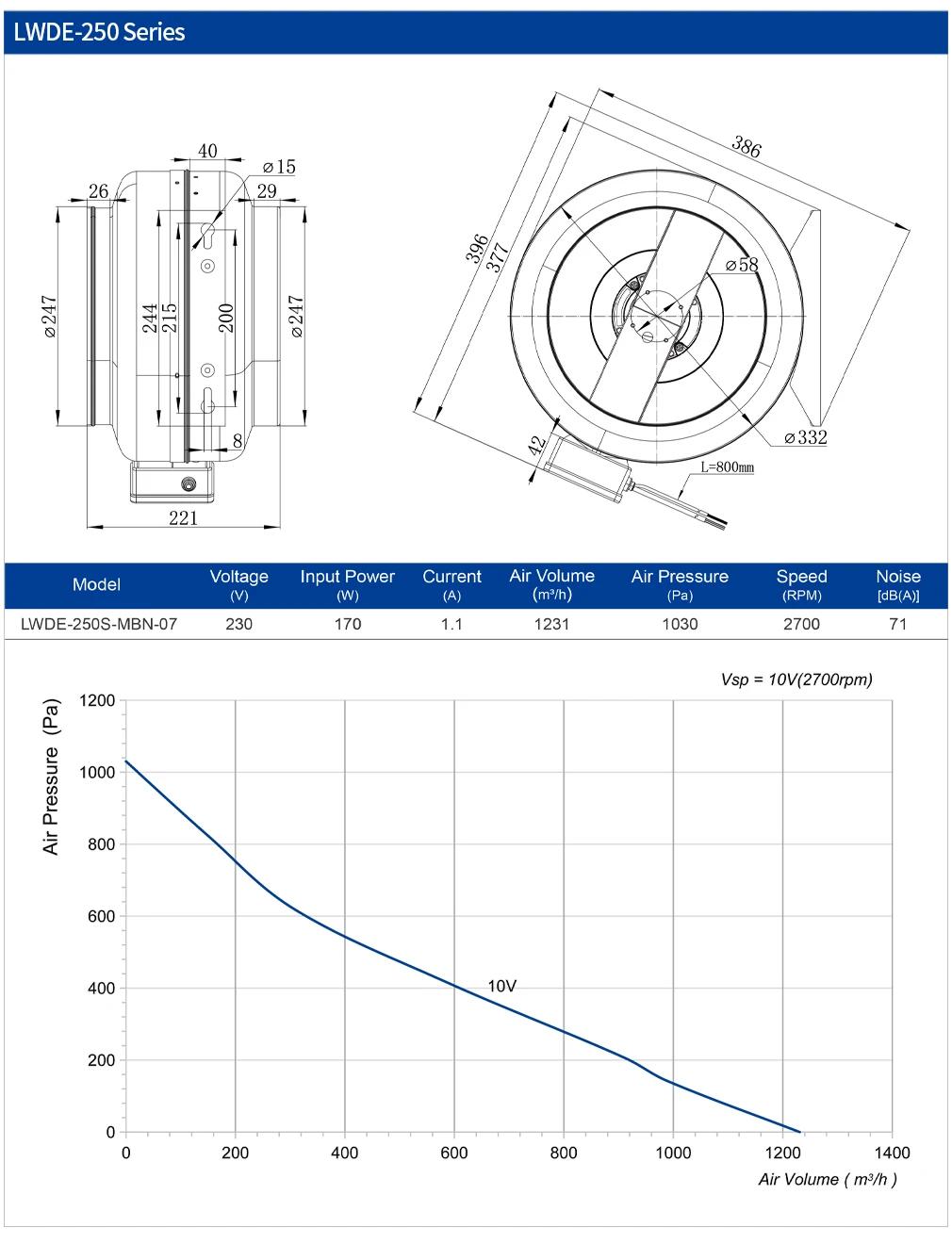

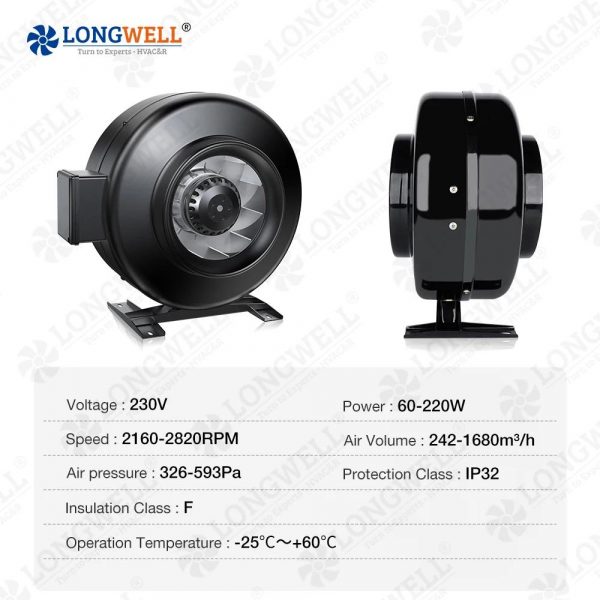

Types :	Safety at the Core Superior 250mm EC Metal Duct Fans Blowers for Industrial Applications
Voltage Ranges :	230V
Frequency :	50/60 Hz
Diamter :	250mm ( impeller diameters )
Motor Types :	BLEC External Rotor Motor
Speed Control :	0-10V Signal / PWM / RS485(Optional)
Max.ambient Temp:	-25℃～ +60℃
Certificating :	All necessary certifications suitable for USA & Europe , ETL,UL ,CE ,RoHS, ISO19001,ISO 14001,BSCI
Protection Level:	IP44 ,IP54,IP55
Electronic Protection:	Current limiting protection ,Over-temperature protection,Over-current protection,Locked-rotor protection,Soft start
Working & Storage	Operating temperature：-25~60℃；Operating humidity：0 ~ 85 % RH Storing temperature：-25 ~ 70℃；Storing humidity：0 ~ 95 % RH Applicable altitude range：＜1000m
Balancing	According to JB/T 9101-1999 requirements G6.3
Product Standards :	LVD EN60950-1 EMC EN61000-6-3,EN61000-4-2, EN61000-4-3
Mainly Applications	AUH/ AIR PURIFIER / Server Cooling & Ventilation / Grow Tent /Ventilation SYSTEM/ Equipments Cooling /Refrigerator ,etc;ventilation fan cooling;ventilation exhaust fans

Additional information

Voltage	110v /220v 24VDC/ 48VDC
speed	4000rpm, 500RPM, 800RPM, 1500RPM, 600RPM, 900rpm, 2000RPM
Blade Material	Metal
customized support	OEM, ODM, OBM
mounting	Duct Fan
place of origin	Zhejiang, China
brand name	LONGWELL
model number	LWID 4'' ~ 12''
warranty	1 Year
After-sales Service Provided	Field maintenance and repair service
Material	STAINLESS STEEL, Plastic, aluminum alloy, Steel
Type	Inline Duct Fan
power input	EC-AC 110/230,DC12/24/48V
casing material	Plastic or Galvanized Metal
Impeller material	Propylene with glass fiber reinforced
Bearing	Ball Bearing
Approvals	UL / CE / BSCI / ISO
Motor type	EC/AC external rotor motor
Amb,Temp	-25 to +60℃
Insulation	B/F
Application	Vertical Farming / Cabinet / Home Ventilation
Selling units	Single item
Single package size	20X18X30 cm
Single gross weight	5.000 kg
