AT 12-12L2 — Belt-Driven Forward-Curved Centrifugal Blower

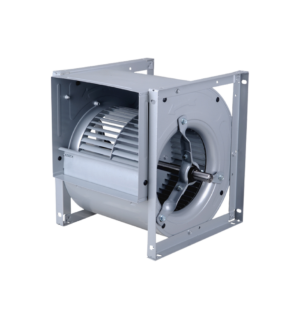

The LONGWELL AT 12-12L2 is a forward-curved (multi-wing) centrifugal blower from the AT belt-driven commercial range. Per the AT series type code, 12 is the impeller diameter designation and 12 the impeller width designation; Construction type L2 (AT series type code). The casing measures 491.5×521 mm housing (dimensions A–B below). Because the fan is belt-driven, the duty point is set by the pulley ratio you choose — the figures below are the operating envelope printed on the AT 12-12 catalogue performance chart, not a single rated point.
LONGWELL states the AT series covers 1,000–40,000 m³/h overall, and is characterised by compact construction, high efficiency and low noise. Catalogue performance is quoted at standard conditions (inlet pressure 101.325 kPa).
Performance envelope
| Volume flow rate | 1,500 – 13,000 m³/h |
| Total pressure Pt | 125 – 1,000 Pa |
| Rotational speed | 600 – 1,500 rpm |
| Impeller power | 0.15 – 5 kW |
| Sound pressure level | 60 – 85 dB(A) |
| Total efficiency η | up to 59% |
Send us your required airflow and static pressure and our engineers will return the matching speed, pulley set and motor rating.
Dimensions (mm)
| A | 491.5 mm |
| B | 521 mm |
| C | 341 mm |
| D | 294 mm |
| E | 408 mm |
| I | 1224 mm |
| J | 395 mm |
| K | 421 mm |
| L | 1164 mm |
| M | 110 mm |
| N | 230 mm |
| P | 324 mm |
| V | 298 mm |
| W | 70 mm |
| X | 33 mm |
| X1 | 161 mm |
| X2 | 153 mm |
| X3 | 161 mm |
| H1 | 332 mm |
| H2 | 266 mm |
| H3 | 232 mm |
| d | 30 mm |
| t | 8 mm |
| t1 | 7 mm |
Letter codes correspond to the AT series dimensional drawing shown below. All values from the LONGWELL AT series catalogue.
Performance curves
Dimensional drawing
