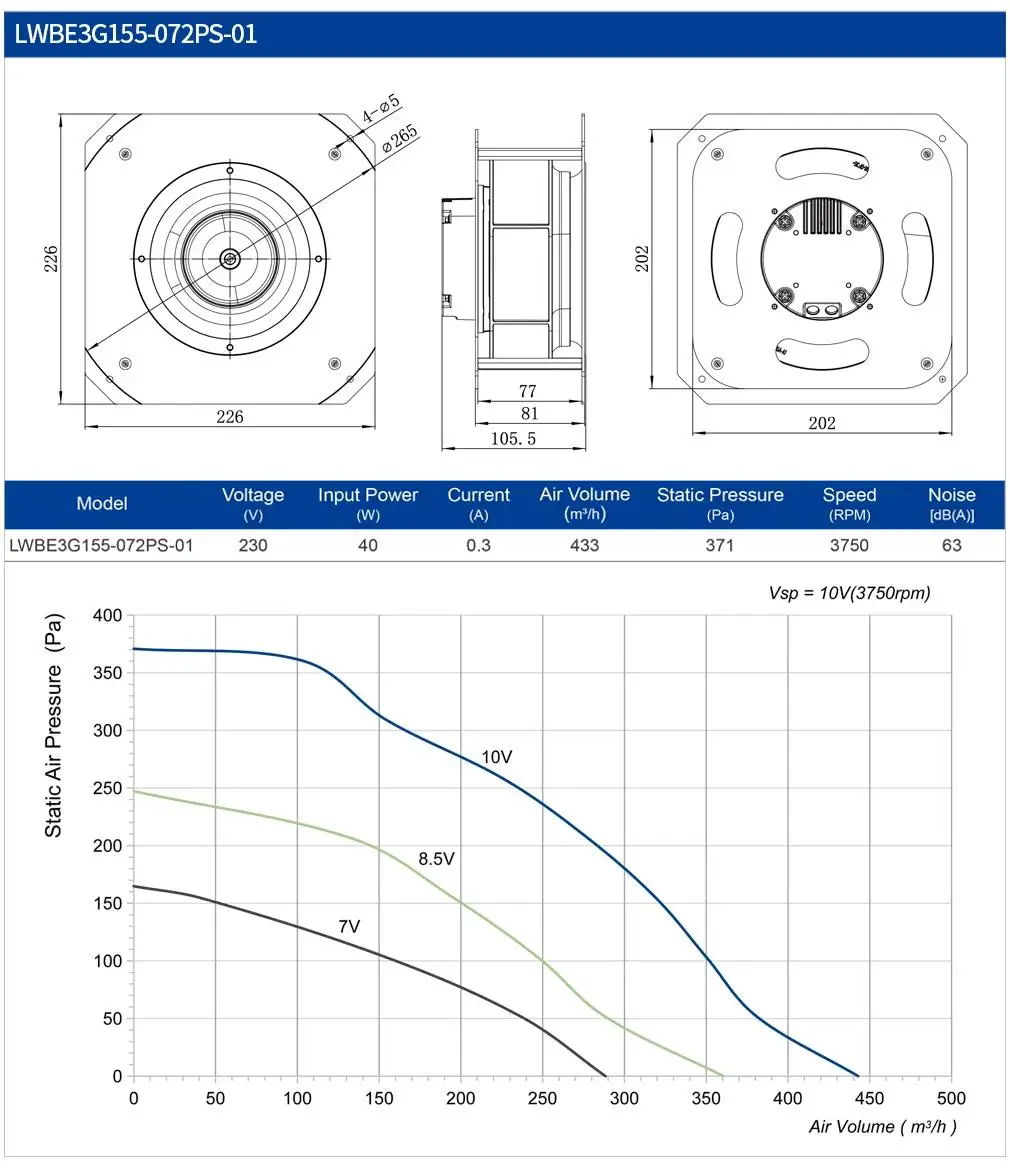

LONGWELL 155mm EC Centrifugal Blower Fan, Industrial Centrifugal Fan, 220V, for Cold Storage, Air Purifiers, HVAC Systems – LWBE3G155

Voltage 220V
ISO / CE / UL / ETL Factory & Test Lab OEM / ODM ebm-papst alternative

$ 100

Specifications
Motor
EC external rotor motor
Speed
4000rpm, 500RPM, 800RPM, 1500RPM, 600RPM, 900rpm, 2000RPM
Impeller
Plastic
Frequency
50/60Hz
Category: Tags: , ,
CategoryIndustrial Centrifugal Fan
TagsCentrifugal FanExternal Rotor MotorMobile Applications
Get a Fast Quote from an Engineer Send your airflow, static pressure & voltage — we reply within one working day with a matching model.
✓ 1-day reply ✓ STEP / CAD on request ✓ Factory-direct

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

Your specifications go straight to a sales engineer — no spam, never shared.

Prefer a datasheet?
Download Product Catalog (PDF)
Need the exact model with a measured or digitised curve? This page describes the Industrial Centrifugal Fan range. The Fan Selector lists every LONGWELL centrifugal fan model with airflow, static pressure, power, noise, drawing and datasheet.
Search centrifugal fan models →
Have your duty point?

See every LONGWELL model whose P-Q curve covers it — margins, noise and power included. No login.

Library: Ø25–1,000 mm, single units up to about 52,000 m³/h — larger duties go straight to an engineer. Prefer to talk it through? Send your specs to an engineer

Description

Types :

155mm EC centrifugal fan Compact Centrifugal Fans with External Rotor Motor Technology for Mobile Applications
Voltage Ranges :

115V,230V
Frequency :

50/60 Hz
Diamter :

155mm ( impeller diameters )
Motor Types :

BLEC External Rotor Motor ( EC )
Speed Control :

0-10V Signal / PWM / RS485(Optional)
Max.ambient Temp:

-25℃～ +60℃
Certificating :

All necessary certifications suitable for USA & Europe , ETL,UL ,CE ,RoHS, ISO19001,ISO 14001,BSCI
Protection Level:

IP44 ,IP54,IP55
Electronic Protection:

Current limiting protection ,Over-temperature protection,Over-current protection,Locked-rotor protection,Soft start
Working & Storage

Operating temperature：-25~60℃；Operating humidity：0 ~ 85 % RH
Storing temperature：-25 ~ 70℃；Storing humidity：0 ~ 95 % RH
Applicable altitude range：＜1000m
Balancing

According to JB/T 9101-1999 requirements G6.3
Product Standards :

LVD EN60950-1 EMC EN61000-6-3,EN61000-4-2, EN61000-4-3

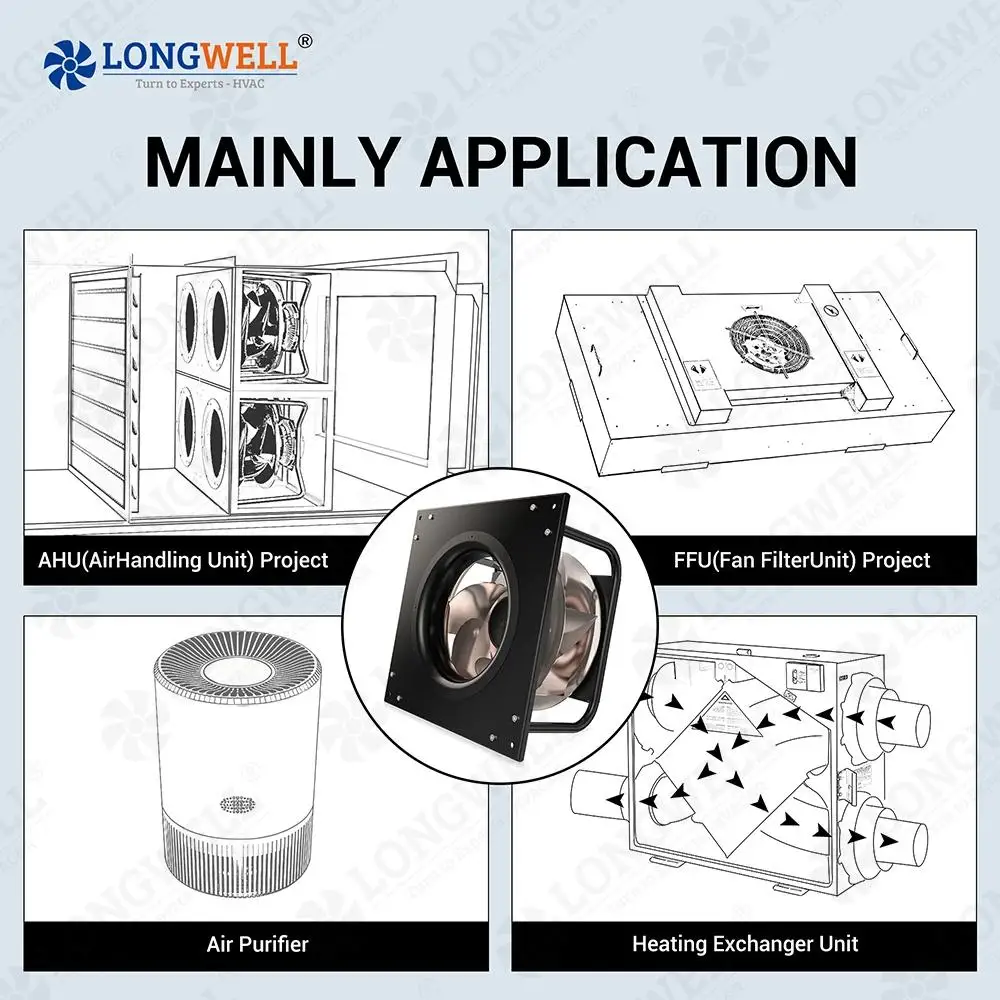

Mainly Applications

AUH/ AIR PURIFIER / Server Cooling & Ventilation / Grow Tent /Ventilation SYSTEM/ Equipments Cooling /Refrigerator ,etc;ventilation fan cooling;ventilation exhaust fans

Additional information

Voltage

220V
speed

4000rpm, 500RPM, 800RPM, 1500RPM, 600RPM, 900rpm, 2000RPM
Blade Material

aluminum alloy
customized support

OEM, ODM, OBM
mounting

Other
place of origin

Zhejiang, China
brand name

LONGWELL
model number

LWBE3G155
warranty

1 Year
After-sales Service Provided

Field maintenance and repair service
Material

Stainless Steel, Plastic, aluminum alloy, Steel
Type

EC plug fan
power input

AC 115V/230V,30W
Impeller material

Plastic
Direction

Clockwise
Bearing

Ball Bearing
Motor type

EC external rotor motor
Amb,Temp

-25 to +60℃
Insulation

B/F
Frequency

50/60Hz
Product name

Industrial Centrifugal Fans
Selling units

Single item
Single package size

25X25X20 cm
Single gross weight

5.000 kg

Reviews

There are no reviews yet.

Be the first to review “LONGWELL 155mm EC Centrifugal Blower Fan, Industrial Centrifugal Fan, 220V, for Cold Storage, Air Purifiers, HVAC Systems – LWBE3G155”

Your email address will not be published. Required fields are marked *

More in this series

LONGWELL AT 18-13R Belt-Driven Forward-Curved Centrifugal Blower — 1,300–20,000 m³/h, up to 900 PaLONGWELL AT 18-13R Belt-Driven Forward-Curved Centrifugal Blower — 1,300–20,000 m³/h, up to 900 Pa690×751 mm1 m³/hMotor selected to duty — 220/380/415 V availableView & InquireLONGWELL 450mm Centrifugal Blower Fan, Industrial Centrifugal Fan, 6230 m³/h Airflow, 710 Pa Static Pressure, for HVAC Systems – LWFA-E-450-01LONGWELL 450mm Centrifugal Blower Fan, Industrial Centrifugal Fan, 6230 m³/h Airflow, 710 Pa Static Pressure, for HVAC Systems – LWFA-E-450-01450 mm6230-12660 m³/h710-625 PaDatasheet, curve & drawing →LONGWELL AT 12-12R Belt-Driven Forward-Curved Centrifugal Blower — 1,500–13,000 m³/h, up to 1,000 PaLONGWELL AT 12-12R Belt-Driven Forward-Curved Centrifugal Blower — 1,500–13,000 m³/h, up to 1,000 Pa494×527 mm1 m³/hMotor selected to duty — 220/380/415 V availableView & InquireLONGWELL AT 10-10L Belt-Driven Forward-Curved Centrifugal Blower — 800–10,000 m³/h, up to 1,100 PaLONGWELL AT 10-10L Belt-Driven Forward-Curved Centrifugal Blower — 800–10,000 m³/h, up to 1,100 Pa430×446 mm800–10Motor selected to duty — 220/380/415 V availableView & InquireLONGWELL 280mm AC Centrifugal Blower Fan, Industrial Centrifugal Fan, 115V IP54, Low Noise, for HVAC Systems, Cold Storage, Air Purifiers – LWBA-280MMLONGWELL 280mm AC Centrifugal Blower Fan, Industrial Centrifugal Fan, 115V IP54, Low Noise, for HVAC Systems, Cold Storage, Air Purifiers – LWBA-280MM115v/230v/380v4000 RPMOtherView & InquireLONGWELL 500mm Centrifugal Blower Fan, Industrial Centrifugal FanLONGWELL 500mm Centrifugal Blower Fan, Industrial Centrifugal Fan500 mmView & InquireLWHCF6-33 Aluminum High-pressure Centrifugal BlowerLWHCF6-33 Aluminum High-pressure Centrifugal BlowerView & InquireLONGWELL AT 15-11LK Belt-Driven Forward-Curved Centrifugal Blower — 1,600–12,000 m³/h, up to 1,300 PaLONGWELL AT 15-11LK Belt-Driven Forward-Curved Centrifugal Blower — 1,600–12,000 m³/h, up to 1,300 Pa569×609 mm1 m³/hMotor selected to duty — 220/380/415 V availableView & InquireLONGWELL 7mm EC Centrifugal Blower Fan, Industrial Centrifugal Fan, 220V, 1602 m³/h Airflow, 349 Pa Static Pressure – LWDD7-7-ECLONGWELL 7mm EC Centrifugal Blower Fan, Industrial Centrifugal Fan, 220V, 1602 m³/h Airflow, 349 Pa Static Pressure – LWDD7-7-EC7-7 mm1602~2263 m³/h220 VDatasheet, curve & drawing →LONGWELL AT 12-9L Belt-Driven Forward-Curved Centrifugal Blower — 800–10,500 m³/h, up to 1,250 PaLONGWELL AT 12-9L Belt-Driven Forward-Curved Centrifugal Blower — 800–10,500 m³/h, up to 1,250 Pa491.5×521 mm800–10Motor selected to duty — 220/380/415 V availableView & Inquire

Related for the same application

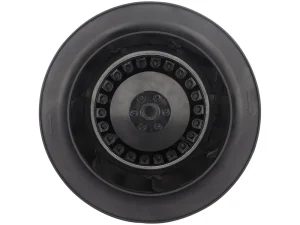

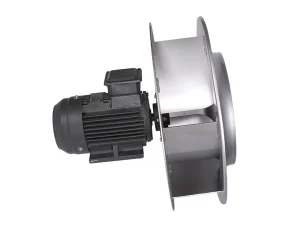

LONGWELL 560mm Backward Curved Centrifugal Fan, Industrial Centrifugal Blower, 380V, for AHU, HVAC Systems, Cold StorageLONGWELL 560mm Backward Curved Centrifugal Fan, Industrial Centrifugal Blower, 380V, for AHU, HVAC Systems, Cold Storage380V(as requiremnts)4000 RPMOtherView & InquireLONGWELL Centrifugal Blower Fan, Industrial Centrifugal Fan, 230V, for AHU, Air Purifiers, HVAC Systems – LWBE3G355LONGWELL Centrifugal Blower Fan, Industrial Centrifugal Fan, 230V, for AHU, Air Purifiers, HVAC Systems – LWBE3G355230V2800rpmEC external rotor motorView & InquireLONGWELL Forward Curved Centrifugal Blower, Forward Curved Blower Fan, 230V, Galvanized Steel, for AHU, FFU, Data Center CoolingLONGWELL Forward Curved Centrifugal Blower, Forward Curved Blower Fan, 230V, Galvanized Steel, for AHU, FFU, Data Center Cooling4 in230 V4000 RPMView & InquireLONGWELL AC Direct Drive Centrifugal Fan, Industrial HVAC Blower, 230V, for HVAC Systems, Cold Storage, Air PurifiersLONGWELL AC Direct Drive Centrifugal Fan, Industrial HVAC Blower, 230V, for HVAC Systems, Cold Storage, Air Purifiers230V4000rpmInternal rotor motorView & InquireLONGWELL 355mm EC Centrifugal Blower Fan, Industrial Centrifugal Fan, 230V 0–10V/PWM Control, Stainless Steel, PWM Control, for AHU, FFU, Data Center CoolingLONGWELL 355mm EC Centrifugal Blower Fan, Industrial Centrifugal Fan, 230V 0–10V/PWM Control, Stainless Steel, PWM Control, for AHU, FFU, Data Center Cooling280mm230 V3500rpmView & InquireLONGWELL Backward Curved Centrifugal Fan, Industrial Centrifugal Blower, 115/230V, for AHU, FFU, Fan Coil UnitsLONGWELL Backward Curved Centrifugal Fan, Industrial Centrifugal Blower, 115/230V, for AHU, FFU, Fan Coil UnitsView & InquireLONGWELL Centrifugal Blower Fan, Industrial Centrifugal Fan, 110V – LWLONGWELL Centrifugal Blower Fan, Industrial Centrifugal Fan, 110V – LW110v /220v 24VDC/ 48VDC4000rpmAC external rotor motorView & InquireLONGWELL 450mm AC Axial Fan, Industrial Axial Ventilation Fan, 220V, Stainless Steel, for Cold Storage, Air Purifiers, HVAC SystemsLONGWELL 450mm AC Axial Fan, Industrial Axial Ventilation Fan, 220V, Stainless Steel, for Cold Storage, Air Purifiers, HVAC Systems220V2500rpmAC Induction Capacitor MotorView & InquireLONGWELL 355mm EC Centrifugal Blower Fan, Industrial Centrifugal Fan, PWM Control, Stainless Steel, PWM Control, for Cold Storage, Air Purifiers, HVAC SystemsLONGWELL 355mm EC Centrifugal Blower Fan, Industrial Centrifugal Fan, PWM Control, Stainless Steel, PWM Control, for Cold Storage, Air Purifiers, HVAC SystemsView & InquireLONGWELL Centrifugal Blower Fan, Industrial Centrifugal Fan, 230V, for AHU, Air Purifiers, HVAC Systems – LWBE3G355LONGWELL Centrifugal Blower Fan, Industrial Centrifugal Fan, 230V, for AHU, Air Purifiers, HVAC Systems – LWBE3G355230V2800rpmEC external rotor motorView & Inquire
