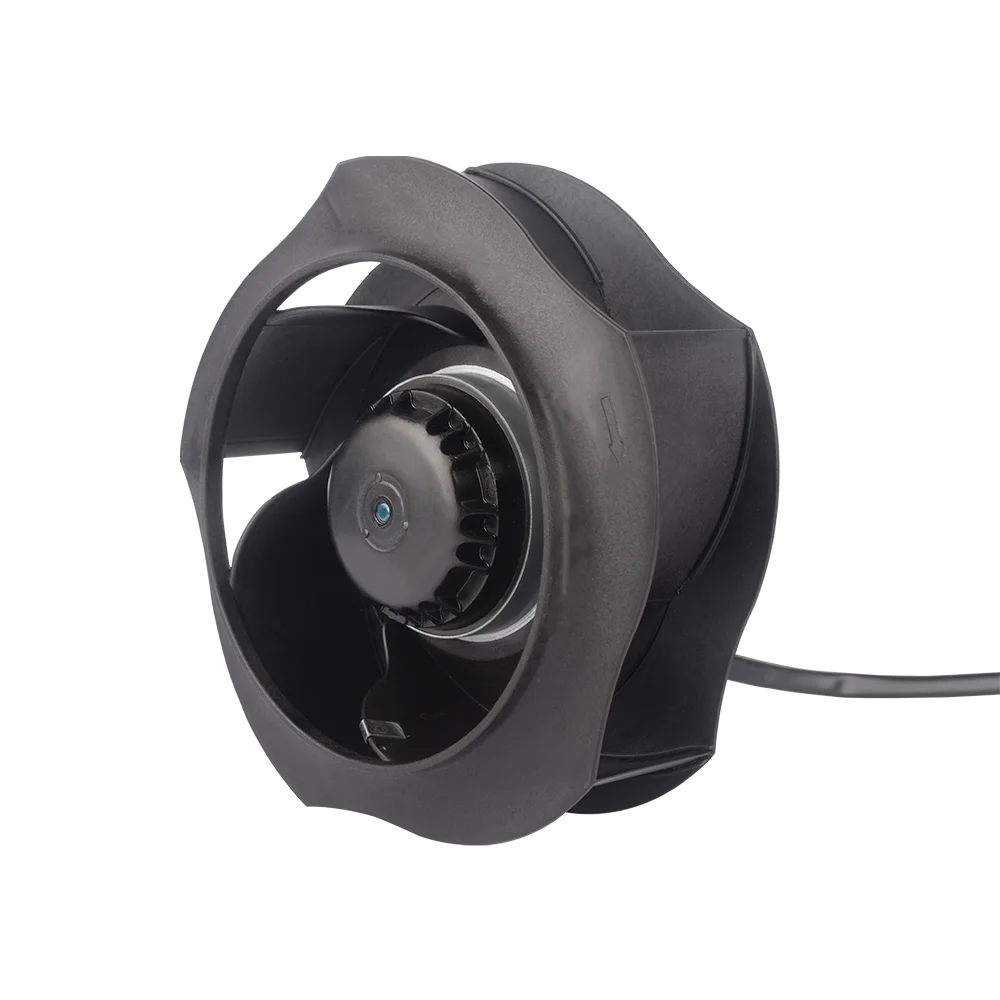

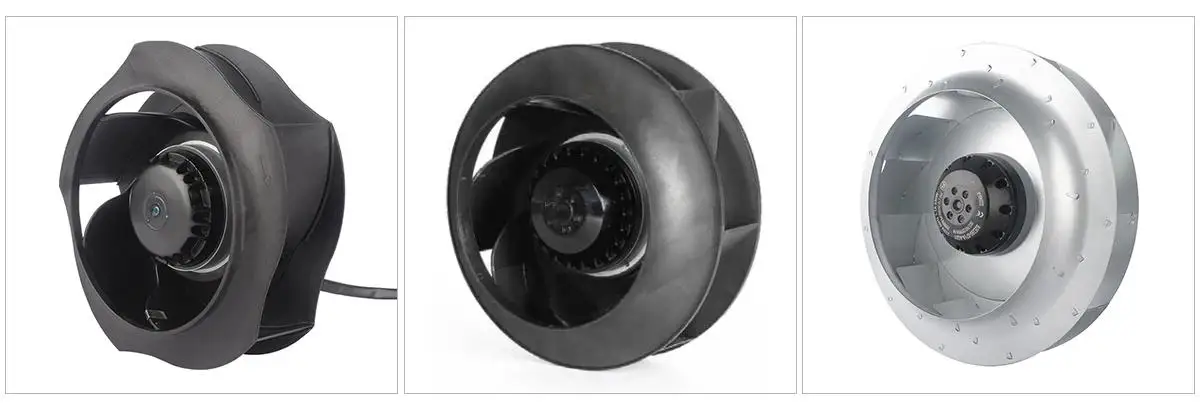

LONGWELL 250mm AC Backward Curved Centrifugal Fan, Industrial Centrifugal Blower, 115V IP54, for HVAC Systems – LWBA-250MM-METAL

Voltage 115V/230V/380V
ISO / CE / UL / ETL Factory & Test Lab OEM / ODM ebm-papst alternative

$ 20

Specifications
Protection
IP 54
Motor
AC Capacitor Motor 115V / 230V
Category: Tags: , ,
CategoryBackward Curved Centrifugal Fans
TagsBackward Curved Centrifugal FanCentrifugal FanHVAC System
Get a Fast Quote from an Engineer Send your airflow, static pressure & voltage — we reply within one working day with a matching model.
✓ 1-day reply ✓ STEP / CAD on request ✓ Factory-direct

Your specifications go straight to a sales engineer — no spam, never shared.

Prefer a datasheet?
Download Product Catalog (PDF)
Need the exact model with a measured or digitised curve? This page describes the Backward Curved Centrifugal Fans range. The Fan Selector lists every LONGWELL backward-curved centrifugal fan model with airflow, static pressure, power, noise, drawing and datasheet.
Search backward-curved centrifugal fan models →
Have your duty point?

See every LONGWELL model whose P-Q curve covers it — margins, noise and power included. No login.

Library: Ø25–1,000 mm, single units up to about 52,000 m³/h — larger duties go straight to an engineer. Prefer to talk it through? Send your specs to an engineer

Description

Diameter of Impeller :
250mm
Nominal Voltage :
115V /220V ( EC)
Frequency :
50/60Hz
IP Level :
IP 55 ,IP 54
Speed Control :
Control Input 0-10VDC /  PWM
Life Expectance
50,000Hours(L10)，At 40℃ room, humidity 15%~65%RH.
Electronic Protection  :
Locked-rotor Protection ; Locked-Rotor Protection ; Over- Current Protection ;

Over- Voltage Protection ; Soft Start ;Reverse Polarity Protection

Ambient Temp Rangs
-25 ℃ – +60 ℃

Additional information

Voltage

115V/230V/380V
customized support

OEM, ODM, OBM
mounting

FREE STANDING
place of origin

Zhejiang, China
brand name

LONGWELL
model number

LWBA-250mm-Metal
warranty

1 Year
After-sales Service Provided

Video technical support
Material

Stainless Steel, Plastic, aluminum alloy, Steel
Motor Type

AC Capacitor Motor 115V / 230V
Specification

112W,50/60 Hz
power input

AC 110/230

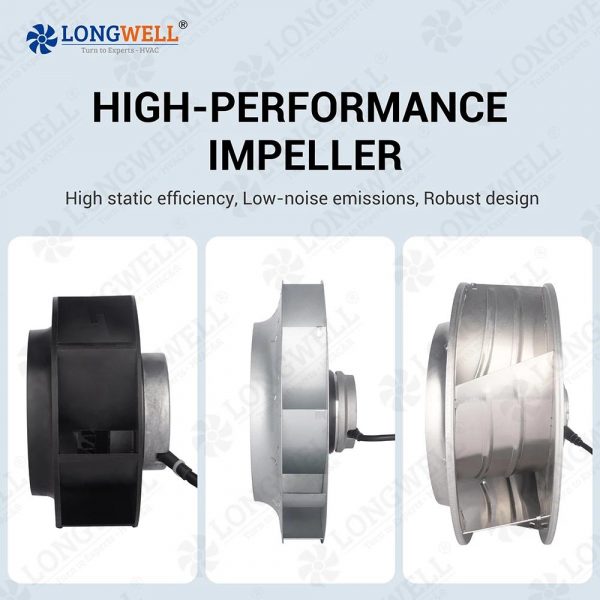

Blade material

Aluminum alloy
Direction

Clockwise see from rotor
Bearing

Ball Bearing
Application

HVACR ,Ventilation ,Cooling system
Insulation

B/F
Protection Class

IP 54
Type

Centrifugal Fan
Selling units

Single item
Single package size

40X40X40 cm
Single gross weight

3.000 kg
