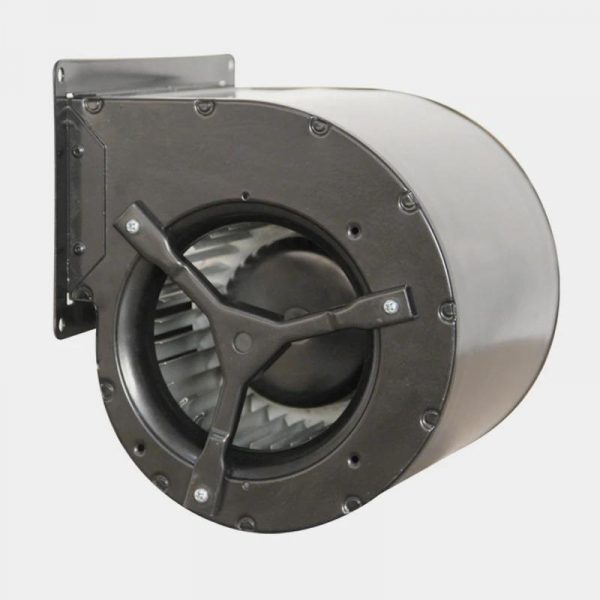

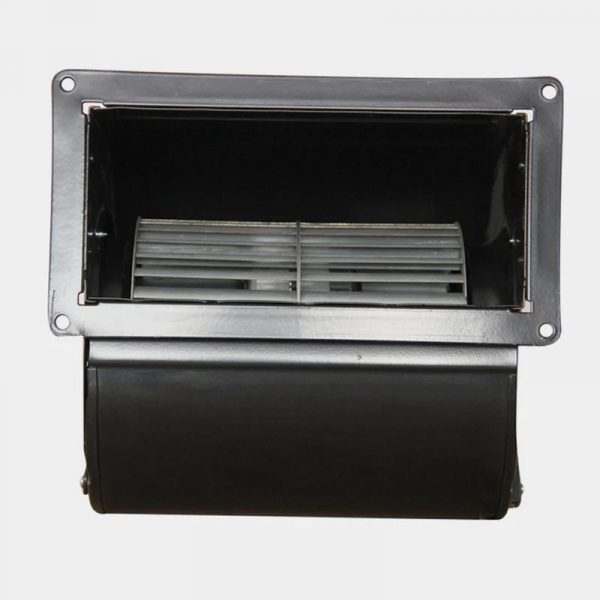

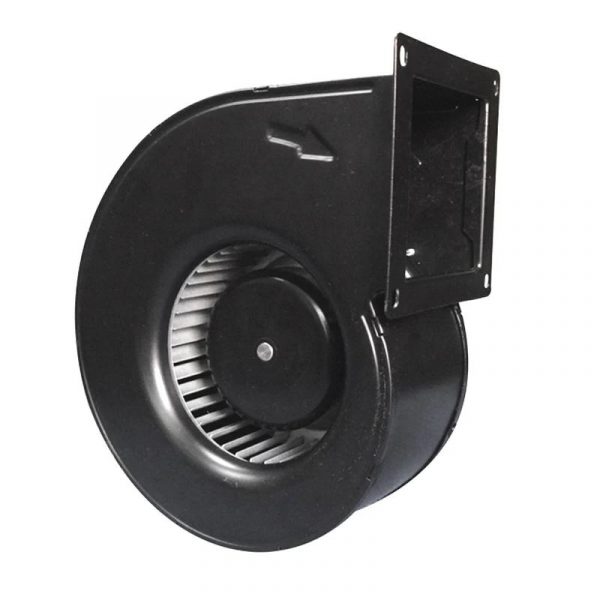

LONGWELL AC Centrifugal Blower Fan, Industrial Centrifugal Fan, 110V, Low Noise, for Boilers, AHU, FFU

Voltage 110v /220v 24VDC/ 48VDC
ISO / CE / UL / ETL Factory & Test Lab OEM / ODM ebm-papst alternative

$ 10

Specifications
Motor
external rotor motor
Impeller
Propylene with glass fiber reinforced
Category: Tags: , ,
CategoryIndustrial Centrifugal Fans
TagsCentrifugal Blower FanExternal Rotor MotorRoof Exhaust Fan
Get a Fast Quote from an Engineer Send your airflow, static pressure & voltage — we reply within one working day with a matching model.
✓ 1-day reply ✓ STEP / CAD on request ✓ Factory-direct

Your specifications go straight to a sales engineer — no spam, never shared.

Prefer a datasheet?
Download Product Catalog (PDF)
Need the exact model with a measured or digitised curve? This page describes the Industrial Centrifugal Fans range. The Fan Selector lists every LONGWELL industrial centrifugal fan model with airflow, static pressure, power, noise, drawing and datasheet.
Search industrial centrifugal fan models →
Have your duty point?

See every LONGWELL model whose P-Q curve covers it — margins, noise and power included. No login.

Library: Ø24–1,000 mm, single units up to about 61,000 m³/h — larger duties go straight to an engineer. Prefer to talk it through? Send your specs to an engineer

Description

Product descriptions from the supplier

ac 230v centrifugal blower fan

Product Description
  • Size :120mm~180mm
  • Voltage : 230 V / 115V ( 50Hz / 60 Hz )
  • Impeller Material: Galvanized Sheet Steel;
  • Housing Material : Cast Iron / Galvanized Metal;
  • Protection: Thermal Overload Protector(TOP)wired internally;
  • Type of Protection: IP44;
  • Direction of Rotation: Clockwise,see on the lead;
  • Bearing Type: Ball Bearing;
  • Approvals: CE,UL,CCC;
  • Operation Model: (S1);
  • Amb.Temp: -10~+60℃;
  • Motor Insulation: B/F.

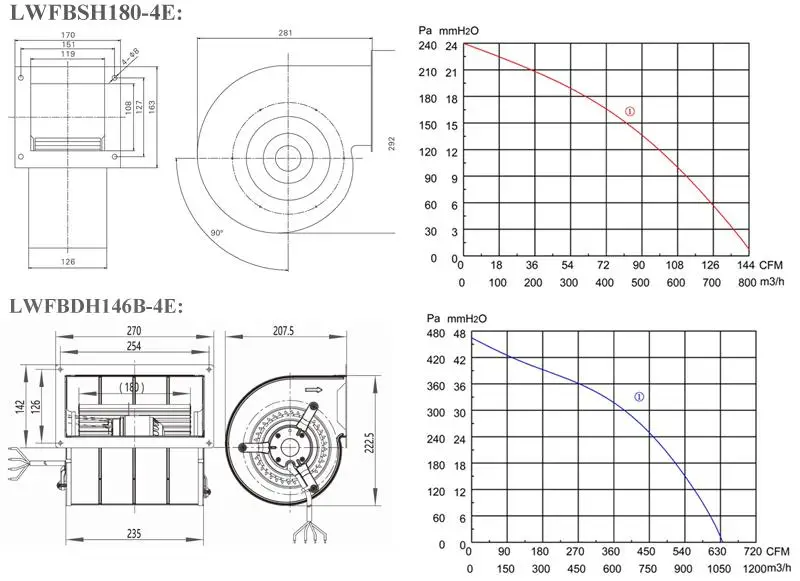

Model Voltage Frequency Power Current Speed Air Flow Air pressure Noise Capacitor
  V V W A RPM m³/h Pa dBA μF
LWFBSH120-4E 230 50 45 0.2 1460 255 400 53 2
LWFBSH120-2E 230 50 81 0.37 2670 135 190 60 2
LWFBSH133-4E 230 50 48 0.21 1470 260 405 55 2
LWFBSH133-2E 230 50 85 0.39 2680 140 210 62 2
LWFBSH140-4E 230 50 55 0.26 1470 230 230 56 2
LWFBSH140-2E 230 50 110 0.51 2680 430 460 63 3
LWFBSH150-4E 230 50 55 0.35 1460 295 315 59 3
LWFBSH150-2E 230 50 110 0.76 2650 525 545 65 6
LWFBSH160-4E 230 50 69 0.36 1460 435 355 59 3
LWFBSH160-2E 230 50 203 0.91 2460 610 585 53 6

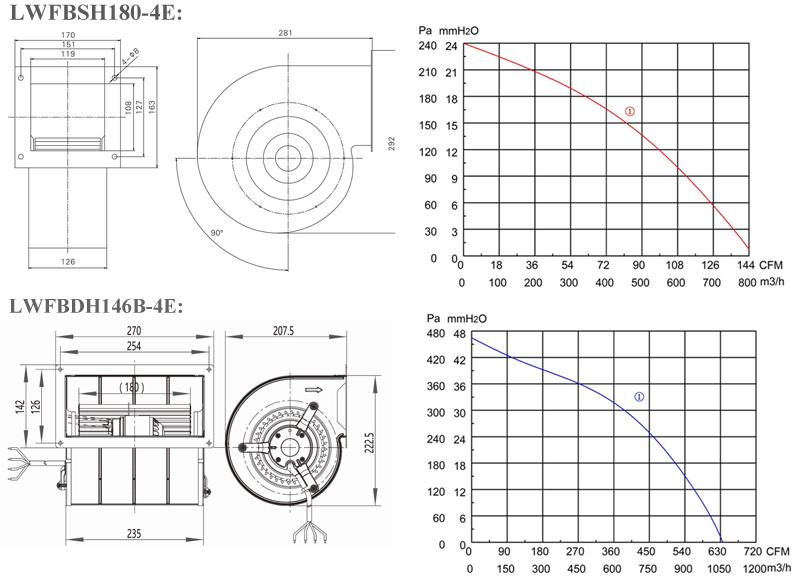

LWFBSH180-4E 230 50 145 0.66 1400 810 240 63 4
LWFBSH180-4D 380 50 145 0.36 1400 810 240 63 /
LWFBDH120-4E 230 50 105 0.48 1720 460 310 60 2
LWFBDH133A-4E 230 50 180 0.81 1500 650 390 68 4
LWFBDH133B-4E 230 50 260 1.16 1450 960 435 68 6
LWFBDH146B-4E 230 50 280 1.25 1350 1050 465 69 8

ac 230v centrifugal blower fan

ac 230v centrifugal blower fan

Inquiry Us ,please click here .

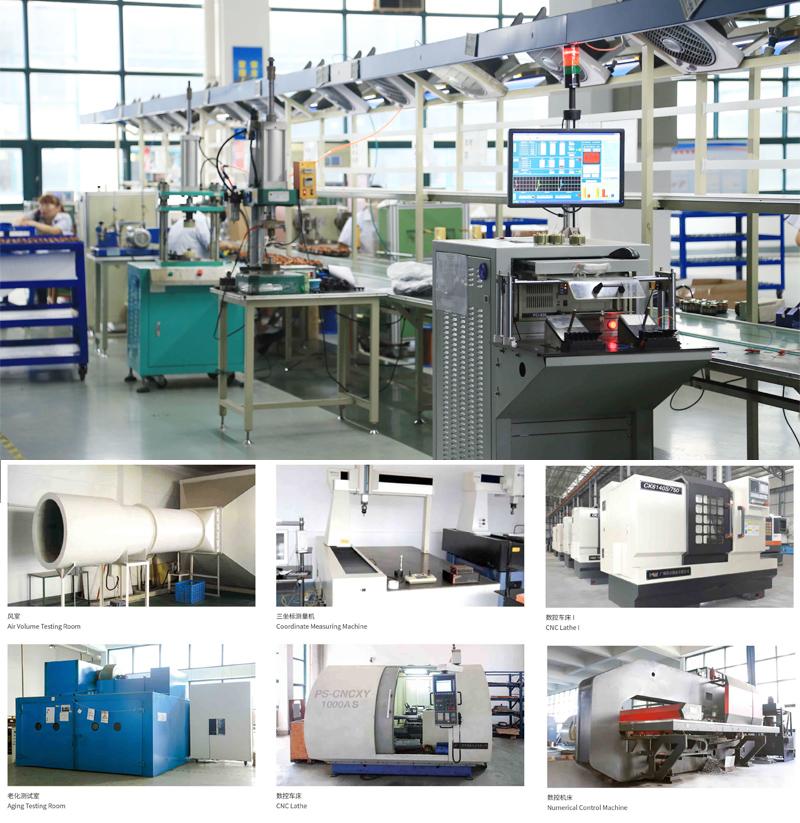

Company Information

Longwell co.,ltd are typically purchased as OEM solutions by manufacturering companies or as aftermarket solutions and replacement parts for HVAC,FCU,FFU,AHU system .

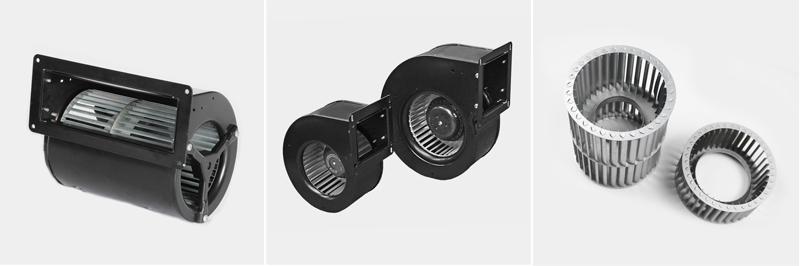

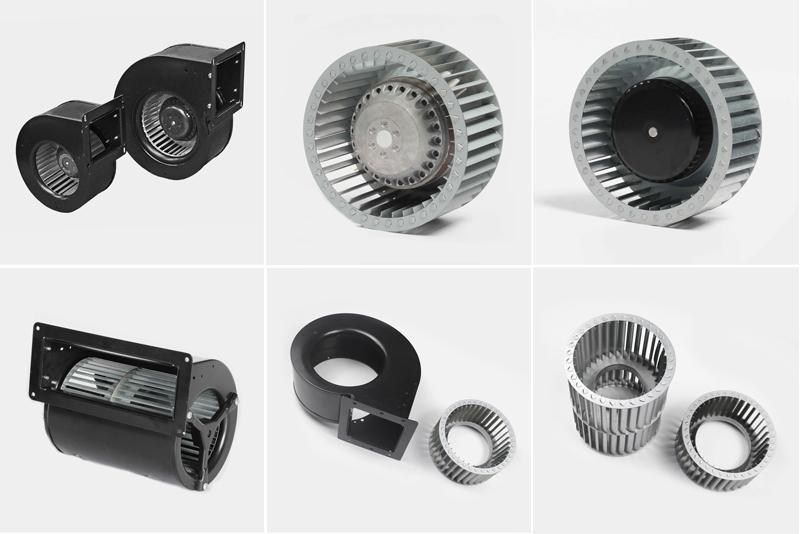

Customers can select form the large variety of preexisting products developed by Longwell including but not limited to :

AC motorized centrifugal fans & blowers ;

Brushless DC/EC motorized backward / forward centrifugal fans & blowers ;

cross flow fan / wheel / blower with motor ( plastic or metal metal ) ;

axial fans / blades with plastic or metal material ;

Shaded Pole Motors ;

Duct fans ;

Parts or assemble parts or repair parts for HVAC,AHU,FCU,FFU,etc.

ac 230v centrifugal blower fan

Buying Guides

ac 230v centrifugal blower fan

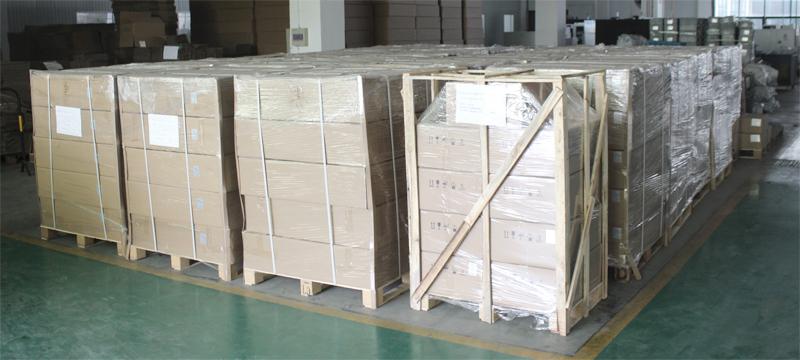

Packaging & Shipping

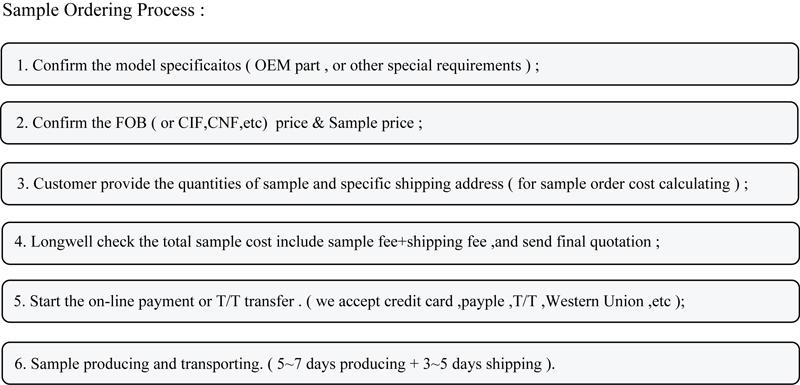

  • Sample :7~10 days ;
  • Bulk order : 18~23 days after receiving order information .
  • Package : Standard exporting package , carton with pallet . ( package can be customized )
  • Shippment : Air express ,sea shippment , EXW ,LCL ,etc all available .

ac 230v centrifugal blower fan

ac 230v centrifugal blower fan

Contact information

Contact Us

Inquiry Us ,please click here



Additional information

Electric Current Type

AC/EC
Voltage

110v /220v 24VDC/ 48VDC
Blade Material

STAINLESS STEEL
customized support

OEM, ODM
mounting

FREE STANDING
place of origin

Zhejiang, China
brand name

LONGWELL
warranty

1 Year
After-sales Service Provided

Video technical support
Type

ac 230v centrifugal blower fan
power input

115/230/380V
Impeller material

Propylene with glass fiber reinforced
Direction

Clockwise
Bearing

Ball Bearing
Approvals

CE,CCC
Motor type

external rotor motor
Amb,Temp

-20 to +60℃
Insulation

B/F
Selling units

Single item
Single package size

30X30X50 cm
Single gross weight

5.000 kg
