Description
Technical Description
| Material | Iron |
| Phase Number | Single-phase |
| Number of Poles | 2 Poles |
| Insulation Class | H |
| Bearing | Ball bearing |
| Direction of Rotation | C.W (From the blade end) |
| Flue Temperature | / |
| Application | Pellet stove,charcoal stove,heating boiler,etc |
| Technical Feature | / |
Nominal data
| Dimensions | / |
| Nominal Voltage | 220V |
| Frequency | 50Hz |
| Power Input | 48W |
| Current | 430A |
| Speed | 2250RPM |
| Static Pressure(Max) | / |
| Air Flow(Max) | / |
| Air Volume | 17m/s |
| Noise | / |
Curves

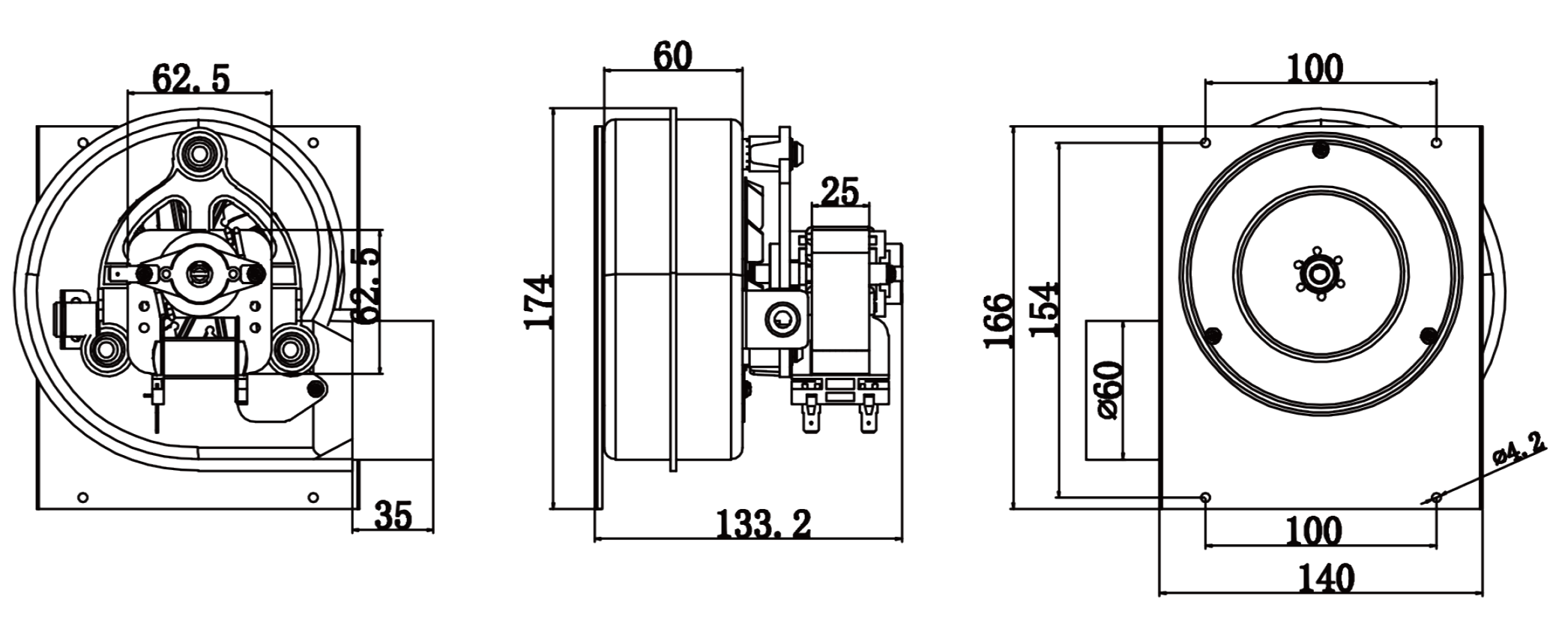

Drawing
