Description
Technical Description
| Impeller Material | Plastic |
| Housing Material | Aluminum |
| Protection Class | / |
| Insulation Class | F |
| Connection Port | / |
| Bearings | Maintenance-free ball bearings |
| Way to Install | / |
| Flue Temperature | / |
| Technical Feature | Motor anti-vibration mounted,mounting position must be specified for corresponding support elements |
Nominal data
| Dimensions | / |
| Nominal Voltage | 230V |
| Frequency | 50Hz |
| Power Input | 68W |
| Current | 0.51A |
| Speed | 9300RPM |
| Static Pressure(Max) | 2781Pa |
| Air Flow(Max) | 105m³/h |
| Noise | / |
| Net Weight | / |

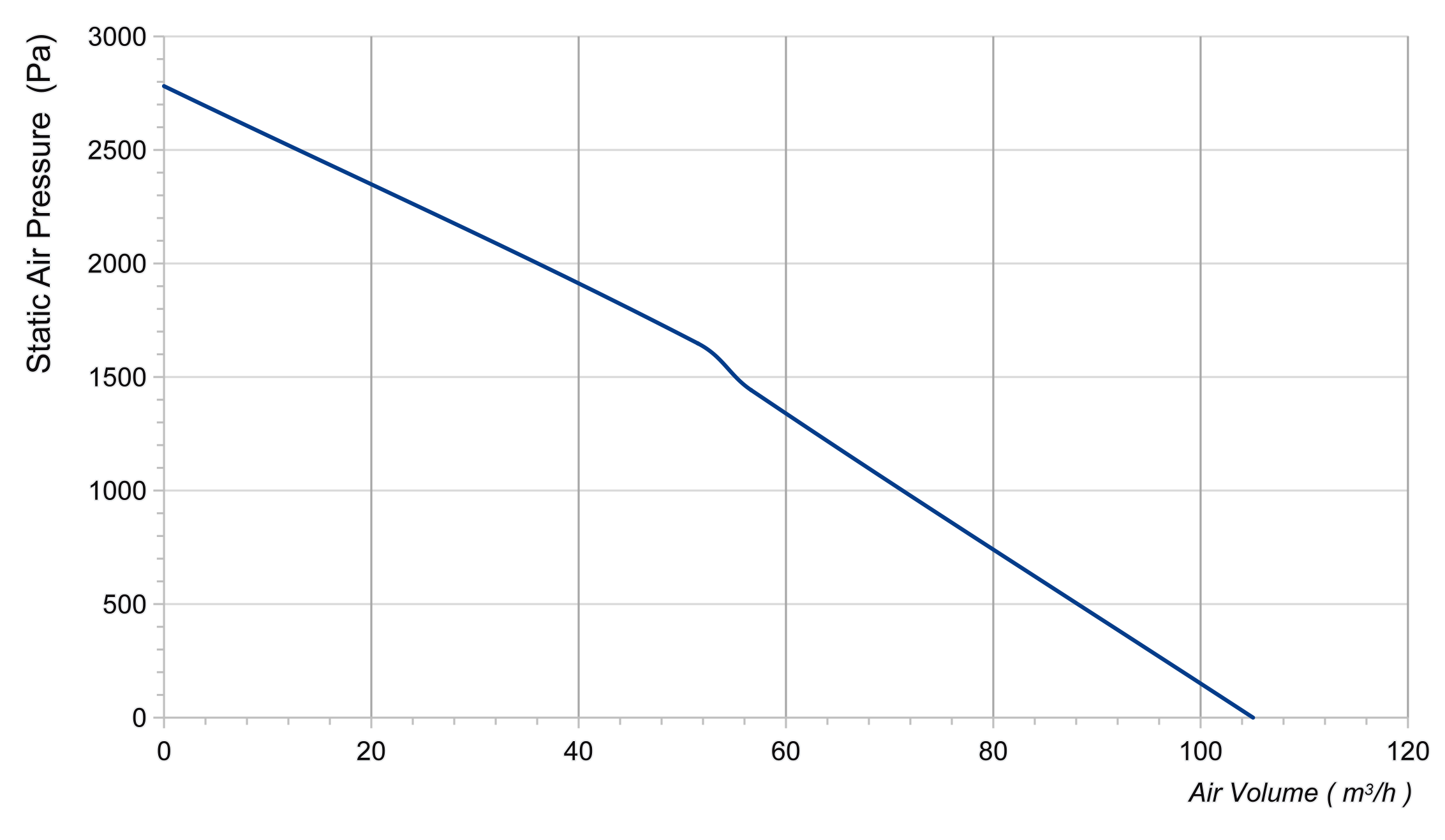

Curves

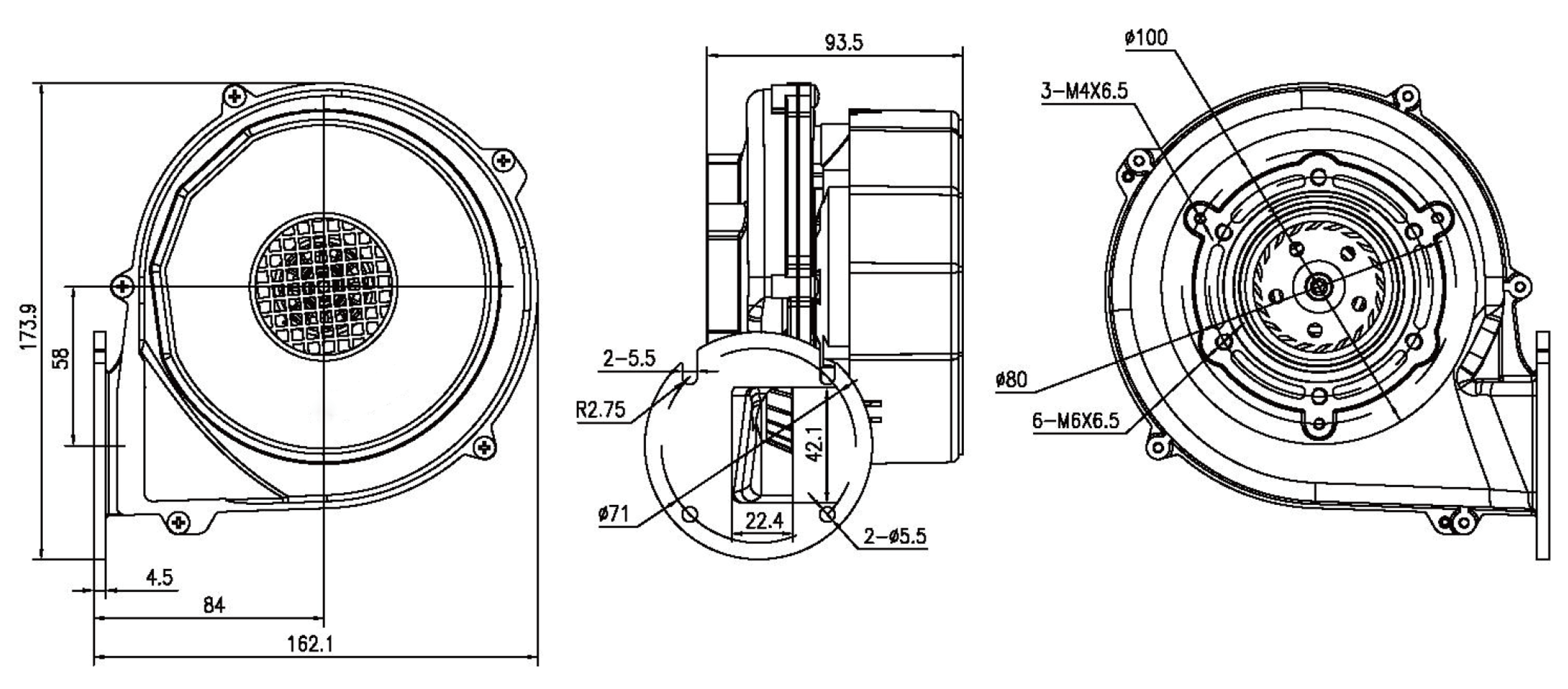

Drawing
Download
