Description
Technical Description
| Impeller Material | Aluminized sheet steel |
| Housing Material | Aluminized sheet steel |
| Protection Class | / |
| Insulation Class | F |
| Connection Port | / |
| Bearings | Maintenance-free ball bearings |
| Way to Install | / |
| Flue Temperature | ≤180℃ (continuous),≤240℃ (instantaneous) |
| Technical Feature | Motor anti-vibration mounted,EC Motor with PWM speed control |
Nominal data
| Dimensions | / |
| Nominal Voltage | 24V |
| Frequency | / |
| Power Input | 42W |
| Current | 1.7A |
| Speed | 3700RPM |
| Static Pressure(Max) | 597Pa |
| Air Flow(Max) | 191m³/h |
| Noise | / |
| Net Weight | / |

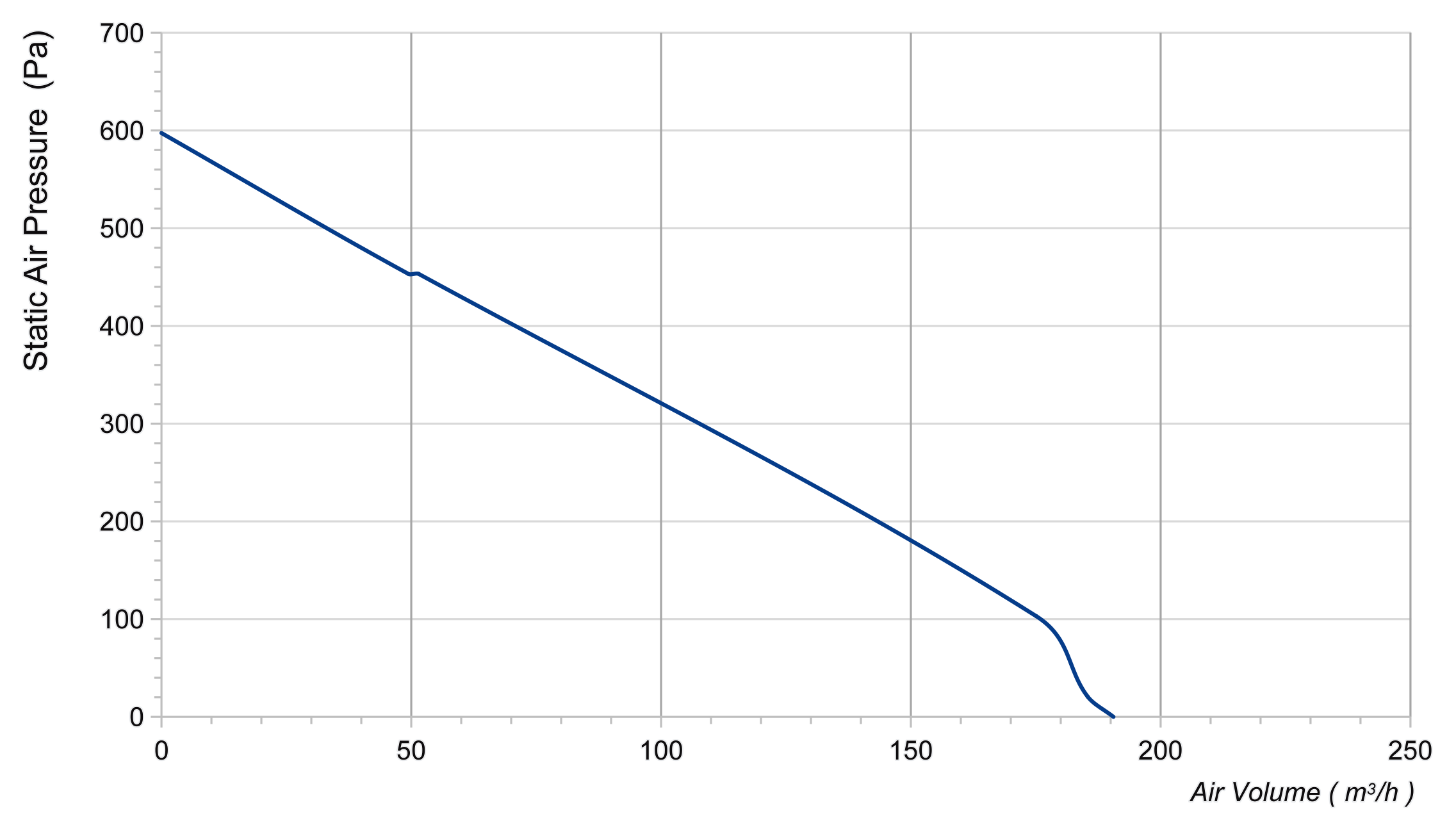

Curves

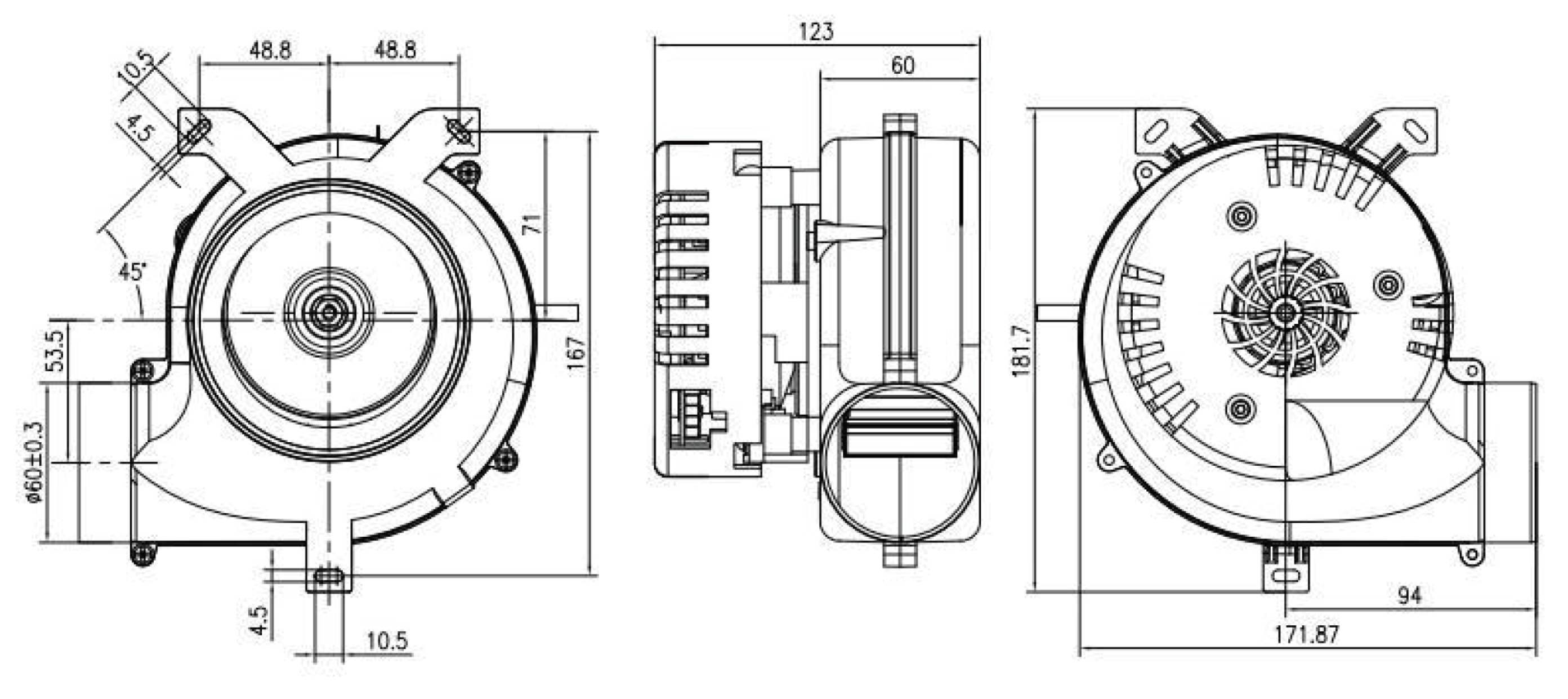

Drawing
