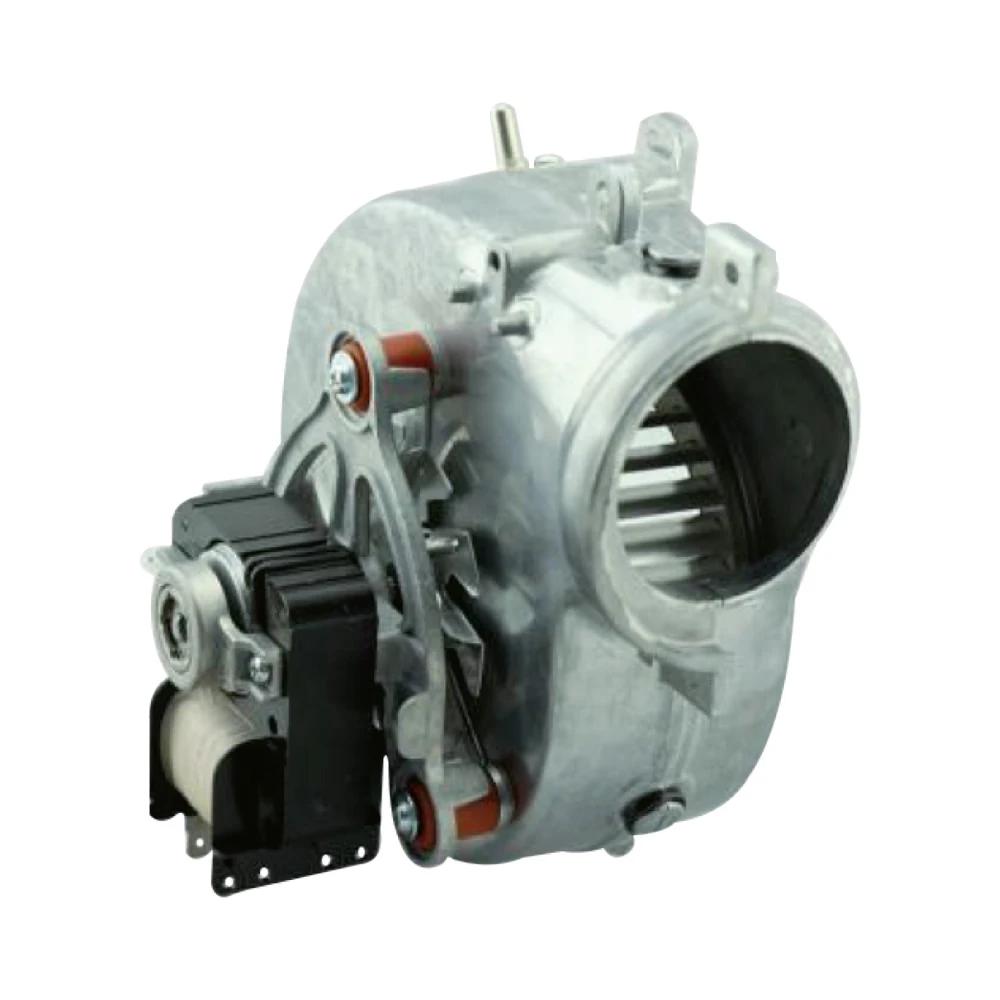

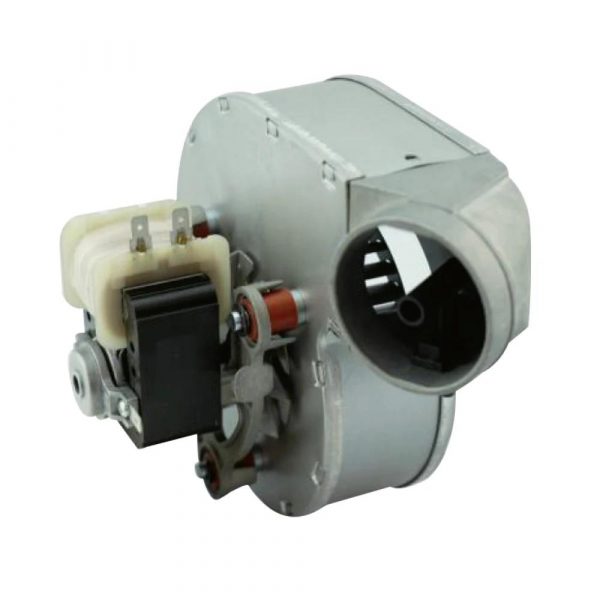

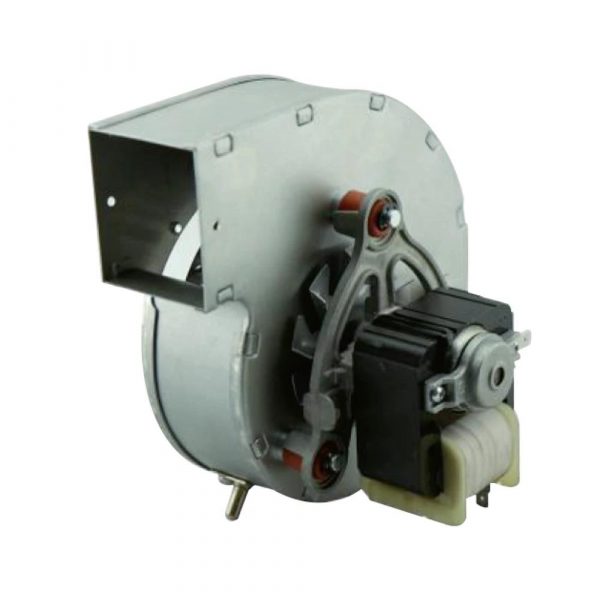

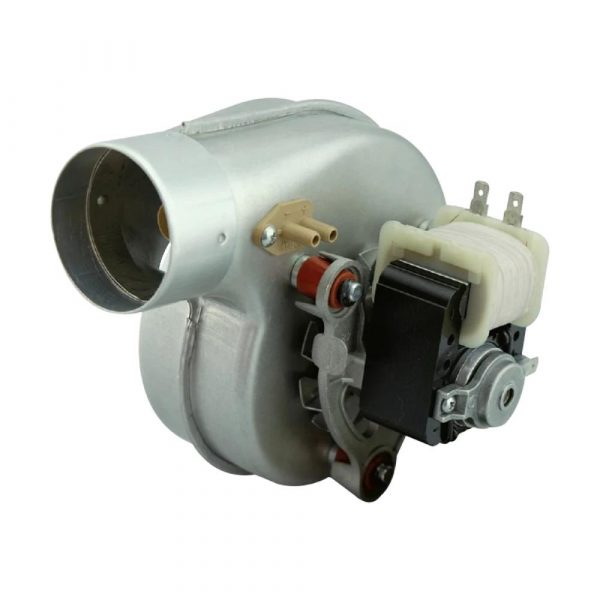

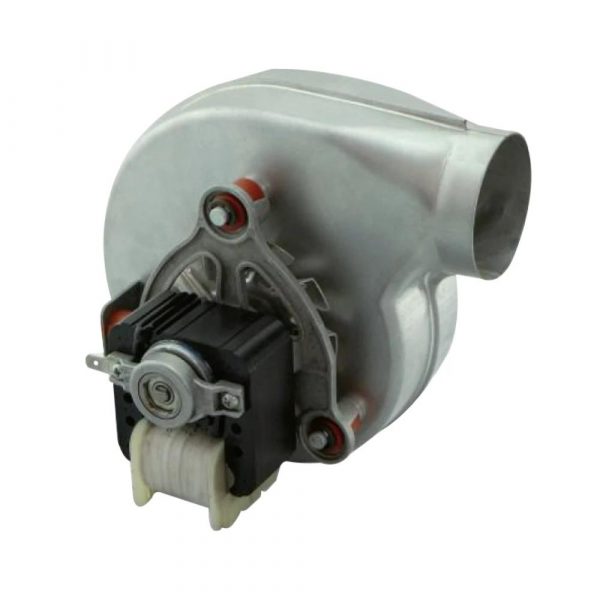

LONGWELL AC Gas Blower, Industrial Gas Blower Fan, 220V, 33 W, for Gas Transmission – LWGA108

Voltage 220V 230V
ISO / CE / UL / ETL Factory & Test Lab OEM / ODM ebm-papst alternative

$ 15

Category: Tags: , ,
CategoryCentrifugal Blower Fan
TagsAC FanCentrifugal Blower FanGas Delivery and Pressurization
Get a Fast Quote from an Engineer Send your airflow, static pressure & voltage — we reply within one working day with a matching model.
✓ 1-day reply ✓ STEP / CAD on request ✓ Factory-direct

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

Your specifications go straight to a sales engineer — no spam, never shared.

Prefer a datasheet?
Download Product Catalog (PDF)
Need the exact model with a measured or digitised curve? This page describes the Centrifugal Blower Fan range. The Fan Selector lists every LONGWELL centrifugal blower model with airflow, static pressure, power, noise, drawing and datasheet.
Search centrifugal blower models →
Have your duty point?

See every LONGWELL model whose P-Q curve covers it — margins, noise and power included. No login.

Library: Ø25–1,000 mm, single units up to about 52,000 m³/h — larger duties go straight to an engineer. Prefer to talk it through? Send your specs to an engineer

Description

Products Description

Insulation Class:
H
Housing &impeller:
Aluminized casting
Flue temperature:
≤180℃ (continuous)

≤240℃ (instantaneous)
Motor anti-vibration mounte
Mounting position must be specified for corresponding support elements

Recommend Products

Product Applications

Company Profile

Certifications

FAQ

Why Choose Us

Other Products

Additional information

Voltage

220V 230V
speed

4000rpm, 500RPM, 800RPM, 1500RPM, 600RPM, 900rpm, 2000RPM
Blade Material

Aluminized casting
customized support

OEM, ODM, OBM
mounting

Other
place of origin

Zhejiang, China
brand name

LONGWELL
model number

LWGA108
warranty

1 Year
After-sales Service Provided

Online support
Product name

AC Centrifugal Fan
power input

220V 230V
Power

33W-65W
Usage

Gas Blower
Application

Gas Transmission
Feature

High Efficiency
Motor

AC Motor
Material

Aluminized casting
Keyword

gas blower
Type

Centrifugal Fan
Selling units

Single item
Single package size

50X50X50 cm
Single gross weight

20.000 kg
