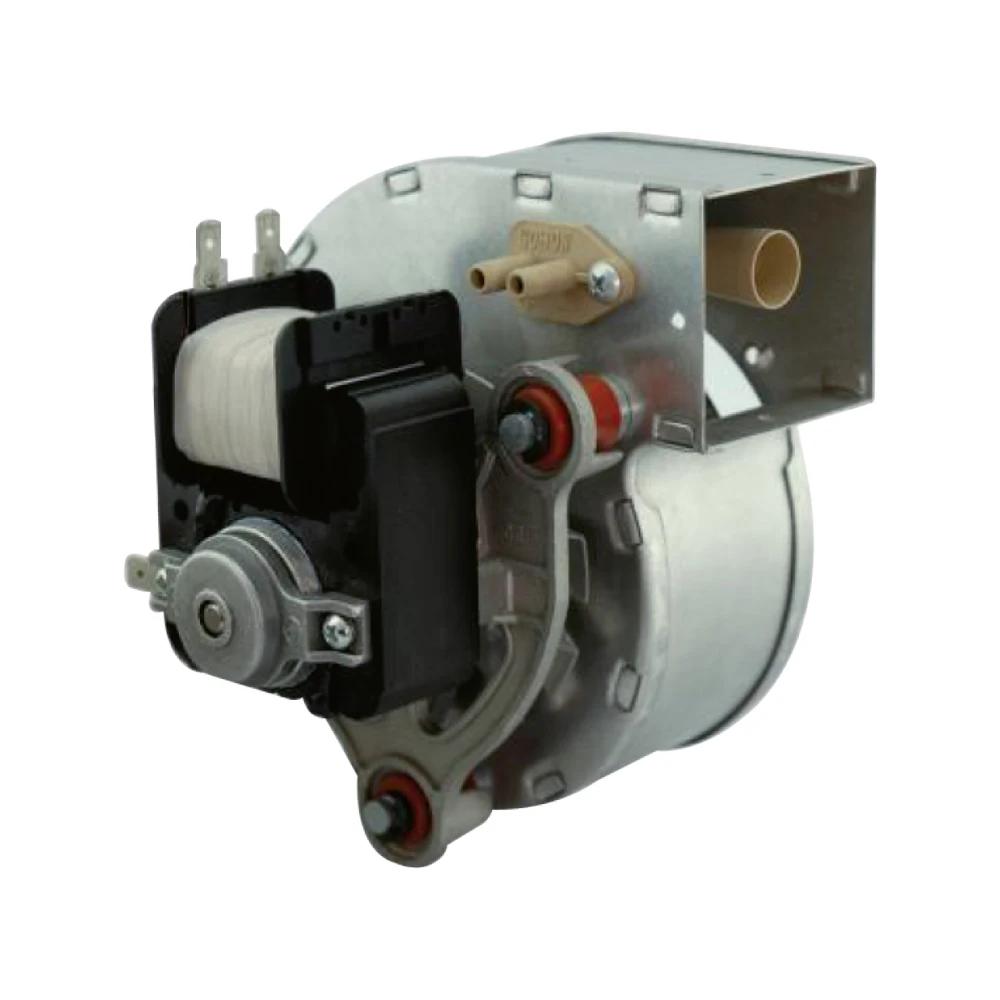

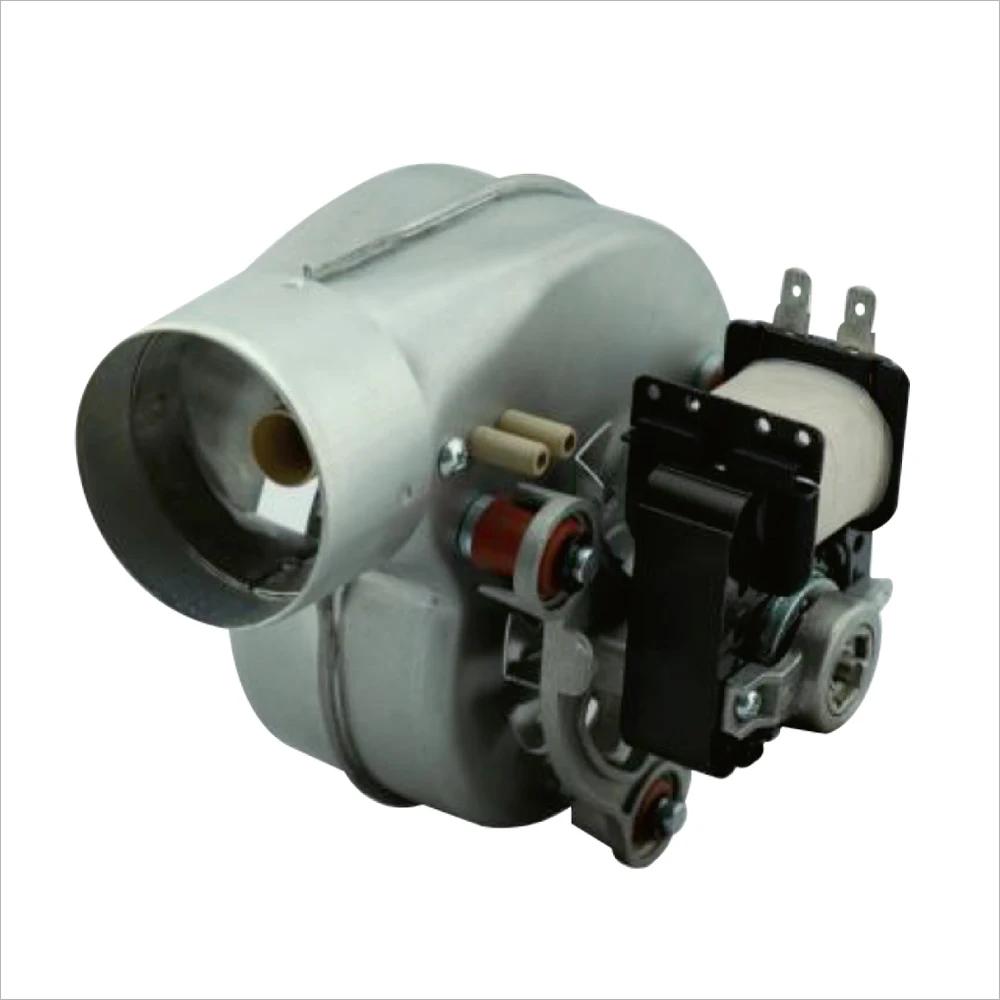

LONGWELL AC Gas Blower, Industrial Gas Blower Fan, 220V, 35 W, for Gas Transmission – LWGA085

Voltage 220V
ISO / CE / UL / ETL Factory & Test Lab OEM / ODM ebm-papst alternative

$ 12

Category: Tags: , ,
CategoryCentrifugal Blower Fan
TagsAC FanCentrifugal Blower FanGas Blowers
Get a Fast Quote from an Engineer Send your airflow, static pressure & voltage — we reply within one working day with a matching model.
✓ 1-day reply ✓ STEP / CAD on request ✓ Factory-direct

Your specifications go straight to a sales engineer — no spam, never shared.

Prefer a datasheet?
Download Product Catalog (PDF)
Need the exact model with a measured or digitised curve? This page describes the Centrifugal Blower Fan range. The Fan Selector lists every LONGWELL centrifugal blower model with airflow, static pressure, power, noise, drawing and datasheet.
Search centrifugal blower models →
Have your duty point?

See every LONGWELL model whose P-Q curve covers it — margins, noise and power included. No login.

Library: Ø25–1,000 mm, single units up to about 52,000 m³/h — larger duties go straight to an engineer. Prefer to talk it through? Send your specs to an engineer

Description

Products Description

Insulation Class:
H
Housing &impeller:
Aluminized sheet steel
Flue temperature:
≤180℃ (continuous)

≤240℃ (instantaneous)
Motor anti-vibration mounte
Mounting position must be specified for corresponding support elements

Recommend Products

Product Applications

Company Profile

Certifications

FAQ

Why Choose Us

Other Products

Additional information

Electric Current Type

AC
Voltage

220V
Blade Material

Cast Iron
customized support

OEM, ODM, OBM
mounting

Other
place of origin

Zhejiang, China
brand name

LONGWELL
model number

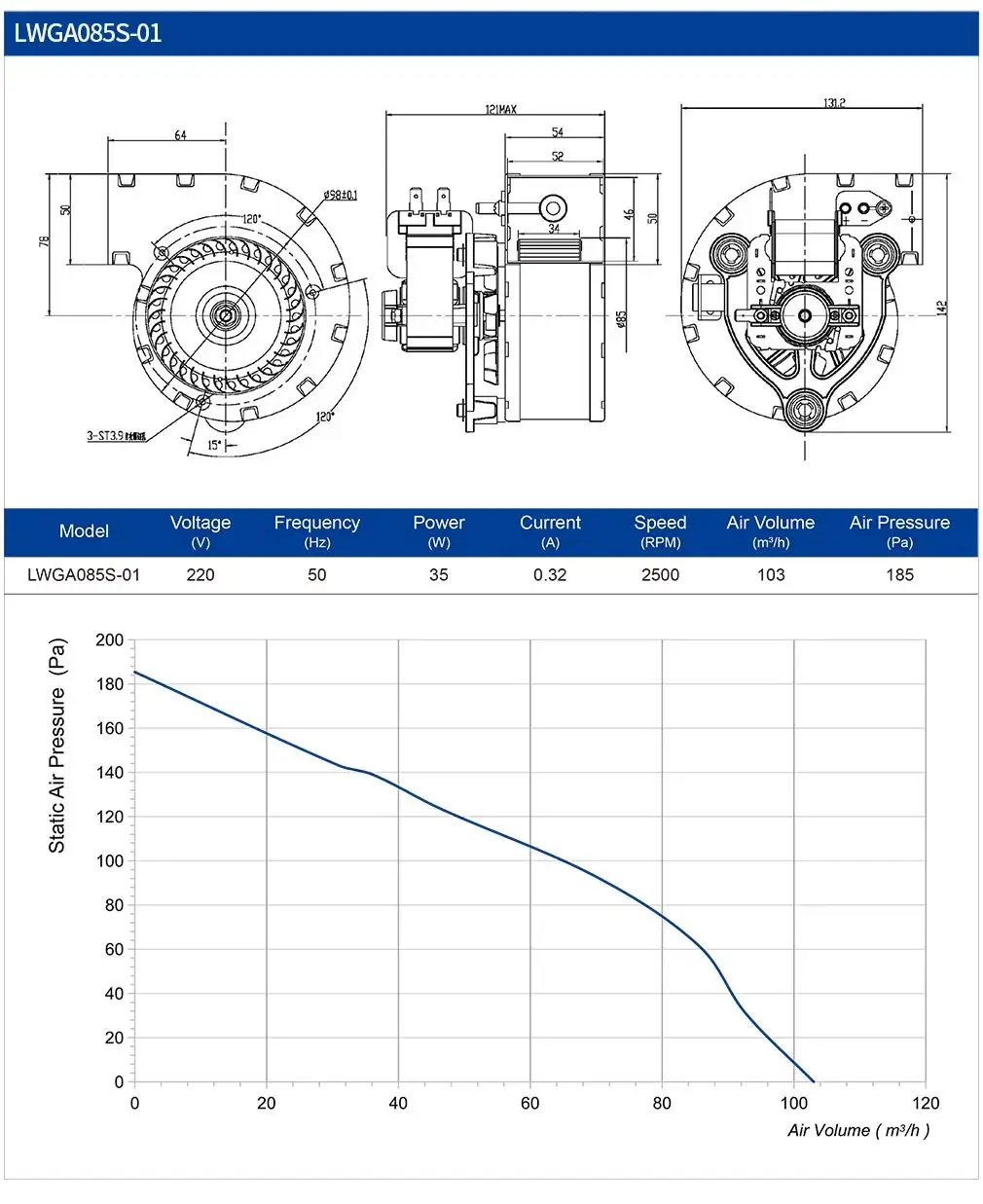

LWGA085S-01
warranty

1 Year
After-sales Service Provided

Online support
Product name

AC Centrifugal Fan
power input

220V
Power

35W
Usage

Gas Blower
Application

Gas Transmission
Feature

High Efficiency
Motor

AC Motor
Material

Aluminized sheet steel
Speed

2500
Keyword

gas blower
Selling units

Single item
Single package size

50X50X50 cm
Single gross weight

20.000 kg

Reviews

There are no reviews yet.

Be the first to review “LONGWELL AC Gas Blower, Industrial Gas Blower Fan, 220V, 35 W, for Gas Transmission – LWGA085”

Your email address will not be published. Required fields are marked *

More in this series

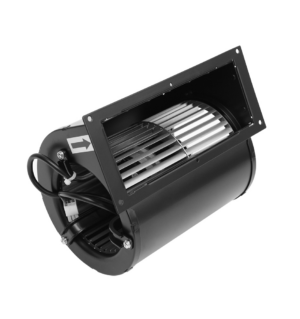

LONGWELL 92mm AC Centrifugal Blower Fan, Industrial Centrifugal Fan, 230V, 1009 m³/h Airflow, 494 Pa Static Pressure – LWFA2E146-092DS-03LONGWELL 92mm AC Centrifugal Blower Fan, Industrial Centrifugal Fan, 230V, 1009 m³/h Airflow, 494 Pa Static Pressure – LWFA2E146-092DS-0392 mm1009 m³/h230 VDatasheet, curve & drawing →LONGWELL 92mm DC Centrifugal Blower Fan, Industrial Centrifugal Fan, 48V, 556 m³/h Airflow, 649 Pa Static Pressure – LWFD3G160-092SH-03LONGWELL 92mm DC Centrifugal Blower Fan, Industrial Centrifugal Fan, 48V, 556 m³/h Airflow, 649 Pa Static Pressure – LWFD3G160-092SH-0392 mm556 m³/h48 VDatasheet, curve & drawing →LONGWELL 92mm DC Centrifugal Blower Fan, Industrial Centrifugal Fan, 48V, 618 m³/h Airflow, 618 Pa Static Pressure – LWFD3G180-092SH-01LONGWELL 92mm DC Centrifugal Blower Fan, Industrial Centrifugal Fan, 48V, 618 m³/h Airflow, 618 Pa Static Pressure – LWFD3G180-092SH-0192 mm618 m³/h48 VDatasheet, curve & drawing →LONGWELL DC Centrifugal Blower Fan, Industrial Centrifugal Fan, 230V, Explosion-Proof, for Cold Storage, Air Purifiers, HVAC SystemsLONGWELL DC Centrifugal Blower Fan, Industrial Centrifugal Fan, 230V, Explosion-Proof, for Cold Storage, Air Purifiers, HVAC Systems4 in230 V2500 RPMView & InquireLONGWELL AC Centrifugal Blower Fan, Industrial Centrifugal Fan, 110V, for Cold Storage, HVAC Systems – LW-146LONGWELL AC Centrifugal Blower Fan, Industrial Centrifugal Fan, 110V, for Cold Storage, HVAC Systems – LW-146110v /220v 24VDC/ 48VDC4000rpmexternal rotor motorView & InquireLONGWELL 138mm EC Centrifugal Blower Fan, Industrial Centrifugal Fan, 380V, 3605 m³/h Airflow, 577 Pa Static Pressure – LWFE3G225-138DS-01LONGWELL 138mm EC Centrifugal Blower Fan, Industrial Centrifugal Fan, 380V, 3605 m³/h Airflow, 577 Pa Static Pressure – LWFE3G225-138DS-01138 mm3605 m³/h380 VDatasheet, curve & drawing →LONGWELL 138mm EC Centrifugal Blower Fan, Industrial Centrifugal Fan, 230V, 4058 m³/h Airflow, 479 Pa Static Pressure – LWFE3G250-138DS-02LONGWELL 138mm EC Centrifugal Blower Fan, Industrial Centrifugal Fan, 230V, 4058 m³/h Airflow, 479 Pa Static Pressure – LWFE3G250-138DS-02138 mm4058 m³/h230 VDatasheet, curve & drawing →LONGWELL AC Gas Blower, Industrial Gas Blower Fan, 220V, 22 W, for Boilers, Gas Transmission – LWGA22S-01LONGWELL AC Gas Blower, Industrial Gas Blower Fan, 220V, 22 W, for Boilers, Gas Transmission – LWGA22S-01220VcustomOtherView & InquireLONGWELL AC Centrifugal Blower Fan, Industrial Centrifugal Fan, 230V, for Cold Storage, Air Purifiers, HVAC SystemsLONGWELL AC Centrifugal Blower Fan, Industrial Centrifugal Fan, 230V, for Cold Storage, Air Purifiers, HVAC Systems230V4000rpmexternal rotor motorSee matching models →LONGWELL EC Centrifugal Blower Fan, Industrial Centrifugal Fan, 115/230V, for Fireplaces, AHU, FFU – LWLONGWELL EC Centrifugal Blower Fan, Industrial Centrifugal Fan, 115/230V, for Fireplaces, AHU, FFU – LW115/230/380VInternal rotor motorView & Inquire
