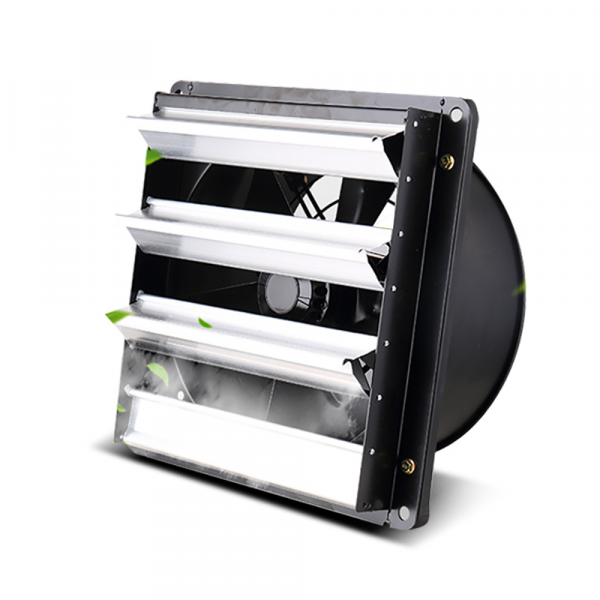

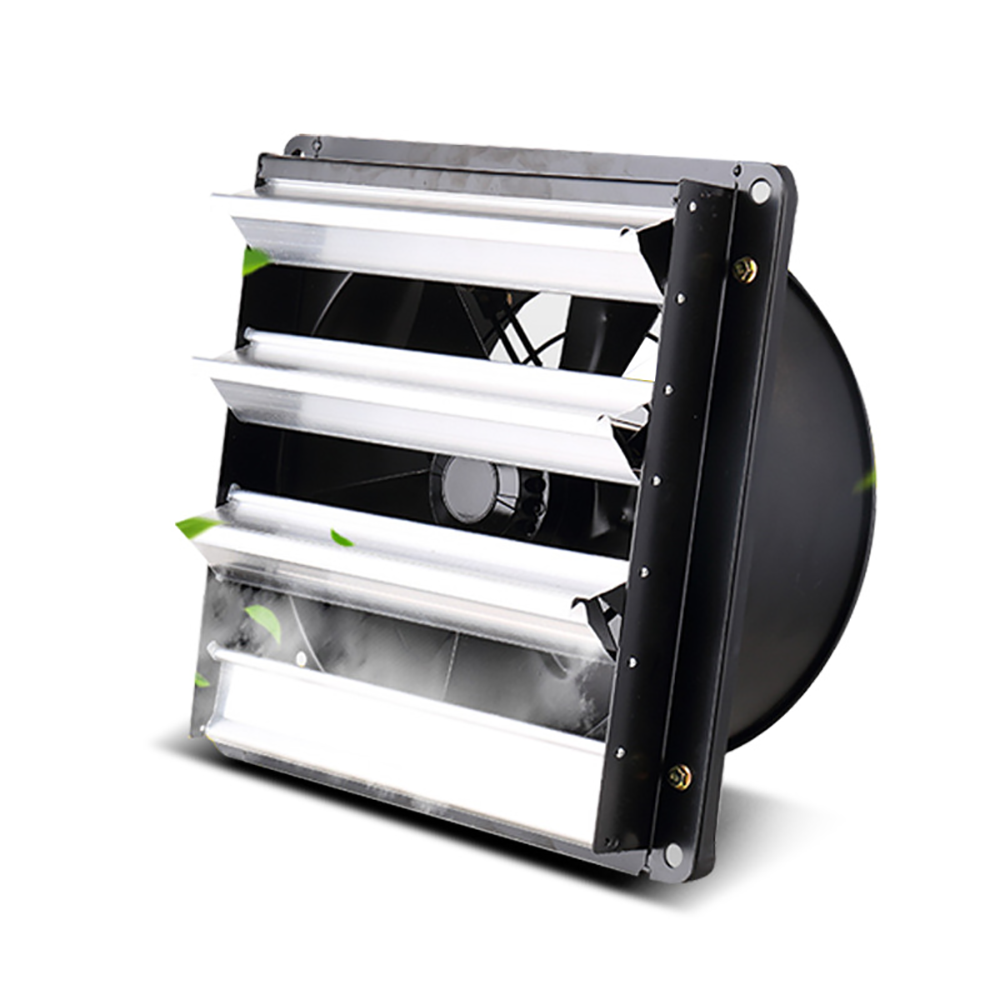

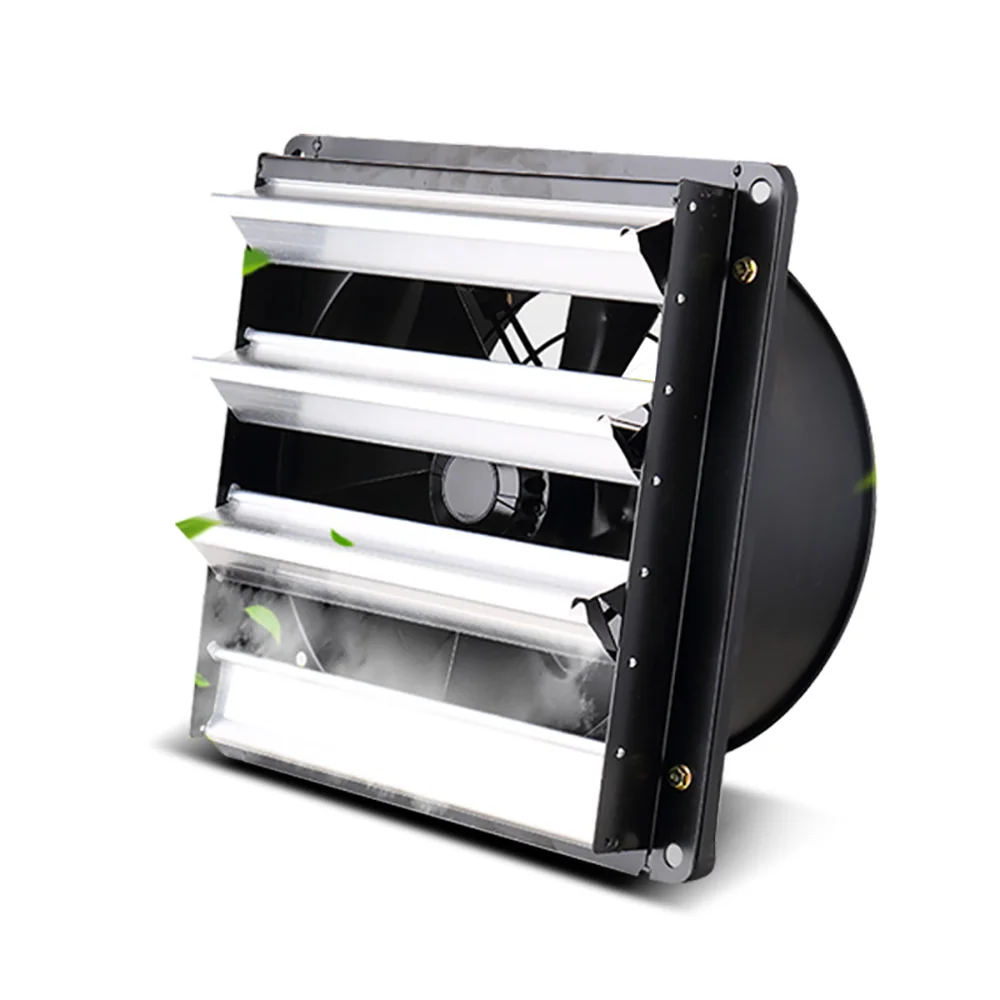

LONGWELL Industrial Fan, Industrial Ventilation Fan – LWEA2E200SM-078

Air Flow 1050 m³/h
Static Pressure 120 Pa
Inlet Ø 200 mm
Voltage 220 V
ISO / CE / UL / ETL Factory & Test Lab OEM / ODM ebm-papst alternative

$ 10

Specifications
Motor
AC
Speed
2650 RPM
Power Input
70 W
Frequency
50 Hz
Category: Tags: , ,
CategoryIndustrial Exhaust Fans
TagsAC MotorIndustrial Exhaust FansIndustrial Ventilation
Get a Fast Quote from an Engineer Send your airflow, static pressure & voltage — we reply within one working day with a matching model.
✓ 1-day reply ✓ STEP / CAD on request ✓ Factory-direct

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

Your specifications go straight to a sales engineer — no spam, never shared.

Prefer a datasheet?
Download Product Catalog (PDF)
Need the exact model with a measured or digitised curve? This page describes the Industrial Exhaust Fans range. The Fan Selector lists every LONGWELL exhaust fan model with airflow, static pressure, power, noise, drawing and datasheet.
Search exhaust fan models →
Have your duty point?

See every LONGWELL model whose P-Q curve covers it — margins, noise and power included. No login.

Library: Ø25–1,000 mm, single units up to about 52,000 m³/h — larger duties go straight to an engineer. Prefer to talk it through? Send your specs to an engineer

Description

Technical Description

Material Metal
Technical Feature 1.100% pure copper wire motor

2.Powerful airflow,various sizes for choose

Nominal data

Dimensions 200mm
Voltage 220V
Frequency 50Hz
Current 0.3A
Power 70W
Speed 2650RPM
Air Flow 1050m³/h
Air Pressure 120Pa
Noise 56dB(A)
Capacitor 2.5uF

Curves

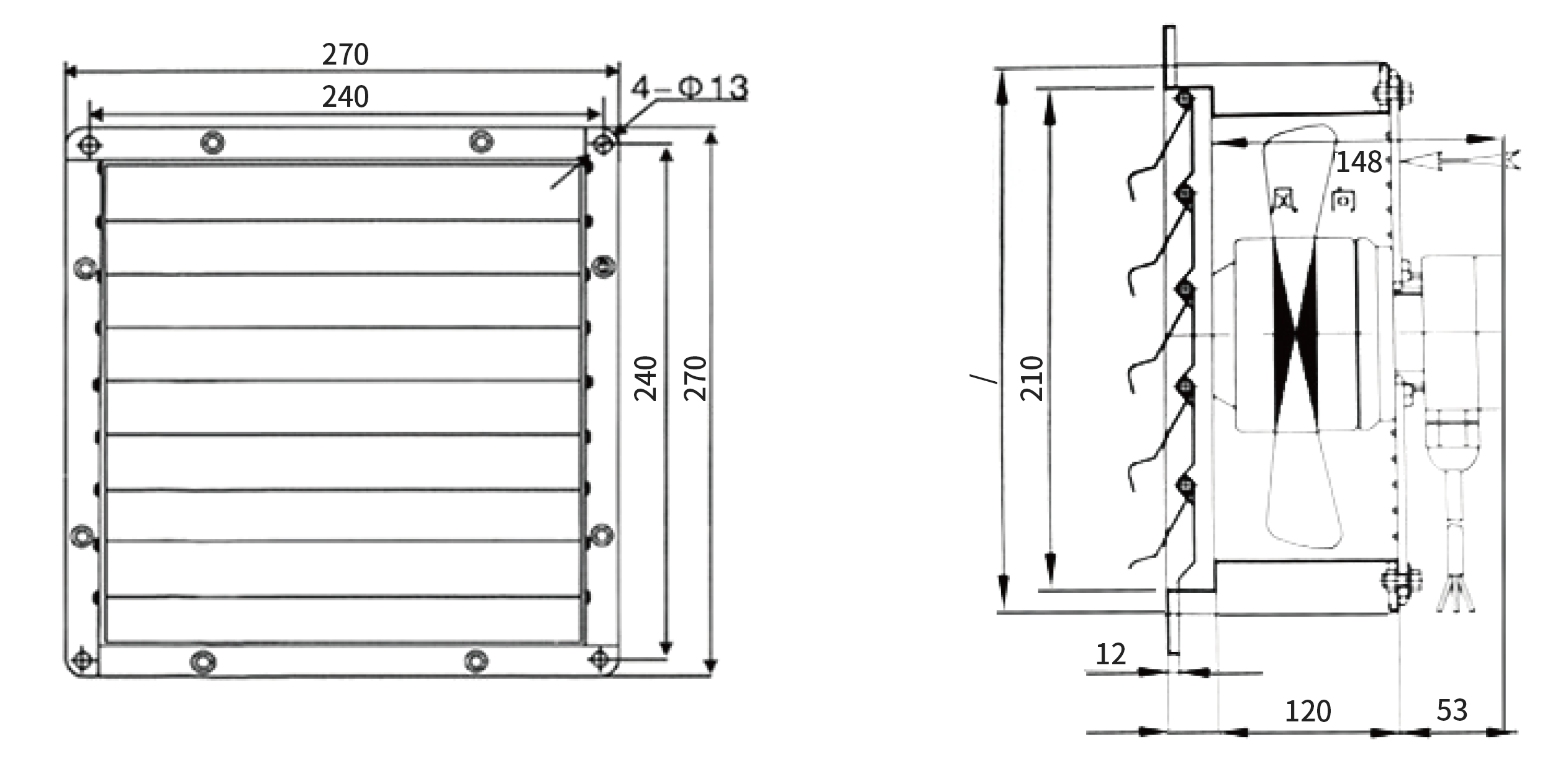

Drawing

Download
