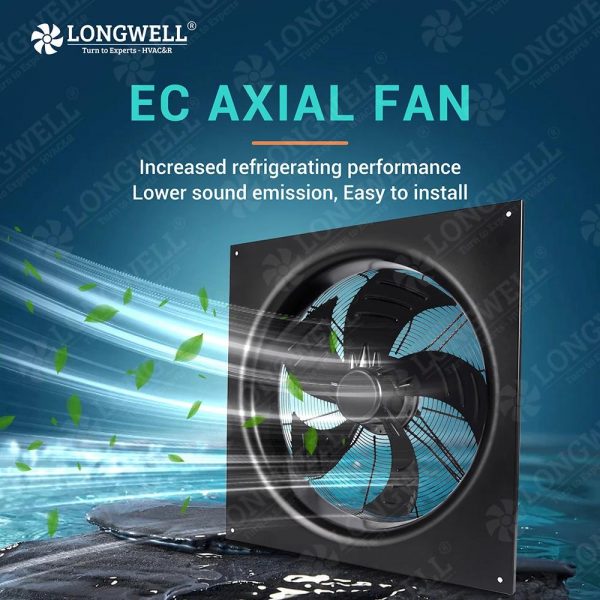

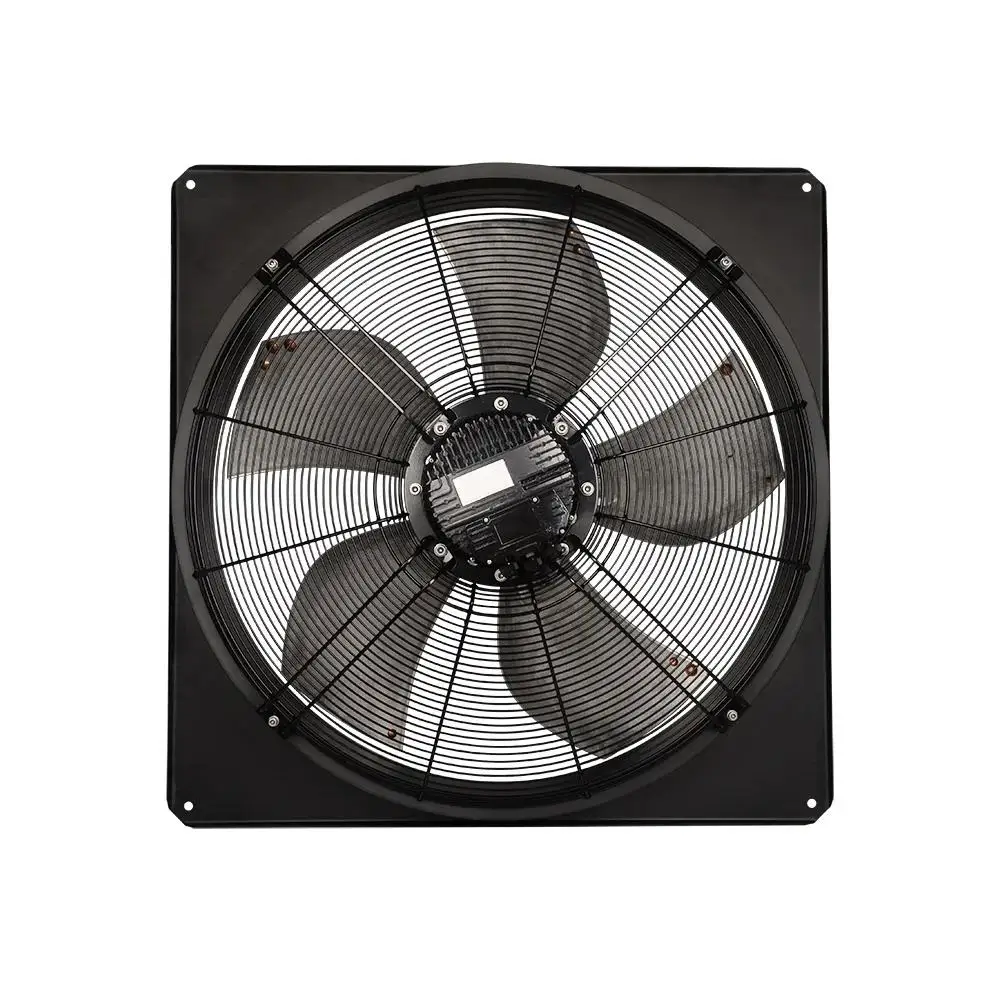

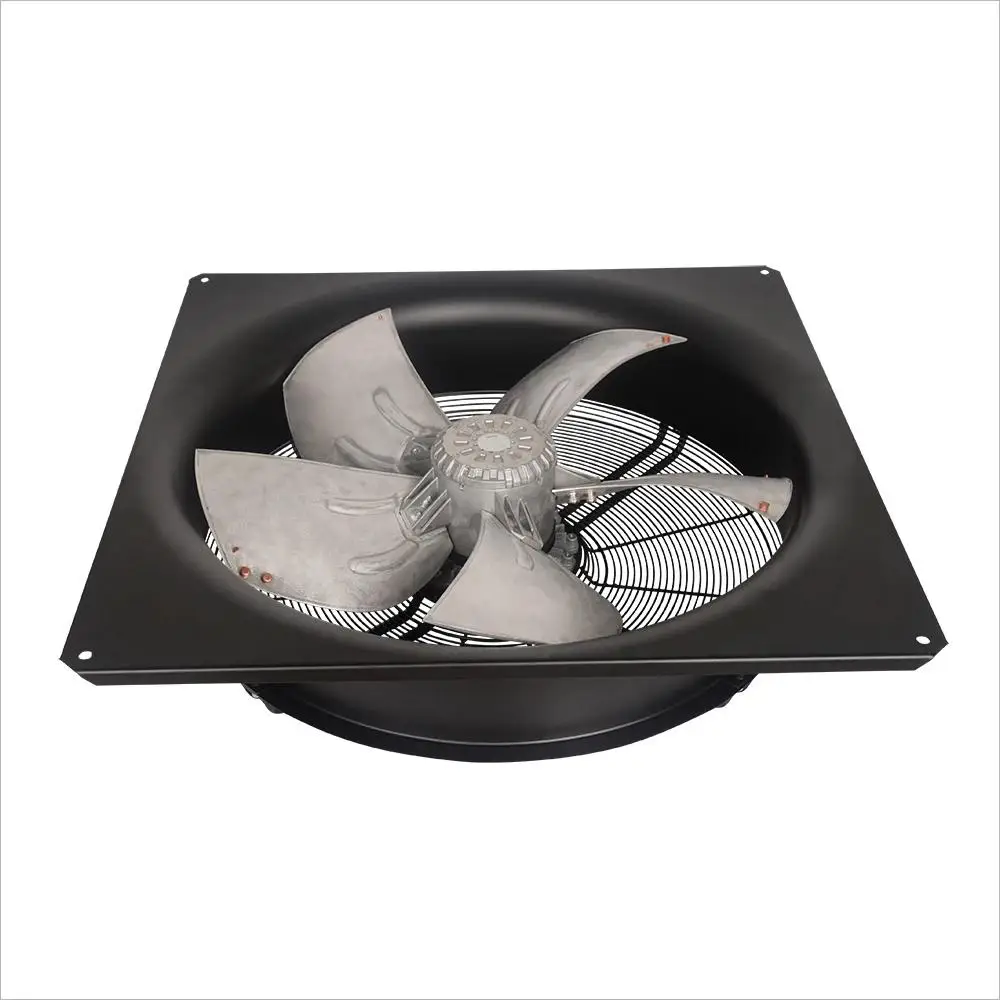

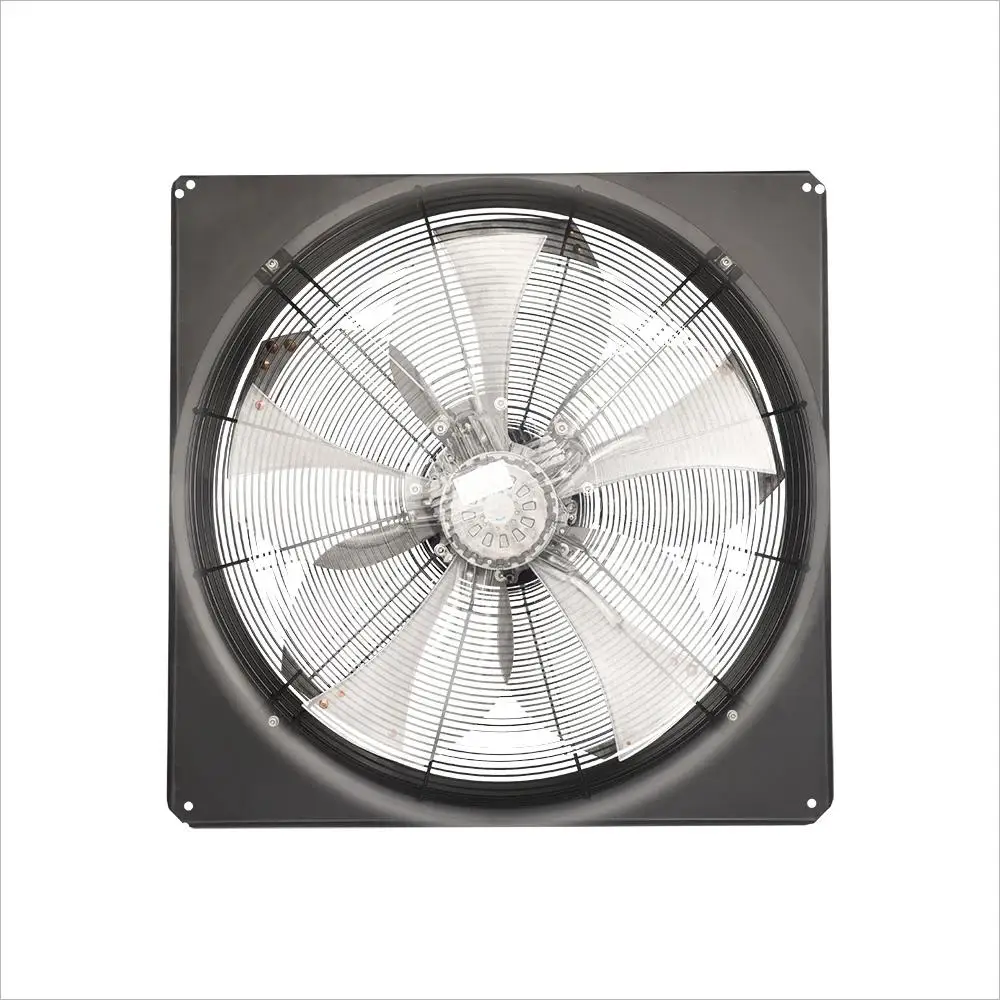

LONGWELL 900mm EC Axial Fan, Industrial Axial Ventilation Fan, 380V, for Industrial Ventilation, Cold Storage, Air Purifiers

$ 299

Category: Tags: , ,
CategoryEC Axial Fan Manufacturer & Supplier
TagsAxial FanEC MotorHeat Pump Applications
Get a Fast Quote from an Engineer Send your airflow, static pressure & voltage — we reply within one working day with a matching model.
✓ 1-day reply ✓ STEP / CAD on request ✓ Factory-direct

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

Your specifications go straight to a sales engineer — no spam, never shared.

Prefer a datasheet?
Download Product Catalog (PDF)
Need the exact model with a measured or digitised curve? This page describes the EC Axial Fan Manufacturer & Supplier range. The Fan Selector lists every LONGWELL EC axial fan model with airflow, static pressure, power, noise, drawing and datasheet.
Search EC axial fan models →
Have your duty point?

See every LONGWELL model whose P-Q curve covers it — margins, noise and power included. No login.

Library: Ø25–1,000 mm, single units up to about 52,000 m³/h — larger duties go straight to an engineer. Prefer to talk it through? Send your specs to an engineer

Description

Types :
Compact Powerhouses Seamlessly Efficient 900mm EC Axial Fans for Space-Constrained Settings
Voltage Ranges :
380V,400V
Frequency :
50/60 Hz
Diamter :
900mm ( impeller diameters )
Motor Types :

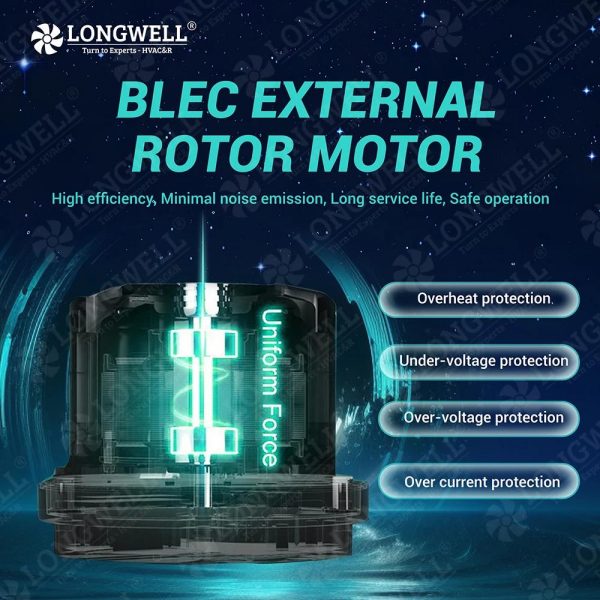

BLEC External Rotor Motor
Speed Control :

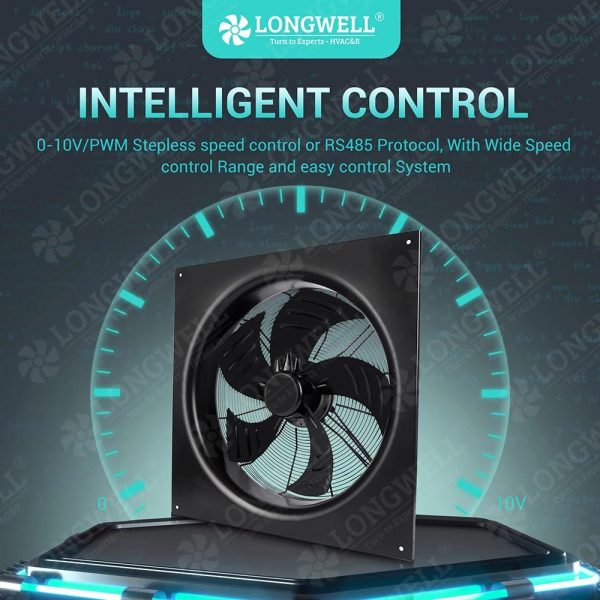

0-10V Signal / PWM / RS485(Optional)
Max.ambient Temp:
-25℃～ +60℃
Certificating :
All necessary certifications suitable for USA & Europe , ETL,UL ,CE ,RoHS, ISO19001,ISO 14001,BSCI
Protection Level:
IP44 ,IP54,IP55
Electronic Protection:
Current limiting protection ,Over-temperature protection,Over-current protection,Locked-rotor protection,Soft start
Working & Storage
Operating temperature：-25~60℃；Operating humidity：0 ~ 85 % RH
Storing temperature：-25 ~ 70℃；Storing humidity：0 ~ 95 % RH
Applicable altitude range：＜1000m
Balancing
According to JB/T 9101-1999 requirements G6.3
Product Standards :
LVD EN60950-1 EMC EN61000-6-3,EN61000-4-2, EN61000-4-3
Mainly Applications
AUH/ AIR PURIFIER / Server Cooling & Ventilation / Grow Tent /Ventilation SYSTEM/ Equipments Cooling /Refrigerator ,etc;ventilation fan cooling;ventilation exhaust fans

Reviews

There are no reviews yet.

Be the first to review “LONGWELL 900mm EC Axial Fan, Industrial Axial Ventilation Fan, 380V, for Industrial Ventilation, Cold Storage, Air Purifiers”

Your email address will not be published. Required fields are marked *

More in this series

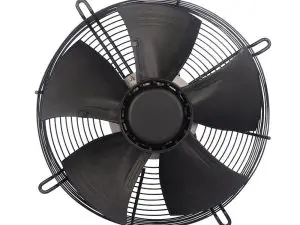

LONGWELL 200mm EC Axial Fan, Industrial Axial Ventilation Fan, 220V IP55, 1391 m³/h Airflow – LWAE3G200SS-7PKW-16LONGWELL 200mm EC Axial Fan, Industrial Axial Ventilation Fan, 220V IP55, 1391 m³/h Airflow – LWAE3G200SS-7PKW-16200 mm1391 m³/h220 VDatasheet, curve & drawing →LONGWELL 710mm EC Axial Fan, Industrial Axial Ventilation Fan, 230V IP54, 13905 m³/h Airflow – LWAE3G710TS-5MKW-01LONGWELL 710mm EC Axial Fan, Industrial Axial Ventilation Fan, 230V IP54, 13905 m³/h Airflow – LWAE3G710TS-5MKW-01710 mm13905 m³/h230 VDatasheet, curve & drawing →LONGWELL 250mm EC Axial Fan, Industrial Axial Ventilation Fan, 220V IP54, 1751 m³/h Airflow – LWAE3G250ST-7MGW-06LONGWELL 250mm EC Axial Fan, Industrial Axial Ventilation Fan, 220V IP54, 1751 m³/h Airflow – LWAE3G250ST-7MGW-06250 mm1751 m³/h220 VDatasheet, curve & drawing →LONGWELL 350mm EC Axial Fan, Industrial Axial Ventilation Fan, 220V PWM Control, Stainless Steel, for AHU, FFU, Cold StorageLONGWELL 350mm EC Axial Fan, Industrial Axial Ventilation Fan, 220V PWM Control, Stainless Steel, for AHU, FFU, Cold Storage220V2500rpmBall bearingView & InquireLONGWELL 400mm EC Axial Fan, Industrial Axial Ventilation Fan, 220V IP54, 4944 m³/h Airflow – LWAE3G400ST-5MGW-06LONGWELL 400mm EC Axial Fan, Industrial Axial Ventilation Fan, 220V IP54, 4944 m³/h Airflow – LWAE3G400ST-5MGW-06400 mm4944 m³/h220 VDatasheet, curve & drawing →LONGWELL 450mm EC Axial Fan, Industrial Axial Ventilation Fan, 220V IP54, 6695 m³/h Airflow – LWAE3G450ST-5MEW-04LONGWELL 450mm EC Axial Fan, Industrial Axial Ventilation Fan, 220V IP54, 6695 m³/h Airflow – LWAE3G450ST-5MEW-04450 mm6695 m³/h220 VDatasheet, curve & drawing →LONGWELL 300mm EC Axial Fan, Industrial Axial Ventilation Fan, 220V IP54, 1906 m³/h Airflow – LWAE3G300ST-5PGW-15LONGWELL 300mm EC Axial Fan, Industrial Axial Ventilation Fan, 220V IP54, 1906 m³/h Airflow – LWAE3G300ST-5PGW-15300 mm1906 m³/h220 VDatasheet, curve & drawing →LONGWELL 630mm EC Axial Fan, Industrial Axial Ventilation Fan, 400V IP54, 13670 m³/h Airflow – LWAE3G630TS-5PEW-11LONGWELL 630mm EC Axial Fan, Industrial Axial Ventilation Fan, 400V IP54, 13670 m³/h Airflow – LWAE3G630TS-5PEW-11630 mm13670 m³/h400 VDatasheet, curve & drawing →LONGWELL 450mm EC Axial Fan, Industrial Axial Ventilation Fan, 220V IP54, 6695 m³/h Airflow – LWAE3G450SS-5MGW-05LONGWELL 450mm EC Axial Fan, Industrial Axial Ventilation Fan, 220V IP54, 6695 m³/h Airflow – LWAE3G450SS-5MGW-05450 mm6695 m³/h220 VDatasheet, curve & drawing →LONGWELL 800mm EC Axial Fan, Industrial Axial Ventilation Fan, 380V IP55, 29400 m³/h Airflow – LWAE3G800TS-4PKW-04LONGWELL 800mm EC Axial Fan, Industrial Axial Ventilation Fan, 380V IP55, 29400 m³/h Airflow – LWAE3G800TS-4PKW-04800 mm29400 m³/h380 VDatasheet, curve & drawing →
