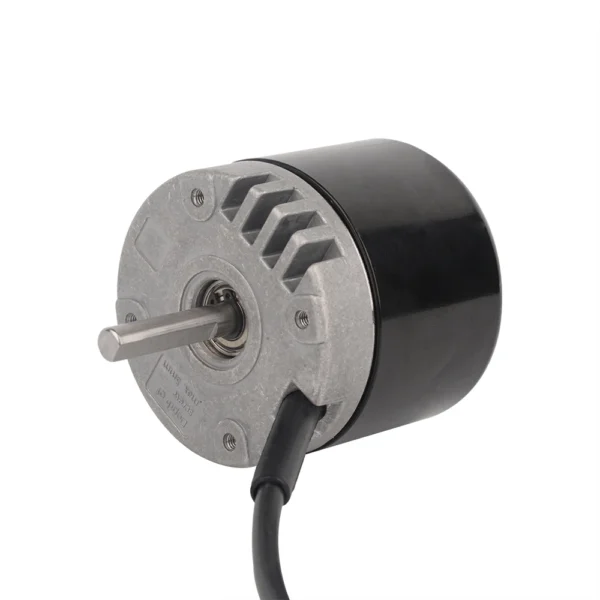

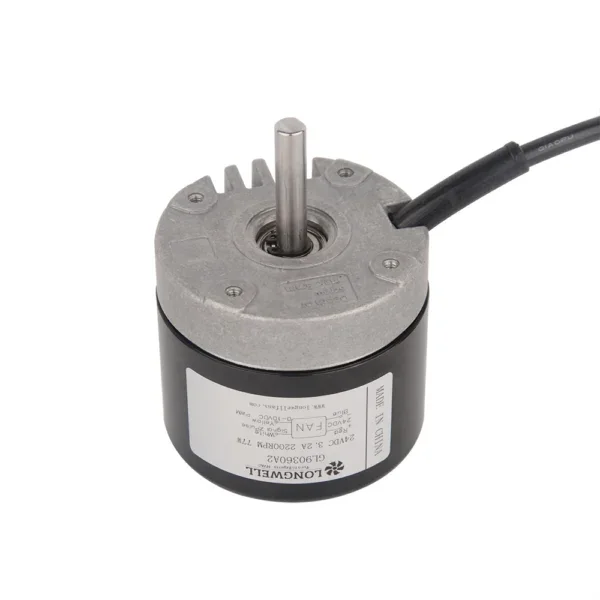

LONGWELL DC Industrial Fan, Industrial Ventilation Fan, 24V

$ 15

Category: Tags: , ,
CategoryBLDC Motors
TagsBrushless MotorPermanent Magnet MotorVariable Speed
Get a Fast Quote from an Engineer Send your airflow, static pressure & voltage — we reply within one working day with a matching model.
✓ 1-day reply ✓ STEP / CAD on request ✓ Factory-direct

Your specifications go straight to a sales engineer — no spam, never shared.

Prefer a datasheet?
Download Product Catalog (PDF)

Description

Products Description

Control Input:
0-10VDC/PWM
Direction of Rotation:
CW/CCW(viewed from rotor end)
Protection Class:
IP44
Insulation Class:
F
Mode Of Operation:
S1
Bearings:
Maintenance-free ball bearings
Technical Feature:
Thermal protection,Soft start protection,Blocking protection

Product Applications

Company Profile

Certifications

Why Choose Us

FAQ

Additional information

Commutation

Brush
Speed(RPM)

2200/4000RPM
Efficiency

IE 4
Type

Brushless Motor
Construction

Permanent Magnet
Protect Feature

Drip-proof

Reviews

There are no reviews yet.
