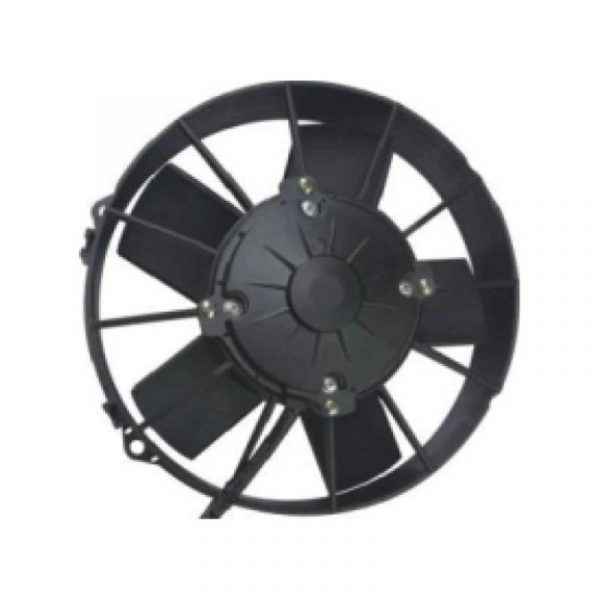

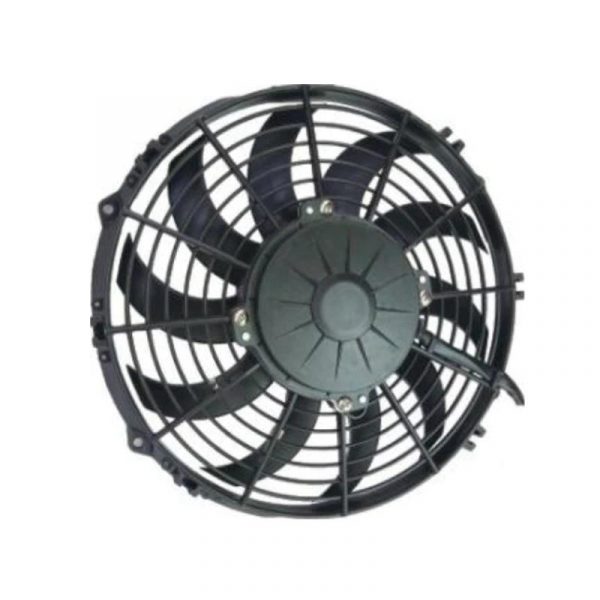

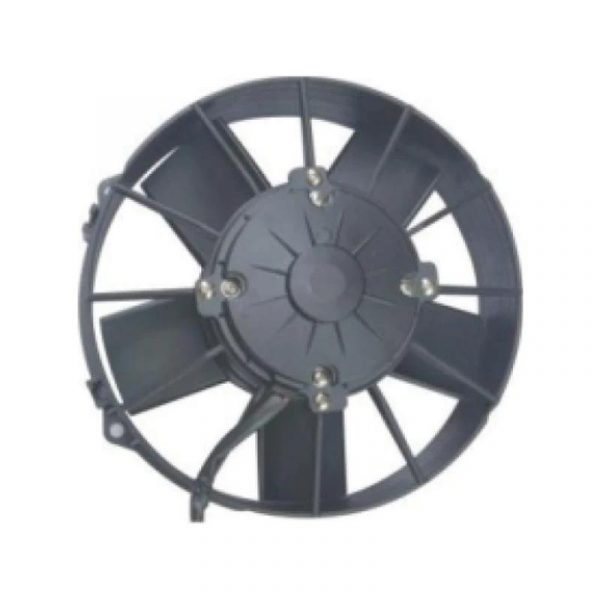

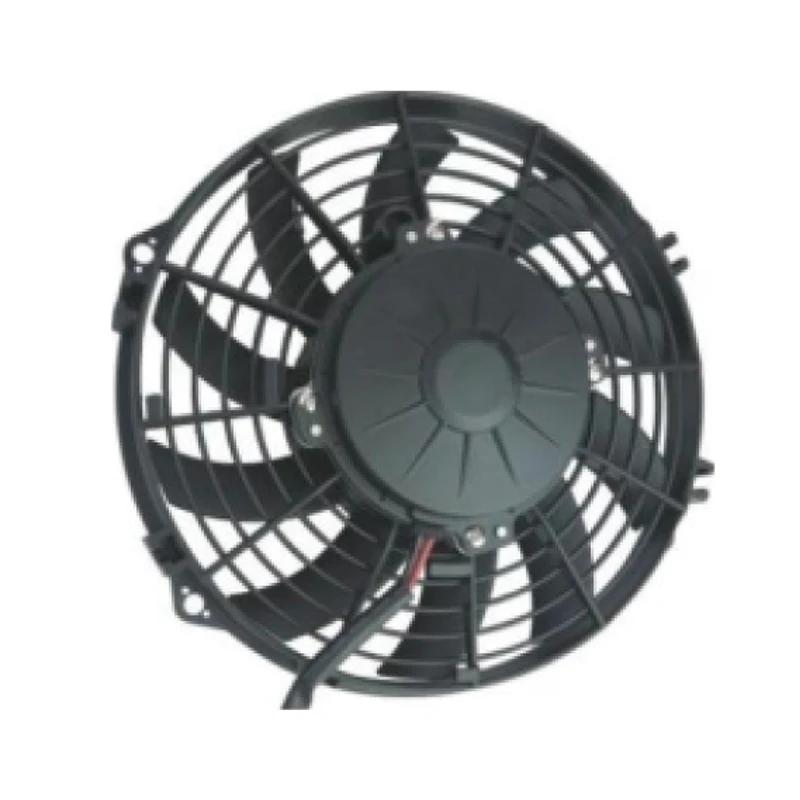

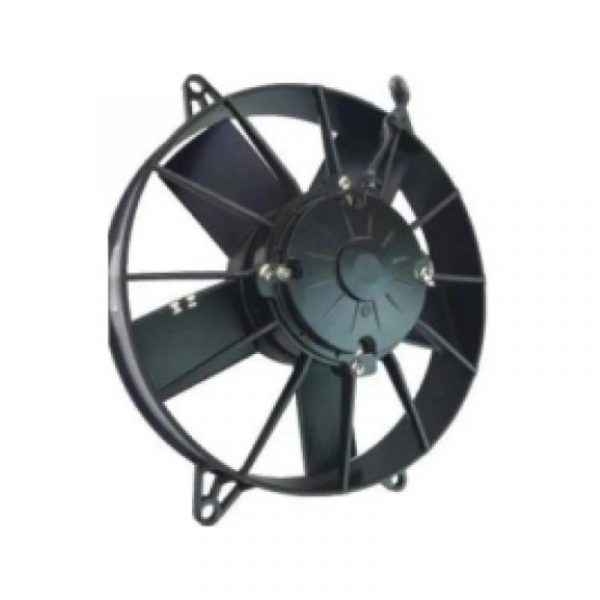

LONGWELL DC Axial Fan, Industrial Axial Ventilation Fan, 12V

$ 10

Category: Tags: , ,
CategoryCondenser Cooling Fans
TagsAxial FanBus Air ConditionerDC Fan
Get a Fast Quote from an Engineer Send your airflow, static pressure & voltage — we reply within one working day with a matching model.
✓ 1-day reply ✓ STEP / CAD on request ✓ Factory-direct

Your specifications go straight to a sales engineer — no spam, never shared.

Prefer a datasheet?
Download Product Catalog (PDF)
Need the exact model with a measured or digitised curve? This page describes the Condenser Cooling Fans range. The Fan Selector lists every LONGWELL condenser axial fan model with airflow, static pressure, power, noise, drawing and datasheet.
Search condenser axial fan models →
Have your duty point?

See every LONGWELL model whose P-Q curve covers it — margins, noise and power included. No login.

Library: Ø25–1,000 mm, single units up to about 52,000 m³/h — larger duties go straight to an engineer. Prefer to talk it through? Send your specs to an engineer

Description

Products Description

Model

Alrflow
(m³/h)

Static Pressure
(Pa)

Voltage
(V)

Current
(A)

Speed
(RPM)

Remarks

LWCC-DC190LB

400
100
12
≤6
≥3600
Φ190Blowing
LWCC-DC190MB

400
100
24
≤3
≥3600
Φ190Blowing
LWCC-DC190LS

400
100
12
≤6
≥3500
Φ190Suction
LWCC-DC190MS

400
100
24
≤3
≥3500
Φ190Suction
