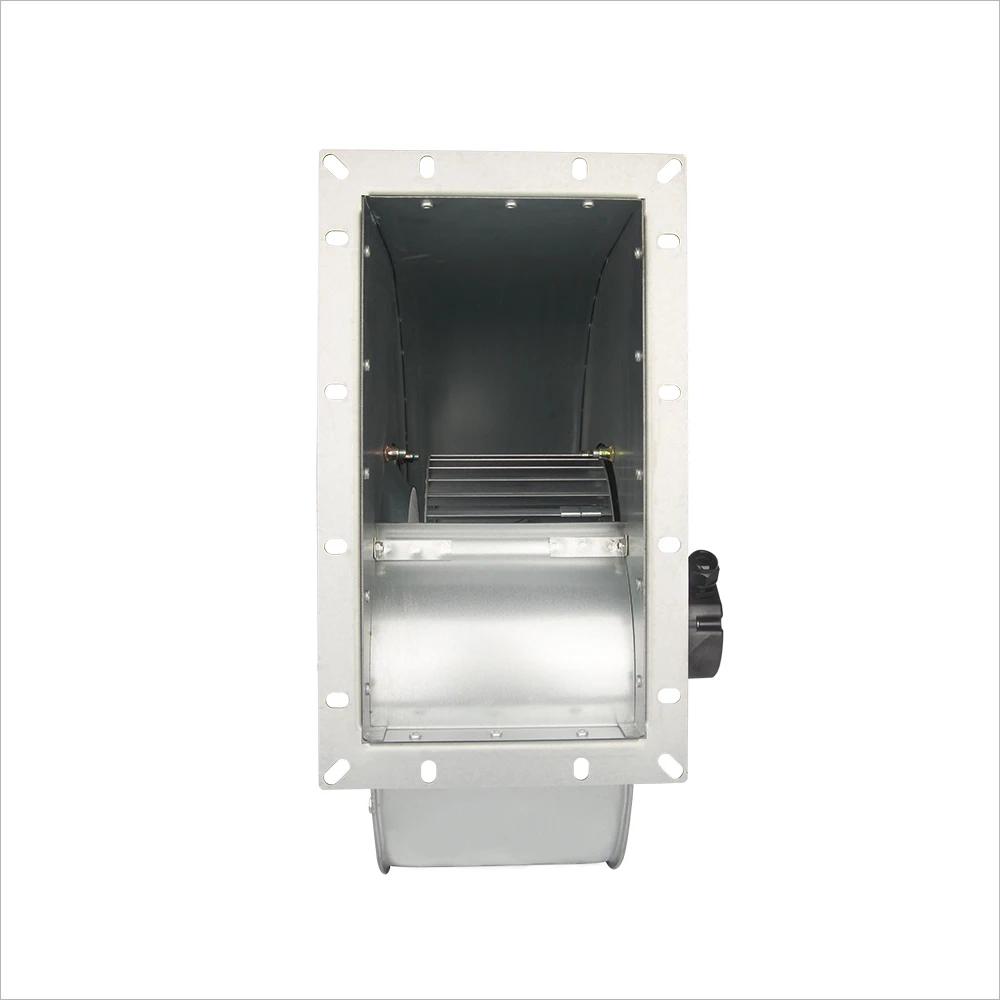

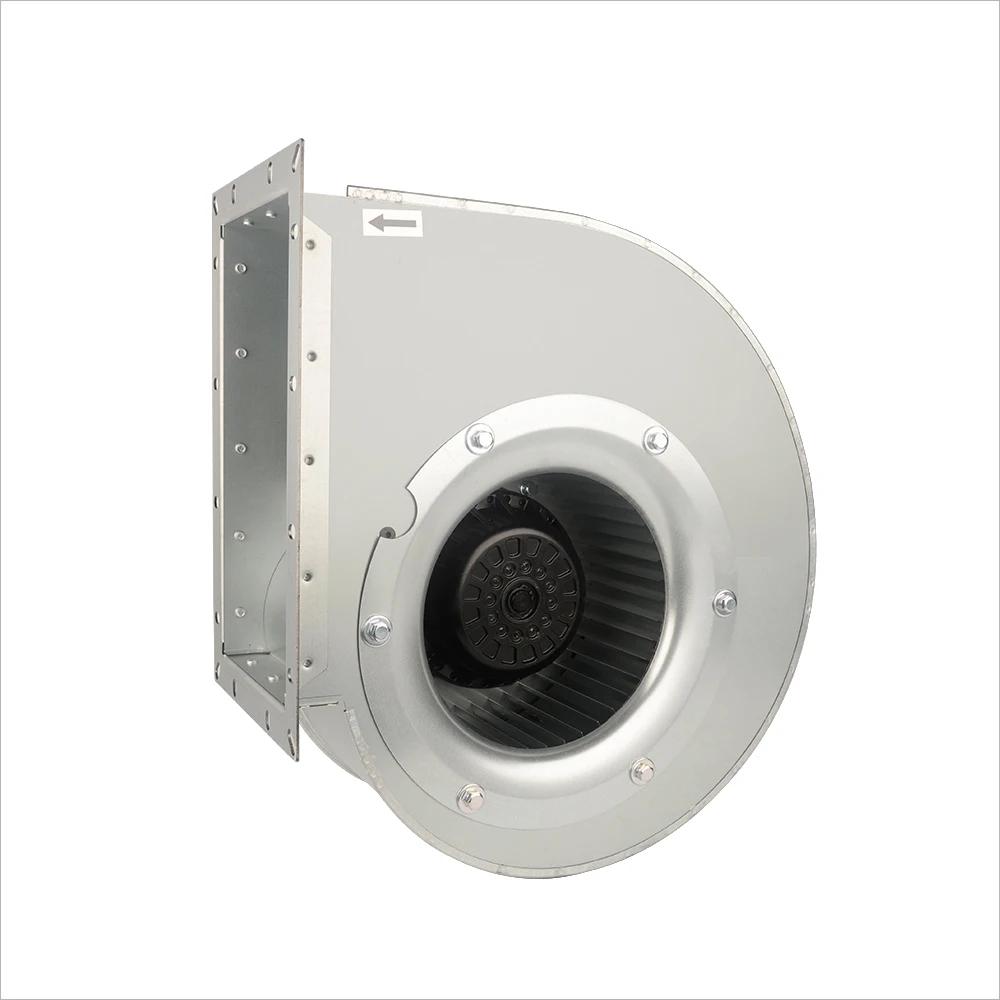

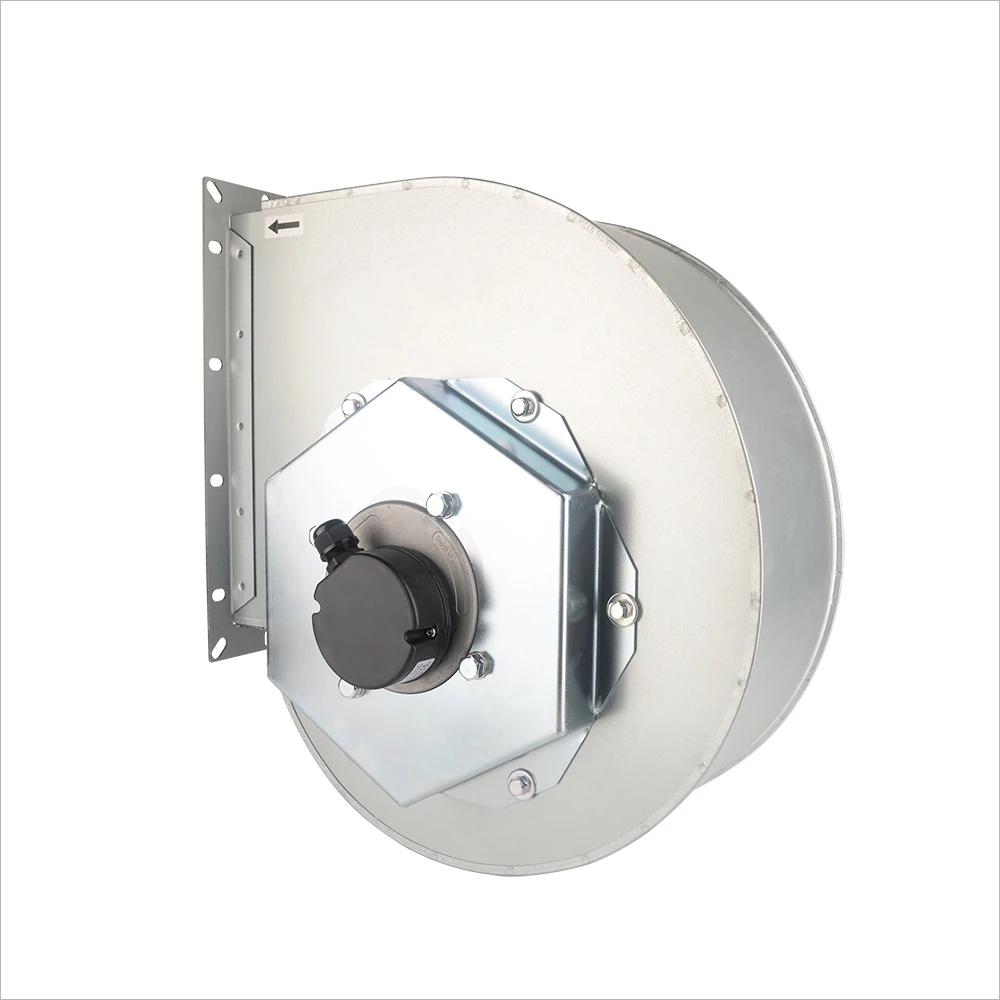

LONGWELL 280mm AC Centrifugal Blower Fan, Industrial Centrifugal Fan, 380V, Galvanized Steel, for Data Center Cooling, Cold Storage, Air Purifiers

Voltage 380V
ISO / CE / UL / ETL Factory & Test Lab OEM / ODM ebm-papst alternative

$ 50

Specifications
Motor
AC motor
Speed
4000rpm, 500RPM, 800RPM, 1500RPM, 600RPM, 900rpm, 2000RPM
Impeller
Galvanized Metal Sheet
Category: Tags: , ,
CategoryIndustrial Centrifugal Fans
TagsCentrifugal Blower FanData CentersExternal Rotor Motor
Get a Fast Quote from an Engineer Send your airflow, static pressure & voltage — we reply within one working day with a matching model.
✓ 1-day reply ✓ STEP / CAD on request ✓ Factory-direct

Your specifications go straight to a sales engineer — no spam, never shared.

Prefer a datasheet?
Download Product Catalog (PDF)
Need the exact model with a measured or digitised curve? This page describes the Industrial Centrifugal Fans range. The Fan Selector lists every LONGWELL industrial centrifugal fan model with airflow, static pressure, power, noise, drawing and datasheet.
Search industrial centrifugal fan models →
Have your duty point?

See every LONGWELL model whose P-Q curve covers it — margins, noise and power included. No login.

Library: Ø25–1,000 mm, single units up to about 52,000 m³/h — larger duties go straight to an engineer. Prefer to talk it through? Send your specs to an engineer

Description

Types :

280mm Unleash Powerful Airflow Control in Data Centers AC Centrifugal Fan with Scroll Casing
Voltage Ranges :

380V
Frequency :

50/60 Hz
Diamter :

280mm ( impeller diameters )
Motor Types :

BLEC External Rotor Motor
Speed Control :

0-10V Signal / PWM / RS485(Optional)
Max.ambient Temp:

-25℃～ +60℃
Certificating :

All necessary certifications suitable for USA & Europe , ETL,UL ,CE ,RoHS, ISO19001,ISO 14001,BSCI
Protection Level:

IP44 ,IP54,IP55
Electronic Protection:

Current limiting protection ,Over-temperature protection,Over-current protection,Locked-rotor protection,Soft start
Working & Storage

Operating temperature：-25~60℃；Operating humidity：0 ~ 85 % RH
Storing temperature：-25 ~ 70℃；Storing humidity：0 ~ 95 % RH
Applicable altitude range：＜1000m
Balancing

According to JB/T 9101-1999 requirements G6.3
Product Standards :

LVD EN60950-1 EMC EN61000-6-3,EN61000-4-2, EN61000-4-3

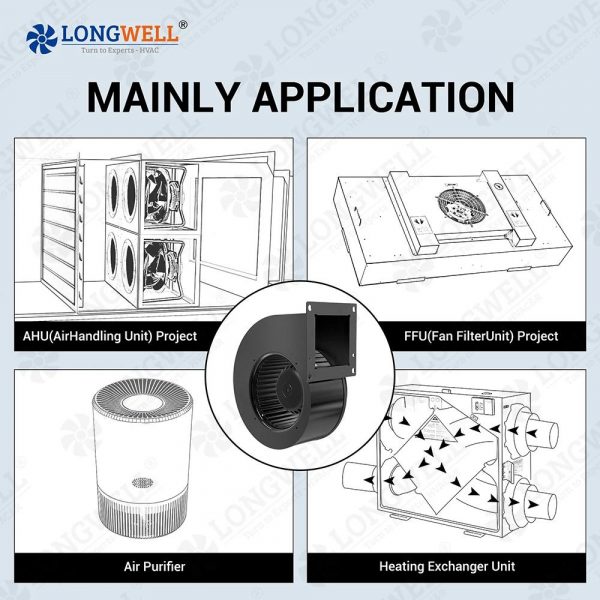

Mainly Applications

AUH/ AIR PURIFIER / Server Cooling & Ventilation / Grow Tent / Medical equipments/Ventilation SYSTEM/ Equipments Cooling /
Refrigerator ,etc;ventilation fan cooling;ventilation exhaust fans

Additional information

Voltage

380V
speed

4000rpm, 500RPM, 800RPM, 1500RPM, 600RPM, 900rpm, 2000RPM
Blade Material

Galvanized Metal
customized support

OEM, ODM, OBM
mounting

FREE STANDING
place of origin

Zhejiang, China
brand name

LONGWELL
warranty

1 Year
After-sales Service Provided

Video technical support
Material

STAINLESS STEEL, Plastic, aluminum alloy, Steel
Power source type

Battery powered
Noise Level

35-39db
Duct Diameter

4in, 6IN, 8in, 12in, 10in, 5IN, 14in
Motor Type

AC motor
Power input

220/380V
Impeller material

Galvanized Metal Sheet
Direction

Clockwise
Bearing

Ball Bearing
Amb,Temp

-25 to +60℃
Insulation

F
Protection Classs

IP44
Protection

Thermal Overload Protector ( TOP)
Type

Centrifugal Fan
Selling units

Single item
Single package size

30X30X20 cm
Single gross weight

5.000 kg
