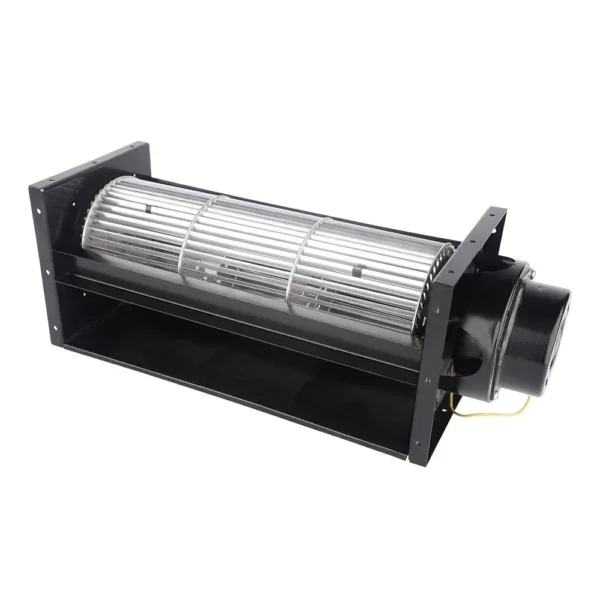

LONGWELL 110mm AC Cross Flow Fan, Tangential Blower Fan, 230V, Aluminum Alloy, for Ovens, Cold Storage, Air Purifiers

Voltage 230 V
ISO / CE / UL / ETL Factory & Test Lab OEM / ODM ebm-papst alternative

$ 15

Category: Tags: , ,
CategoryAC Cross Flow Fans
TagsCross Flow FanExternal Rotor MotorOven Applications
Get a Fast Quote from an Engineer Send your airflow, static pressure & voltage — we reply within one working day with a matching model.
✓ 1-day reply ✓ STEP / CAD on request ✓ Factory-direct

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

Your specifications go straight to a sales engineer — no spam, never shared.

Prefer a datasheet?
Download Product Catalog (PDF)
Need the exact model with a measured or digitised curve? This page describes the AC Cross Flow Fans range. The Fan Selector lists every LONGWELL AC cross flow fan model with airflow, static pressure, power, noise, drawing and datasheet.
Search AC cross flow fan models →
Have your duty point?

See every LONGWELL model whose P-Q curve covers it — margins, noise and power included. No login.

Library: Ø25–1,000 mm, single units up to about 52,000 m³/h — larger duties go straight to an engineer. Prefer to talk it through? Send your specs to an engineer

Description


Types :

110mm AC 220v 115V ventilation cooling cross flow fan blower for oven heating ,ventilation system
Voltage Ranges :

230V
Frequency :

50/60 Hz
Diamter :

110mm ( impeller diameters )
Motor Types :

BLEC External Rotor Motor
Speed Control :

0-10V Signal / PWM / RS485(Optional)
Max.ambient Temp:

-25℃～ +60℃
Certificating :
All necessary certifications suitable for USA & Europe , ETL,UL ,CE ,RoHS, ISO19001,ISO 14001,BSCI
Protection Level:

IP44 ,IP54,IP55
Electronic Protection:
Current limiting protection ,Over-temperature protection,Over-current protection,Locked-rotor protection,Soft start
Working & Storage

Operating temperature：-25~60℃；Operating humidity：0 ~ 85 % RH

Storing temperature：-25 ~ 70℃；Storing humidity：0 ~ 95 % RH

Applicable altitude range：＜1000m
Balancing

According to JB/T 9101-1999 requirements G6.3
Product Standards :

LVD EN60950-1 EMC EN61000-6-3,EN61000-4-2, EN61000-4-3
Mainly Applications

AUH/ AIR PURIFIER / Server Cooling & Ventilation / Grow Tent /Ventilation SYSTEM/ Equipments Cooling /Refrigerator ,etc;ventilation fan cooling;ventilation exhaust fans

Additional information

voltage

230 V
speed

4000 RPM, 1100rpm, 990rpm
mounting

Free Standing
Blade Material

Aluminum Alloy
Material

Aluminum Alloy, Steel , Plastic
customized support

OEM, ODM, OBM

Reviews

There are no reviews yet.

Be the first to review “LONGWELL 110mm AC Cross Flow Fan, Tangential Blower Fan, 230V, Aluminum Alloy, for Ovens, Cold Storage, Air Purifiers”

Your email address will not be published. Required fields are marked *

More in this series

LONGWELL AC Cross Flow Fan, Tangential Blower Fan, 230V, Low Noise, for Cold Storage, Air Curtains, Floor Heating – LWLONGWELL AC Cross Flow Fan, Tangential Blower Fan, 230V, Low Noise, for Cold Storage, Air Curtains, Floor Heating – LW230V4000rpmOtherView & InquireLONGWELL AC Cross Flow Fan, Tangential Blower Fan, 240V, Aluminum Alloy, for AHU, FFU, Air CurtainsLONGWELL AC Cross Flow Fan, Tangential Blower Fan, 240V, Aluminum Alloy, for AHU, FFU, Air CurtainsAC 100V~240V4000 RPMFree StandingView & InquireLONGWELL 90mm AC Cross Flow Fan, Tangential Blower Fan, 230V, Aluminum Alloy, for Air Curtains, Cleanroom Ventilation, Air PurifiersLONGWELL 90mm AC Cross Flow Fan, Tangential Blower Fan, 230V, Aluminum Alloy, for Air Curtains, Cleanroom Ventilation, Air Purifiers230 V4000 RPMFree StandingView & InquireLONGWELL 40mm AC Cross Flow Fan, Tangential Blower Fan, 115V, Aluminum Alloy, for Floor Heating, AHU, FFULONGWELL 40mm AC Cross Flow Fan, Tangential Blower Fan, 115V, Aluminum Alloy, for Floor Heating, AHU, FFU115V/220V/230V4000 RPMFree StandingView & InquireLONGWELL 45mm AC Cross Flow Fan, Tangential Blower Fan, 230V, Aluminum Alloy, Low Noise, for Air Curtains, Ovens, FireplacesLONGWELL 45mm AC Cross Flow Fan, Tangential Blower Fan, 230V, Aluminum Alloy, Low Noise, for Air Curtains, Ovens, Fireplaces230V4000rpmAC Shaded Pole MotorView & InquireLONGWELL 30mm EC Cross Flow Fan, Tangential Blower Fan, 230V, Aluminum Alloy, for Cold Storage, AHU, FFULONGWELL 30mm EC Cross Flow Fan, Tangential Blower Fan, 230V, Aluminum Alloy, for Cold Storage, AHU, FFU230 V4000 RPMFree StandingView & InquireLONGWELL 50mm AC Cross Flow Fan, Tangential Blower Fan, 115V, Low Noise, for Air Curtains, Ovens, Floor Heating – LWCA-50-SLONGWELL 50mm AC Cross Flow Fan, Tangential Blower Fan, 115V, Low Noise, for Air Curtains, Ovens, Floor Heating – LWCA-50-S115VAC Shaded Pole MotorView & InquireLONGWELL 30mm AC Cross Flow Fan, Tangential Blower Fan, 230V, for Ovens, Floor Heating, Air Purifiers – LWLONGWELL 30mm AC Cross Flow Fan, Tangential Blower Fan, 230V, for Ovens, Floor Heating, Air Purifiers – LW230V4000rpmAC motorView & InquireLONGWELL 30mm EC Cross Flow Fan, Tangential Blower Fan, 230V, Aluminum Alloy, for AHU, FFU, Cold StorageLONGWELL 30mm EC Cross Flow Fan, Tangential Blower Fan, 230V, Aluminum Alloy, for AHU, FFU, Cold Storage230 V4000 RPMFree StandingView & InquireLONGWELL 45MM AC Cross Flow Fan, Tangential Blower Fan, 230V, Aluminum Alloy, for Fireplaces, Boilers, AHULONGWELL 45MM AC Cross Flow Fan, Tangential Blower Fan, 230V, Aluminum Alloy, for Fireplaces, Boilers, AHU230 V4000 RPMFree StandingView & Inquire

Related for the same application

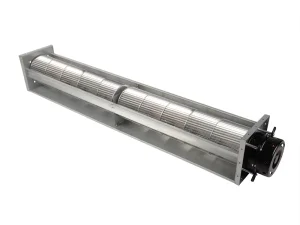

LONGWELL 150mm AC Cross Flow Fan, Tangential Blower Fan, 230V, 4000 m³/h Airflow – LWCA-1501200SN-06LONGWELL 150mm AC Cross Flow Fan, Tangential Blower Fan, 230V, 4000 m³/h Airflow – LWCA-1501200SN-06150 mm4000 m³/h230 VDatasheet, curve & drawing →LONGWELL 40mm AC Cross Flow Fan, Tangential Blower Fan, 115V, 30 m³/h Airflow – LWCA-4090UN-06LONGWELL 40mm AC Cross Flow Fan, Tangential Blower Fan, 115V, 30 m³/h Airflow – LWCA-4090UN-0640 mm30 m³/h115 VDatasheet, curve & drawing →LONGWELL 450mm AC Backward Curved Centrifugal Fan, Industrial Centrifugal Blower, 230V, for HVAC Systems, Cold Storage, Air PurifiersLONGWELL 450mm AC Backward Curved Centrifugal Fan, Industrial Centrifugal Blower, 230V, for HVAC Systems, Cold Storage, Air PurifiersView & InquireLONGWELL Axial Fan, Industrial Axial Ventilation Fan, 110V, Galvanized Steel, Low NoiseLONGWELL Axial Fan, Industrial Axial Ventilation Fan, 110V, Galvanized Steel, Low Noise110v /220v 24VDC/ 48VDC4000 RPMDuct FanView & InquireLONGWELL 250mm AC Backward Curved Centrifugal Fan, Industrial Centrifugal Blower, 115V, for Telecom Cooling, Cold Storage, Air PurifiersLONGWELL 250mm AC Backward Curved Centrifugal Fan, Industrial Centrifugal Blower, 115V, for Telecom Cooling, Cold Storage, Air PurifiersView & InquireLONGWELL Cross Flow Fan, Tangential Blower Fan, 110/120V, Low Noise, for Air Curtains, HVAC Systems, Cold StorageLONGWELL Cross Flow Fan, Tangential Blower Fan, 110/120V, Low Noise, for Air Curtains, HVAC Systems, Cold Storage110/120/220/230/12/24 VOtherView & InquireLONGWELL 146mm AC Double Inlet Forward Curved Centrifugal Fan, Double Inlet Blower Fan, 220/230V, Galvanized Steel, for Cold Storage, Air Purifiers, Industrial VentilationLONGWELL 146mm AC Double Inlet Forward Curved Centrifugal Fan, Double Inlet Blower Fan, 220/230V, Galvanized Steel, for Cold Storage, Air Purifiers, Industrial Ventilation220/230V4000rpmFREE STANDINGView & InquireLONGWELL 120mm EC Cross Flow Fan, Tangential Blower Fan, 230V, 1600 m³/h Airflow – LWCE-120680SN-06LONGWELL 120mm EC Cross Flow Fan, Tangential Blower Fan, 230V, 1600 m³/h Airflow – LWCE-120680SN-06120 mm1600 m³/h230 VDatasheet, curve & drawing →LONGWELL 30mm DC Cross Flow Fan, Tangential Blower Fan, 24V 0–10V/PWM Control, 168 m³/h Airflow – LWCD-30650MN-06LONGWELL 30mm DC Cross Flow Fan, Tangential Blower Fan, 24V 0–10V/PWM Control, 168 m³/h Airflow – LWCD-30650MN-0630 mm168 m³/h24 VDatasheet, curve & drawing →LONGWELL 300mm Centrifugal Blower Fan, Industrial Centrifugal Fan, 4300 m³/h Airflow, 720 Pa Static Pressure, for HVAC Systems – LWFA-E-300-01LONGWELL 300mm Centrifugal Blower Fan, Industrial Centrifugal Fan, 4300 m³/h Airflow, 720 Pa Static Pressure, for HVAC Systems – LWFA-E-300-01300 mm4300-6500 m³/h720-700 PaDatasheet, curve & drawing →
